Product details

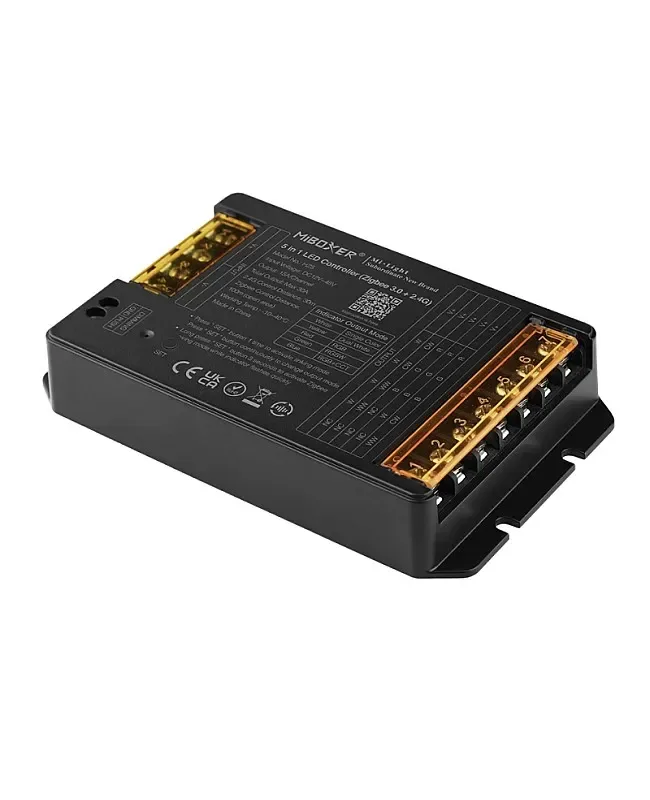

30A 5 In 1 Zigbee Remote Controller
LumaCircuit offers 30A 5 In 1 Zigbee Remote Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 5 In 1 Zigbee 3.0 + 2.4G RF LED Controller Size: 134*81*24mm(L*W*H) 16 Million Colors Saturation Color Temperature Brightness Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

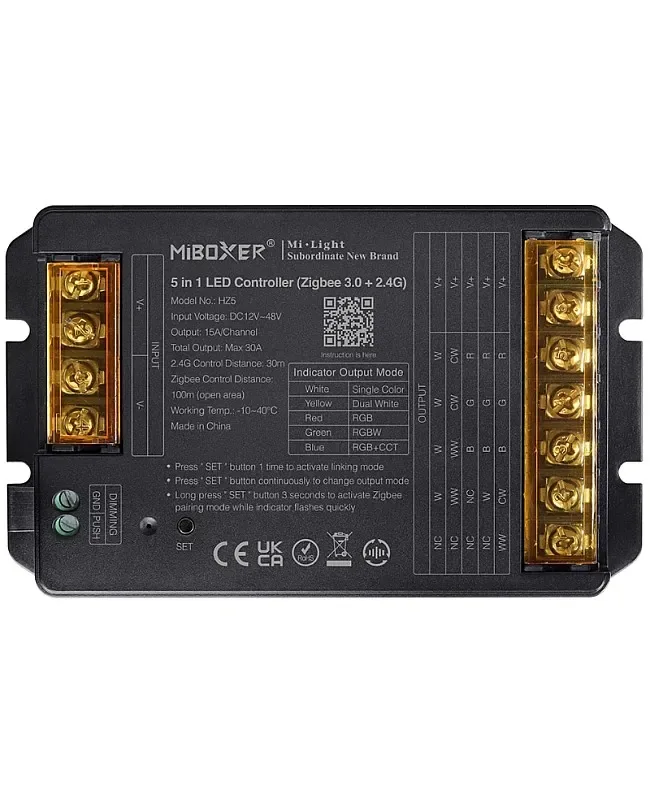

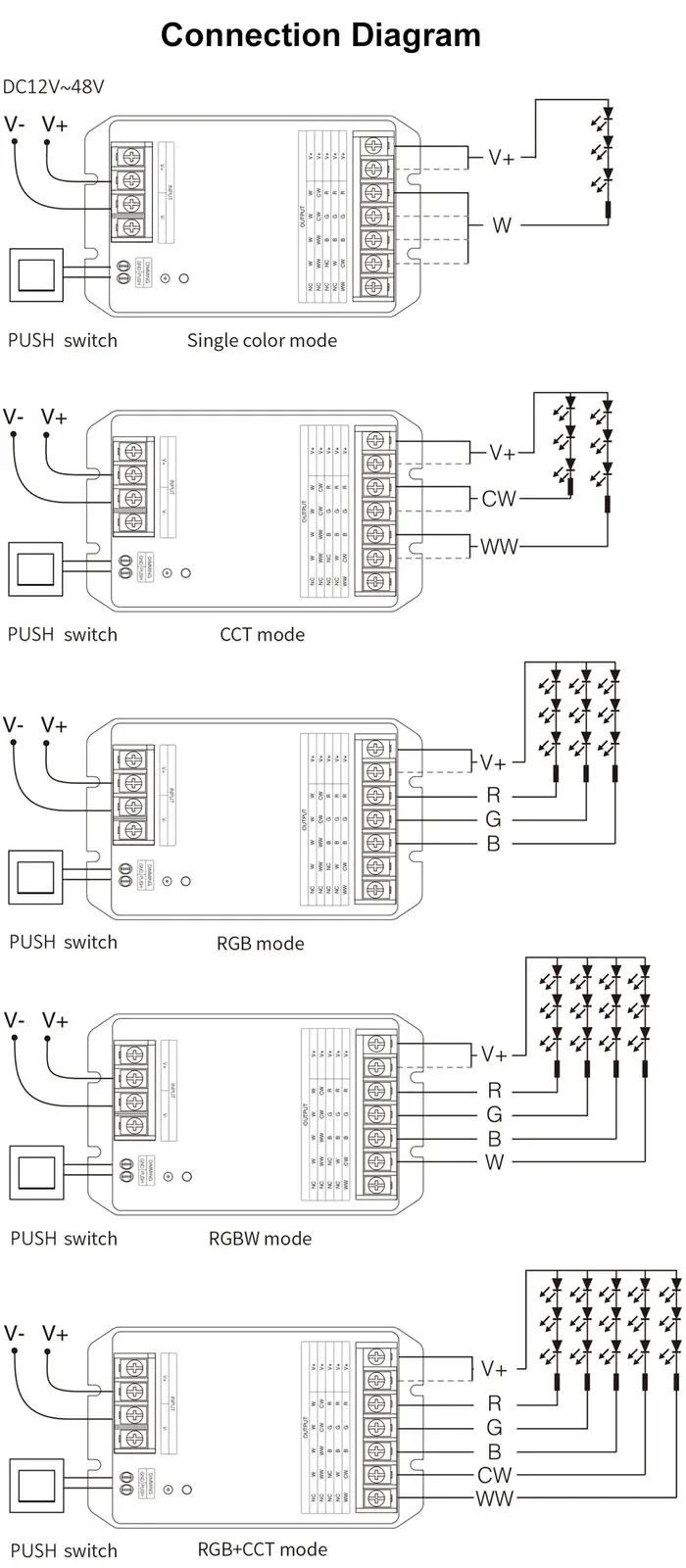

- The wireless controller Zigbee remote controller has a 5-in-1 design. Press the "SET" button on the controller to switch the output mode from single color, dual white, RGB, RGBW, and RGB+CCT. It supports individual or multi-zone control and is widely used in both home and commercial applications. The max output current is up to 30A, allowing more LED lights per unit.
- Type: 5 In 1 Zigbee 3.0 + 2.4G RF LED Controller

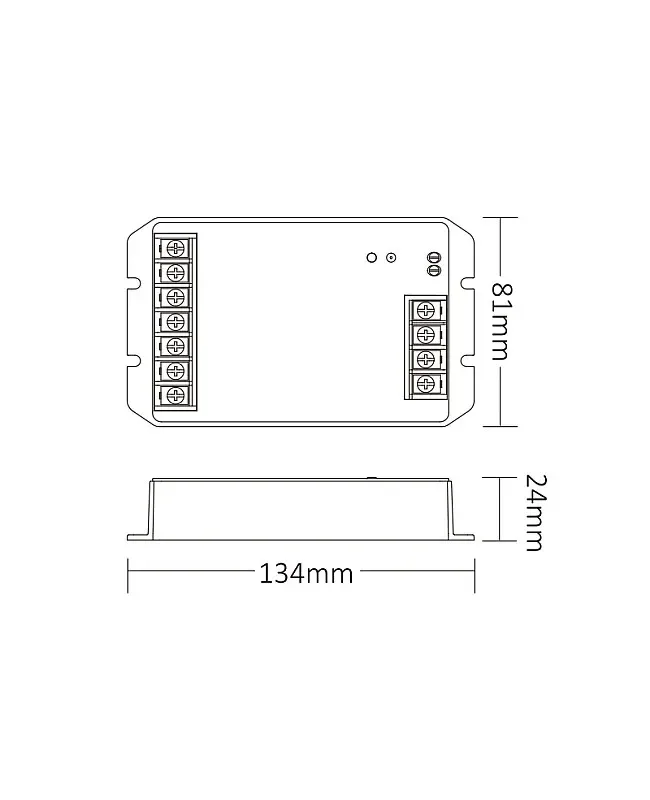

- Size: 134*81*24mm(L*W*H)
- 16 Million Colors Saturation Color Temperature Brightness Adjustable
- Built-in 18 Dynamic Modes With Jumping, Gradually Changing(Only For 2.4G Remote Control)
- Automatic Synchronization
- Control Signal: Zigbee 3.0 + 2. RF
- Control Distance: Zigbee: ≤100m(Open Area) / 2.4G RF: ≤30m
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-48 V
- LumaCircuit model: LC-CTL-KQNWAZ
- Size: 134*81*24mm(L*W*H)
- Input Voltage: -48V
- Output Current: 30A
- Control Signal: Zigbee 3.0 + 2. RF
- Control Distance: Zigbee: ≤100m(Open Area) / 2.4G RF: ≤30m
- Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, And voice assistant
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
- Dimensions found: 134x81x24mm / 24mm / 100m / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller Zigbee remote controller has a 5-in-1 design. Press the "SET" button on the controller to switch the output mode from single color, dual white, RGB, RGBW, and RGB+CCT. It supports individual or multi-zone control and is widely used in both home and commercial applications. The max output current is up to 30A, allowing more LED lights per unit. The integrates Zigbee 3.0 and 2.4 GHz standard wireless transmission technology, featuring lower power consumption and a mesh network with strong anti-interference capabilities wireless controller 2.4G remote controls allow you to adjust the static color or dynamic mode, as well as the color temperature and brightness of your LED Lighting for various scenes. There are 16 million colors and 18 dynamic modes available. The Zigbee controller will forward the remote control signal to another 30A controller within a 30-meter range, effectively extending the control distance. And all controllers will work in synchronization. After being paired with the Zigbee 3.0 gateway, the Zigbee 3.0 controller can be controlled by the Tuya Smart App to achieve additional functions, such as wireless dimming, timer, group control, and music rhythm. And support third-party voice control commands. It can enter Philips Hue, IKEA TRADFRI, and Amazon series standard Zigbee 3.0 gateways.
Specifications
Type: 5 In 1 Zigbee 3.0 + 2.4G RF LED Controller
Model
Size: 134*81*24mm(L*W*H)
Input Voltage: -48V
Output Current: 30A
16 Million Colors Saturation Color Temperature Brightness Adjustable
Built-in 18 Dynamic Modes With Jumping, Gradually Changing(Only For 2.4G Remote Control)
Support PUSH Dimming
Auto-forwarding
Automatic Synchronization
Have DND Function
Control Signal: Zigbee 3.0 + 2. RF
Control Distance: Zigbee: ≤100m(Open Area) / 2.4G RF: ≤30m
Support TUYA SMART APP Control(Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control(Zigbee 3.0 Gateway Needed): Amazon Alexa, Google Assistant, Yandex Alice, voice assistant, Baidu, And voice assistant
Support DMX512 Control(DMX512 LED Transmitter Needed)
Can Enter Into Philips Hue, IKEA TRADFRI, Amazon Echo Plus( Gen), Echo( Gen), Echo Studio, Echo Show( Gen) Standard Zigbee 3.0 Gateways
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃

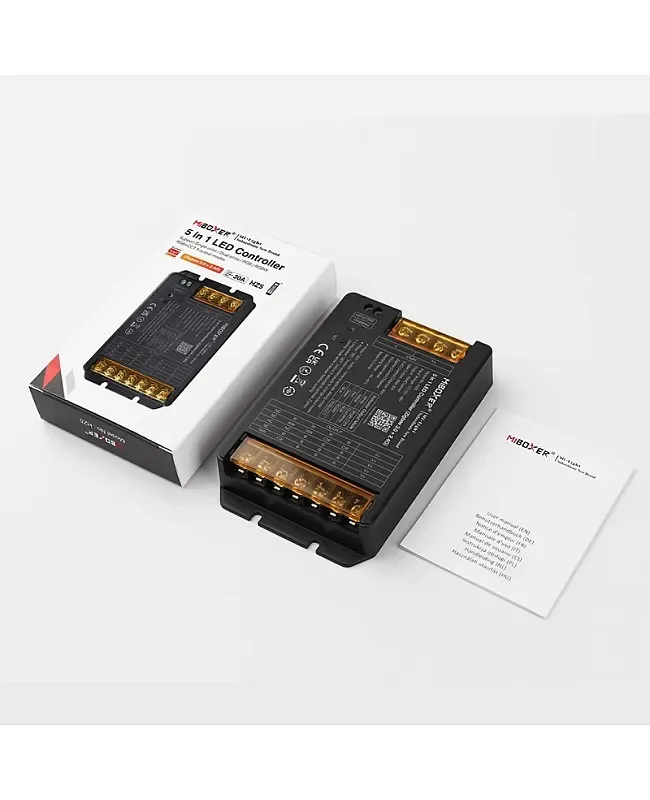

Includes
1 * Zigbee Remote Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
