DC12V DMX512 Mini Master DMX Controller
LumaCircuit offers DC12V DMX512 Mini Master DMX Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Temperature: -20-55℃ Size: 130mm*70mm*24mm(L*W*H) Working Voltage: DC12V-DC24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

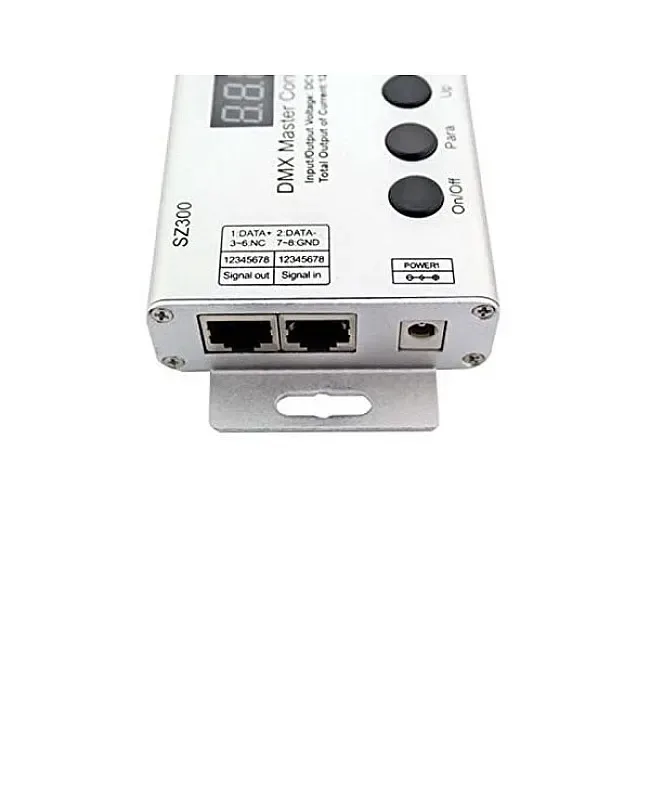

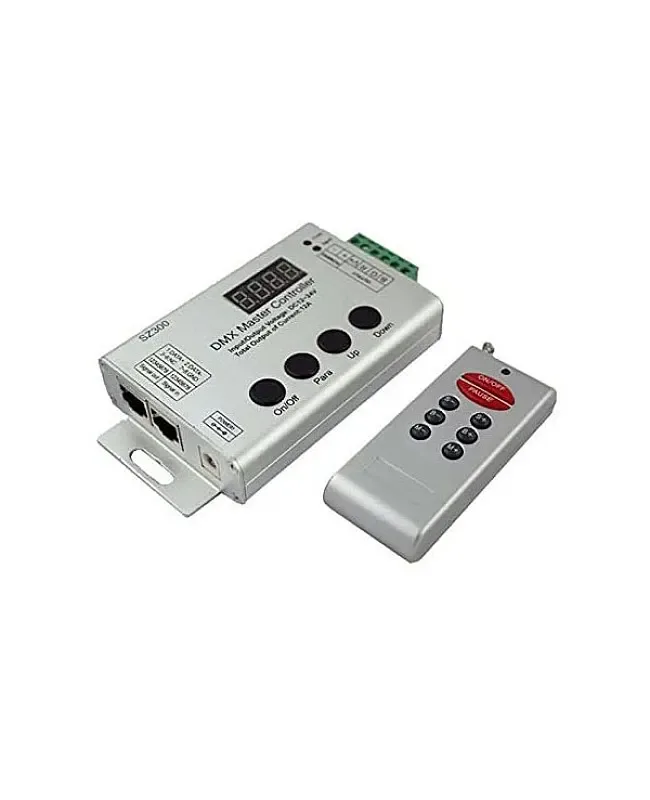

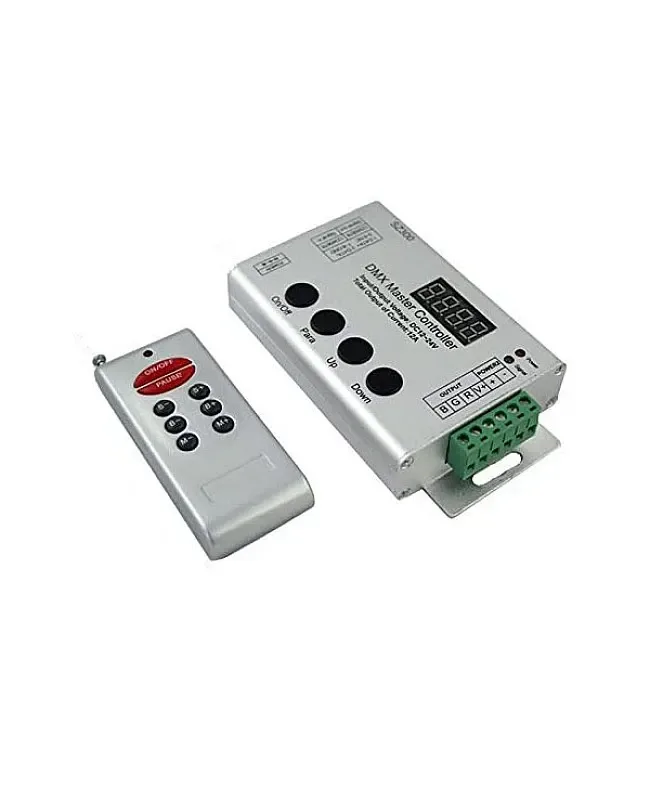

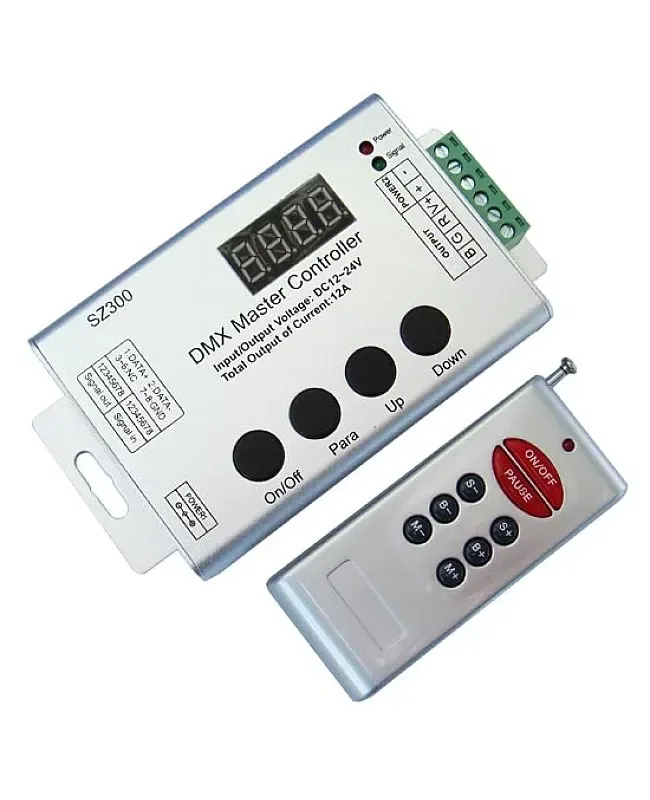

- The DMX512 mini master controller can transmit the signal to other DMX512 controllers. It can control as many as 255 pieces of DMX512 controllers. With a 3-output-channel design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V. The eight keys that the RF remote control includes allow you to turn on/off the LED lights, adjust the brightness, change the speed of the color-changing mode, or change the working modes.
- Working Temperature: -20-55℃
- Size: 130mm*70mm*24mm(L*W*H)
- Working Voltage: DC12V-DC24V
- Static Power Consumption: <1W
- Output Channel: 1 (DMX512 Signal)
- Support Branch Controllers: 255
- Max Output Current: ≤4A(Each Channel)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Working Temperature: -20-55℃
- Size: 130mm*70mm*24mm(L*W*H)
- Working Voltage: DC12V-DC24V
- Static Power Consumption: <1W
- Output Channel: 1 (DMX512 Signal)
- Modes: 40
- Support Branch Controllers: 255
- PWM Output: 1 Channel
- Output Channels: 3
- Max Output Current: ≤4A(Each Channel)
- Output Power: 144W(DC12V), 288W(DC24V)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The DMX512 mini master controller can transmit the signal to other DMX512 controllers. It can control as many as 255 pieces of DMX512 controllers. With a 3-output-channel design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V. The eight keys that the RF remote control includes allow you to turn on/off the LED lights, adjust the brightness, change the speed of the color-changing mode, or change the working modes. The DMX512 mini controllers provide 40 various working modes, seven static colors, and 33 dynamic modes; the installer can adjust the brightness of static colors, adjust the brightness and speed of dynamic modes.
Specifications
Working Temperature: -20-55℃
Size: 130mm*70mm*24mm(L*W*H)
Working Voltage: DC12V-DC24V
Static Power Consumption: <1W
Brightness Levels: 256
Speed Levels: 99
Output Channel: 1 (DMX512 Signal)
Modes: 40
Support Branch Controllers: 255
PWM Output: 1 Channel
Output Channels: 3
Max Output Current: ≤4A(Each Channel)
Output Power: 144W(DC12V), 288W(DC24V)
Memory Function: YES
RF Frequency: 433.9 GHz
PWM Frequency
RF Control Distance: ≤50m
Weight: 300g
1 * DMX512 Mini-Master Controller
1 * Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
