GL C 009W Wireless WiFi Light Dimmer Voice Control
LumaCircuit offers GL C 009W Wireless WiFi Light Dimmer Voice Control as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: WiFi Wireless Light Dimmer Model: (For Single Color) GL-C-006W(For Dual White) Material: Fireproof And High-Temperature Resistance The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless WiFi light dimmer offers a convenient way to control the brightness of your lights through the WiFi network. It has a built-in WiFi module for a wide coverage area and fast transmission speed. No gateway is required, allowing you to connect it directly to your home network. The installer can download the APP " Tuya" from the Apple store or Google Store to your mobile phone and use your phone to control the brightness from 1% to 100% for various scenes. The dimmer works with Amazon Alexa.
- Type: WiFi Wireless Light Dimmer
- Model: (For Single Color) GL-C-006W(For Dual White)
- Material: Fireproof And High-Temperature Resistance

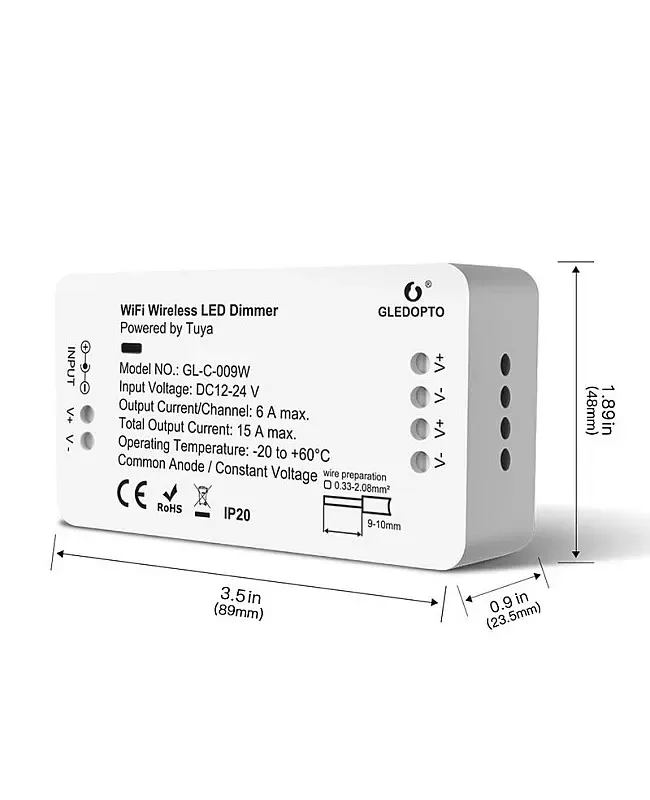

- Size: 89*48*23.5mm(L*W*H)
- Output Current/Channel: 6A Max
- Total Output Current: 15A Max
- WiFi Control Voice Control Remote Control Group Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-A2DHBG
- Material: Fireproof And High-Temperature Resistance
- Size: 89*48*23.5mm(L*W*H)
- Input Voltage: -24V
- Output Current/Channel: 6A Max
- Total Output Current: 15A Max
- IP Rating: IP20
- Input Ports: DC Socket 5.5*2.1mm V+ And V
- Working Temperature: -20℃-+60℃
- Dimensions found: 89x48x23.5mm / 23.5mm / 5.5x2.1mm / 2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

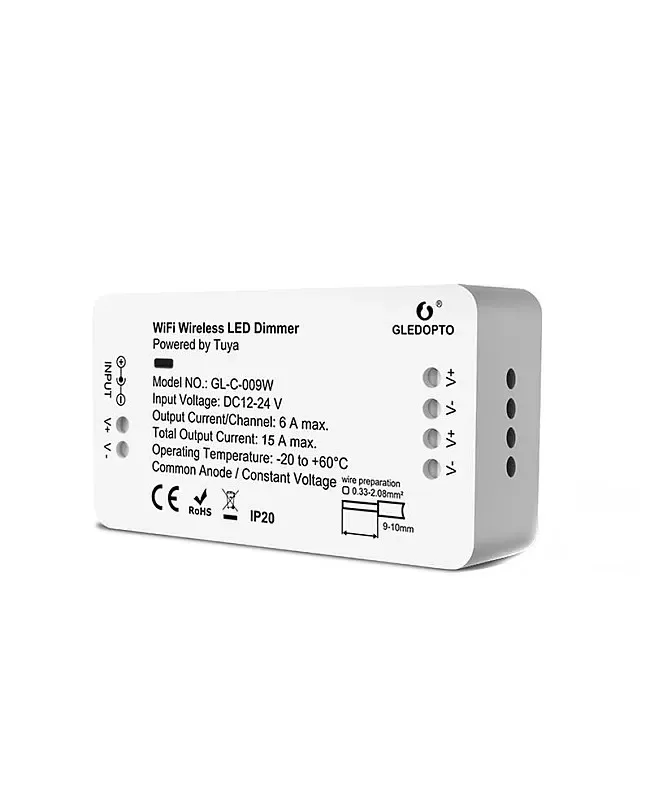

The wireless WiFi light dimmer offers a convenient way to control the brightness of your lights through the WiFi network. It has a built-in WiFi module for a wide coverage area and fast transmission speed. No gateway is required, allowing you to connect it directly to your home network. The installer can download the APP " Tuya" from the Apple store or Google Store to your mobile phone and use your phone to control the brightness from 1% to 100% for various scenes. The dimmer works with Amazon Alexa. The installer can adjust brightness on/off through voice commands, which can free your hands the product has two input ports: 5.5*2.1mm DC ports and V+/V- ports, which are easily connected to the light transformer. With a press-type design terminal, connecting to the LED lights is easy.
Specifications
Type: WiFi Wireless Light Dimmer
Model: (For Single Color) GL-C-006W(For Dual White)
Material: Fireproof And High-Temperature Resistance
Size: 89*48*23.5mm(L*W*H)
Input Voltage: -24V
Output Current/Channel: 6A Max
Total Output Current: 15A Max
Brightness Dimmable
WiFi Control Voice Control Remote Control Group Control
Common Anode And Constant Voltage Output
APP Name: Tuya
Mobile Operating Systems Supported: IOS/Android
Works With Amazon Alexa
IP Rating: IP20
Press Type Design Terminal
Suitable For Various Indoor Lighting Applications
Input Ports: DC Socket 5.5*2.1mm V+ And V
Working Temperature: -20℃-+60℃
Includes
1 * WiFi Light Dimmer
1 * User Manual
1 * 3cm Sticker
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
