Product details

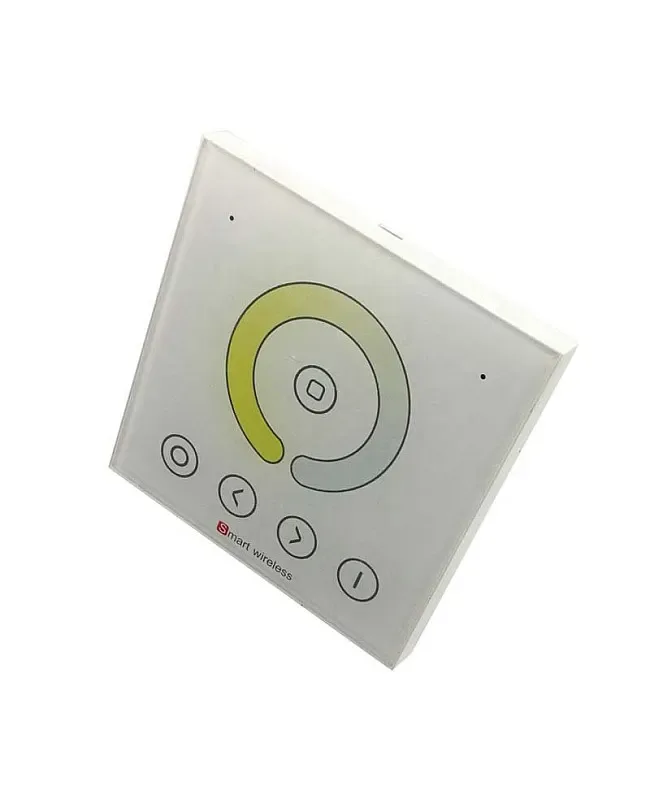

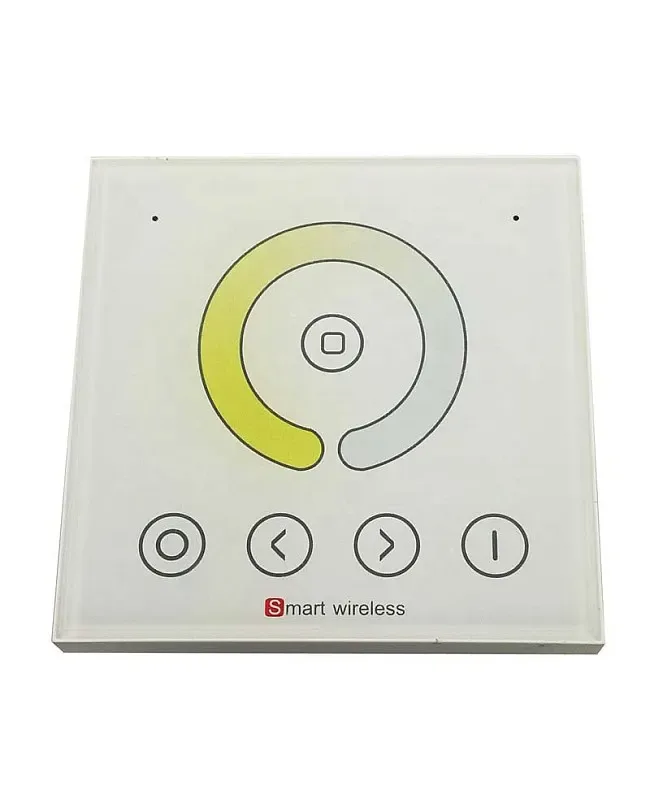

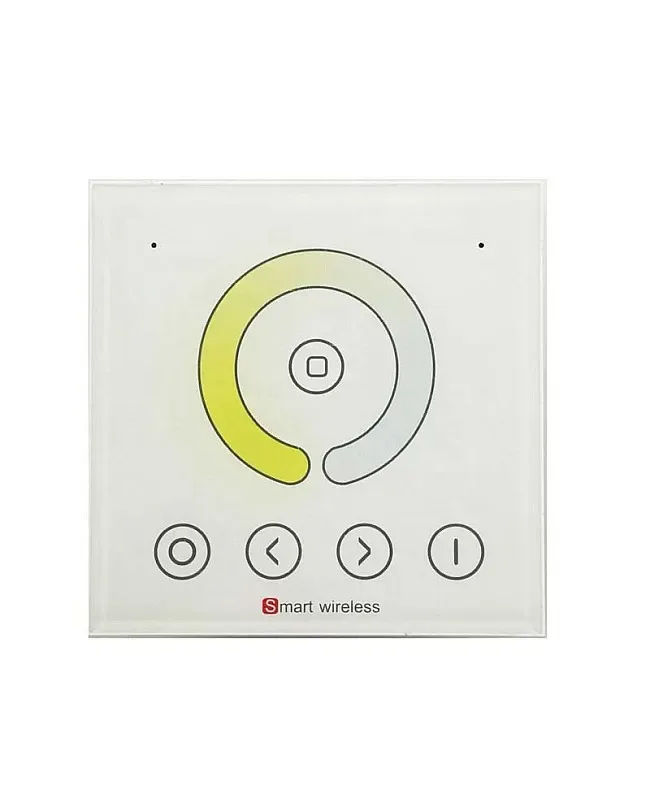

DC12V 24V RF Wall Panel CCT LED Controller
LumaCircuit offers DC12V 24V RF Wall Panel CCT LED Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Voltage: DC12V/DC24V Output Channel: 2 Channels Max Output Power: 96W(DC12V)/192W(DC24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RF wall panel CCT LED controllers work on DC12V or DC24V and are designed for constant working voltage LED lights. The CCT LED controller has a 2-output-channel design, with a max output current of 4A and a max output power of up to 192W. Adopts the capacitive touch-sensitive design, unique appearance, and easy operation. With memory function, each time it powers on, it resumes the mode that was stopped in the last power-down. The dimension is according to the 86-type European standards.
- Working Voltage: DC12V/DC24V
- Output Channel: 2 Channels
- Max Output Power: 96W(DC12V)/192W(DC24V)
- Designed For CW+WW LED Lighting
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- 1 * RF Wall Panel CCT LED Controller
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: CCT
- Size: 86*86*34mm
- Working Voltage: DC12V/DC24V
- Output Channel: 2 Channels
- Output Current: 4A
- Max Output Power: 96W(DC12V)/192W(DC24V)
- PWM Frequency: RF
- Remote Distance: 20-30M
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- LumaCircuit model: LC-CTL-HPX6NB
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

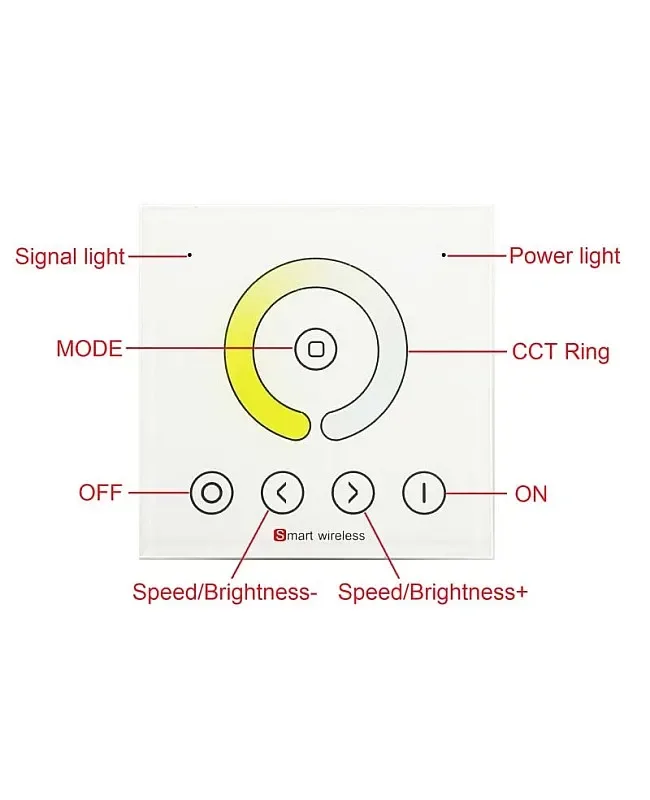

The RF wall panel CCT LED controllers work on DC12V or DC24V and are designed for constant working voltage LED lights. The CCT LED controller has a 2-output-channel design, with a max output current of 4A and a max output power of up to 192W. Adopts the capacitive touch-sensitive design, unique appearance, and easy operation. With memory function, each time it powers on, it resumes the mode that was stopped in the last power-down. The dimension is according to the 86-type European standards. The wall panel controller has 5 buttons and 1 CCT control ring. The installer can set the working mode, with 9 working modes, and control the speed for dynamic or brightness for static color. The CCT color ring can control the color temperature you want.
Specifications
Size: 86*86*34mm
Working Voltage: DC12V/DC24V
Output Channel: 2 Channels
Output Current: 4A
Max Output Power: 96W(DC12V)/192W(DC24V)
Designed For CW+WW LED Lighting
Gray Scale: 256 Levels
PWM Frequency: RF
Remote Distance: 20-30M
Memory Function: YES
Connecting Mode: Common Anode
Static Power Consumption: <1W
Includes
1 * RF Wall Panel CCT LED Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
