12V 72W Mini Inline RGB LED Amplifier
LumaCircuit offers 12V 72W Mini Inline RGB LED Amplifier as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Item Type: Inline RGB LED Amplifier Working Temperature: -20 ℃-60 ℃ Max Output Current: ≤2A Each Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

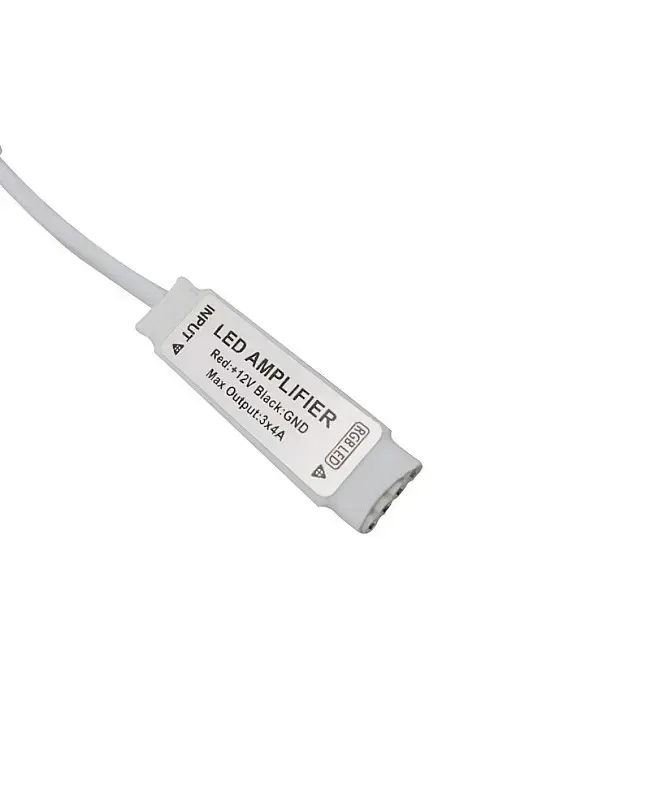

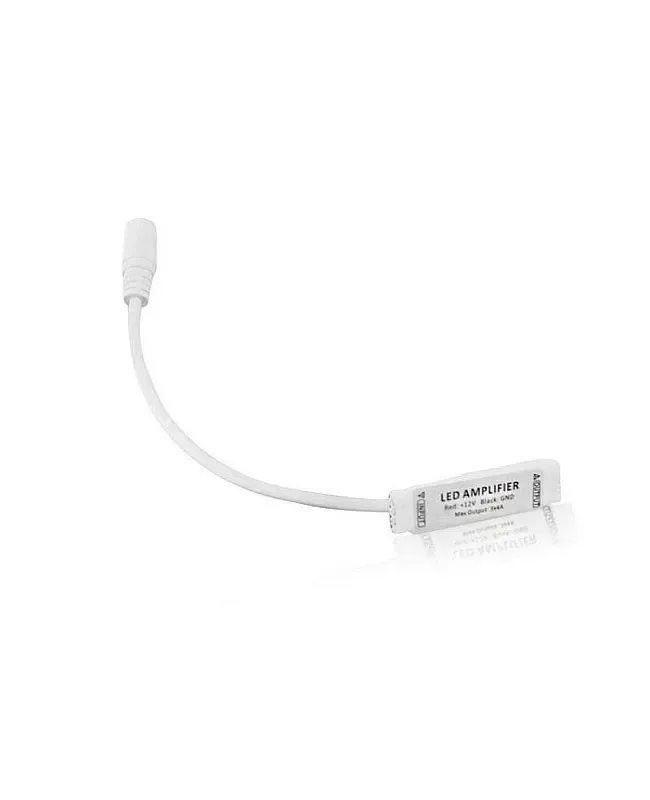

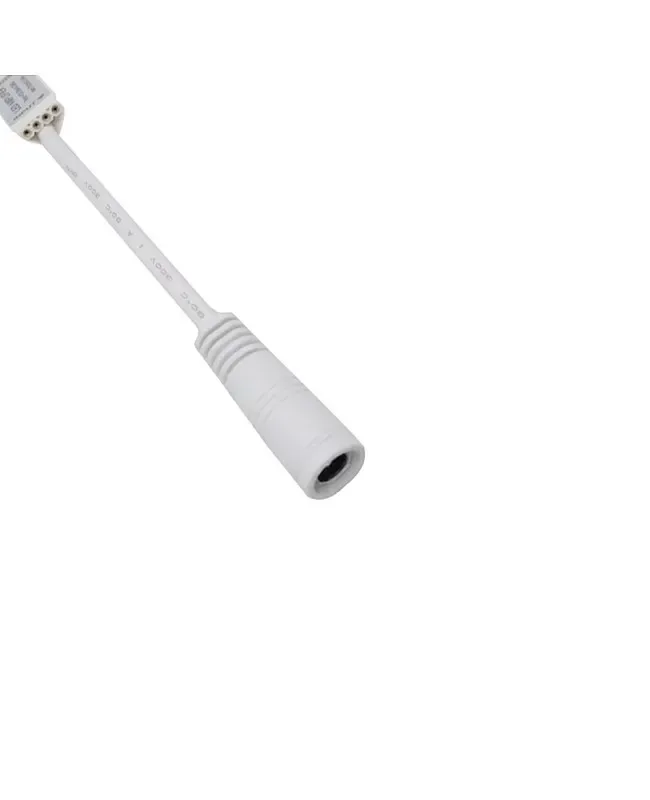

- The mini inline RGB LED amplifiers work on DC12V, with a 3-output-channel design, the max output current of each channel is 2A, the max loading power up to 72W, both sides with a 4-pin male connector, and the input side with a female DC connector. The installer can connect to the LED transformer, and the other end can connect to the LED controller for RGB LED strips.
- Item Type: Inline RGB LED Amplifier
- Working Temperature: -20 ℃-60 ℃
- Max Output Current: ≤2A Each Channel
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- 1 * Mini Inline RGB LED Amplifier
- The Mini Inline RGB LED Amplifier, working in DC12V and with 3 output channels design, the max loading power up to 72W, can connect many inline LED Amplifiers together to keep the same dynamic mode of the RGB LED Strips.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-1TX2YX
- Working Temperature: -20 ℃-60 ℃
- Working Voltage: DC12V
- Output Channels: 3
- Max Output Current: ≤2A Each Channel
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Max Loading Power: ≤72W
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

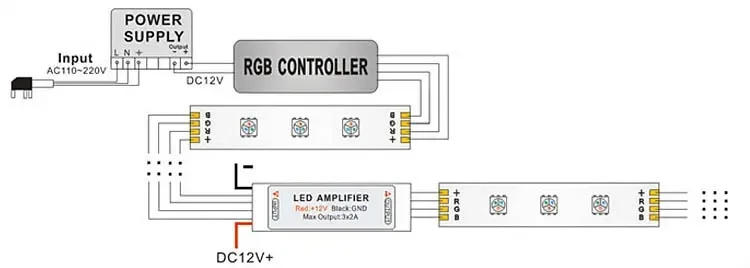

The mini inline RGB LED amplifiers work on DC12V, with a 3-output-channel design, the max output current of each channel is 2A, the max loading power up to 72W, both sides with a 4-pin male connector, and the input side with a female DC connector. The installer can connect to the LED transformer, and the other end can connect to the LED controller for RGB LED strips. The installer can connect many inline RGB LED amplifiers and let the RGB LED lights keep the same brightness or change the dynamic mode simultaneously.
Specifications
Manufacturer
Item Type: Inline RGB LED Amplifier
Size: **
Working Temperature: -20 ℃-60 ℃
Working Voltage: DC12V
Output Channels: 3
Max Output Current: ≤2A Each Channel
Connecting Mode: Common Anode
Static Power Consumption: <1W
Max Loading Power: ≤72W
Weight: 20g
1 * Mini Inline RGB LED Amplifier
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
