X3 RGB DMX Wall Controller
LumaCircuit offers X3 RGB DMX Wall Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller X3 RGB Wall Mount DMX Controller Instruction Working Voltage: -240V, 50/60Hz Output Signal: DMX512 + 2.4G Wireless The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller X3 RGB DMX wall controller has a standard European 86-type structure and is easy to mount on the wall. With a sensitive touch panel design, it is easy to touch the sliders or buttons to set the LED lights. The indicator LED lights will flash with different sounds when touching the buttons.
- wireless controller X3 RGB Wall Mount DMX Controller Instruction
- Working Voltage: -240V, 50/60Hz
- Output Signal: DMX512 + 2.4G Wireless
- Comply With DMX512, DMX512.1990, RDM.0 Standard Protocol
- 4 Zones Individually Controlled
- Brightness And Speed Adjustable
- Support 2.4G Remote Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-9WQOQE
- Size: 86*86*26mm(L*W*H)
- Working Voltage: -240V, 50/60Hz
- Output Signal: DMX512 + 2.4G Wireless
- RF Transmitting Power: 6 dBm
- RF Control Distance: ≤30m
- Working Temperature: -20-45℃
- Dimensions found: 86x86x26mm / 26mm / 30m
- Model: X3
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

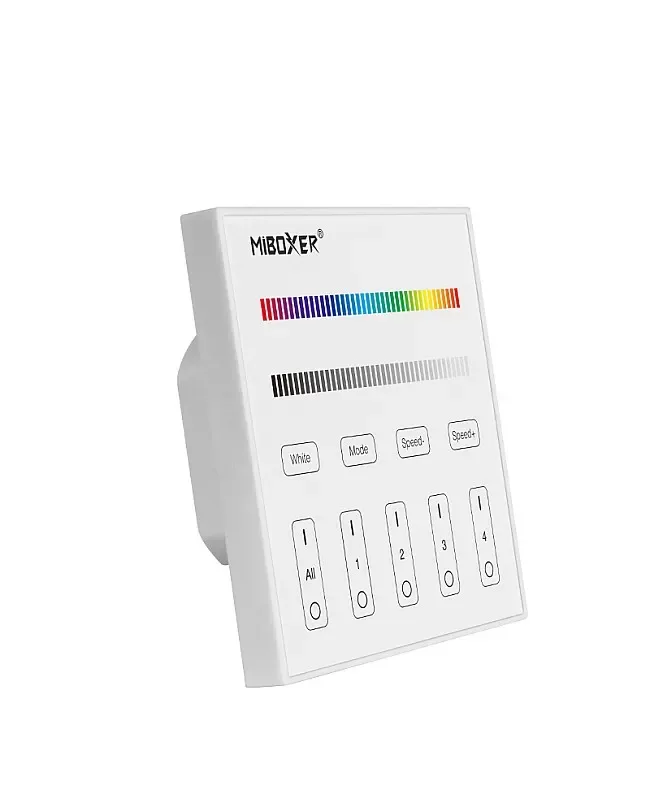

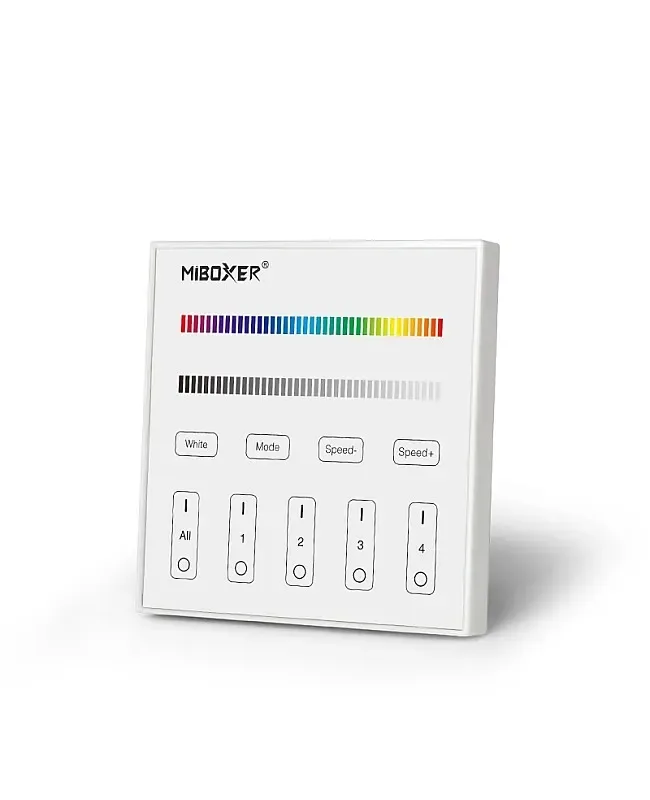

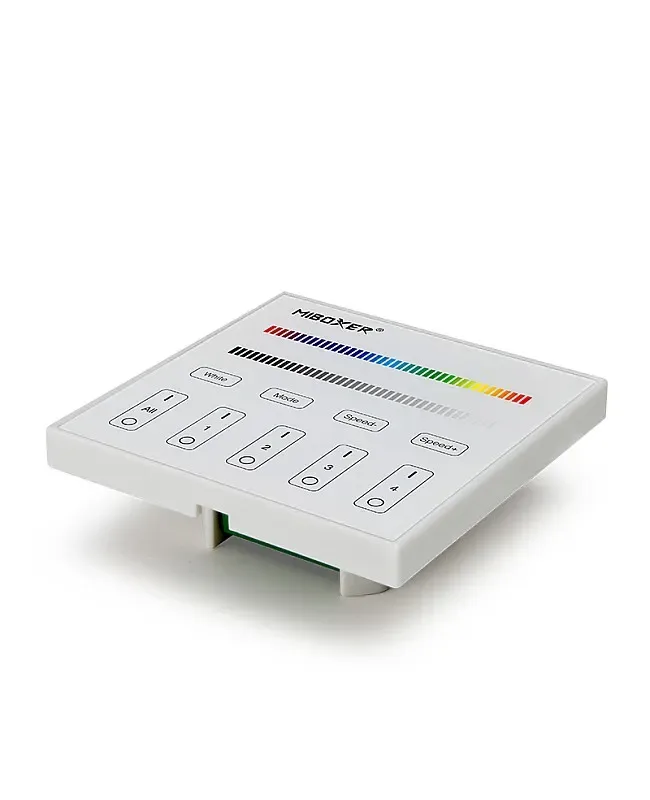

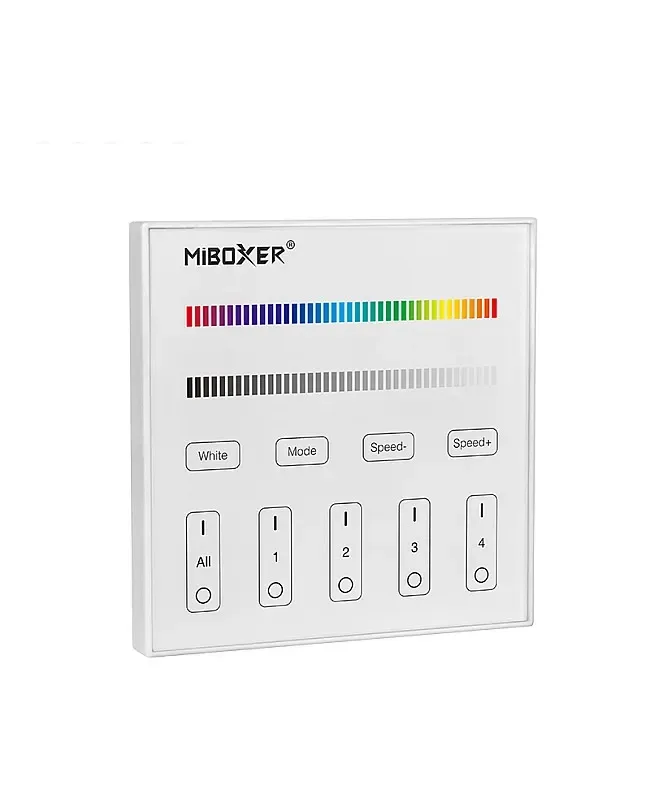

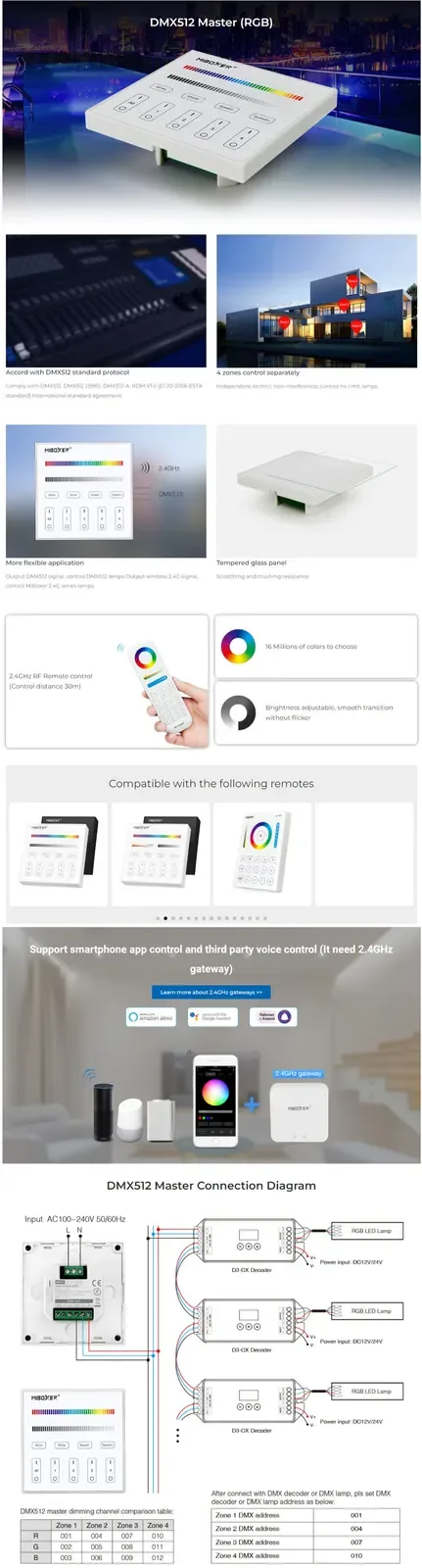

The wireless controller X3 RGB DMX wall controller has a standard European 86-type structure and is easy to mount on the wall. With a sensitive touch panel design, it is easy to touch the sliders or buttons to set the LED lights. The indicator LED lights will flash with different sounds when touching the buttons. The wireless controller DMX512 wall controller complies with standard DMX512 protocols, with DMX512 signal output and 2.4G signal output, which the installer can use to control the LED lights and 2.4G series Lights. The RGB DMX512 controller can be controlled by a 2.4G remote and a smartphone app, where the installer can set the static color or dynamic mode and adjust the brightness or speed. There are 9 dynamic modes available, and the installer can choose your favorite mode for different scenes.
Quick Links
wireless controller X3 RGB Wall Mount DMX Controller Instruction

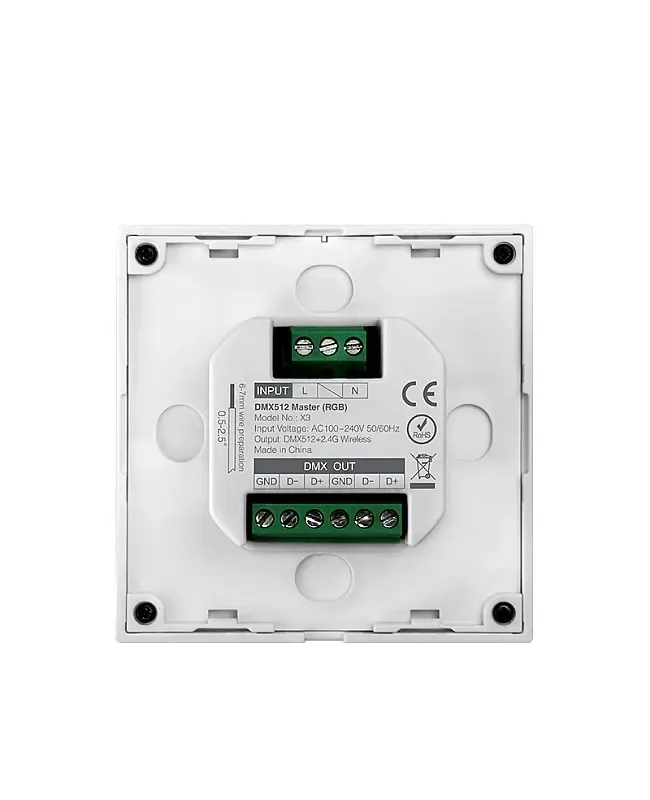

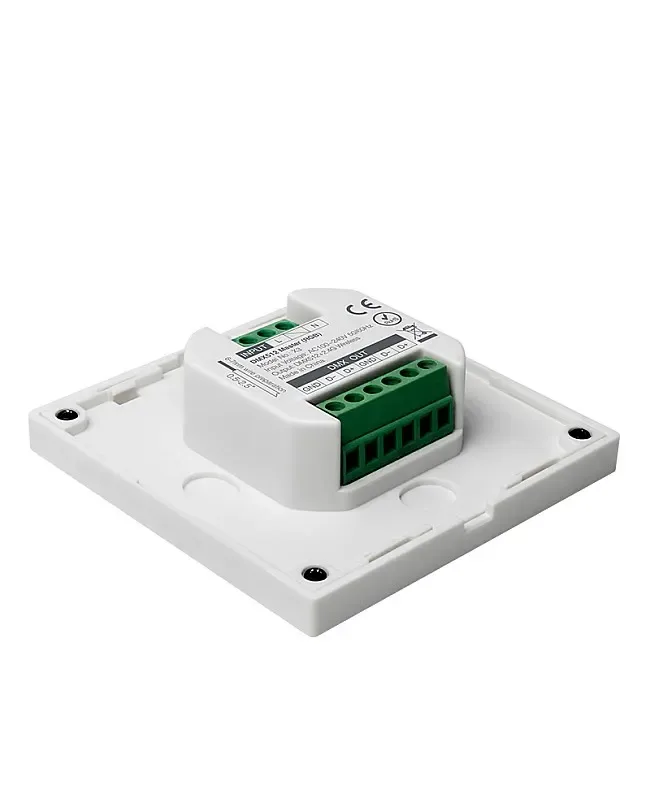

Specifications
Model: X3
Size: 86*86*26mm(L*W*H)
Working Voltage: -240V, 50/60Hz
Output Signal: DMX512 + 2.4G Wireless
Comply With DMX512, DMX512.1990, RDM.0 Standard Protocol
4 Zones Individually Controlled
Static Color And 9 Dynamic Modes Available
Brightness And Speed Adjustable
Support 2.4G Remote Control
Support Smartphone APP Control(WL- Gateway Needed)
RF Transmitting Power: 6 dBm
RF Control Distance: ≤30m
Working Temperature: -20-45℃
Includes
1 * RGB DMX Wall Controller
