Product details

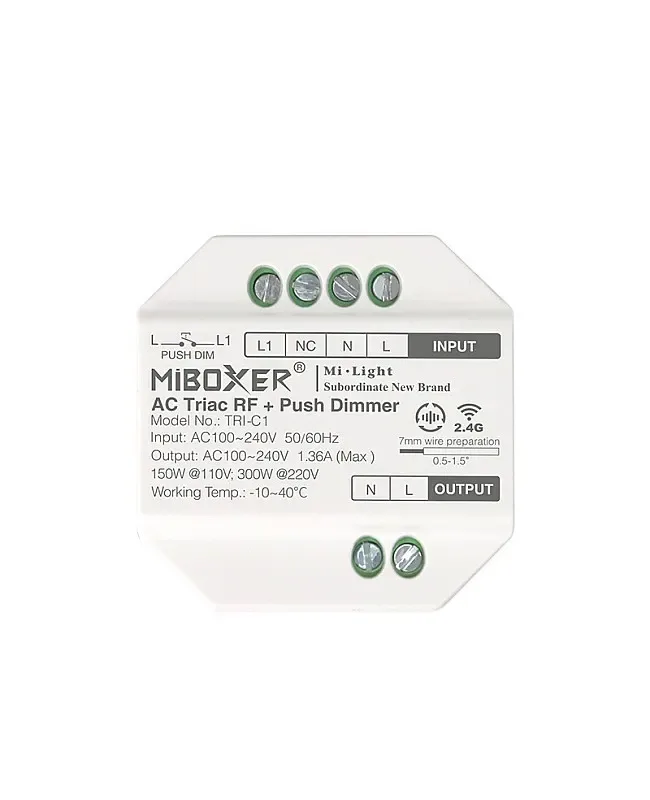

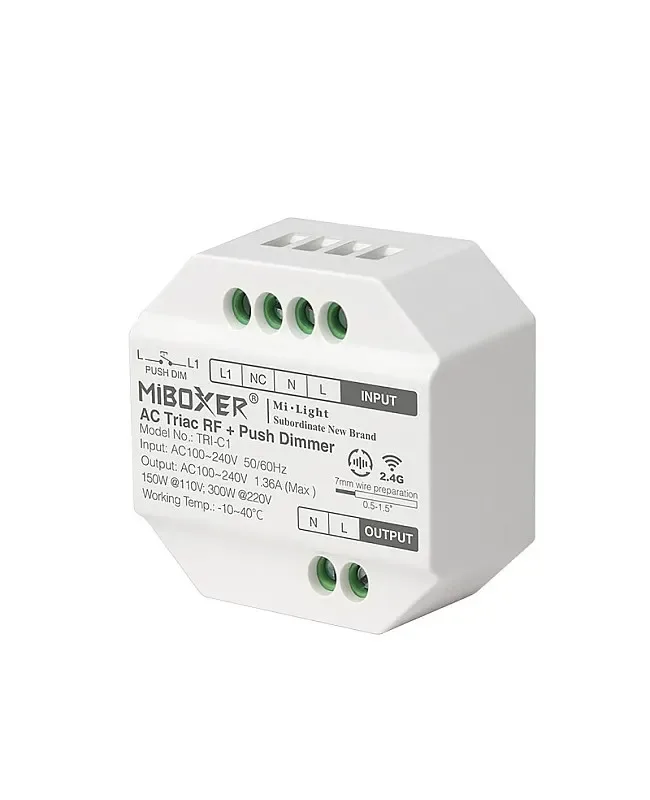

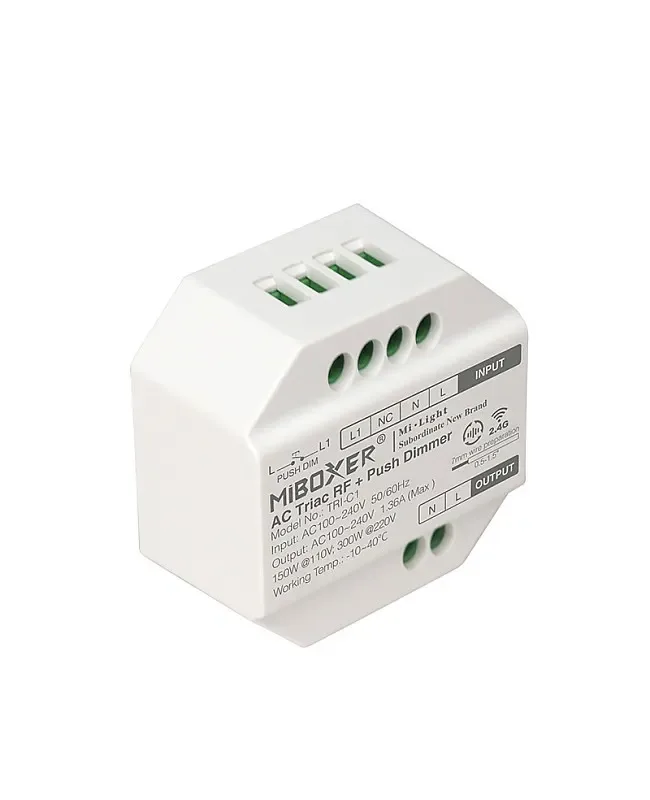

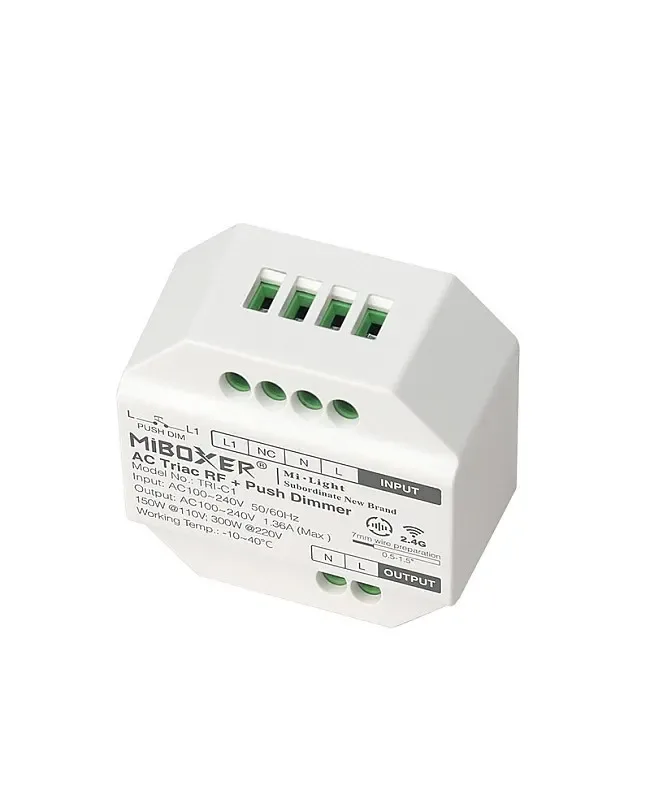

4G RF TRI Triac Dimmer Supports Push Dimming
LumaCircuit offers 4G RF TRI Triac Dimmer Supports Push Dimming as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Input Voltage: -240V, 50/60Hz Output Current: Max 1.36A Output Power: 150W(110V); 300W(220V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2.4G RF wireless controller triac dimmer can control the single-color triac dimmer LED light, traditional filament, and halogen lamps. If the connected lamp input voltage is AC110V, the power does not exceed 150W; if the input voltage is 220V, the power does not exceed 300W. The wireless controller triac dimmer is small and easy to install. It can be input into European and American standard junction boxes. Convenient to wire and easy to install.
- Input Voltage: -240V, 50/60Hz
- Output Current: Max 1.36A
- Output Power: 150W(110V); 300W(220V)
- Dimming Method: RF Wireless Dimming/Push Dimming
- Set The Minimum Brightness Value By Remote
- Fit For Single Color Triac Dimmable LED Lights, Traditional Filament Lamps, Halogen Lamps
- Can Be Put Into a European/American standard Junction Box
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 110 V / 220 V
- LumaCircuit model: LC-CTL-1BQG7R
- Size: 49*49*25mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Output Voltage: -240V
- Output Current: Max 1.36A
- Output Power: 150W(110V); 300W(220V)
- Control Distance: ≤30m
- 2.4G RF Remote Controllable: T1, T2, WL
- Working Temperature: -10℃-+40℃
- Dimensions found: 49x49x25mm / 25mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

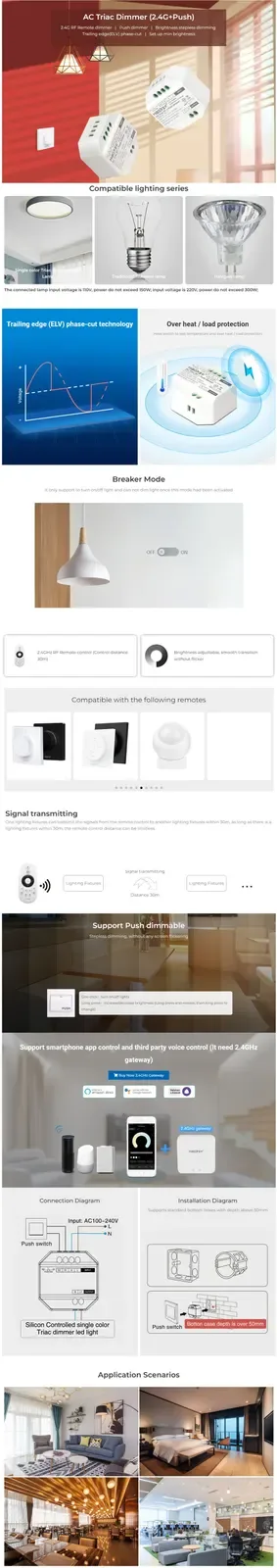

The 2.4G RF wireless controller triac dimmer can control the single-color triac dimmer LED light, traditional filament, and halogen lamps. If the connected lamp input voltage is AC110V, the power does not exceed 150W; if the input voltage is 220V, the power does not exceed 300W. The wireless controller triac dimmer is small and easy to install. It can be input into European and American standard junction boxes. Convenient to wire and easy to install. It can work with push switches and 2.4G RF remote controls to achieve 0-100% stepless dimming without screen flickering. The installer can see the minimum brightness value on the remote, which can set the minimum brightness of all connected dimmers at a time wireless controller single-color remote controls can control the triac dimming and support smartphone APP and third-party voice control after adding a 2 gateway. The dim triac will transmit the signal to the other same dimmers within 30 meters.
Specifications
Model
Size: 49*49*25mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Output Voltage: -240V
Output Current: Max 1.36A
Output Power: 150W(110V); 300W(220V)
Dimming Method: RF Wireless Dimming/Push Dimming
Control Distance: ≤30m
0-100% Stepless Dimming
Set The Minimum Brightness Value By Remote
Fit For Single Color Triac Dimmable LED Lights, Traditional Filament Lamps, Halogen Lamps
Can Be Put Into a European/American standard Junction Box
4G RF Remote Controllable T1, T2, WL
Remote Controls Sold Separately
Support Smartphone APP Control And Third-Party Voice Control(Amazon Alexa And Google Assistant)
Auto Transmitting Function
Trailing-Edge(ELV) Phase-Cut Technology
Working Temperature: -10℃-+40℃
Overheat Protection
Overload Protection
Includes
1 * wireless controller RF Triac Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
