Product details
Smart TUYA WIFI LED Controller With Voice Control
LumaCircuit offers Smart TUYA WIFI LED Controller With Voice Control as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20℃~60℃ Static Power Consumption: <1W Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The TUYA series WiFi LED controllers are designed for DIM, CCT, RGB, or RGBW LED lights to adjust the lighting conveniently using an app or remotes. The LED controllers adopt the most advanced PWM(Pulse Width Modulation) digital control technology, working in 2. RF frequency, and the WiFi control technology powered by TUYA. The installer can download the TUYA APP and control your LED light more smartly. The WiFi LED controller is also compatible with Amazon Alexa, Google Assistant, and Yandex Alice.
- Working Temperature: -20℃~60℃
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Output Current: ≤4A(Each Channel)
- Max Output Power: 192W(12V)/384W(24V)
- Speed Stage: 1024 Levels
- Short Circuit Protection: Yes
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGBW

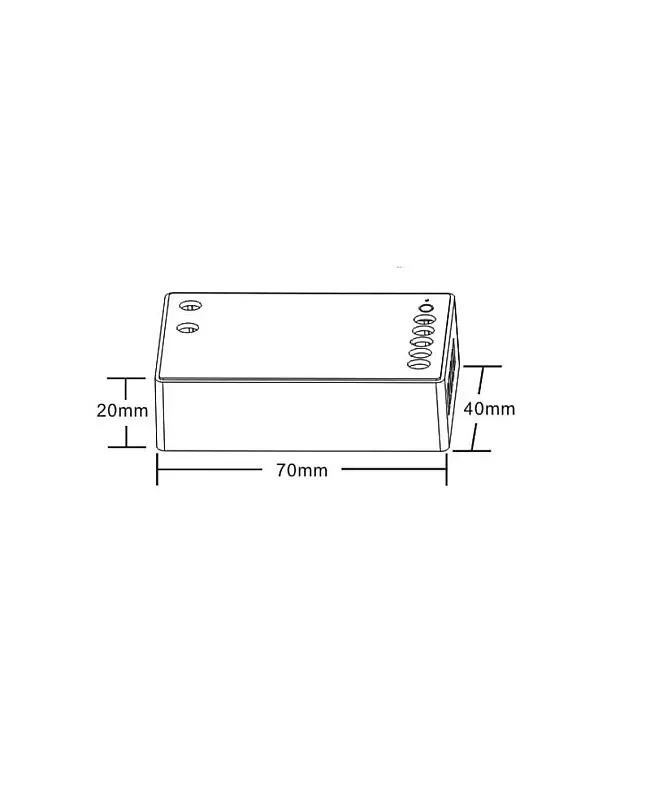

- Size: 70*40*20mm
- Working Temperature: -20℃~60℃
- Working Voltage: -24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Output Channels: 4
- Output Current: ≤4A(Each Channel)
- Max Output Power: 192W(12V)/384W(24V)
- PWM Frequency: 1 KHz
- RF Frequency: 2.
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

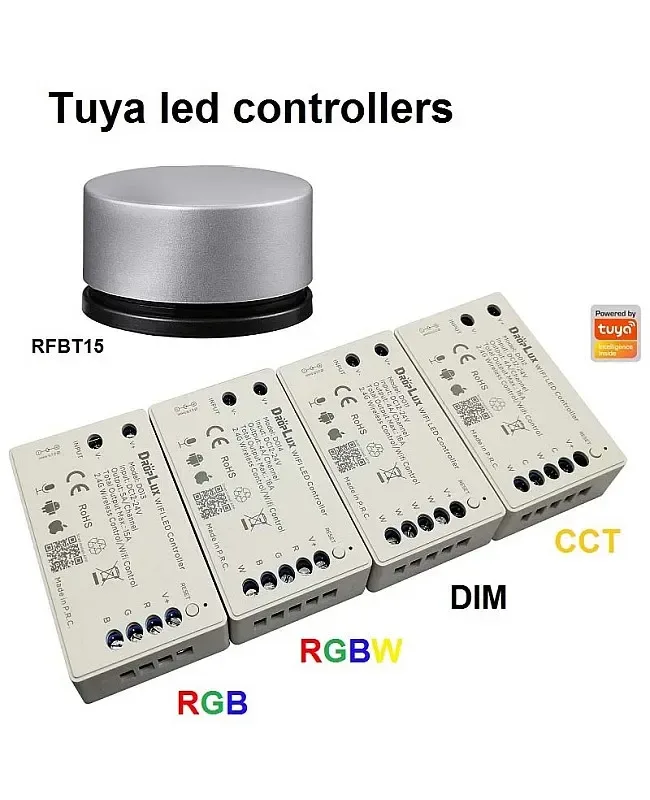

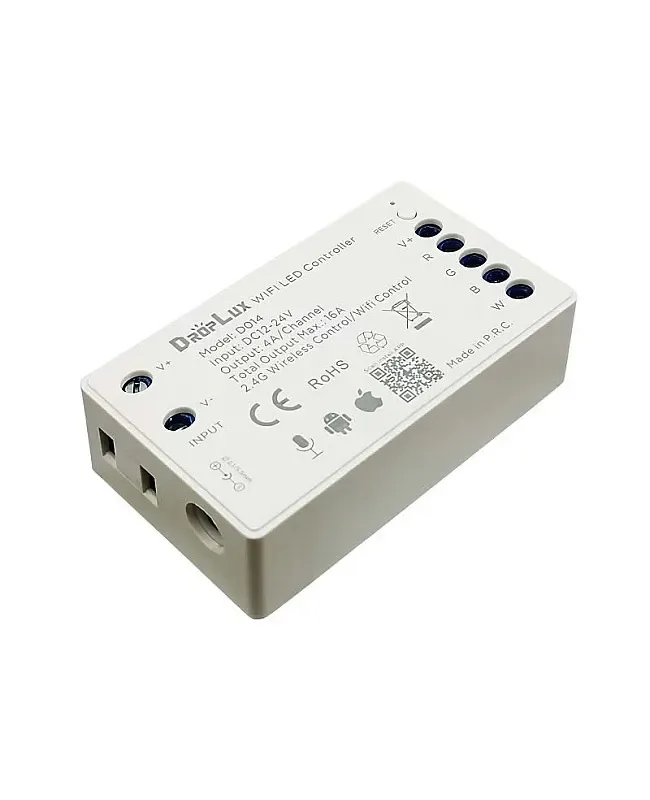

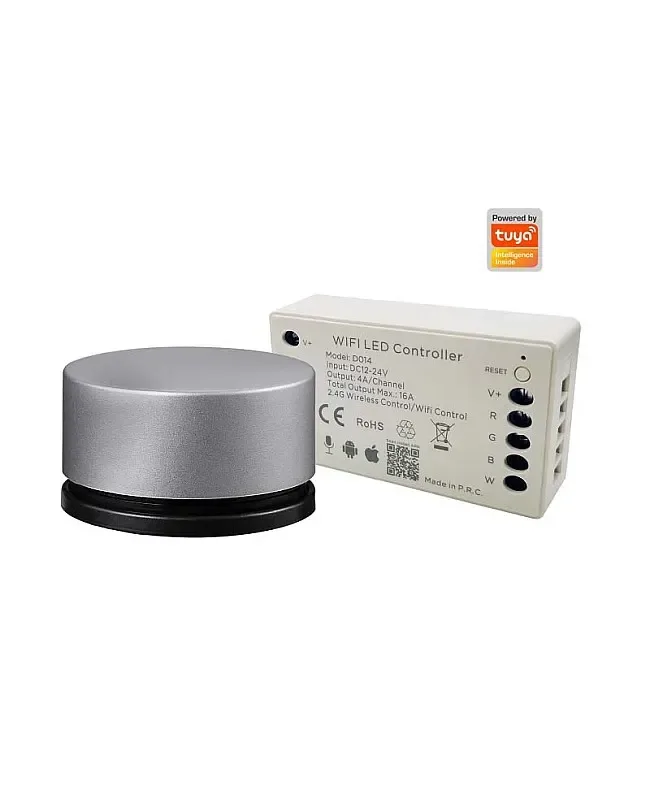

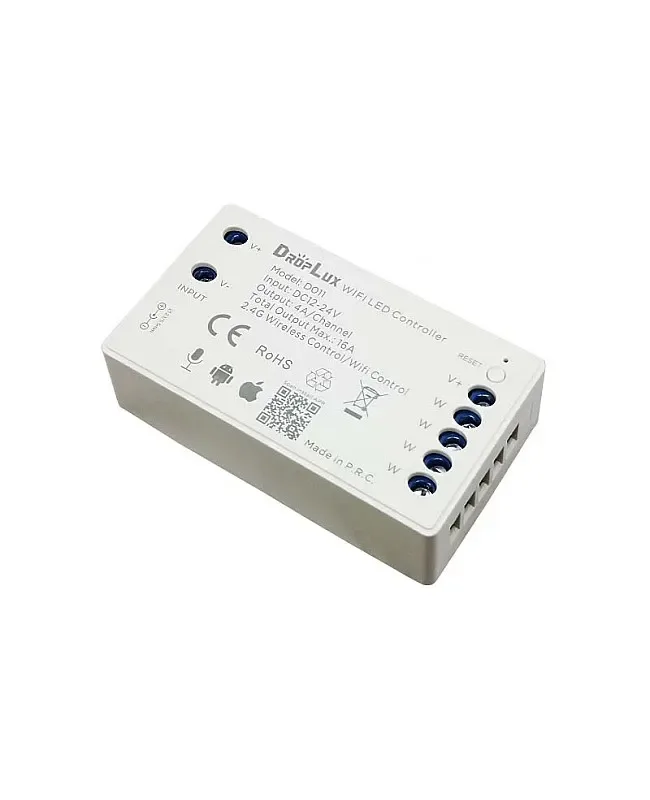

The TUYA series WiFi LED controllers are designed for DIM, CCT, RGB, or RGBW LED lights to adjust the lighting conveniently using an app or remotes. The LED controllers adopt the most advanced PWM(Pulse Width Modulation) digital control technology, working in 2. RF frequency, and the WiFi control technology powered by TUYA. The installer can download the TUYA APP and control your LED light more smartly. The WiFi LED controller is also compatible with Amazon Alexa, Google Assistant, and Yandex Alice. Working on DC12V or DC24V, a four-output-channel design, the installer can choose the various LED controllers, for brightness-adjustable single-color LED light, for dual white, for RGB, and for RGBW. The max output current of each channel is up to 4A, designed for the constant voltage LD light. The wireless rotate remote is included; the installer can press the remote to power on or off the LED light, rotate the remote to adjust the brightness, or change the color-changing style.
WiFi LED Controller Specifications
Size: 70*40*20mm
Working Temperature: -20℃~60℃
Working Voltage: -24V
Static Power Consumption: <1W
Connecting Mode: Common Anode
Output Channels: 4
Output Current: ≤4A(Each Channel)
Max Output Power: 192W(12V)/384W(24V)
Grayscale: 1024 Levels
PWM Frequency: 1 KHz
Speed Stage: 1024 Levels
RF Frequency: 2.
RF Distance: <20m
Short Circuit Protection: Yes
Memory Function: Yes
Wireless Rotate Remote Specifications
Size: 60*60*35mm
Working Temperature: -20-60℃
Powered By 2PCS AAA Batteries
Working Voltage: DC3V
Standby Current: <
Emission Current: <
Sleep Power Consumption: <
Emission Power Consumption: <
RF Distance: <30m
RF Frequency: 2.
Accessories: 1*Holder,1* 3M Foam Sponge Glue
Includes
1 * Smart TUYA WIFI LED Controller
1 * Wireless Rotate Remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
