4G Wireless Inline Light Dimmers
LumaCircuit offers 4G Wireless Inline Light Dimmers as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: Mini Single Color LED Controller Model: (With DC Connectors) / (With Bare Wire Connectors) Size: 76*18*8.8mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

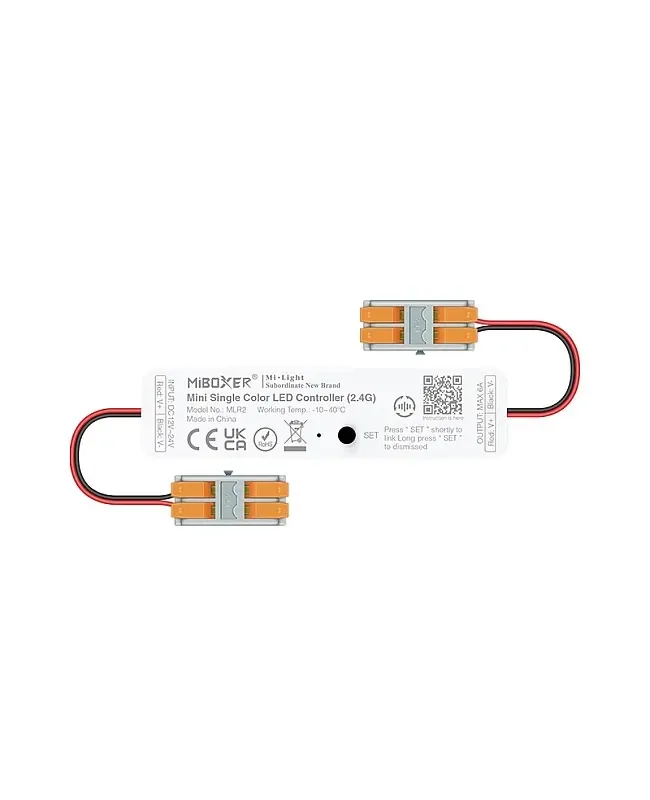

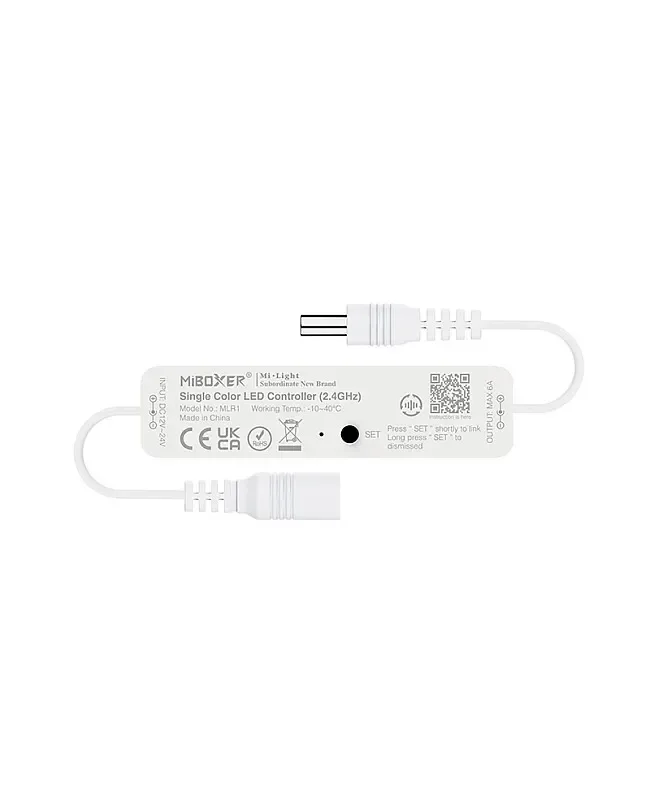

- The wireless controller and are the mini inline light dimmers for single-color LED lights. The comes with male and female DC connectors, and the comes with bare wire connectors; the installer can choose them for various types of lighting. Their slim design allows them to be installed and hidden in a limited space or area. The wireless controller dimmers use 2.4G RF wireless transmission technology and support remote control. One remote can control countless controllers simultaneously, and after pairing them with 2.
- Type: Mini Single Color LED Controller
- Model: (With DC Connectors) / (With Bare Wire Connectors)

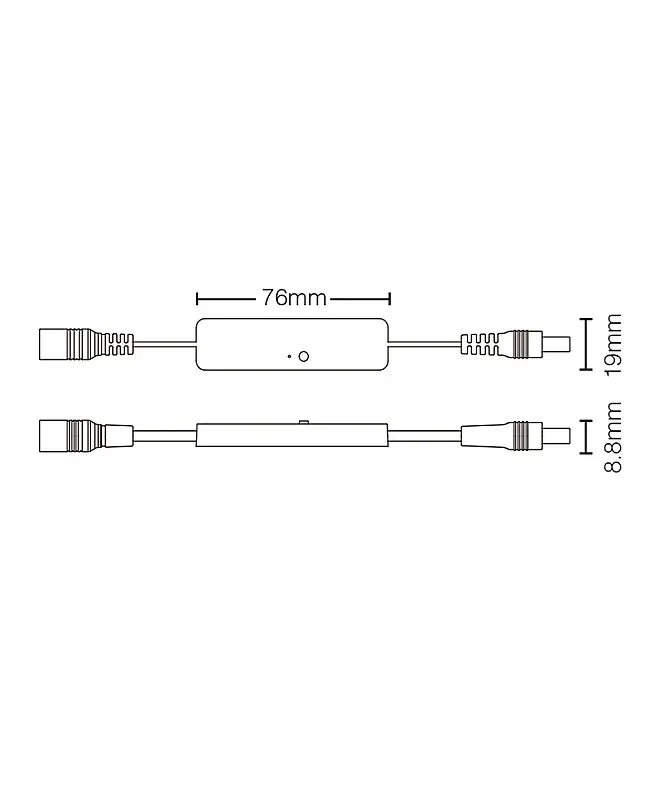

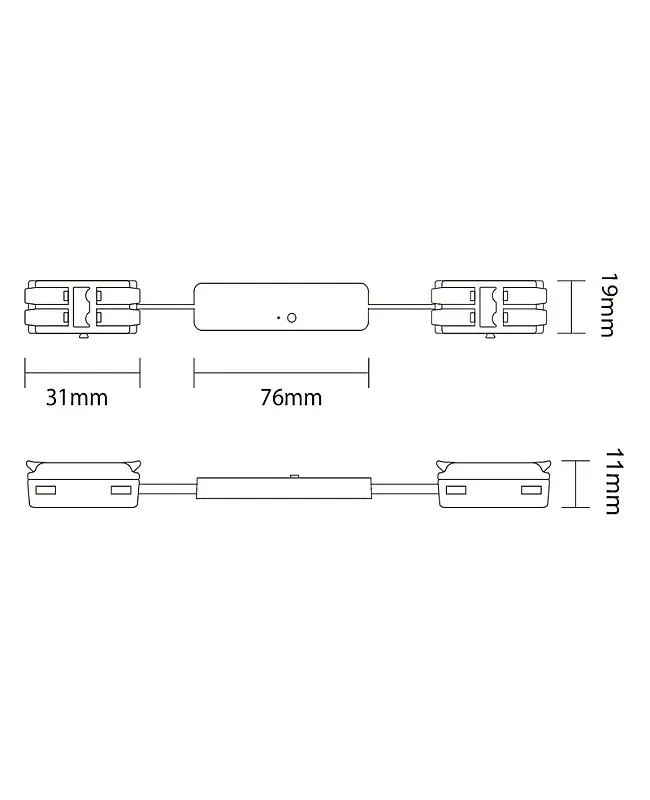

- Size: 76*18*8.8mm(L*W*H)
- Output Type: Constant Voltage
- Dimming Gratscale: 4096 Levels
- Dimming Range: 0.1%-100%
- Dimming Curve: Logarithmic
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- LumaCircuit model: LC-CTL-5IRLIP
- Size: 76*18*8.8mm(L*W*H)
- Input Voltage: -24V
- Output Current: 6A Max
- Output Power: 144W
- Output Type: Constant Voltage
- Control Signal: 2. RF
- Control Distance: ≤30m
- Compatible With Remotes Controls: T1, T2, +,
- IP Rate: IP20 Non-waterproof
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

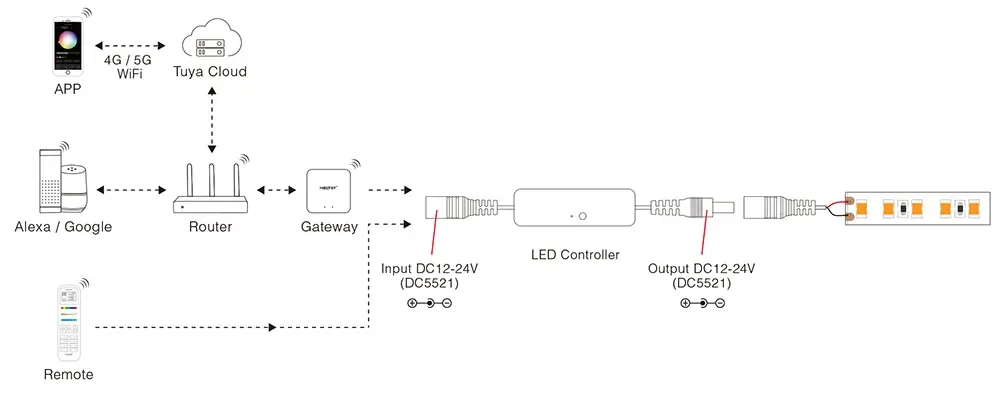

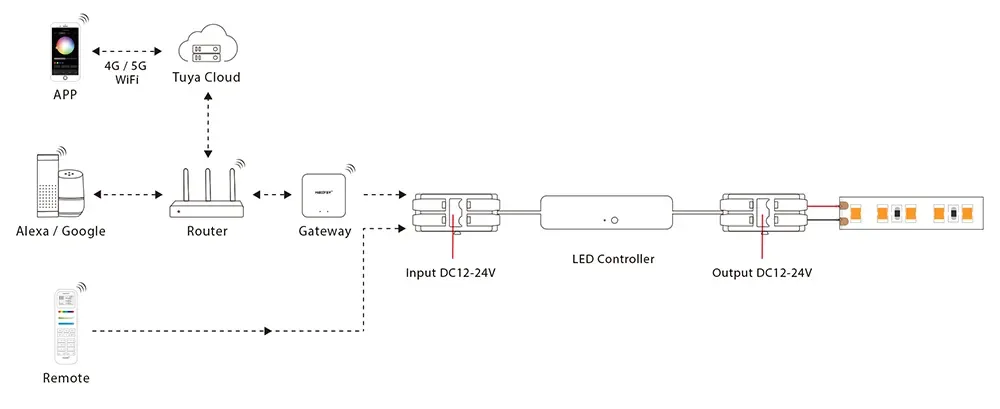

The wireless controller and are the mini inline light dimmers for single-color LED lights. The comes with male and female DC connectors, and the comes with bare wire connectors; the installer can choose them for various types of lighting. Their slim design allows them to be installed and hidden in a limited space or area. The wireless controller dimmers use 2.4G RF wireless transmission technology and support remote control. One remote can control countless controllers simultaneously, and after pairing them with 2.4G gateways, they can be controlled by the Tuya Smart APP and third-party voice control. The installer can adjust the brightness from 0.1% to 100% for various scenes. The dimmers will automatically forward the remote control signal to another same model dimmer, making the LED remote control distance infinite. The wireless controller MLR series supports a do-not-disturb mode setting that is suitable for areas with frequent power outages to save electricity.
Specifications
Type: Mini Single Color LED Controller
Model: (With DC Connectors) / (With Bare Wire Connectors)
Size: 76*18*8.8mm(L*W*H)
Input Voltage: -24V
Output Current: 6A Max
Output Power: 144W
Output Type: Constant Voltage
Control Signal: 2. RF
Control Distance: ≤30m
Dimming Gratscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
Compatible With Remotes Controls T1, T2, +,
Support Tuya Smart APP Control(2.4G Gateway Needed)
Support Third-Party Voice Control(2.4G Gateway Needed)(Alexa, Google Assistant, Yandex Alice)
IP Rate: IP20 Non-waterproof
Working Temperature: -10-40℃
Includes

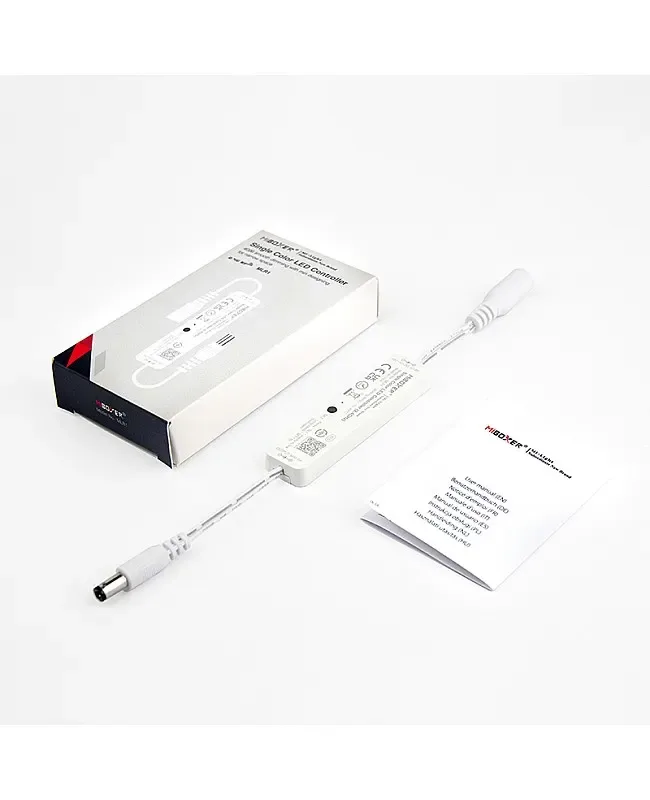

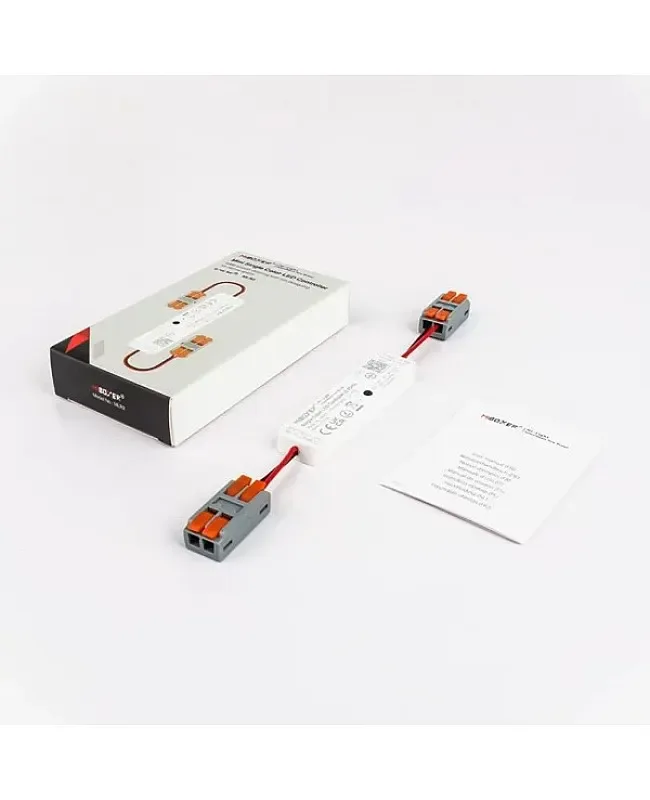

1 * Inline Light Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
