Matter Over Thread LED Dimmer
LumaCircuit offers Matter Over Thread LED Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Simple configuration: Easily pair via QR code Voice control: Compatible with Siri, Google Assistant, and Alexa portable control Auto transmitting: Transmit a remote signal to another automatically and extend countless distances The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller LED dimmers support Thread and 2.4G RF protocols and can be easily integrated into the Matter ecosystem. The Matter LED strip controller supports multiple smart lighting control systems like Apple Home, Amazon Alexa, Google Home, SmartThings, and Tuya Smart. Which allow you to control the LED strip lighting more conveniently.
- Simple configuration: Easily pair via QR code
- Voice control: Compatible with Siri, Google Assistant, and Alexa portable control
- Auto transmitting: Transmit a remote signal to another automatically and extend countless distances
- Maximum work with 12 pieces of remote controls and a distance of less than 30 meters
- Support DND mode: Usually used in a power failure area to save power
- 2-in-1 design for single-color and dual white LED strips
- wireless controller user manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Models: ( Matter Over Thread and 2.4G)

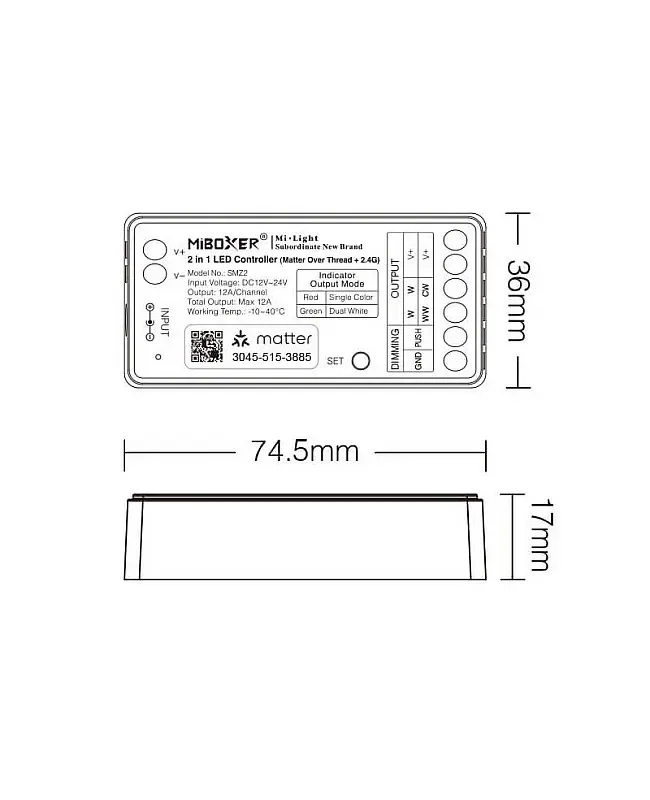

- Size ( L x W x H): 74.5mm x 36mm x 17mm / 2.93" x 1.42" x 0.67"
- Input voltage: -24V
- Output current: 12A/single channel
- Total output: 12A max
- Protocols: Matter over Thread + 2.4G RF
- Control distance: ≤30m ( 2.4G RF)
- Remote controls compatible: T1, T2, WL
- IP rate: IP20 non-waterproof
- Working temperature: -10℃-+40℃
- LumaCircuit model: LC-CTL-9ENJOM
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller LED dimmers support Thread and 2.4G RF protocols and can be easily integrated into the Matter ecosystem. The Matter LED strip controller supports multiple smart lighting control systems like Apple Home, Amazon Alexa, Google Home, SmartThings, and Tuya Smart. Which allow you to control the LED strip lighting more conveniently.
Simple configuration: Easily pair via QR code
Voice control: Compatible with Siri, Google Assistant, and Alexa portable control
Auto transmitting: Transmit a remote signal to another automatically and extend countless distances
Maximum work with 12 pieces of remote controls and a distance of less than 30 meters
Support DND mode: Usually used in a power failure area to save power
2-in-1 design for single-color and dual white LED strips
wireless controller user manual
Specifications

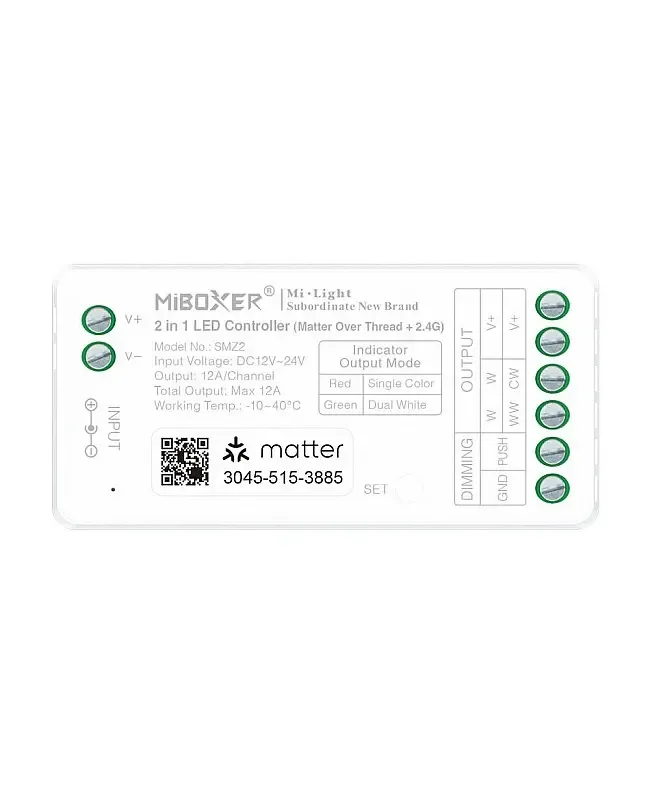

Type: 2-in-1 Matter LED dimmer
Models: ( Matter Over Thread and 2.4G)
Size ( L x W x H): 74.5mm x 36mm x 17mm / 2.93" x 1.42" x 0.67"
Input voltage: -24V
Output current: 12A/single channel
Total output: 12A max
Protocols: Matter over Thread + 2.4G RF
Work with Google Assistant, Apple Home, Amazon Alexa, Samsung SmartThings, and Tuya Smart
Control distance: ≤30m ( 2.4G RF)
Remote controls compatible T1, T2, WL

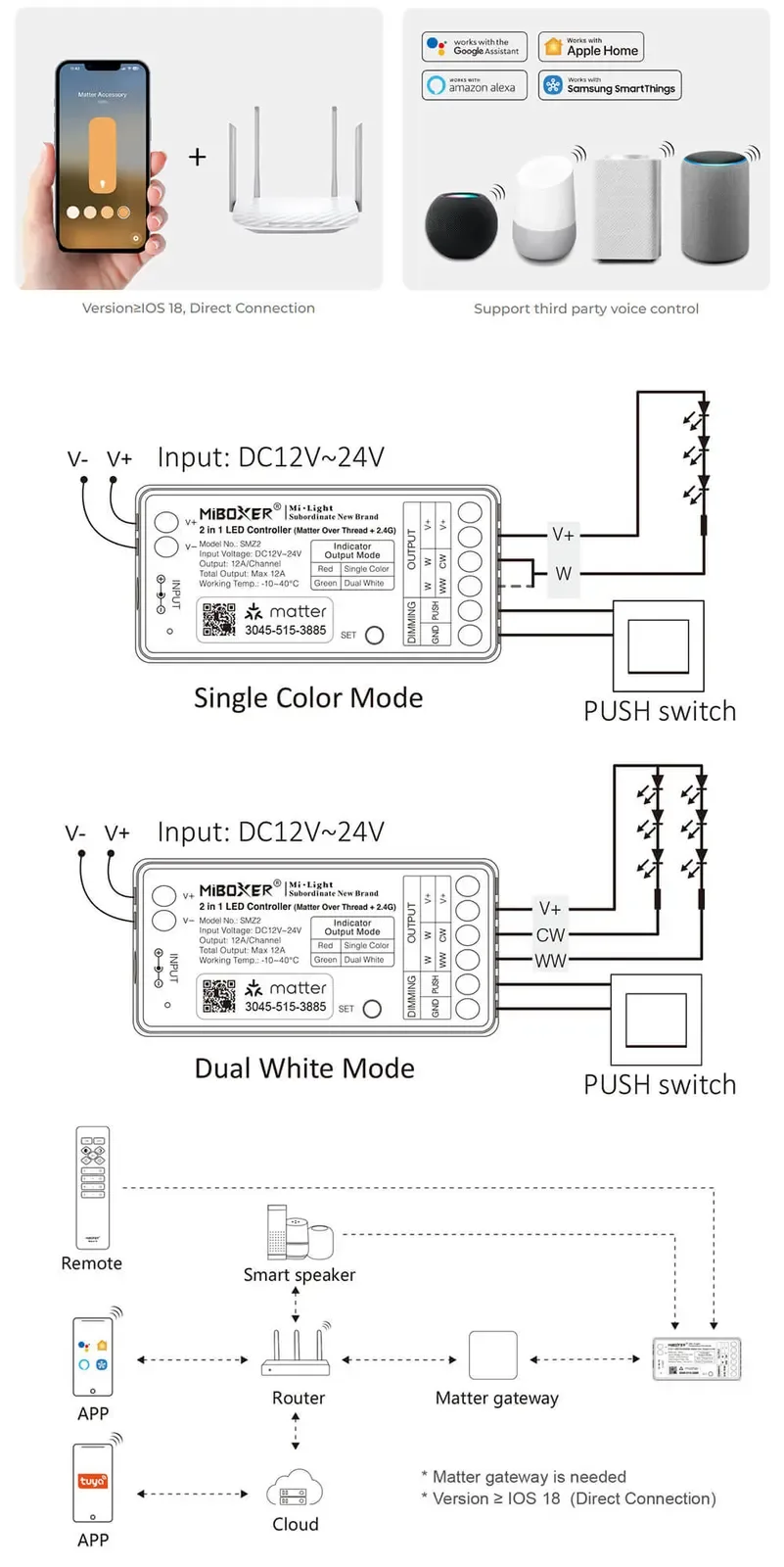

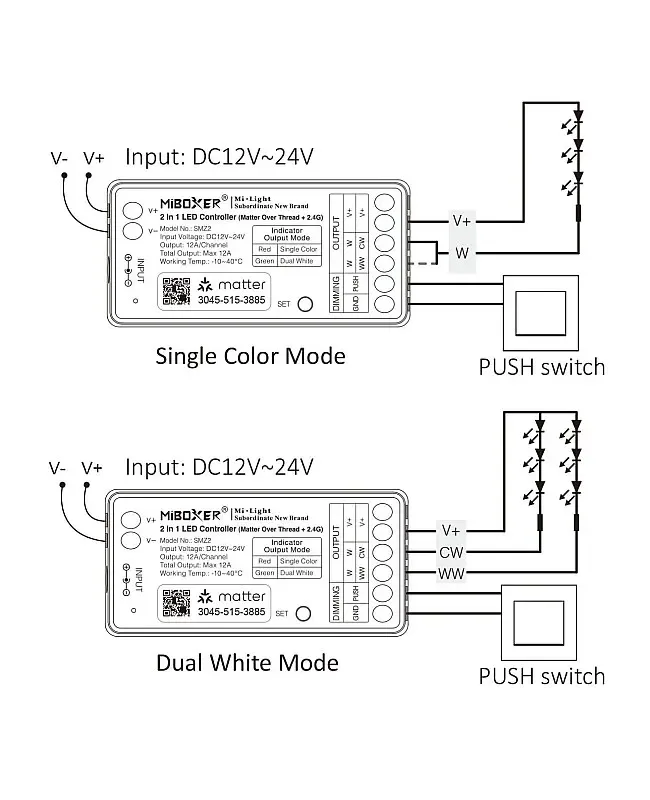

Single color and dual white working modes are switchable
Push dimmable supported
IP rate: IP20 non-waterproof
Working temperature: -10℃-+40℃
EMC standard (EMC): ETSI EN 301 489-1 v 2.2.3 (2019-11); ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety standard (LVD): EN 61347-2-11: 2001+:2019; EN 61347-1:2015+:2021; EN 62493: 2015+:2022
Radio equipment(RED): ETSI EN 300 440.2.1
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
