RGB+CCT Smart LED Controller With RF Remote
LumaCircuit offers RGB+CCT Smart LED Controller With RF Remote as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller User Manual Models: (RGB), (RGBW), (RGBWW) Max Output Current: 6A/Channel The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Smart LED controller comes with an RF touch remote designed for the RGB+CCT LED lights. The installer can use the remote control to set the color, adjust the color saturation, brightness from 0.1% to 100%, and color temperature from 2700K to 6500K for various scenes. The smart controller adopts 2.4G wireless transmitting technology with long-distance transmission.
- wireless controller User Manual
- Models: (RGB), (RGBW), (RGBWW)
- Max Output Current: 6A/Channel
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- New Updating Connecting Terminal
- 2700 K- 6500 K Color Temperature Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- Models: (RGB), (RGBW), (RGBWW)
- Size: 97*37*28mm(L*W*H)
- Working Voltage: -24V
- Max Output Current: 6A/Channel
- Total Output Max: 15A
- Max Controlling Distance: 30m
- Output Connection: Common Anode
- Working Temperature: -20℃-+60℃
- LumaCircuit model: LC-CTL-VB6GNU
- Dimensions found: 97x37x28mm / 28mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

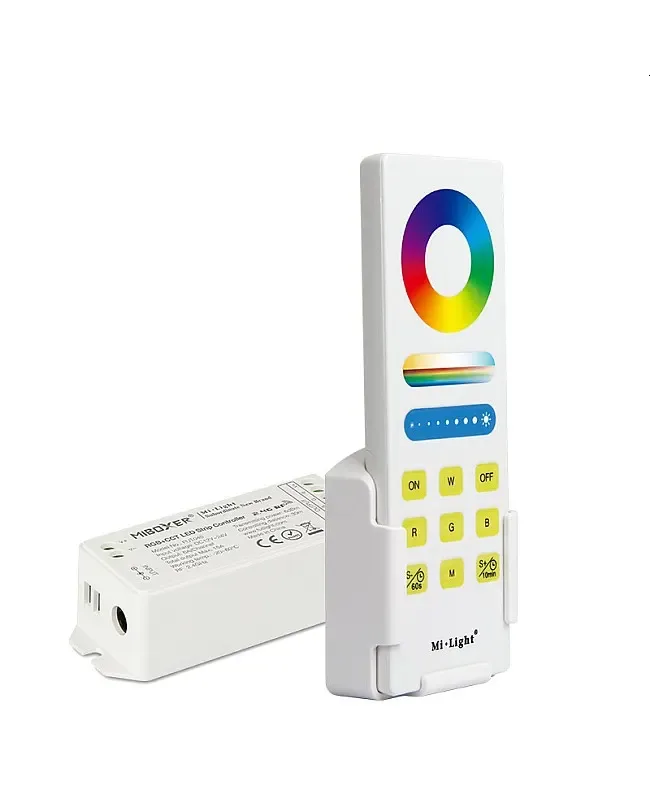

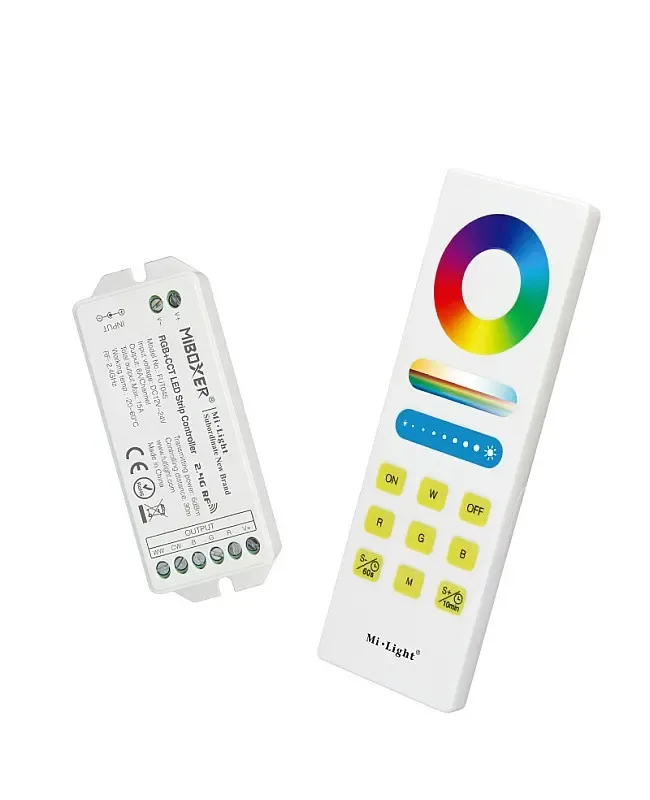

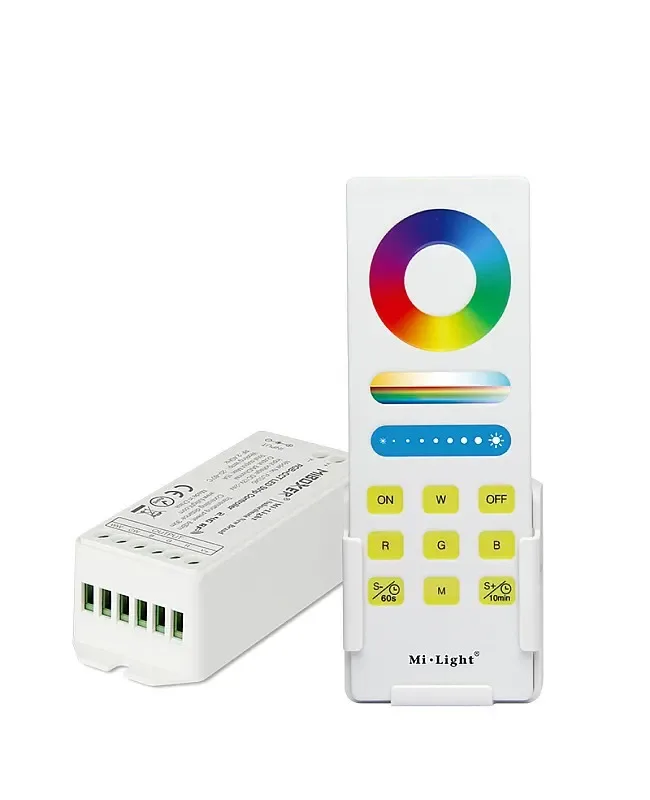

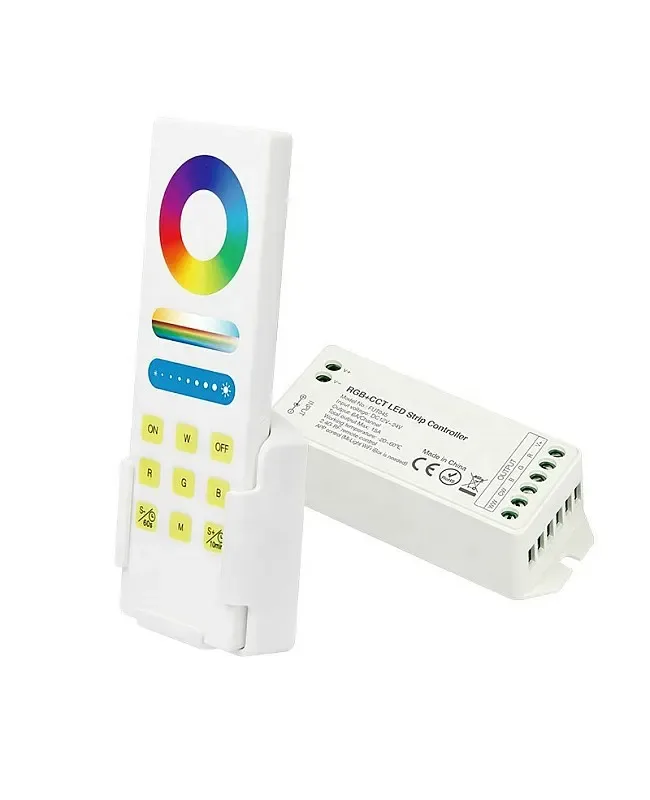

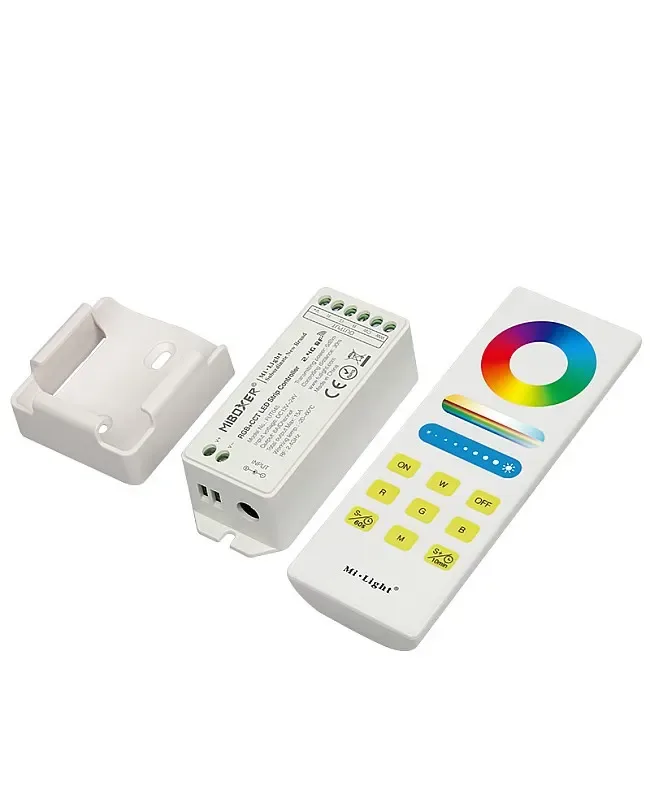

The wireless controller Smart LED controller comes with an RF touch remote designed for the RGB+CCT LED lights. The installer can use the remote control to set the color, adjust the color saturation, brightness from 0.1% to 100%, and color temperature from 2700K to 6500K for various scenes. The smart controller adopts 2.4G wireless transmitting technology with long-distance transmission. The control distance is 30m, and one controller will receive the signals from the remote and transmit them to other controllers within 30 meters. All can work synchronously even if they are started at different times. After adding the 2.4G gateway WL the controller can be controlled by a smartphone APP and third-party voice commands and can work with Amazon Alexa and Google Assistant. The RF remote with touch panel design, touch the buttons or sliders to finish the setting. The installer can press the or delay-off buttons, and the lights will be turned off automatically after 10 seconds or 10 minutes.
