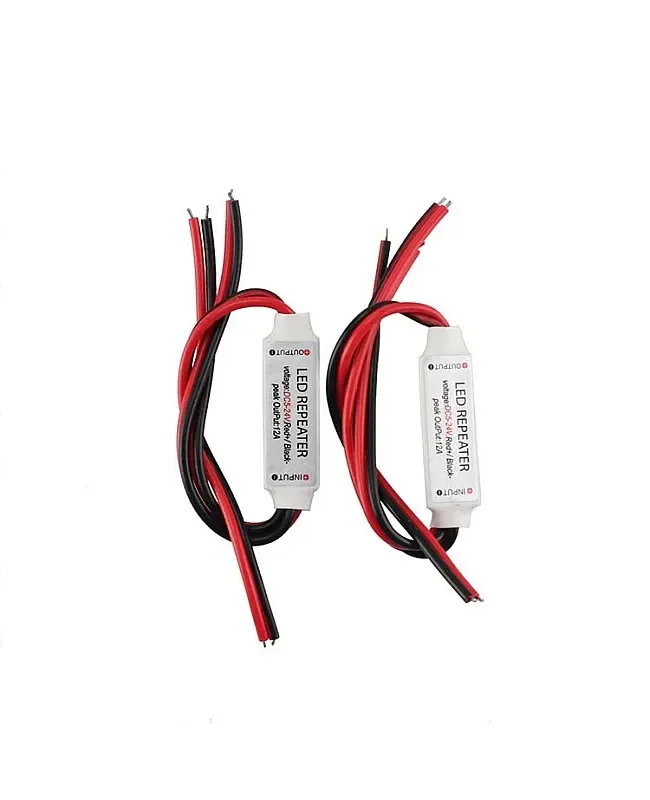

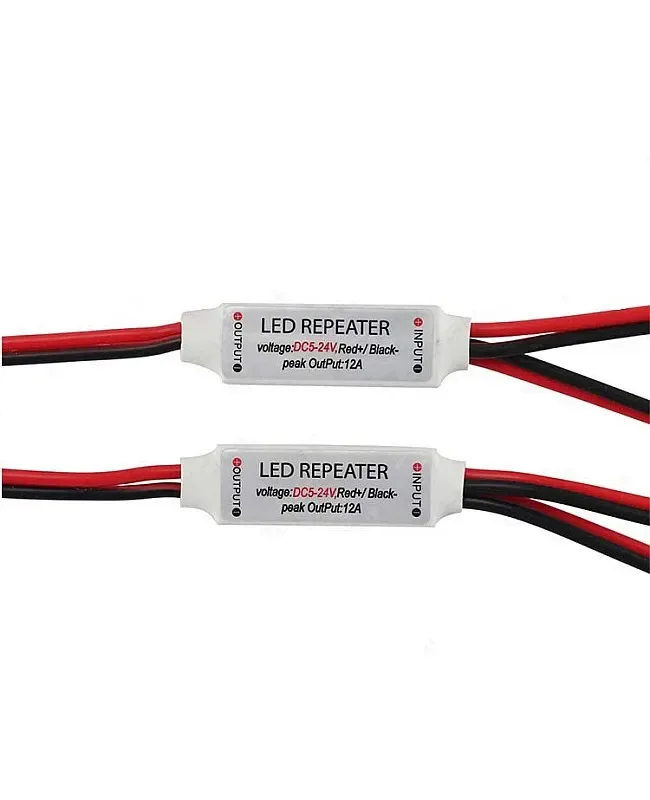

24V 12A LED Light Mini Amplifier For Single Color LED Lights
LumaCircuit offers 24V 12A LED Light Mini Amplifier For Single Color LED Lights as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working temperature: -20 ℃-60 ℃ Working Voltage: DC5V, DC12V, DC24V Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Item Type: Mini LED Amplifier
- Working temperature: -20 ℃-60 ℃
- Working Voltage: DC5V, DC12V, DC24V
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Power: 60W(DC5V), 144W(DC12V), 288W(DC24V)
- Wires: Red(V+)/Black(V )
- A serviceable controller component for a complete lighting BOM.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V / 5 V / 12 V / 24 V
- LumaCircuit model: LC-CTL-ML3Q30
- Size: 45*12*3mm(L*W*H)
- Working temperature: -20 ℃-60 ℃
- Working Voltage: DC5V, DC12V, DC24V
- Output Channels: 1
- Max Output Current: 12A
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Power: 60W(DC5V), 144W(DC12V), 288W(DC24V)
- Dimensions found: 45x12x3mm / 3mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications
Manufacturer
Item Type: Mini LED Amplifier
Size: 45*12*3mm(L*W*H)
Working temperature: -20 ℃-60 ℃
Working Voltage: DC5V, DC12V, DC24V
Output Channels: 1
Max Output Current: 12A
Connecting Mode: Common Anode
Static Power Consumption: <1W
Power: 60W(DC5V), 144W(DC12V), 288W(DC24V)
Wires: Red(V+)/Black(V )
Weight: 10g
1 * LED light amplifier
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
