12V LED SYNC Dimmer 300W
LumaCircuit offers 12V LED SYNC Dimmer 300W as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Voltage: DC12V-24V Max Output Current: 25A ( 1 Channel ) Frequency Of RF Remote: 433.9 MHz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

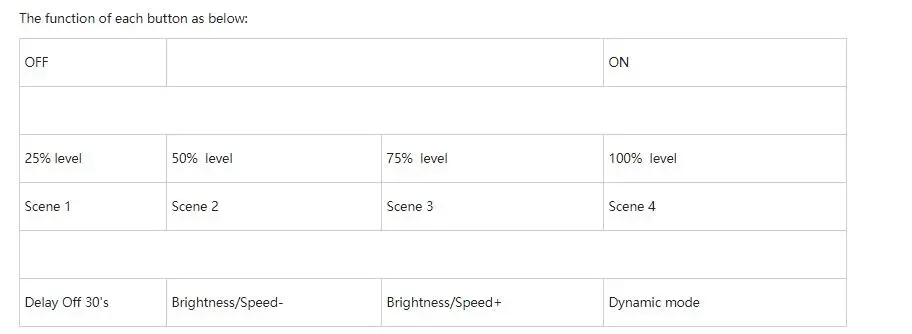

- The 12V LED SYNC dimmer adopts the most advanced PWM digital dimming technology, which is smooth and flicker-free. Working on DC12V or DC24V, with one output channel design, the max output current can reach 25A. The light dimmers have dual ports, making it easy to connect multiple dimmers to achieve sync work. It comes with a remote, a transmission distance of up to 20m, no need for a line of sight, 14 function buttons, dimming from 0% to 100%, and smooth and flicker-free.
- Working Voltage: DC12V-24V
- Max Output Current: 25A ( 1 Channel )
- Frequency Of RF Remote: 433.9 MHz
- Dimming From 0% To 100% Smooth And Flicker-Free

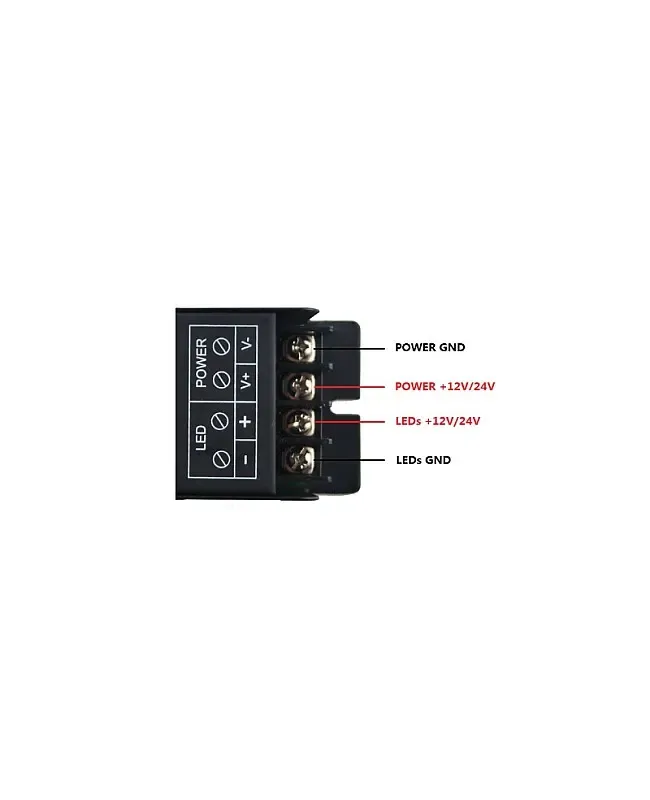

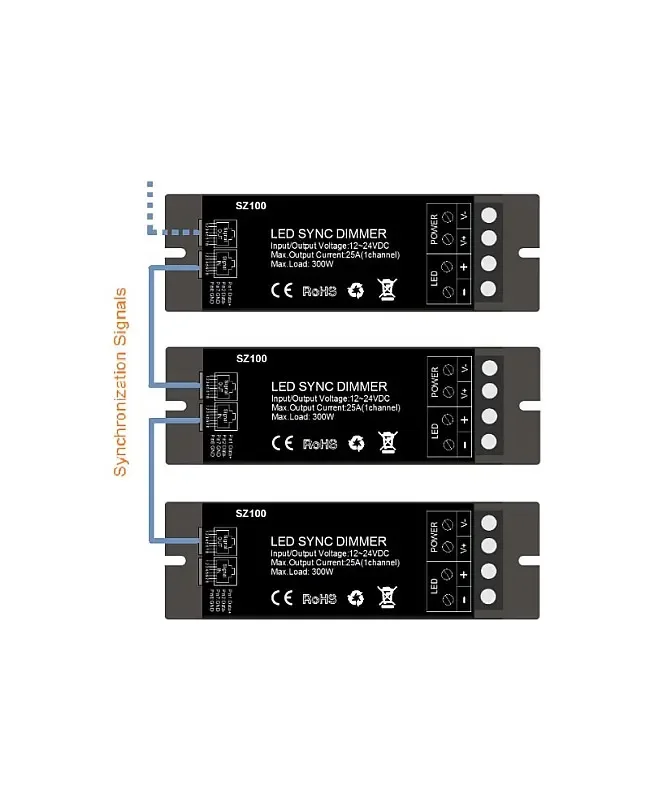

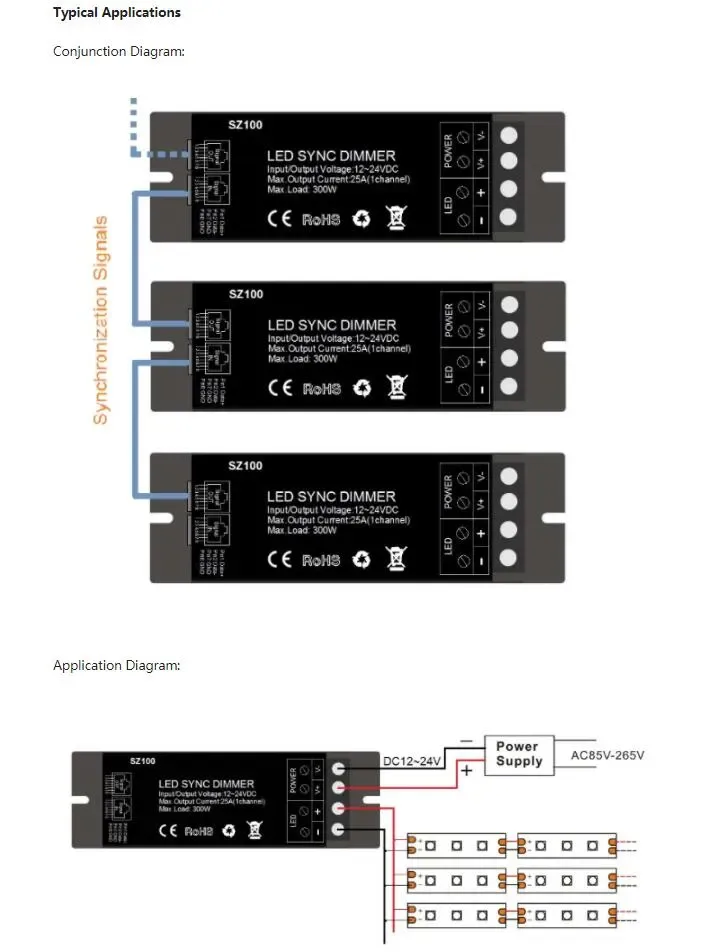

- Easy Connection To Achieve Multiple Dimmers Sync-Work By Port
- The 12V LED SYNC Dimmer, with one max 25A output channel, can be easily connected by port to achieve all units work synchronization with the RF remote, dimming from 0% to 100%.
- A production-ready controller family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Size: 127*41*32mm
- Working Voltage: DC12V-24V
- Output Gray: 256 Levels
- Max Output Current: 25A ( 1 Channel )
- Max Output Power: 300W
- Frequency Of RF Remote: 433.9 MHz
- RF Remote Range: 20M
- LumaCircuit model: LC-CTL-PCXEYZ
- Dimensions found: 127x41x32mm / 32mm / 20M
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

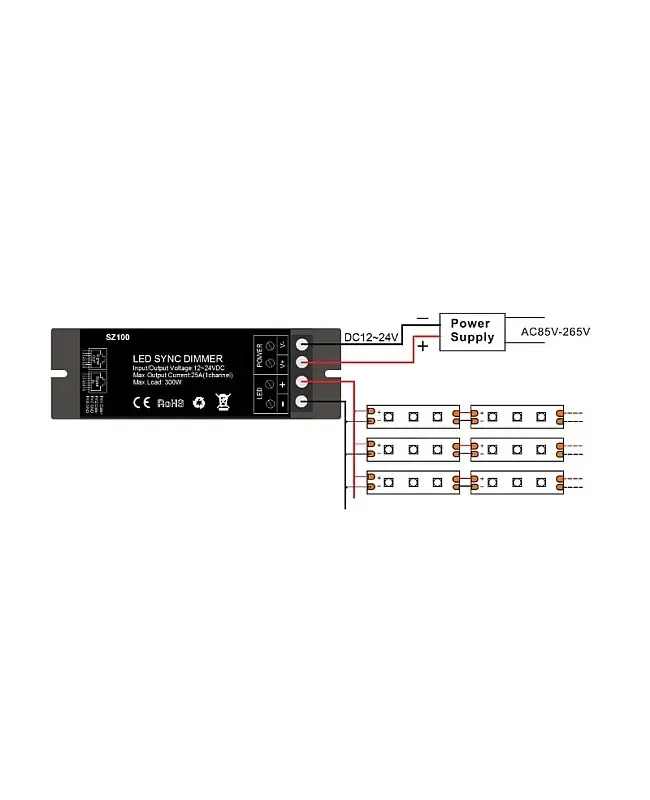

The 12V LED SYNC dimmer adopts the most advanced PWM digital dimming technology, which is smooth and flicker-free. Working on DC12V or DC24V, with one output channel design, the max output current can reach 25A. The light dimmers have dual ports, making it easy to connect multiple dimmers to achieve sync work. It comes with a remote, a transmission distance of up to 20m, no need for a line of sight, 14 function buttons, dimming from 0% to 100%, and smooth and flicker-free. This 12V LED dimmer is designed for single-color LED lights: LED strips, LED modules, etc.
Specifications
Size: 127*41*32mm
Working Voltage: DC12V-24V
Output Gray: 256 Levels
Max Output Current: 25A ( 1 Channel )
Max Output Power: 300W
Frequency Of RF Remote: 433.9 MHz
RF Remote Range: 20M
Dimming From 0% To 100% Smooth And Flicker-Free
Easy Connection To Achieve Multiple Dimmers Sync-Work By Port

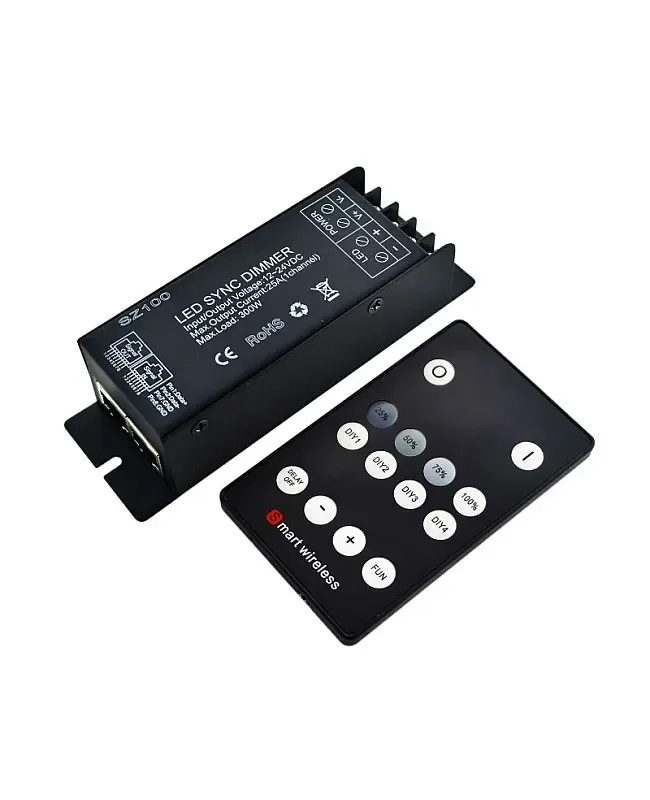

Includes
1 * 12V LED SYNC Dimmer

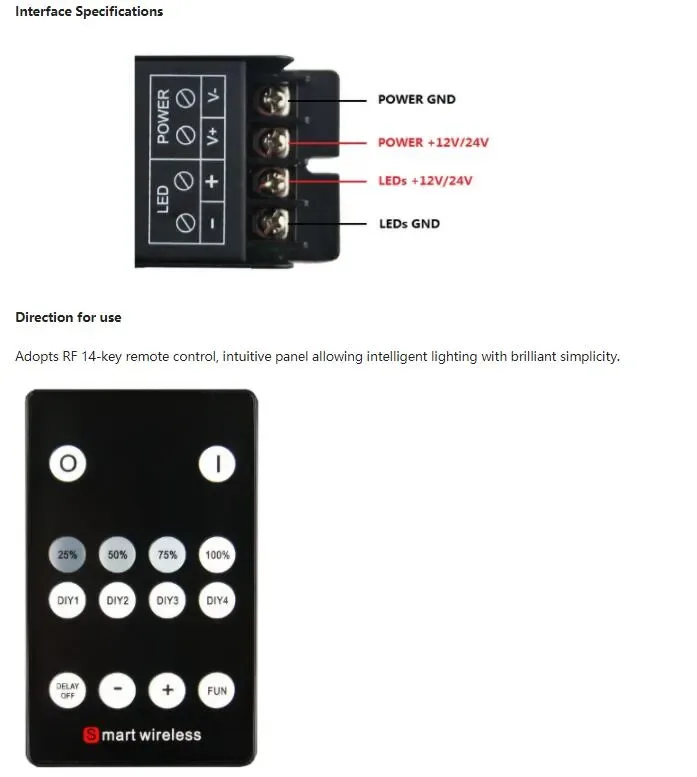

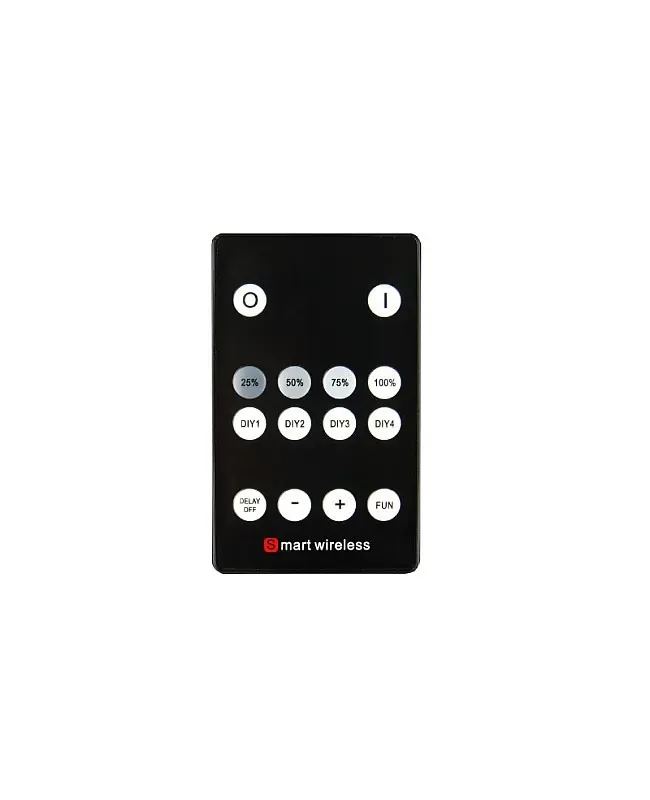

1 * 14 Keys IR Remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
