TRI Trailing Edge Dimmer WiFi+2.4G+Push Control
LumaCircuit offers TRI Trailing Edge Dimmer WiFi+2.4G+Push Control as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Input Voltage: -240V, 50/60Hz Output Current: 1.36A Max Output Power: 150W@110V; 300W@220V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller trailing edge dimmer is a WiFi, 2.4 GHz, and push control dimmer that can be used to adjust the brightness of single-color triac dimmable LED lamps, traditional filament lamps, and halogen lamps. It has a trailing edge design that allows for a smooth dimming effect. Compatible with the " Tuya Smart " app, allowing you to control the lights from your smartphone anytime and anywhere. The installer can set the minimum brightness level and adjust the brightness for various scenes.
- Input Voltage: -240V, 50/60Hz
- Output Current: 1.36A Max
- Output Power: 150W@110V; 300W@220V
- Trailing Edge(ELV) Phase-Cut Technology
- Dim Method: WiFi + 2.4G + Push
- Stepless Dimming Brightness
- " Tuya Smart" APP Control: Timing Setting, Device Sharing, Breaker Mode, Set Up Min Brightness, Tap-To-Run & Automation
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 110 V / 220 V
- LumaCircuit model: LC-CTL-JU54XE
- Size: 49*49*25mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Output Voltage: -240V
- Output Current: 1.36A Max
- Output Power: 150W@110V; 300W@220V
- " Tuya Smart" APP Control: Timing Setting, Device Sharing, Breaker Mode, Set Up Min Brightness, Tap-To-Run & Automation
- Support Third-Party Voice Control: Works With Amazon Alexa, Google Assistant
- 2.4G RF Control Distance: ≤30m
- Compatible With 2.4G RF Remotes: B, T1, T2, B, FUT-87-B, B, W, G
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

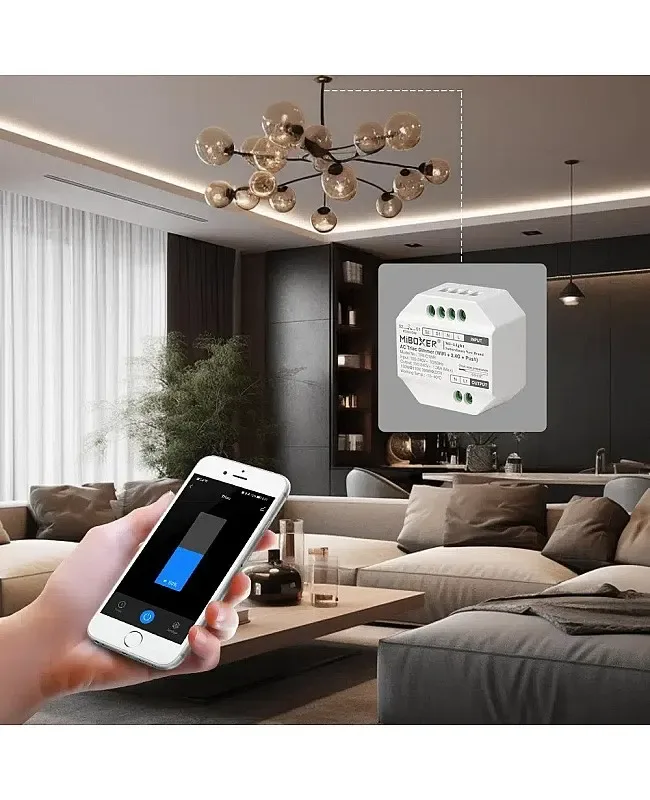

The wireless controller trailing edge dimmer is a WiFi, 2.4 GHz, and push control dimmer that can be used to adjust the brightness of single-color triac dimmable LED lamps, traditional filament lamps, and halogen lamps. It has a trailing edge design that allows for a smooth dimming effect. Compatible with the " Tuya Smart " app, allowing you to control the lights from your smartphone anytime and anywhere. The installer can set the minimum brightness level and adjust the brightness for various scenes. The installer can achieve more functions on your phone like timing, device sharing, tap-to-run & automation, breaker mode, and set up min brightness. The wireless controller AC dimmer supports push dimming and is compatible with wireless controller single-color remote controls. Support third-party voice control and can work with Amazon Alexa and Google Assistant to control ON/OFF and adjust brightness through voice commands.

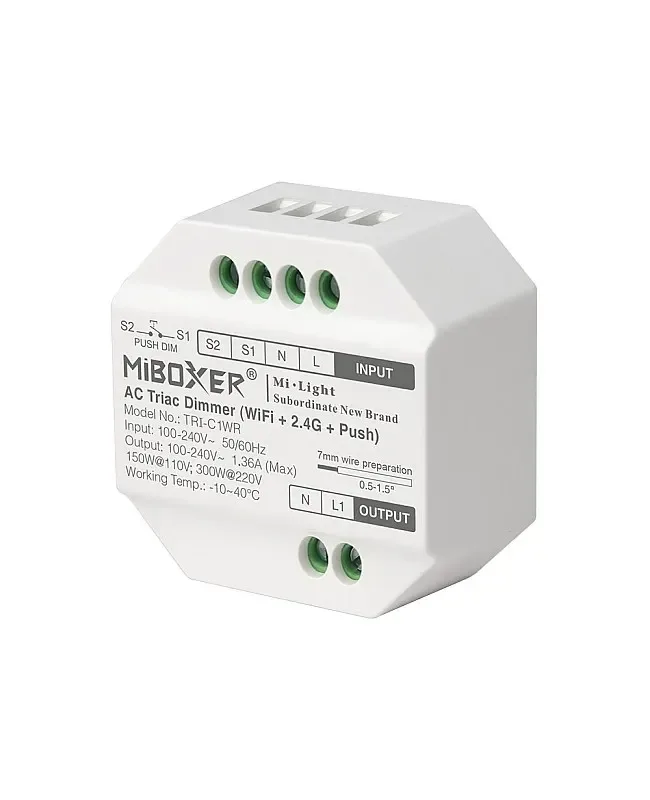

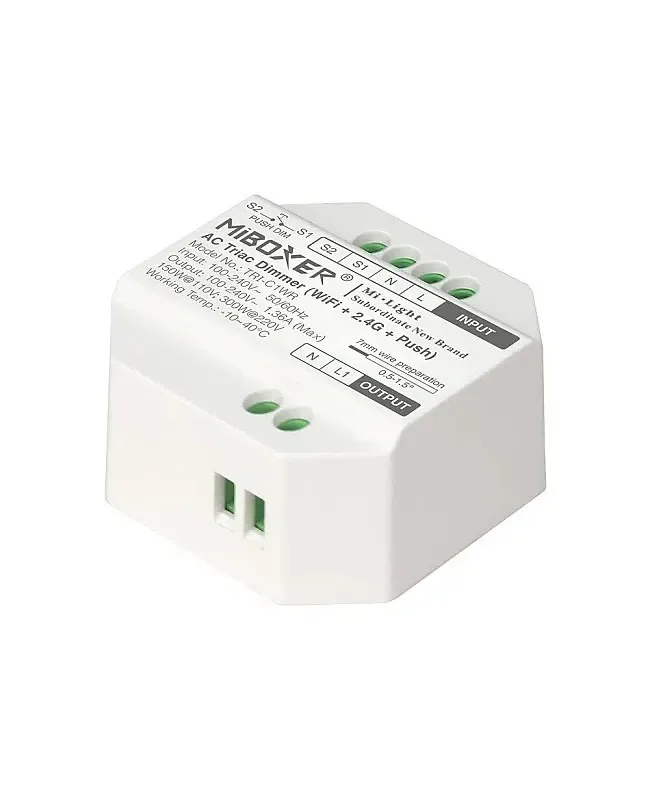

Specifications
Type: AC Triac Dimmer
Model
Size: 49*49*25mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Output Voltage: -240V
Output Current: 1.36A Max
Output Power: 150W@110V; 300W@220V
Trailing Edge(ELV) Phase-Cut Technology
Dim Method: WiFi + 2.4G + Push
Stepless Dimming Brightness
Push Dimming
" Tuya Smart" APP Control: Timing Setting, Device Sharing, Breaker Mode, Set Up Min Brightness, Tap-To-Run & Automation
Support Third-Party Voice Control: Works With Amazon Alexa, Google Assistant
Compatible Lights: Single Color Triac Dimmable LED Lamps, Traditional Filament Lamps, Halogen Lamps
4G RF Control Distance: ≤30m
Compatible With 2.4G RF Remotes B, T1, T2, B, FUT-87-B, B, W, G
Wireless Technology: WiFi IEEE 802.11 b/g/n 2.
Overheat Protection
Overload Protection
Working Temperature: -10-40℃
Includes
1 * Trailing Edge Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
