SWL Smart Light Switch Voice Control

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller SWL Smart Light Switch can be controlled by a 2.4G Remote Control and the Tuya Smart App for traditional appliances, such as fans, humidifiers, or electric fireplaces, and it enables intelligent switching and timing control, making your life more convenient and intelligent. The input and output voltage ranges are 100V to 240V AC; the installer can connect directly to the existing power system. The mobile app Switch adopts WiFi, Bluetooth, and 2.4G wireless transmission technology.
• Supports power statistics function, can be monitored in real-time by the app, and easily manage household electricity consumption
• Used to turn ON/OFF LED Lights(without dimming function), traditional incandescent lamps, halogen lamps, heaters, electric fireplaces, and other conventional appliances
• Support power-on status setting(OFF/ON/Retain the status before power off)
• Supports child lock function to protect children's safety and prevent electrical appliances from being damaged
• One controller can be paired with 12 remotes
• With a 2.4G RF two-way communication function, it must be used in conjunction with the Remote Control.
• Auto-forwarding: Auto-forward the remote signal to another switch, making the remote control distance infinite

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 240 V
• LumaCircuit model: LC-CTL-LR5DDY

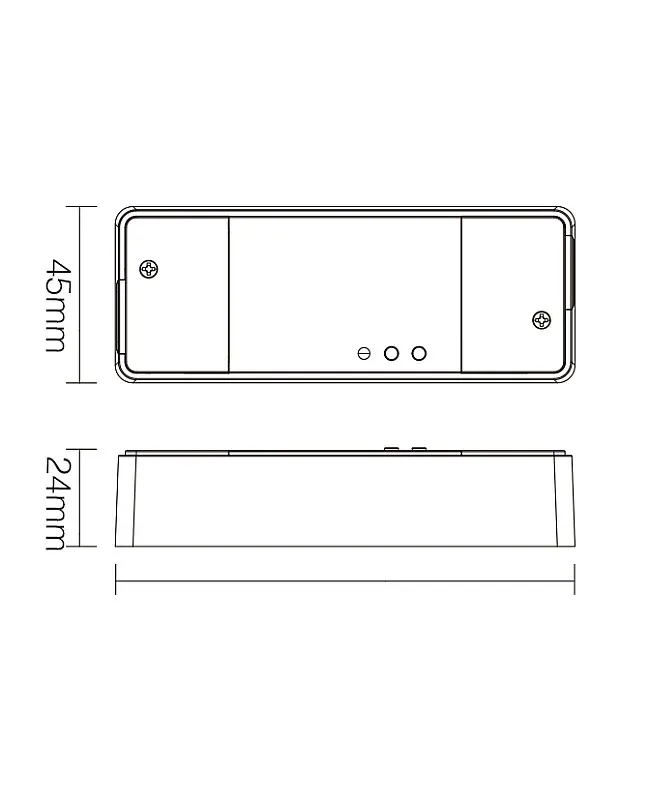

• Size: 110*45*24mm(L*W*H)
• Input Voltage: -240V; 50/60Hz
• Output Current: 10A Max
• Output Power: 1000-2400W
• Support Third Party Voice Control: Amazon Alexa, Google Assistant (NO Need 2.4G Gateway)
• Control Signal: WiFi+2.4G+PUSH
• 2.4G Control Distance: ≤30M
• IP Rating: IP20 Non-waterproof
• Working Temperature: -10-40℃
• Dimensions found: 110x45x24mm / 24mm / 30M

Control and installation

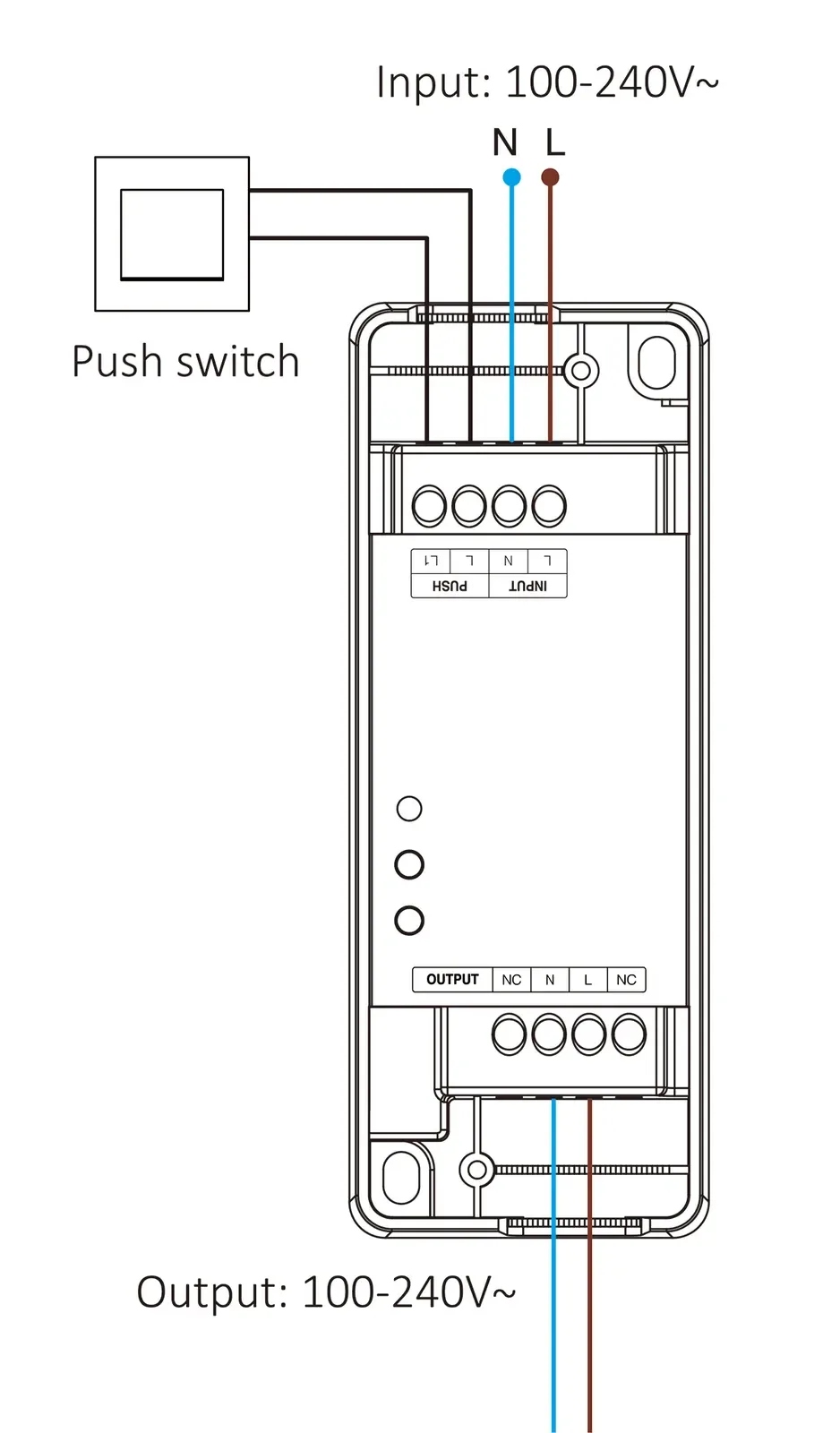

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

The wireless controller SWL Smart Light Switch can be controlled by a 2.4G Remote Control and the Tuya Smart App for traditional appliances, such as fans, humidifiers, or electric fireplaces, and it enables intelligent switching and timing control, making your life more convenient and intelligent. The input and output voltage ranges are 100V to 240V AC; the installer can connect directly to the existing power system. The mobile app Switch adopts WiFi, Bluetooth, and 2.4G wireless transmission technology. A WiFi and Bluetooth connection to the network can significantly enhance the network connection experience. When the route is disconnected, Bluetooth can also connect directly to the control devices at close range. It not only works with the Tuya Smart APP but also with Amazon Alexa and Google Assistant voice commands.

Supports power statistics function, can be monitored in real-time by the app, and easily manage household electricity consumption

Used to turn ON/OFF LED Lights(without dimming function), traditional incandescent lamps, halogen lamps, heaters, electric fireplaces, and other conventional appliances

Support power-on status setting(OFF/ON/Retain the status before power off)

Supports child lock function to protect children's safety and prevent electrical appliances from being damaged

One controller can be paired with 12 remotes

With a 2.4G RF two-way communication function, it must be used in conjunction with the Remote Control.

Auto-forwarding: Auto-forward the remote signal to another switch, making the remote control distance infinite

Specifications

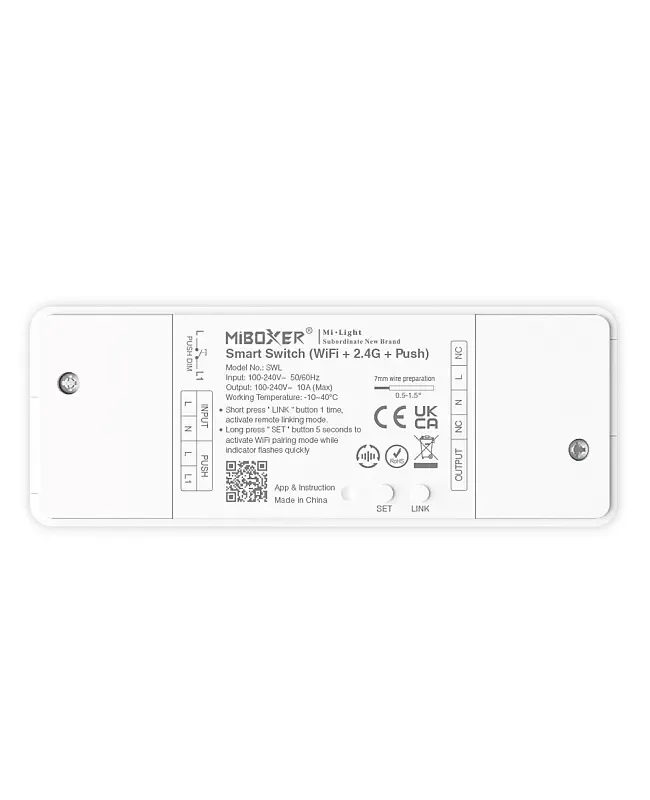

Type: Smart Switch(WiFi + 2.4G + PUSH)

Model: SWL

Size: 110*45*24mm(L*W*H)

Input Voltage: -240V; 50/60Hz

Output Voltage； -240V, 50/60Hz

Output Current: 10A Max

Output Power: 1000-2400W

Support Tuya Smart APP Control(No Need 2.4G Gateway)

Support Third Party Voice Control: Amazon Alexa, Google Assistant (NO Need 2.4G Gateway)

Control Signal: WiFi+2.4G+PUSH

4G Control Distance: ≤30M

WiFi Standards: IEEE 802./g/n 2.

EMC Standard(EMC): ETSI EN 301 489-1.2.3; ETSI EN 301 489-17.2.4

Safety Standard(LVD): -1:2020+:2020

Radio Equipment(RED): ETSI EN 300 440.2.1

IP Rating: IP20 Non-waterproof

Working Temperature: -10-40℃

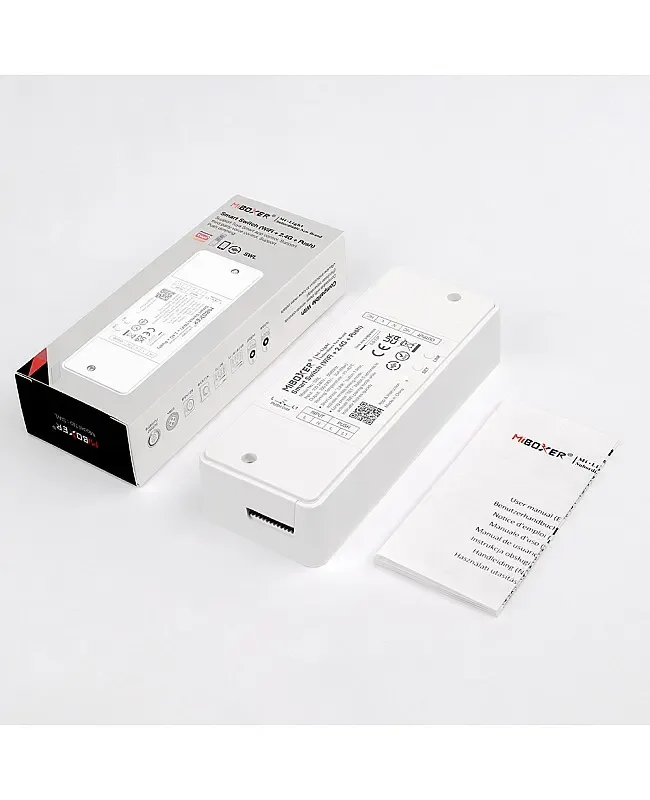

Includes

1 * SWL Tuya Smart Light Switch
