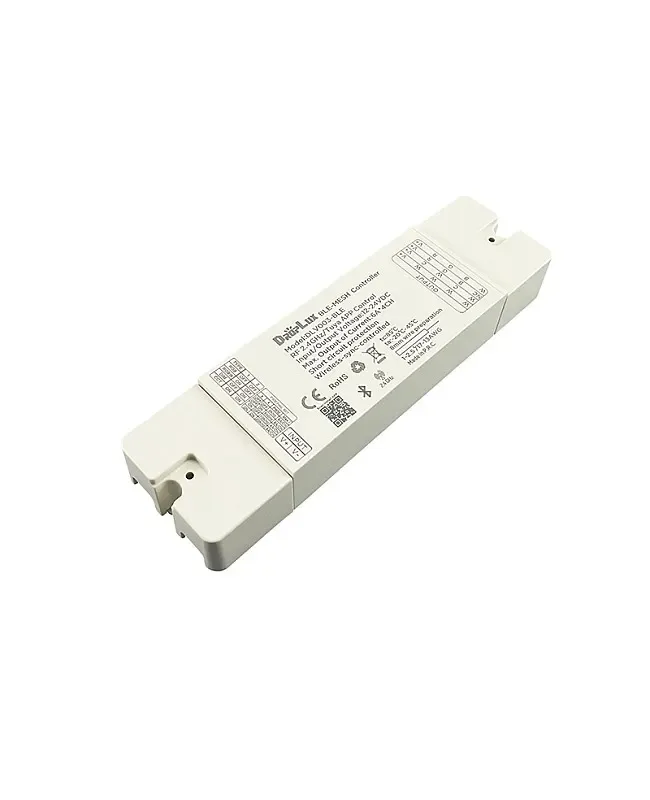

576W Hoion BLE Bluetooth 2.4G Wireless RF LED Controller
LumaCircuit offers 576W Hoion BLE Bluetooth 2.4G Wireless RF LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 170*50*29mm(L*W*H) Connecting Mode: Common Anode Output Current: PWM≤:4CH*6A; PWM≤: 4CH*4A; PWM=: 4CH*3A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Hoion BLE Bluetooth 2.4G wireless RF LED controller is an excellent choice for controlling LED lighting. It has a 4 in 1 design and the most advanced PWM digital control technology. It's designed to work with various LED lighting products, including constant-voltage LED lamps, point-source lights, LED strips, lighting modules, string lights, etc. The installer can adjust the brightness, static color choices, and various dynamic lighting effects via the remote.
- Size: 170*50*29mm(L*W*H)
- Connecting Mode: Common Anode
- Output Current: PWM≤:4CH*6A; PWM≤: 4CH*4A; PWM=: 4CH*3A
- Max Output Power: PWM≤: 288W/12V, 576W/24V; PWM≤: 192W/12V, 384W/24V; PWM=:144W/12V, 288W/24V
- Static Power Consumption: ＜1W
- PWM Frequency: (Default), 500Hz,
- Control Method: RF Remote Control, Tuya APP
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-9KZAE2
- Size: 170*50*29mm(L*W*H)
- Working Voltage: -24V
- Connecting Mode: Common Anode
- Output: 4 Channels
- Output Current: PWM≤:4CH*6A; PWM≤: 4CH*4A; PWM=: 4CH*3A
- Max Output Power: PWM≤: 288W/12V, 576W/24V; PWM≤: 192W/12V, 384W/24V; PWM=:144W/12V, 288W/24V
- Static Power Consumption: ＜1W
- PWM Frequency: (Default), 500Hz,
- RF Frequency: 2.
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

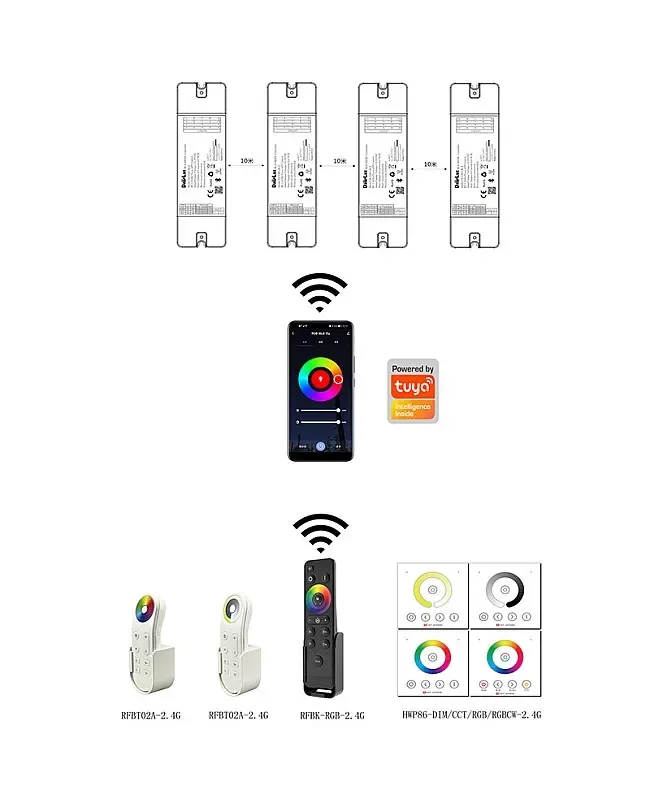

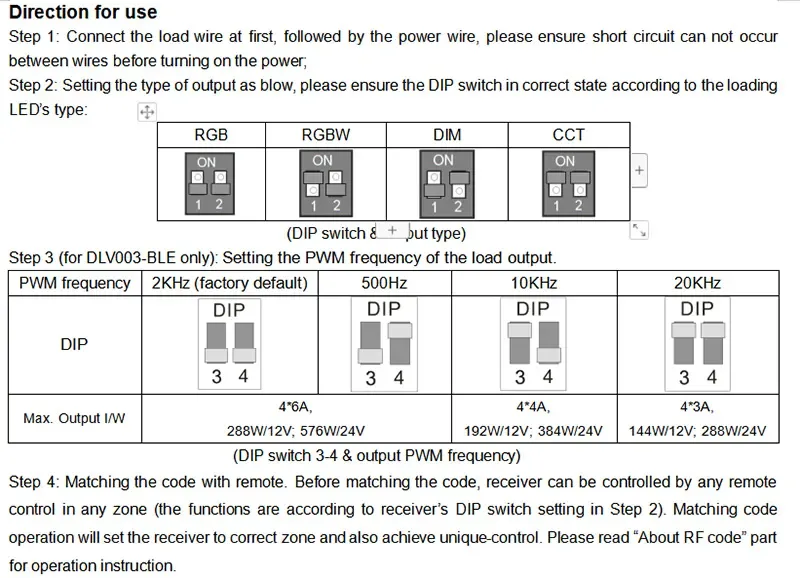

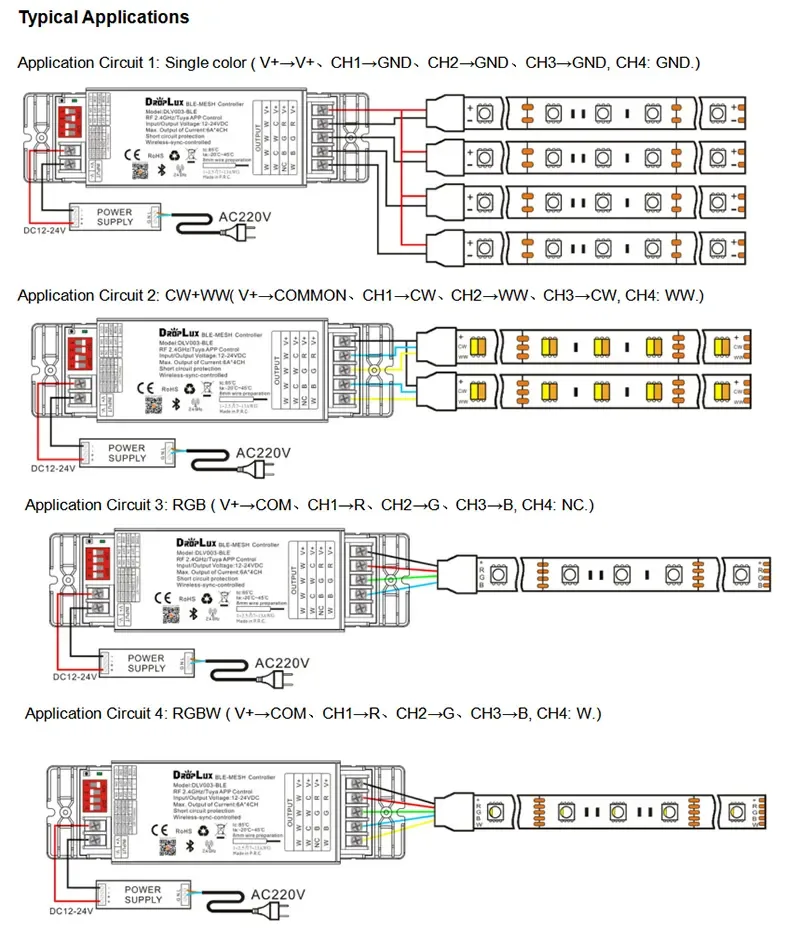

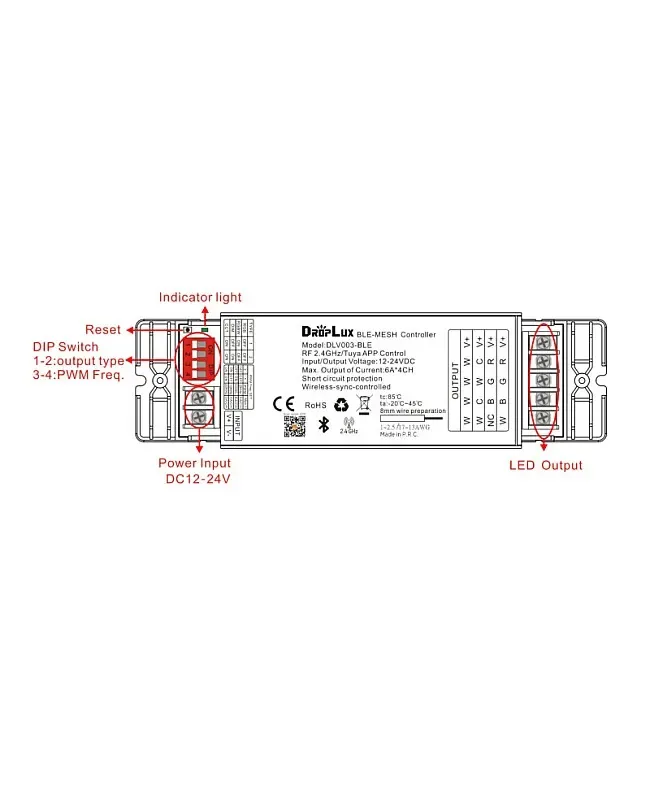

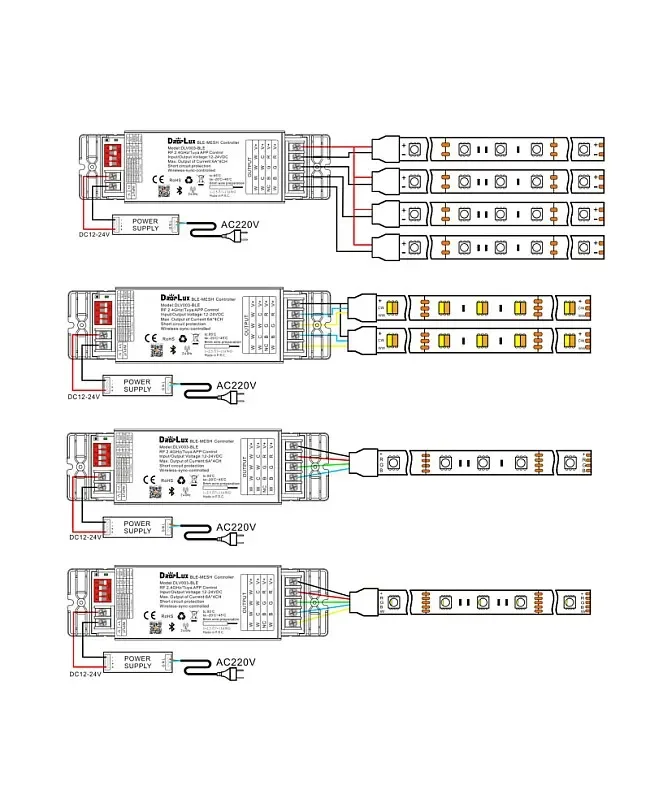

The Hoion BLE Bluetooth 2.4G wireless RF LED controller is an excellent choice for controlling LED lighting. It has a 4 in 1 design and the most advanced PWM digital control technology. It's designed to work with various LED lighting products, including constant-voltage LED lamps, point-source lights, LED strips, lighting modules, string lights, etc. The installer can adjust the brightness, static color choices, and various dynamic lighting effects via the remote. It's integrated with 4 optional programs for different LED color types, including single-color, dual white, RGB, and RGBW. The brightness of static color is adjustable to 1024 levels, and the speed of dynamic change is adjustable to 100 levels. There is a DIP switch on the controller that the installer can set to select the output mode. The working PWM frequency is adjustable from 2 kHz to 20 kHz. The Tuya APP can control the Hoion controller to enable intelligent features such as group control, scene control, and timer control. BLE will transmit the signals from the remote and self-inspect the work status for each other. Multiple controllers in the same zone will work wirelessly. Not only static mode, but also dynamic mode.
Specifications
Model

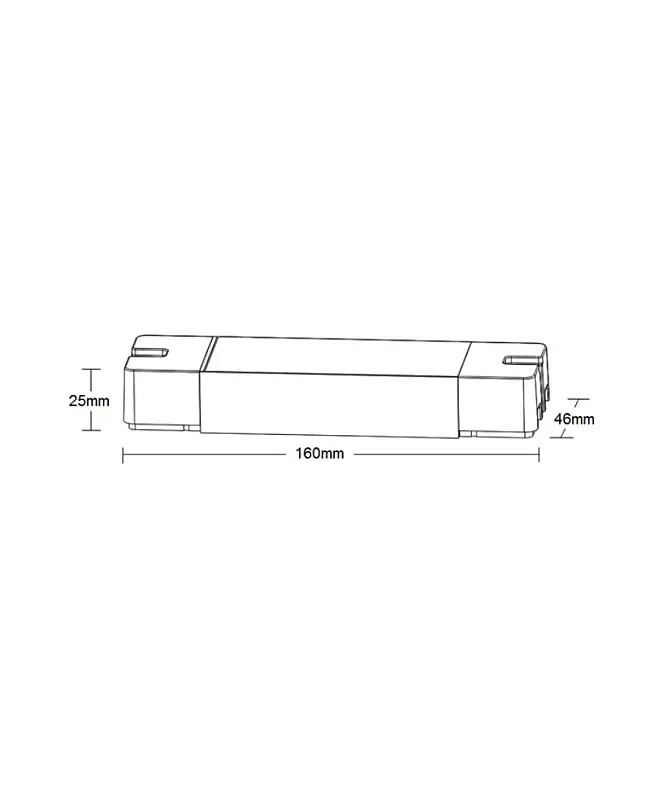

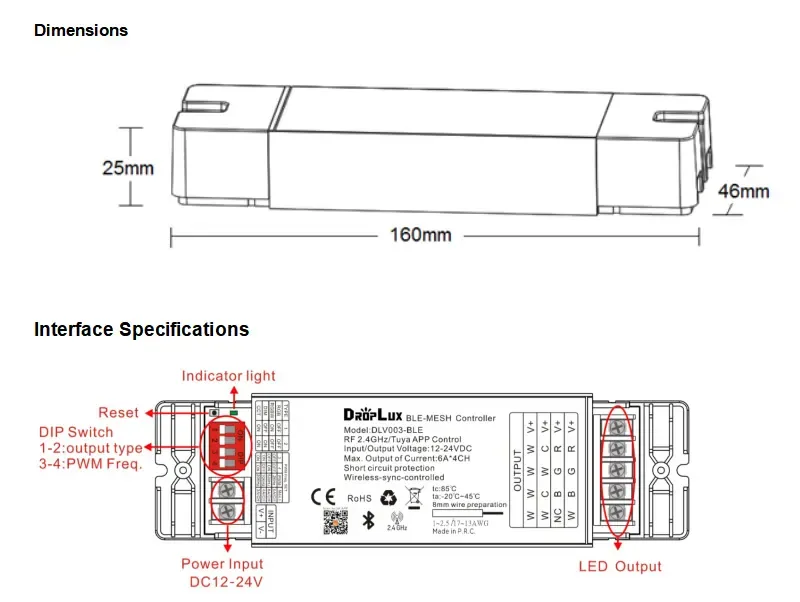

Size: 170*50*29mm(L*W*H)
Working Voltage: -24V
Connecting Mode: Common Anode
Output: 4 Channels
Output Current: PWM≤:4CH*6A; PWM≤: 4CH*4A; PWM=: 4CH*3A
Max Output Power: PWM≤: 288W/12V, 576W/24V; PWM≤: 192W/12V, 384W/24V; PWM=:144W/12V, 288W/24V
Static Power Consumption: ＜1W
PWM Frequency: (Default), 500Hz,
Grayscale: 1024 Levels
Speed Stage: 100 Grade
RF Frequency: 2.
RF Distance: ≤20m
Control Method: RF Remote Control, Tuya APP
Short Circuit Protection
Memory Function: YES
Working Temperature: -20-60℃
Includes
1 * 2.4G Wireless SYNC RF Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
