Product details

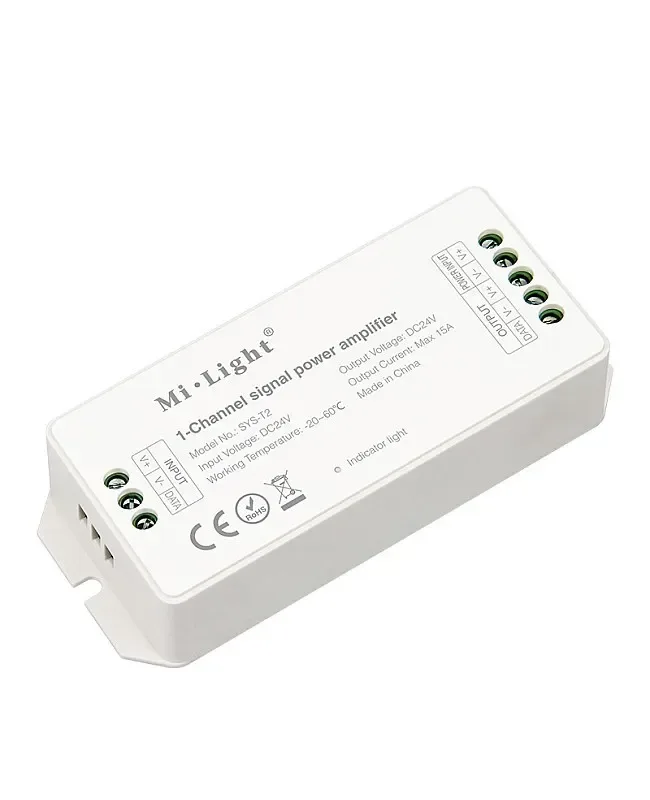

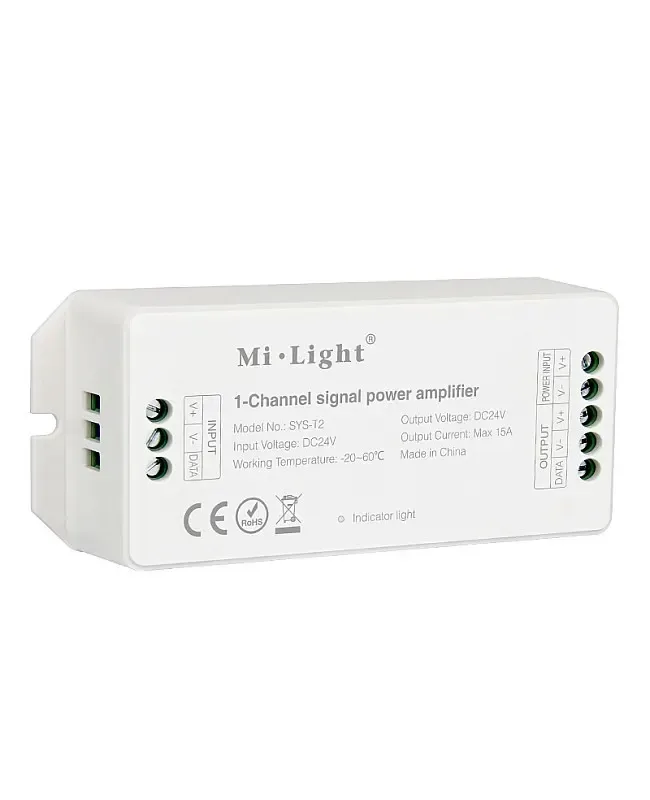

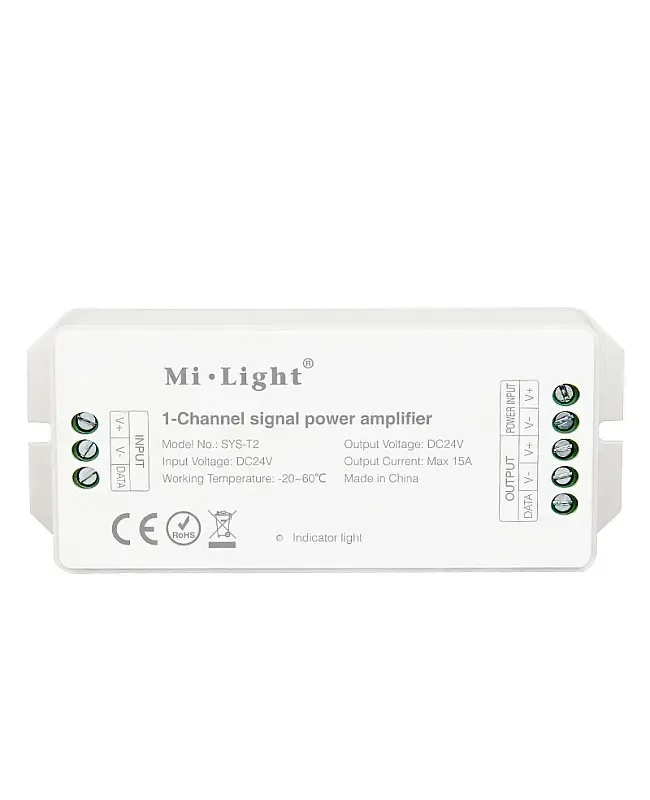

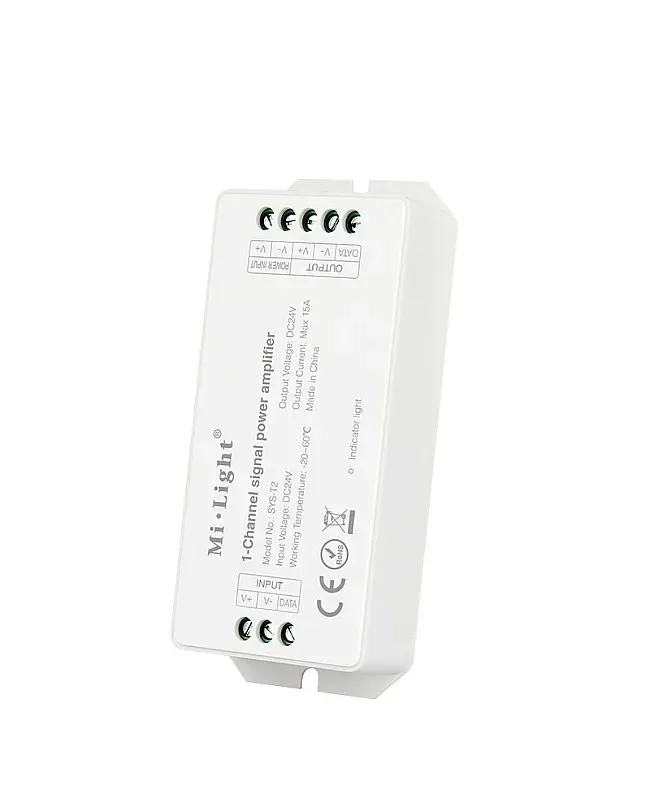

SYS T2 1 Channel Signal Amplifier
LumaCircuit offers SYS T2 1 Channel Signal Amplifier as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller User Manual Size: 115*48*27mm(L*W*H) Only Works With wireless controller SYS-1 Host Controller The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller signal amplifier, with a 1-channel design and a max output power of up to 360W, will amplify the power and signal of the wireless controller SYS-T1 host controller to control more LED lights synchronously. When you add one more amplifier, the installer can connect twice as many LED lamps. The wireless controller amplifier only works with the SYS series LED lights, like wall washer lights, underwater lighting, garden lamps, etc.
- wireless controller User Manual
- Size: 115*48*27mm(L*W*H)
- Only Works With wireless controller SYS-1 Host Controller
- Working Temperature: -20-60℃
- 1 * wireless controller Signal Amplifier
- The wireless controller Signal Amplifier, will amplify the power and signal of wireless controller Host Controller to synchronously control more LED Lights, the installer can connect a double quantity of LED Lamps.
- A serviceable controller component for a complete lighting BOM.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V
- Size: 115*48*27mm(L*W*H)
- Input Voltage: DC24V
- Output Voltage: DC24V
- Output Current: Max 15A
- Output Power: Max 360W
- Working Temperature: -20-60℃
- LumaCircuit model: LC-CTL-DT1KA5
- Dimensions found: 115x48x27mm / 27mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

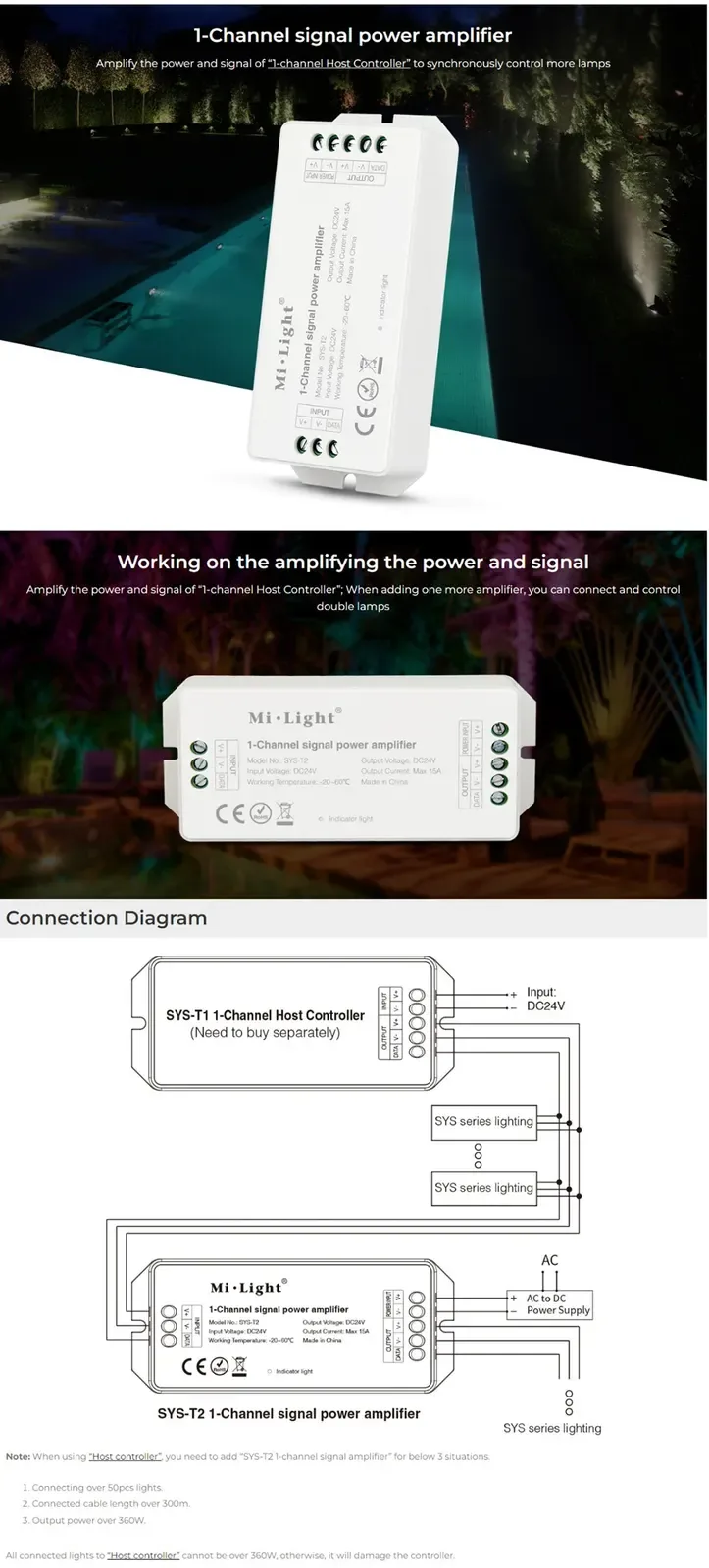

The wireless controller signal amplifier, with a 1-channel design and a max output power of up to 360W, will amplify the power and signal of the wireless controller SYS-T1 host controller to control more LED lights synchronously. When you add one more amplifier, the installer can connect twice as many LED lamps. The wireless controller amplifier only works with the SYS series LED lights, like wall washer lights, underwater lighting, garden lamps, etc. The loading power of the Lights connected to the amplifier can not be over 360W, the working voltage is DC24V, and the maximum output current is 15A this is made of high-quality PC material, which is solid and durable. It comes with 5 connection terminals, making connecting to a power supply and LED lights easy.
Quick Links
wireless controller User Manual
Specifications
Size: 115*48*27mm(L*W*H)
Input Voltage: DC24V
Output Voltage: DC24V
Output Current: Max 15A
Output Power: Max 360W
Only Works With wireless controller SYS-1 Host Controller
Working Temperature: -20-60℃
Includes
1 * wireless controller Signal Amplifier
Product resources
Technical documents
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
