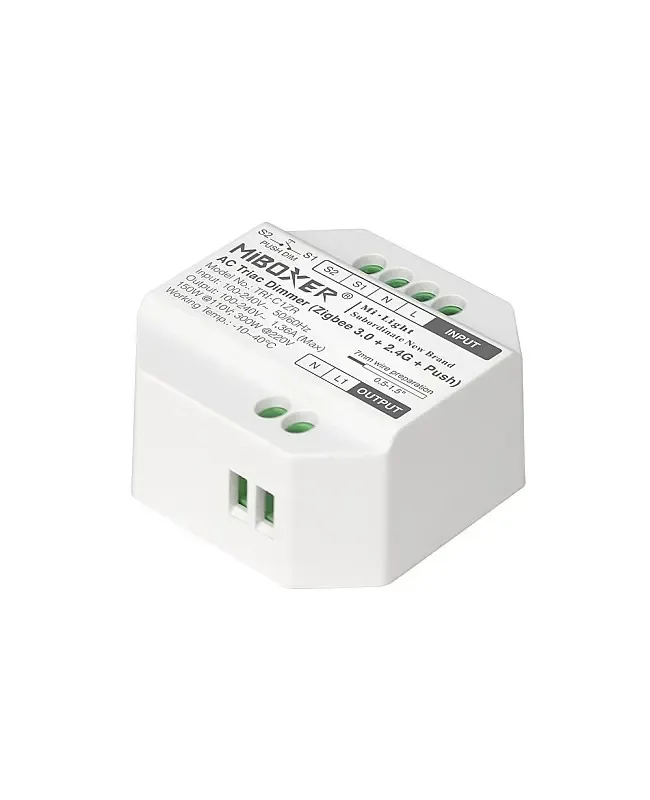

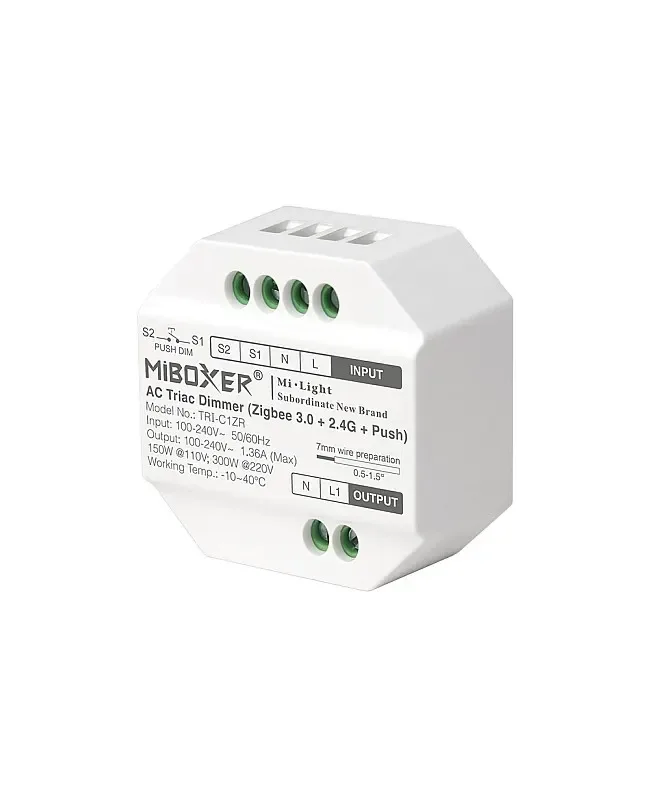

AC Triac ELV Dimmer Zigbee 3.0 For Traditional Incandescent Lights
LumaCircuit offers AC Triac ELV Dimmer Zigbee 3.0 For Traditional Incandescent Lights as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Input Voltage: -240V; 50/60Hz Output Current: Max 1.36A Output Power: 150W(AC110V)/300W(AC220V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The AC Triac ELV dimmers are an excellent choice for traditional incandescent lights. This dimmer is intended to work with incandescent bulbs, allowing you to adjust the lighting level to your preferences. The triac dimmers follow the Zigbee 3.0 standard protocol and can be controlled by a 2.4G RF remote, a smart APP, and voice command to control the brightness for various scenes. Support control traditional incandescent lamps, halogen lamps, and triac dimmable LED lamps.
- Input Voltage: -240V; 50/60Hz
- Output Current: Max 1.36A
- Output Power: 150W(AC110V)/300W(AC220V)
- Dimming Method: Zigbee 3.0 + 2.4G + Push

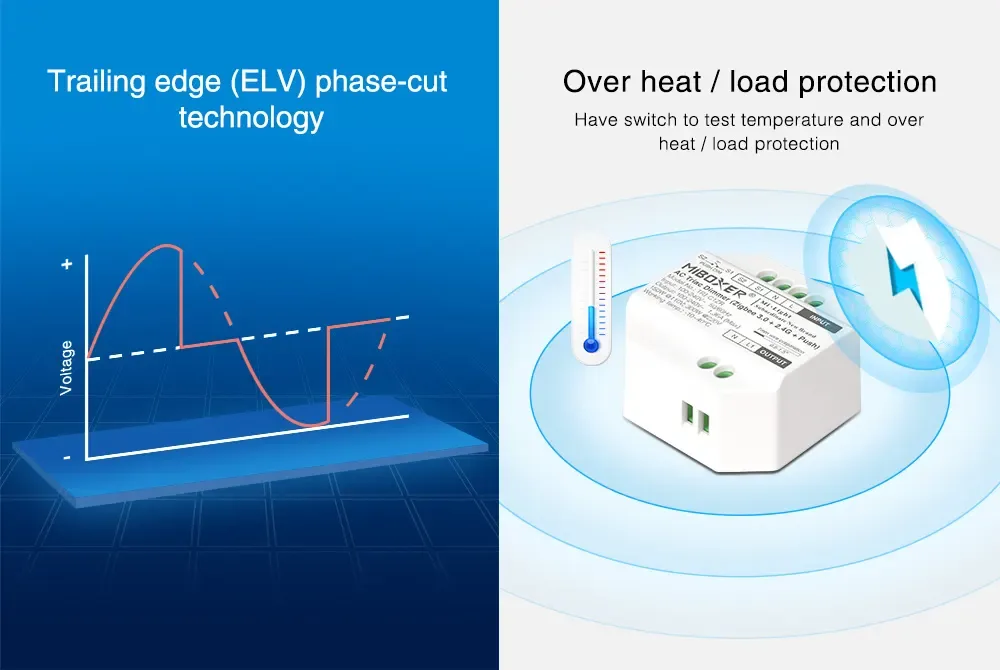

- Trailing-Edge(ELV) Phase-Cut Technology
- Zigbee Control Distance: ≤100m(Open Area)
- 4G RF Remote Controllable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 110 V / 220 V
- LumaCircuit model: LC-CTL-KQT357

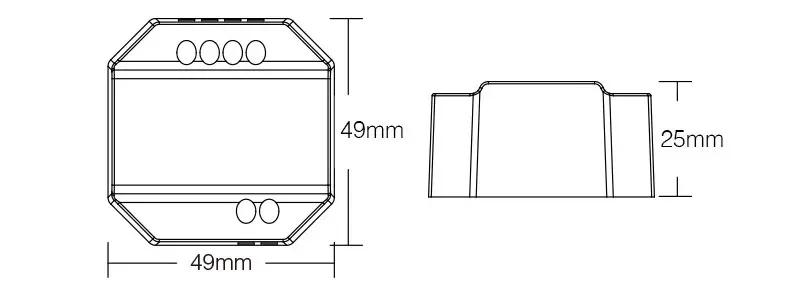

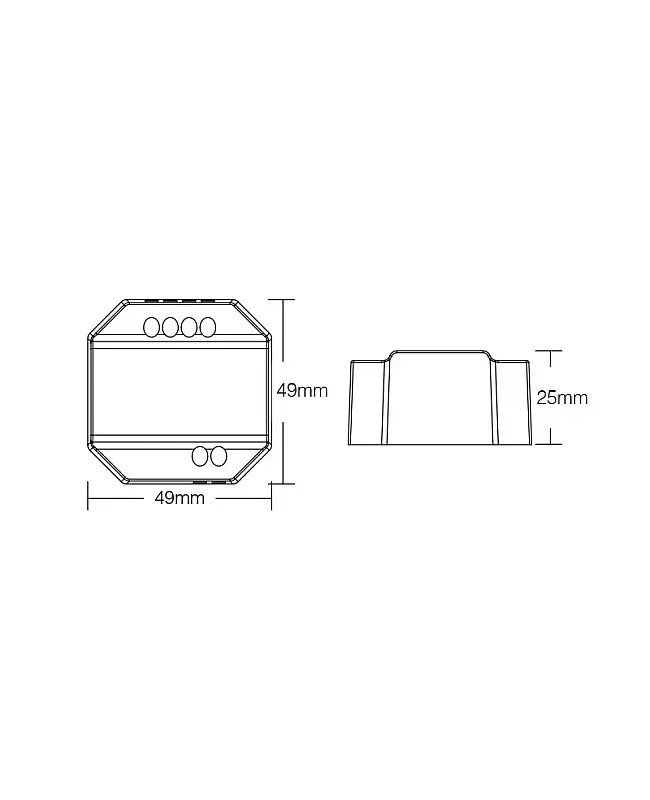

- Size: 49*49*25mm(L*W*H)
- Input Voltage: -240V; 50/60Hz
- Output Voltage: -240V
- Output Current: Max 1.36A
- Output Power: 150W(AC110V)/300W(AC220V)
- Zigbee Control Distance: ≤100m(Open Area)
- 2.4G RF Control Distance: ≤30m
- Applications: Living Rooms, Rooms, Restaurants, Offices, etc
- Working Temperature: -10-40℃
- Dimensions found: 49x49x25mm / 25mm / 100m / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The AC Triac ELV dimmers are an excellent choice for traditional incandescent lights. This dimmer is intended to work with incandescent bulbs, allowing you to adjust the lighting level to your preferences. The triac dimmers follow the Zigbee 3.0 standard protocol and can be controlled by a 2.4G RF remote, a smart APP, and voice command to control the brightness for various scenes. Support control traditional incandescent lamps, halogen lamps, and triac dimmable LED lamps. The ELV triac dimmers work on AC100V to AC240V, with the max output power up to 150W when working on AC110V; if working on AC220V, the max power is 300W. Tuya Smart APP can control the AC triac dimmers to achieve more functions like timing setting, device sharing, tap-to-run & automation, on-off mode, and setting up a min brightness after matching with a Zigbee 3.0 gateway. It can work with Amazon Alexa and Google Assistant, and the installer can use voice commands to control ON/OFF, adjust brightness, etc. It can enter Philips Hue, IKEA TRADFRI, Amazon Echo Plus( Gen), Echo( Gen), Echo Studio, and Echo Show( Gen) standard Zigbee gateways. The installer can use it to control the brightness of the single-color traditional lamps in living rooms, restaurants, offices, etc.
Specifications
Model
Size: 49*49*25mm(L*W*H)
Input Voltage: -240V; 50/60Hz
Output Voltage: -240V
Output Current: Max 1.36A
Output Power: 150W(AC110V)/300W(AC220V)
Dimming Method: Zigbee 3.0 + 2.4G + Push
Trailing-Edge(ELV) Phase-Cut Technology
Zigbee Control Distance: ≤100m(Open Area)
4G RF Remote Controllable
4G RF Control Distance: ≤30m
Push Dimming
Stepless Brightness Adjustable From 1% To 100%
Smart Control For Traditional Lighting
Support Smart Scene Linkage
Support Amazon Alexa And Google Home Control
Support Set Up Minimum Brightness
Support Tuya Smart APP Control(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Support Echo Plus( Gen) Control Directly Without Connection With the APP And the Gateway
Compatible Traditional Lighting: Single Color Triac Dimmable LED Light, Traditional Filament Lamps, Halogen Lamps
Overheat Protection
Overloading protection
Applications: Living Rooms, Rooms, Restaurants, Offices, etc
Working Temperature: -10-40℃
Includes
1 * Triac ELV Light Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
