Single Color LED Mini Dimmer With DC Connector
LumaCircuit offers Single Color LED Mini Dimmer With DC Connector as a configurable LED controller for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Working Temperature: -20-60℃ Connecting Mode: Common Anode Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

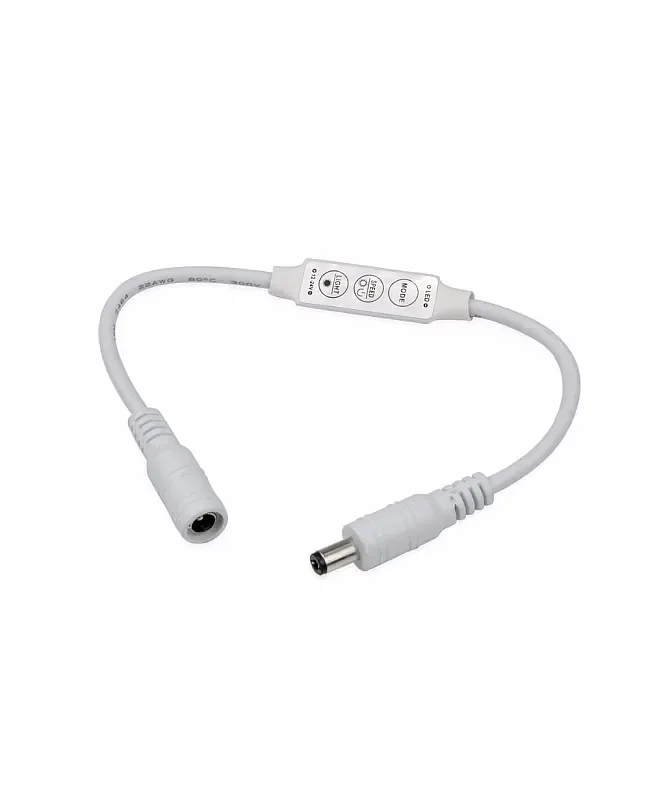

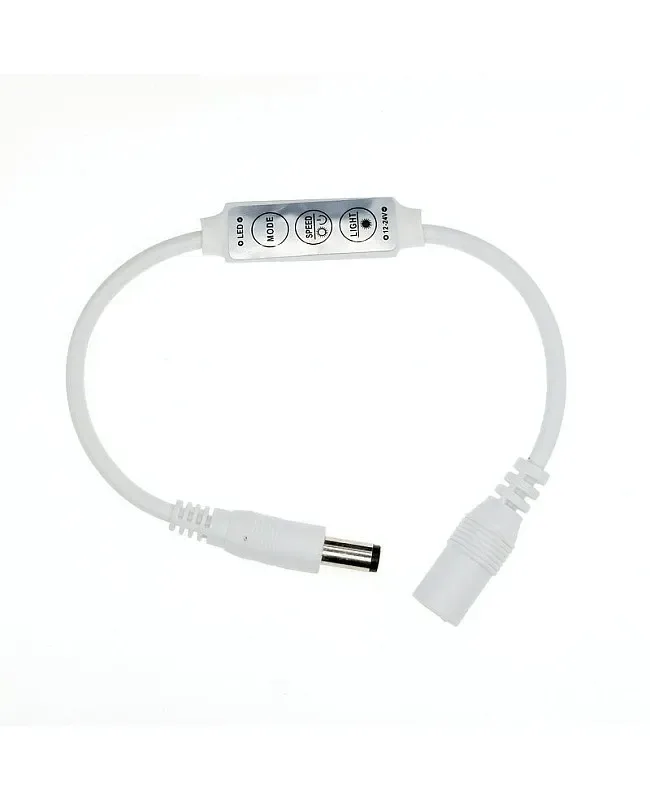

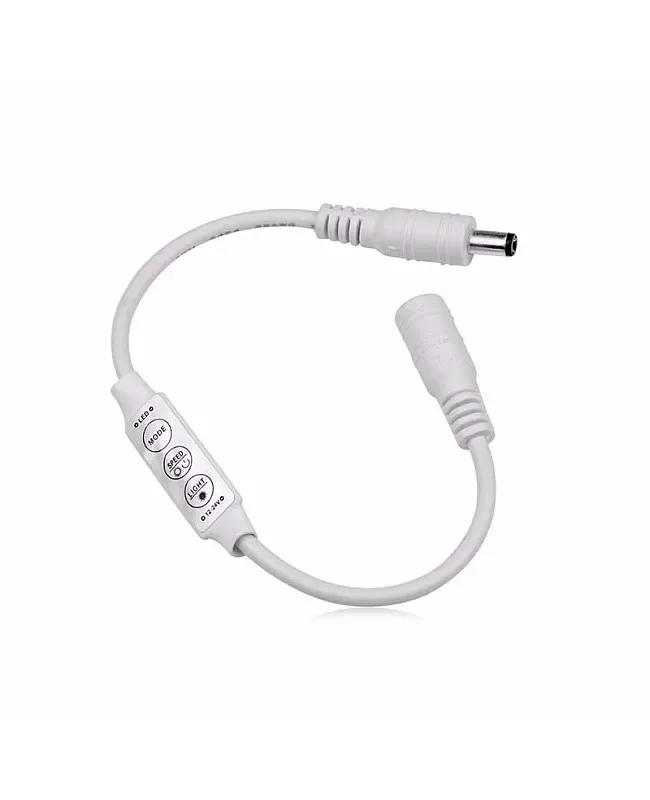

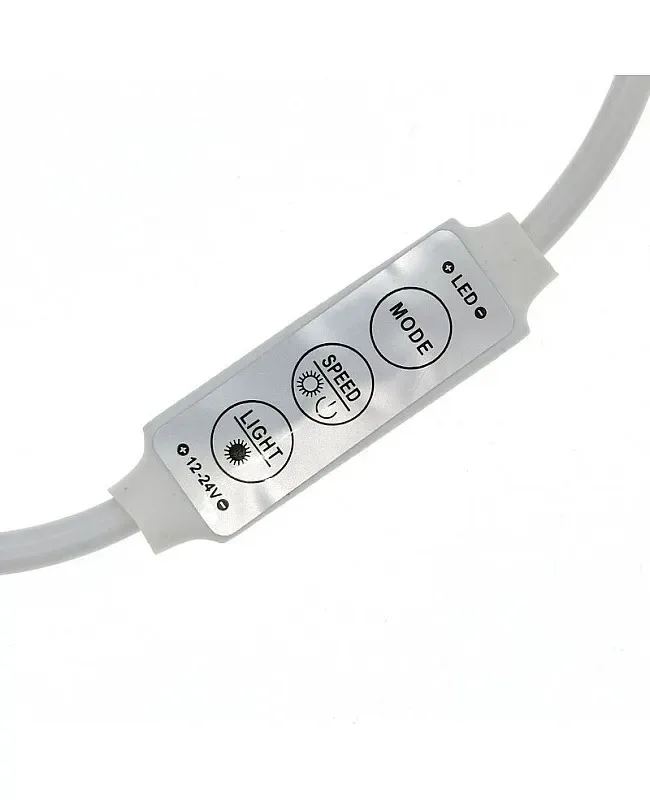

- With a one-output-channel design, the LED mini dimmer with male and female DC connectors works with single-color LED strips. The max output current is 6A, which can work in DC12V or DC24V. In DC12V, the max output is 72W; in DC24V, the max output is 144W. The Inline LED dimmer has 3 buttons: mode, light, and speed buttons, 10 levels of brightness adjustable for static colors, and 10 speeds adjustable for 8 dynamic modes.
- Working Temperature: -20-60℃
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Working Voltage: DC12V-DC24V
- Max Output Power: DC12V: <72W; DC24V: <144W
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
- The Single Color Inline LED Mini Dimmer, with one output channel design and max loading power up to 144W when working in 24V, the brightness of static colors and speed of dynamic modes adjustable comes with male and female DC Connectors.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V
- LumaCircuit model: LC-CTL-UFMJF7
- Working Temperature: -20-60℃
- Size: 40*12*5mm(L*W*H)
- Connecting Mode: Common Anode
- Static Power Consumption: <1W
- Working Voltage: DC12V-DC24V
- Output Channel: 1
- Max Output Current: 6A
- Max Output Power: DC12V: <72W; DC24V: <144W
- Dimensions found: 40x12x5mm / 5mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

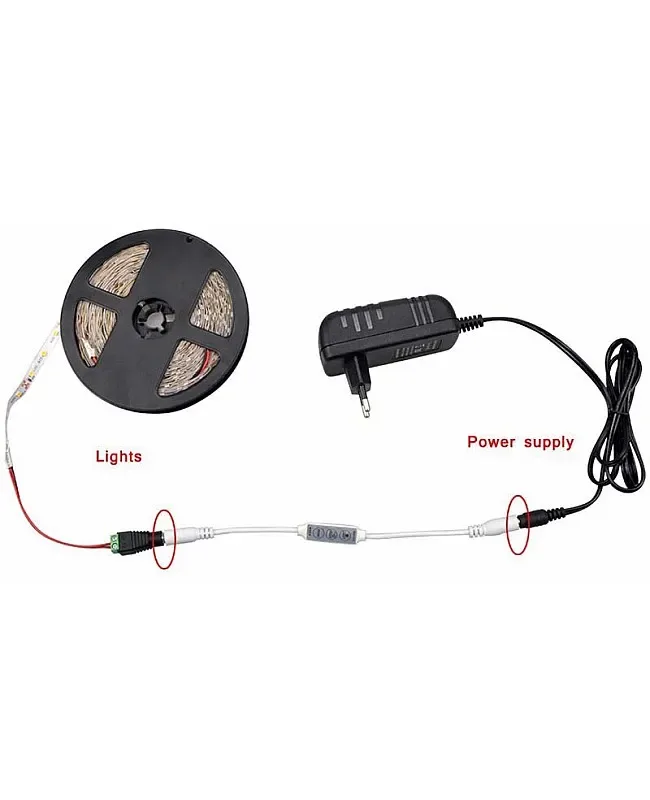

With a one-output-channel design, the LED mini dimmer with male and female DC connectors works with single-color LED strips. The max output current is 6A, which can work in DC12V or DC24V. In DC12V, the max output is 72W; in DC24V, the max output is 144W. The Inline LED dimmer has 3 buttons: mode, light, and speed buttons, 10 levels of brightness adjustable for static colors, and 10 speeds adjustable for 8 dynamic modes. The single-color mini LED dimmer is small in size and compact in structure, making it suited to use in narrow spaces. It comes with female and male DC Connectors, making connecting to the LED power supply and strips easy.
Specifications
Manufacturer: TYoung
Working Temperature: -20-60℃
Size: 40*12*5mm(L*W*H)
Connecting Mode: Common Anode
Static Power Consumption: <1W
Working Voltage: DC12V-DC24V
Output Channel: 1
Max Output Current: 6A
Max Output Power: DC12V: <72W; DC24V: <144W
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Weight: 20g
1 * LED Mini Dimmer
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
