500W RF Push AC Triac Dimmer APP Control
LumaCircuit offers 500W RF Push AC Triac Dimmer APP Control as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Model: (2.4G+Push) TRI-PZ(Zigbee 3.0 + 2.4G + Push) TRI-PW(WiFi + 2.4G + Push) Size: 117*45*24mm(L*W*H) Input Voltage: -240V; 50/60Hz The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 500W series RF push AC triac dimmers simplify the management of your traditional lighting. They support remote control of traditional incandescent lamps, halogen lamps, and triac dimmable LED lamps to adjust the brightness. The input voltage ranges from AC100V to AC240V, and the power does not exceed 500W.
- Model: (2.4G+Push) TRI-PZ(Zigbee 3.0 + 2.4G + Push) TRI-PW(WiFi + 2.4G + Push)

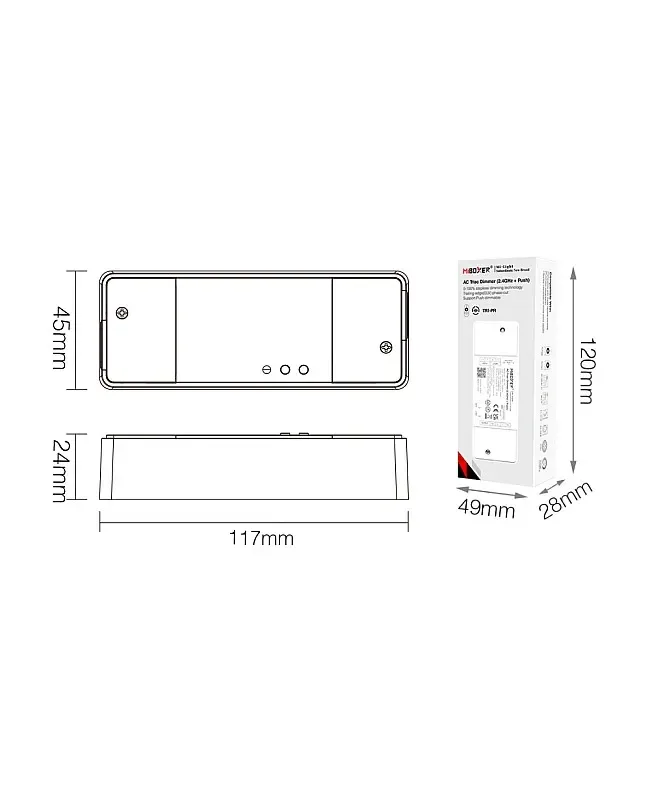

- Size: 117*45*24mm(L*W*H)
- Input Voltage: -240V; 50/60Hz
- Output Current: 2.27A Max
- Output Power: 250W(AC110V) / 500W(AC220V)
- Trailing Edge(ELV) Phase-Cut Technology
- Dim Method: RF Wireless Dimming Push Dimming
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 240 V / 110 V / 220 V
- LumaCircuit model: LC-CTL-QUU5EB
- Size: 117*45*24mm(L*W*H)
- Input Voltage: -240V; 50/60Hz
- Output Voltage: -240V
- Output Current: 2.27A Max
- Output Power: 250W(AC110V) / 500W(AC220V)
- Compatible With wireless controller 2.4G Remote Controls: T1, T2, +,
- 2.4G RF Control Distance: ≤30M
- IP Rate: IP20 Non-waterproof
- Applications: Single Color Triac Dimming LED Light, Traditional Filament Lamp, Halogen Lamp
- Working Temperature: -10-40℃
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller 500W series RF push AC triac dimmers simplify the management of your traditional lighting. They support remote control of traditional incandescent lamps, halogen lamps, and triac dimmable LED lamps to adjust the brightness. The input voltage ranges from AC100V to AC240V, and the power does not exceed 500W. By utilizing cutting-edge phase-cut technology, those triac dimmers enable you to adjust the brightness of your lights easily and guarantee a seamless and accurate dimming experience, ensuring that your lights transition smoothly to your desired illumination level. After connecting to a wireless gateway( needs a 2.4G gateway, and TRI-PZ needs a Zigbee 3.0 gateway), the Tuya Smart Phone APP and third-party voice commands can control the RF push dimmers to achieve wireless dimming, group control, timing control, one-key execution, automation, etc.
Specifications
Type: AC Triac Dimmers
Model: (2.4G+Push) TRI-PZ(Zigbee 3.0 + 2.4G + Push) TRI-PW(WiFi + 2.4G + Push)
Size: 117*45*24mm(L*W*H)
Input Voltage: -240V; 50/60Hz
Output Voltage: -240V
Output Current: 2.27A Max
Output Power: 250W(AC110V) / 500W(AC220V)
Trailing Edge(ELV) Phase-Cut Technology
Dim Method: RF Wireless Dimming Push Dimming
Compatible With wireless controller 2.4G Remote Controls: T1, T2, +,
4G RF Control Distance: ≤30M
Smart Tuya Smart Phone APP Control(2.4G Gateway Or Zigbee 3.0 Gateway Needed)
Support Third-party Voice Control(2.4G Gateway Or Zigbee 3.0 Gateway Needed)
IP Rate: IP20 Non-waterproof
Overheat Load Protection
Applications: Single Color Triac Dimming LED Light, Traditional Filament Lamp, Halogen Lamp
Working Temperature: -10-40℃

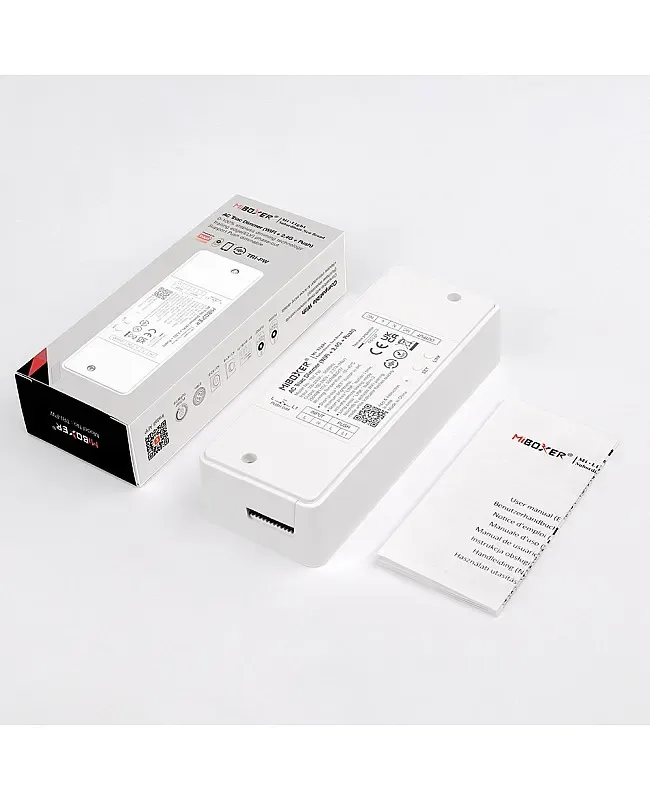

Includes
1 * RF Push AC Triac Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
