Mini Inline RGB Light Controller With 28 Keys RF Remote
LumaCircuit offers Mini Inline RGB Light Controller With 28 Keys RF Remote as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Connecting Method: Common Anode Static Power Consumption: <0.5W Output Current: Total: 6A: 3*2A(RGB)/4*1.5A(RGBW) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB light controllers have a mini size to allow installation in a narrow or small place, working in DC5V to DC24V, come with a DC female connector and a 4-pin female connector, are easy to connect to the LED power supply and RGB LED strips, with three output channels.
- Connecting Method: Common Anode
- Static Power Consumption: <0.5W
- Output Current: Total: 6A: 3*2A(RGB)/4*1.5A(RGBW)
- Max Output Power: <30W(DC5V), <72W(DC12V), <144W(DC24V)
- 28 Keys RF Remote Control Included
- 5*2.1mm Female DC Connector And 4Pin Female Connector Included(RGBW With 5Pin Female Connector)
- RF Control Distance: <20M
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V / 5 V / 12 V / 24 V
- Light engine: RGBW
- Size: 55*22*13mm(L*W*H)
- Colors: Black
- Working Voltage: -24V
- Static Power Consumption: <0.5W
- Output Current: Total: 6A: 3*2A(RGB)/4*1.5A(RGBW)
- Max Output Power: <30W(DC5V), <72W(DC12V), <144W(DC24V)
- RF Control Distance: <20M
- Color Order: +GRB
- LumaCircuit model: LC-CTL-QJO46B
- Dimensions found: 55x22x13mm / 13mm / 4x1 / 20M
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

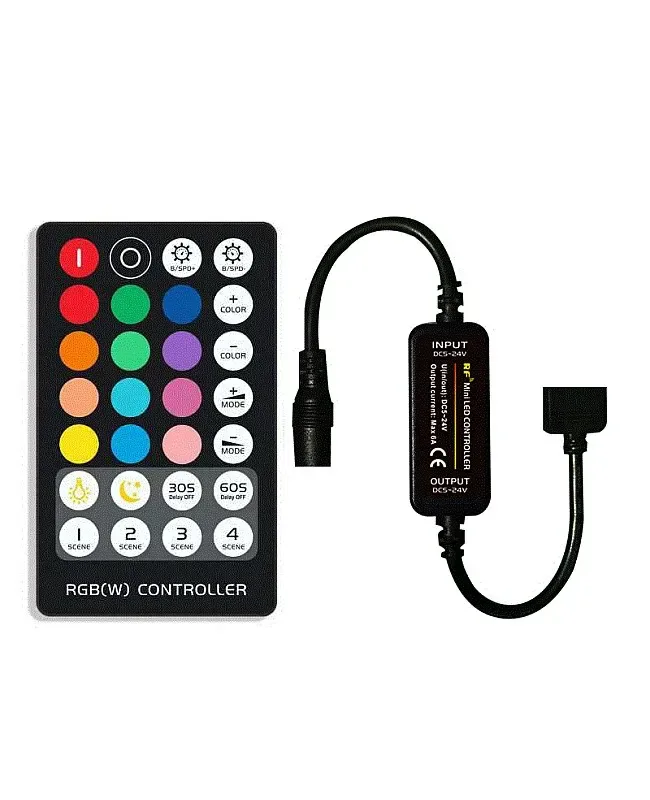

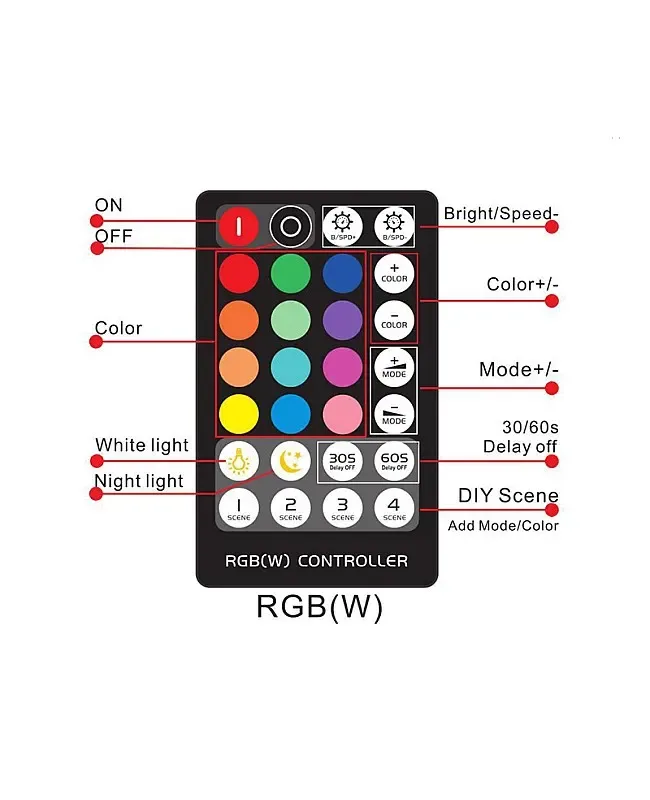

The RGB light controllers have a mini size to allow installation in a narrow or small place, working in DC5V to DC24V, come with a DC female connector and a 4-pin female connector, are easy to connect to the LED power supply and RGB LED strips, with three output channels. Max output current of each channel is 2A, the 28 keys RF remote control included, the installer can use it to control the COB RGB LED light strips remotely, turn on/off, adjust the brightness of static colors or the speed of dynamic modes, seven static colors and five dynamic modes available, there are 4 DIY Scene buttons allow you to DIY the working mode or static color. Two buttons on the remote control will enable you to delay the LED light off for 30 seconds or 60 seconds.
Specifications

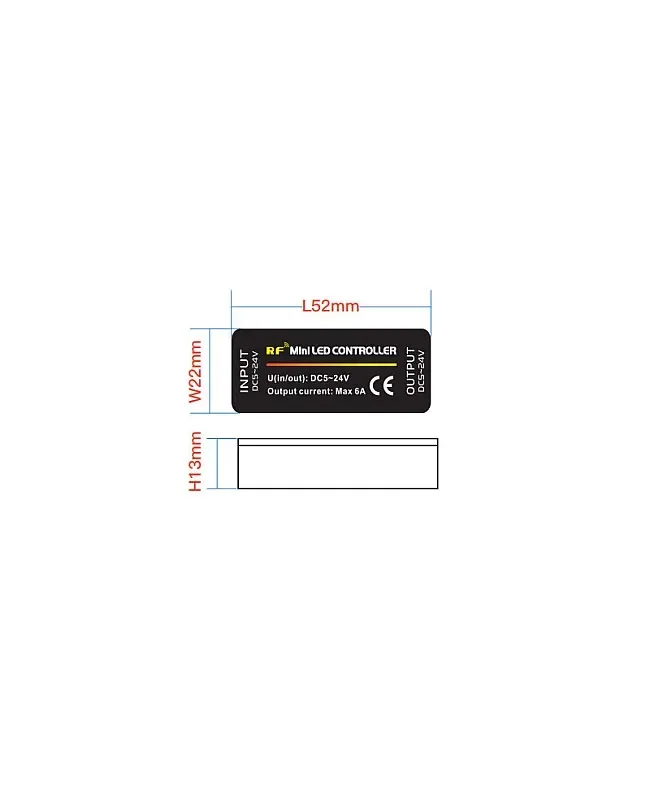

Size: 55*22*13mm(L*W*H)
Colors: Black
Working Voltage: -24V
Connecting Method: Common Anode
Static Power Consumption: <0.5W
Output Current: Total: 6A: 3*2A(RGB)/4*1.5A(RGBW)
Max Output Power: <30W(DC5V), <72W(DC12V), <144W(DC24V)
28 Keys RF Remote Control Included
5*2.1mm Female DC Connector And 4Pin Female Connector Included(RGBW With 5Pin Female Connector)
RF Control Distance: <20M
0-100% Dimmable
7 Static Colors And 5 Dynamic Modes
And Delay-Off Function
4 DIY Scene Design
Color Order: +GRB
Includes

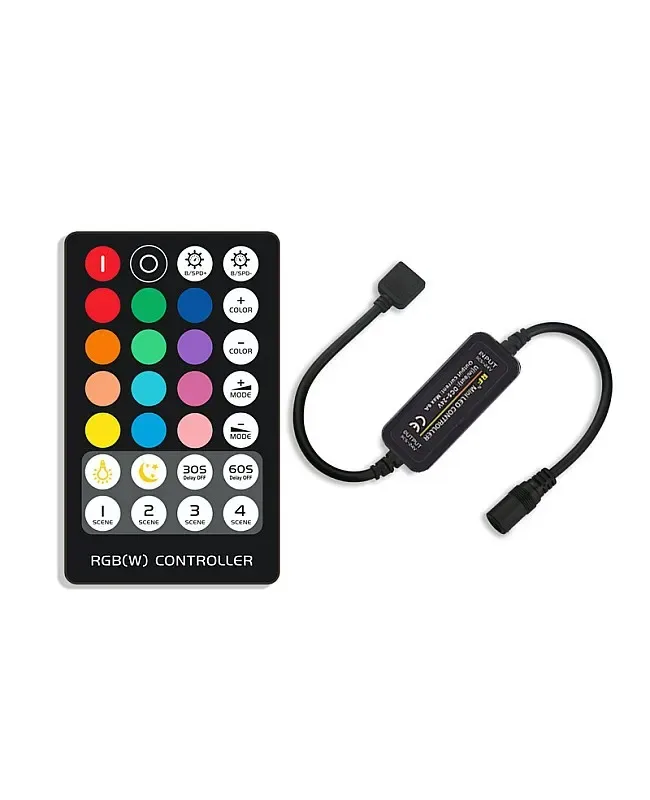

1 * RGB Light Controller
1 * 28 Keys RF Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
