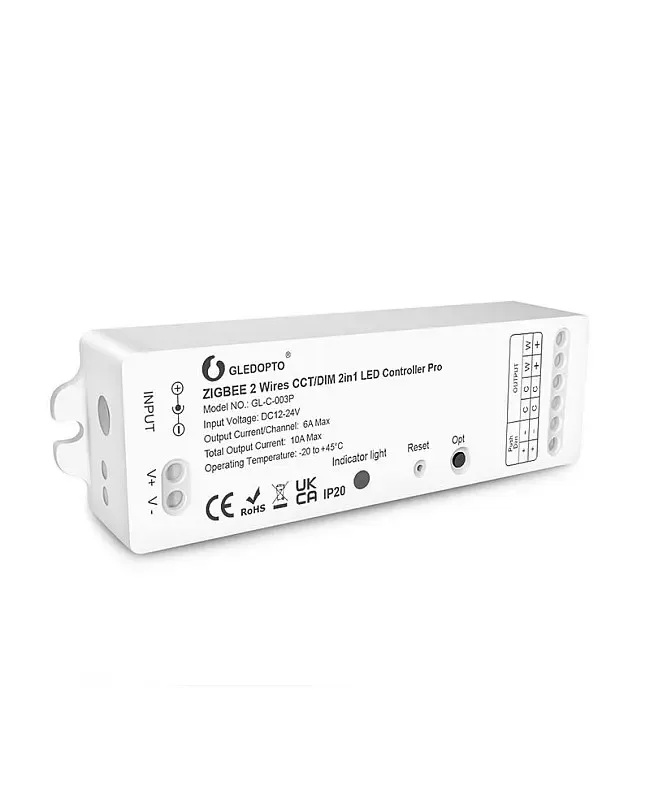

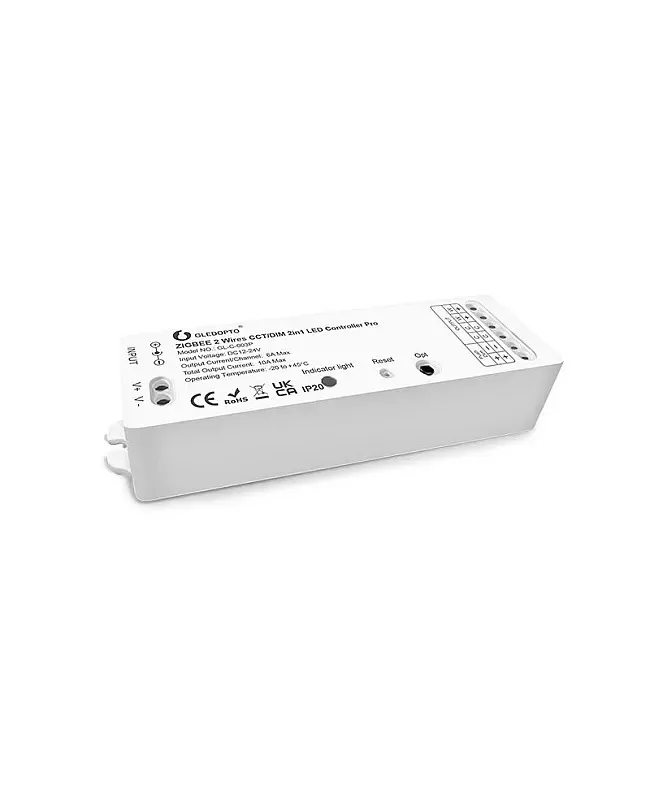

GL C 2 Wires CCT/Dim 2 in 1 Zigbee LED Controller
LumaCircuit offers GL C 2 Wires CCT/Dim 2 in 1 Zigbee LED Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 2 Wires Zigbee LED Controller Size: 125*37*24mm(L*W*H) Total Output Current: 10A Max The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 2 wires CCT/DIM 2 in 1 Zigbee LED controller is a Zigbee-compatible device designed to control the single color and dual white LED lighting, especially for the 2 wires CCT LED strip lights. The controllers are compatible with the common Zigbee 3.0 Gateways, and the installer can control the lights in all rooms through the phone APP, making your life more convenient.
- Type: 2 Wires Zigbee LED Controller
- Size: 125*37*24mm(L*W*H)
- Total Output Current: 10A Max
- Output Current/Channel: 6A
- Brightness Adjustable From 1% To 100%
- Color Temperature Adjustable
- Voice Control APP Control / 2.4G RF Remote Control Two Wires Control External Push Switch Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-RBKUIE

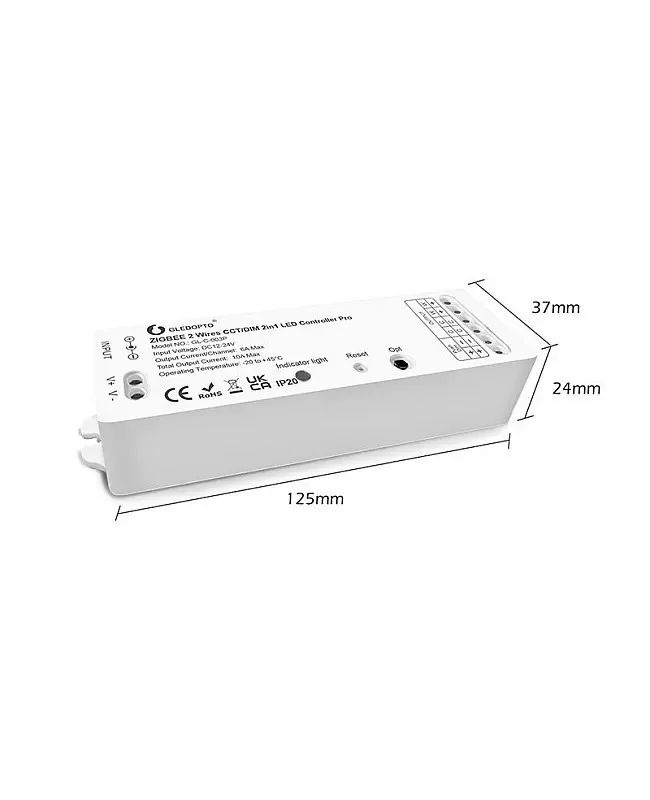

- Size: 125*37*24mm(L*W*H)
- Working Voltage: -24V
- Total Output Current: 10A Max
- Output Current/Channel: 6A
- Two Working Modes Switching: CCT Dimmer (Short Press The " Reset " Button)
- IP Rating: IP20
- Input Ports: DC Socket 5.5*2.1mm V+ And V
- Working Temperature: -20℃-+45℃
- Dimensions found: 125x37x24mm / 24mm / 5.5x2.1mm / 2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

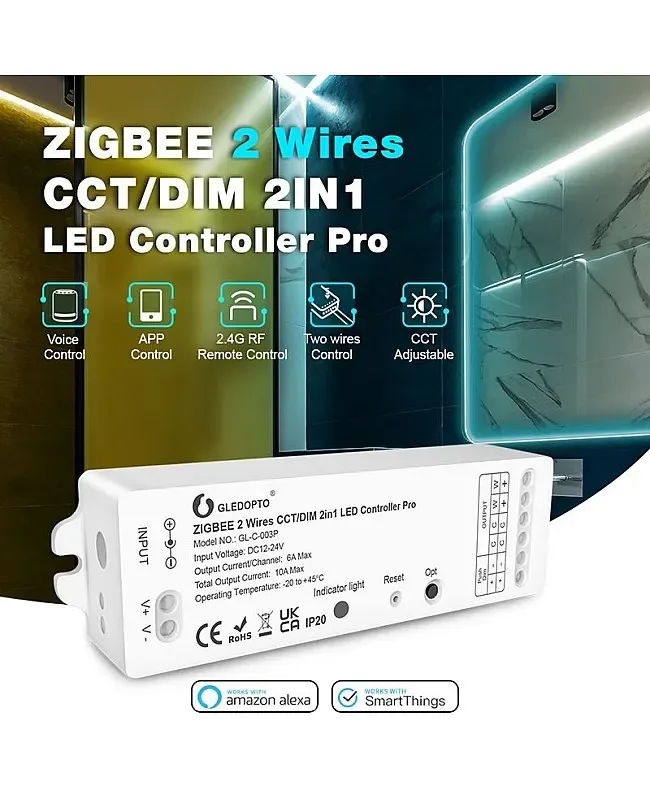

The 2 wires CCT/DIM 2 in 1 Zigbee LED controller is a Zigbee-compatible device designed to control the single color and dual white LED lighting, especially for the 2 wires CCT LED strip lights. The controllers are compatible with the common Zigbee 3.0 Gateways, and the installer can control the lights in all rooms through the phone APP, making your life more convenient. The LED controllers can also be controlled by a 2.4G RF remote, voice, and group control to adjust the brightness from 1% to 100% and the color temperature for various scenes. There is a " Reset " button on the controller; short press once to switch the function; long press for more than 2 seconds to restore the factory setting. The Zigbee controller, which has two wires, connects two-wire CCT or dimmer strip lights for easy control. The controller has two input terminals: DC connectors and ports, making connecting to the light driver easy. Connecting the CCT or single-color LED strips with a press-type design output terminal is easy. The Zigbee controllers with external push switches allow them to connect to a push controller to turn ON/OFF and adjust the brightness. It can work with Amazon Echo Plus, which helps to control the LED lights through voice commands.
Specifications
Type: 2 Wires Zigbee LED Controller
Model
Size: 125*37*24mm(L*W*H)
Working Voltage: -24V
Total Output Current: 10A Max
Output Current/Channel: 6A
Brightness Adjustable From 1% To 100%
Color Temperature Adjustable
Voice Control APP Control / 2.4G RF Remote Control Two Wires Control External Push Switch Control
Compatible With Common Zigbee 3.0 Gateways
Two Working Modes Switching: CCT Dimmer (Short Press The " Reset " Button)
Works With Amazon Alexa
IP Rating: IP20
Input Ports: DC Socket 5.5*2.1mm V+ And V
Press Type Design Output Terminal
Intuitive LED Indicator Light
Fireproof And High-Temperature Resistance Material
Working Temperature: -20℃-+45℃

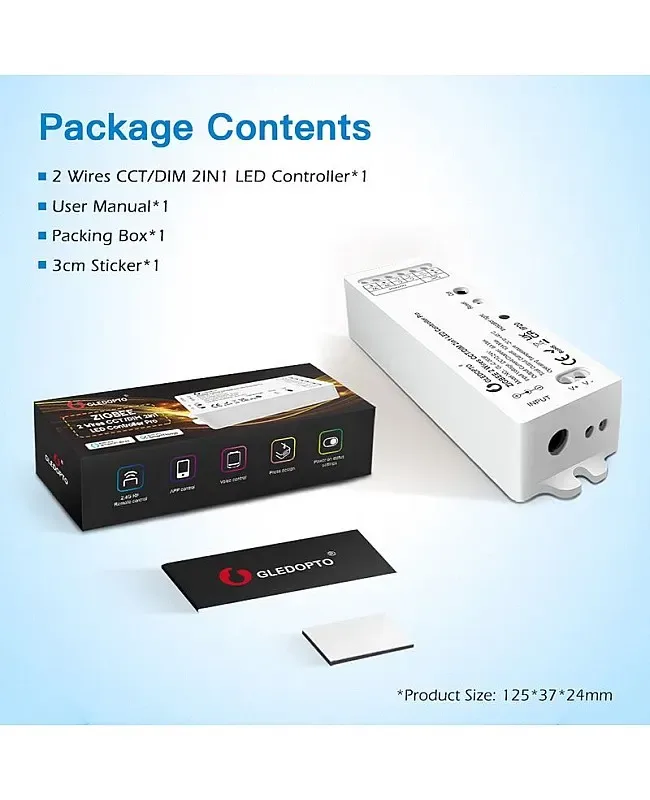

Includes
1 * 2 Wires Zigbee Controller
1 * User Manual
1 * 3cm Sticker
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
