600W Hoion T3 BLE 2.4G Bluetooth Mesh Single Color Dimmer
LumaCircuit offers 600W Hoion T3 BLE 2.4G Bluetooth Mesh Single Color Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 103*40*24mm(L*W*H) Max Output Power: 300W/12V; 600W/24V PWM Frequency: (Default), 500Hz, 7., 15. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The Hoion 2.4 Bluetooth Mesh dimmer is a high-power and low-voltage LED strip dimmer that uses advanced PWM control technology to control LED lamps, LED strips, panel lights, etc. The LED lights can be dimmed or toned according to the needs of the applications to make the environment more harmonious.
- Size: 103*40*24mm(L*W*H)
- Max Output Power: 300W/12V; 600W/24V
- PWM Frequency: (Default), 500Hz, 7., 15.
- Max Output Current: PWM≤:25A; PWM≤4/7.:15A; PWM=15.:10A
- Max Output Power: PWM≤:300W/12V, 600W/24V; PWM≤4/7.:180W/12V, 360W/24V; PWM=15.: 120W/12V, 240W/24V
- Static Power Consumption: <1W
- 5 Levels Brightness Adjustable By Knob Button: 10%, 30%, 50%, 70%, 100%
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- LumaCircuit model: LC-CTL-OTIDO3
- Size: 103*40*24mm(L*W*H)
- Working Voltage: -24V
- Output: 1 Channel
- Max Output Current: 25A
- Max Output Power: 300W/12V; 600W/24V
- PWM Frequency: (Default), 500Hz, 7., 15.
- Max Output Current: PWM≤:25A; PWM≤4/7.:15A; PWM=15.:10A
- Max Output Power: PWM≤:300W/12V, 600W/24V; PWM≤4/7.:180W/12V, 360W/24V; PWM=15.: 120W/12V, 240W/24V
- Static Power Consumption: <1W
- Control Method: Knob, Remote Control, Tuya-APP
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

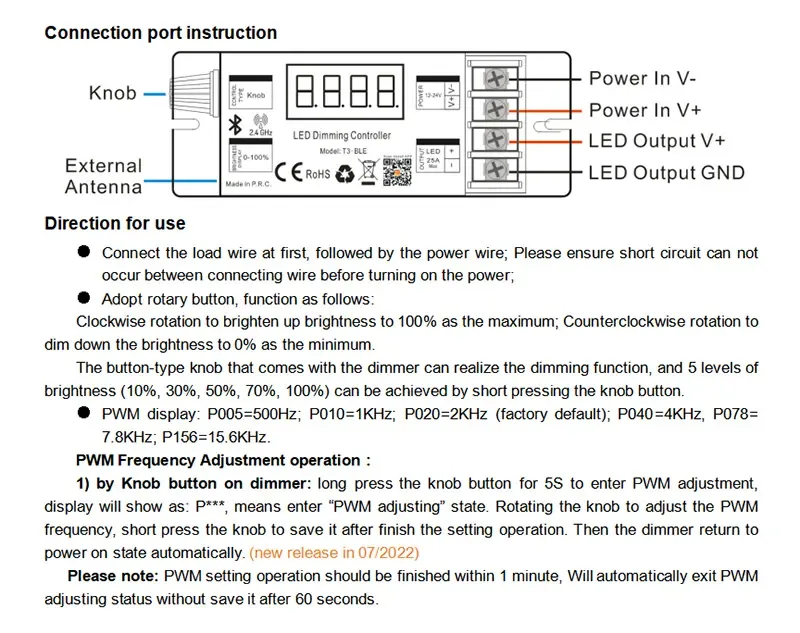

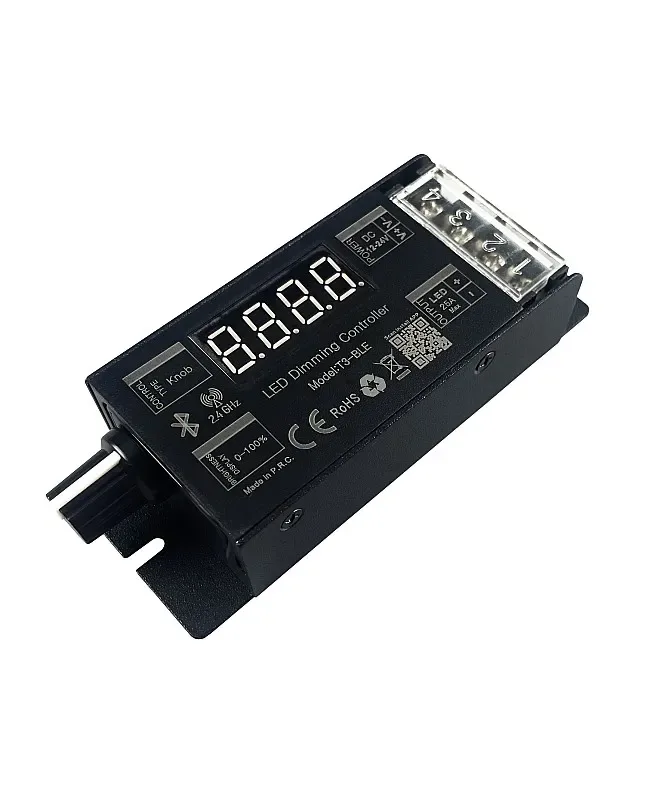

The Hoion 2.4 Bluetooth Mesh dimmer is a high-power and low-voltage LED strip dimmer that uses advanced PWM control technology to control LED lamps, LED strips, panel lights, etc. The LED lights can be dimmed or toned according to the needs of the applications to make the environment more harmonious. Bluetooth Mesh light dimmer adopts a 2.4 GHz wireless remote control and Bluetooth MESH APP control, long distance, penetrability, sound synchronization, can realize synchronous control of countless dimmers, the external antenna on the receiver can be extended out of the metal shell if needed, with excellent synchronization technology, which can realize the wireless synchronization of all dimmers. PWM frequency is adjustable from 500Hz to 15. There is a knob button on the side, and the installer can rotate it to adjust the brightness from 0% to 100%. 5 brightness levels can be selected by short-pressing the knob button. The Tuya APP can control the BLE light dimmer to enable innovative features, including group control, scene control, and timer control. Scan the QR code on the dimmer to download the APP to your smartphone. After the pop-up prompt in the app to complete the connection, it is compatible with voice control via Amazon Alexa, Google Assistant, and Yandex Alice.
Specifications
Model: HX
Size: 103*40*24mm(L*W*H)
Working Voltage: -24V
Output: 1 Channel
Max Output Current: 25A
Max Output Power: 300W/12V; 600W/24V
PWM Frequency: (Default), 500Hz, 7., 15.
Max Output Current: PWM≤:25A; PWM≤4/7.:15A; PWM=15.:10A
Max Output Power: PWM≤:300W/12V, 600W/24V; PWM≤4/7.:180W/12V, 360W/24V; PWM=15.: 120W/12V, 240W/24V
Static Power Consumption: <1W
5 Levels Brightness Adjustable By Knob Button: 10%, 30%, 50%, 70%, 100%
Brightness Range: 1-100%
Memory Function: YES
Control Method: Knob, Remote Control, Tuya-APP

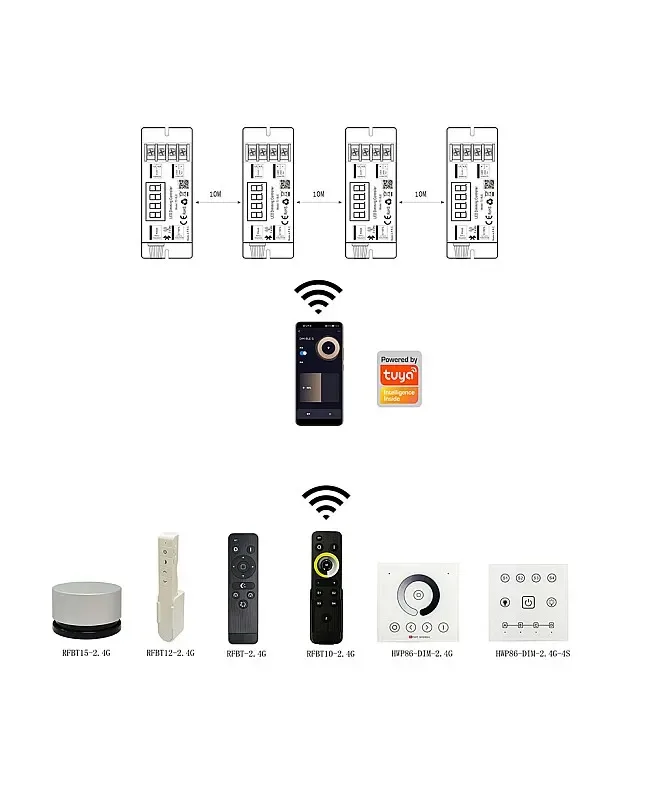

Compatible With Hoion Remote Controls: HX-RFBT-2.4G(1 Zone), HX--2.4G(4 Zone), HX--2.4G(1 Zone), HX HX--DIM-2.4G-(4 Zone), HX--DIM-2.4G(1 Zone), HX--XSP(4 Zone), HX--AP(RF Signal Repeater)
APP Name: Tuya
Compatible With Voice Control Via Amazon Alexa, Google Assistant, and Yandex Alice
Wireless Synchronization
Short Circuit Protection: YES
Working Temperature: -20-60℃
Includes
1 * Hoion Bluetooth Mesh Light Dimmer

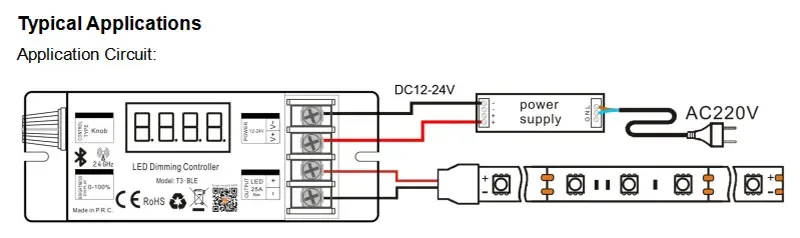

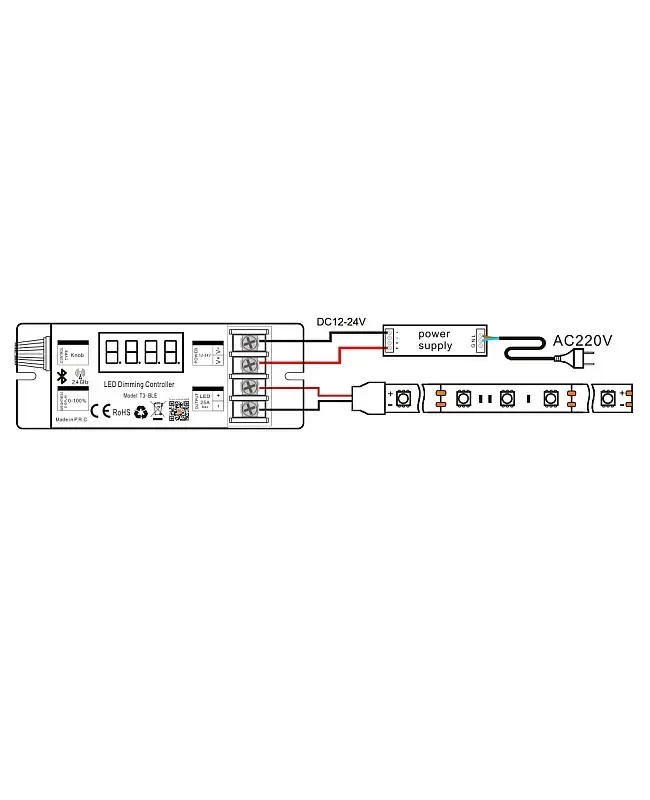

Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
