Mini Wifi LED Controller For DIM CCT RGB RGBW
LumaCircuit offers Mini Wifi LED Controller For DIM CCT RGB RGBW as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60 ℃ Working Voltage: DC12V-24V Static Power Consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The mini WiFi LED controller for DIM, CCT, RGB and RGBW, adopts the most advanced PWM(pulse width modulation) digital control technology, working in DC12V or DC24V, the installer can choose the different output channels product for various LED lights, for the single color LED light only one channel output and the max output current is 6A, for the CCT has two output channels. The max output of each channel is 3A, while that of the RGB and RGBW channels is 2A or 1.5A.
- Working Temperature: -20-60 ℃
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- Speed Stage: 1024 Levels
- Output Channels: DIM(1CH)/CCT/RGB/RGBW
- Output Current: 6A(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGBW
- Working Temperature: -20-60 ℃

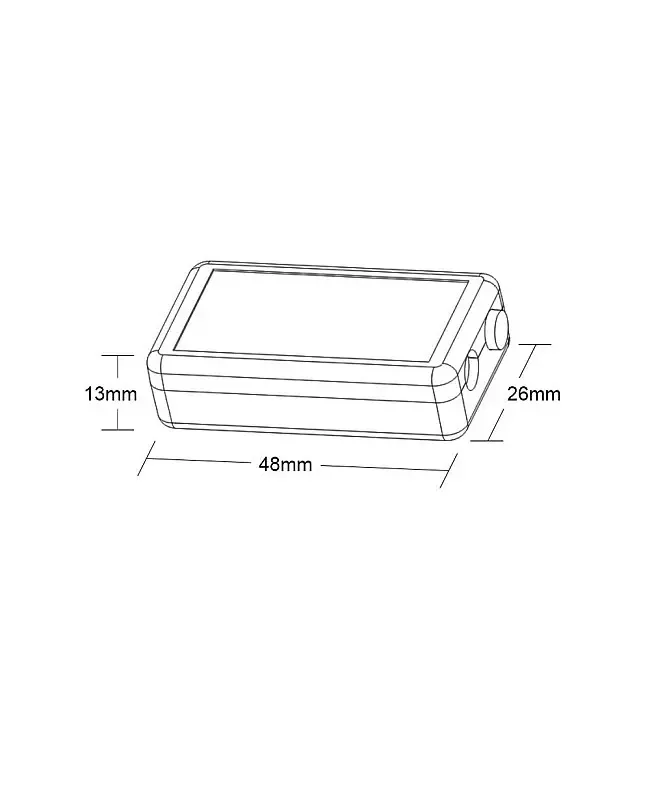

- Size: 48*26*13mm
- Working Voltage: DC12V-24V
- Static Power Consumption: <1W
- Connecting Mode: Common Anode
- RF Frequency: 2.
- Button Control: YES
- Output Channels: DIM(1CH)/CCT/RGB/RGBW
- Output Current: 6A(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
- Max Output Power: 72W(12V)/144W(24V)
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The mini WiFi LED controller for DIM, CCT, RGB and RGBW, adopts the most advanced PWM(pulse width modulation) digital control technology, working in DC12V or DC24V, the installer can choose the different output channels product for various LED lights, for the single color LED light only one channel output and the max output current is 6A, for the CCT has two output channels. The max output of each channel is 3A, while that of the RGB and RGBW channels is 2A or 1.5A. With the wireless sync control function, receivers will transmit the signals from the remote control and self-inspect the work status for each other. Multiple receivers will work wholly and wirelessly. The WiFi LED controller has a memory function; each time it is powered on, it remembers the mode it was in the last time. Paired with the rotate WiFi remote, the installer can use it to adjust the brightness of single color LED lights or CW and WW LED Strips, as well as the brightness and speed of RGB and RGBW Lights. The TUYA Application could control the WIFI Controller to achieve smart control, like group control, scene control, timer control, and music control. The LED controller is also compatible with voice control via Amazon Alexa, Google Assistant, and Yandex Alice.
Mini WiFi LED Controller Specifications
Working Temperature: -20-60 ℃
Size: 48*26*13mm
Working Voltage: DC12V-24V
Static Power Consumption: <1W
Connecting Mode: Common Anode
Grayscale: 1024 Levels
Speed Stage: 1024 Levels
RF Frequency: 2.
RF Distance: <20
Button Control: YES
Memory Function: YES
Output Channels: DIM(1CH)/CCT/RGB/RGBW
Output Current: 6A(DIM)/2*3A(CCT)/3*2A(RGB)/4*1.5A(RGBW)
Max Output Power: 72W(12V)/144W(24V)
PWM Frequency: 1.95 KHz
Remote Control Specifications
Size: 60*35mm
Working Temperature: -20-60 ℃
Working Voltage: DC3V(2PCS*AAA)
Static Current: <
Emission Current: <
Sleep Power Consumption: <
Emission Power Consumption: <
RF Distance: <30m
RF Frequency: 2.

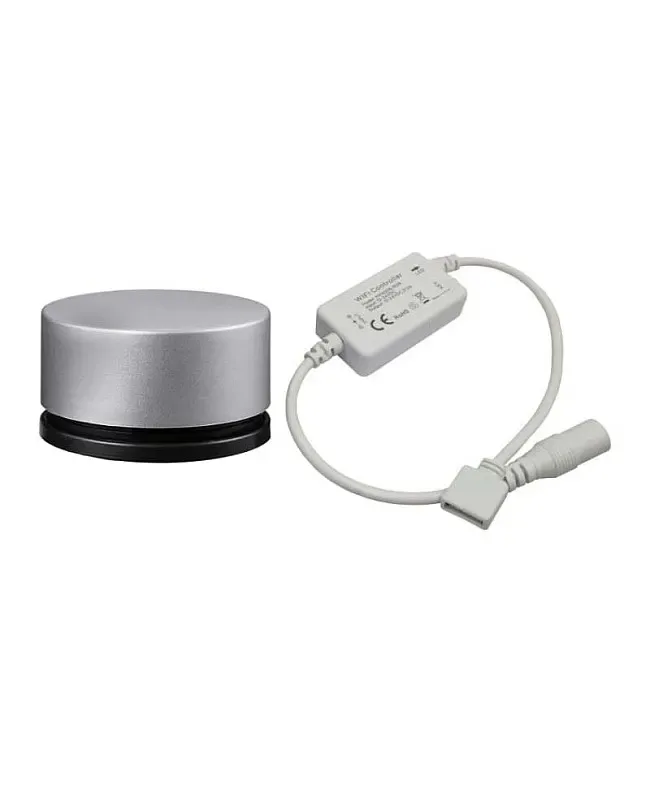

Accessories: 1*Holder/1*3M Foam Sponge Glue
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
