RDM DMX 512 Decoder For RGBW/RGB/CCT/Single Color

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The RDA DMX 512 decoder is designed for all kinds of constant voltage LED lights, with a working voltage range from DC12V to DC24V, featuring a 4-in-1 output type design that supports single color, CCT, RGB, and RGBW. It adopts push buttons(Mode, Up, Down, and Save) to change the setting conveniently, with the 4-digit tube displaying the setting status intuitively. The DMX decoder will identify the signal function automatically.
• DMX512 RDM LED Master Controller
• Working Temperature: -20℃-60℃
• Working Voltage: DC12V-DC24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Transmit Signal: DMX/RDM Signal
• Output Gray: 256 Levels RGBW Each

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• Light engine: RGBW
• Working Temperature: -20℃-60℃
• Size: * * mm
• Working Voltage: DC12V-DC24V
• Static Power Consumption: <1W
• Connecting Mode: Common Anode
• Output Gray: 256 Levels RGBW Each
• DMX Profiles: 9 Modes
• Output Channels: 4
• 4 In 1 Output Types: Single Color, CCT, RGB, RGBW
• PWM Frequency: 500Hz-15.

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

Plan the installation around Recessed and surface channels, Cabinet and furniture integration, Linear fixture BOMs. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

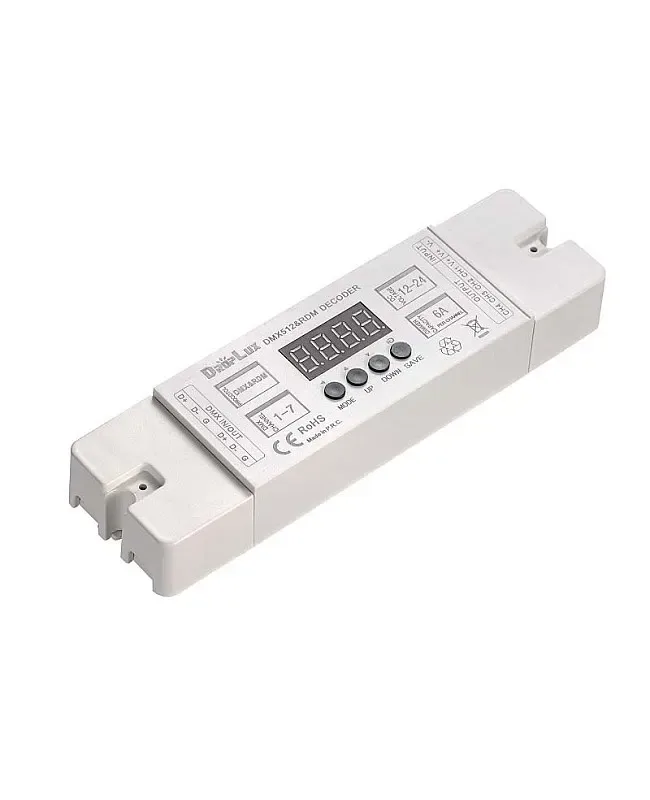

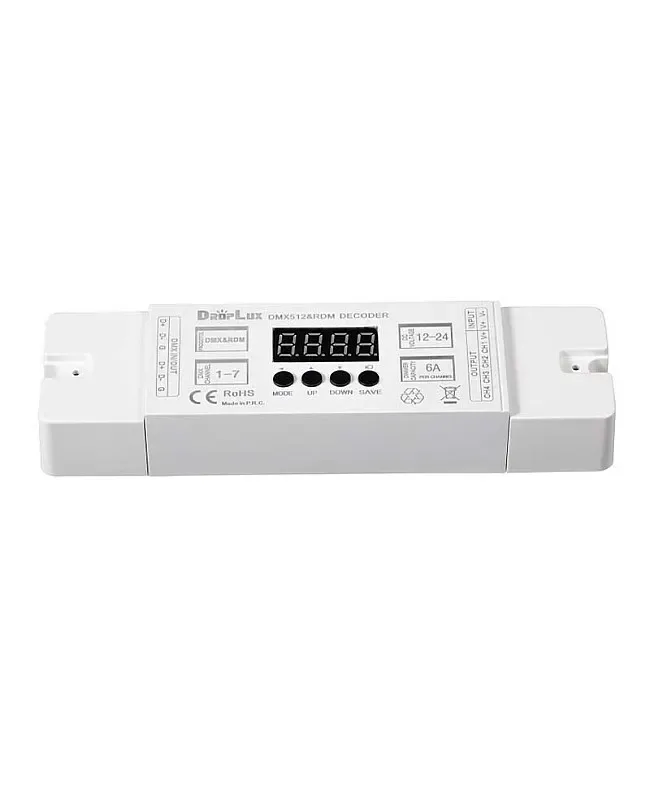

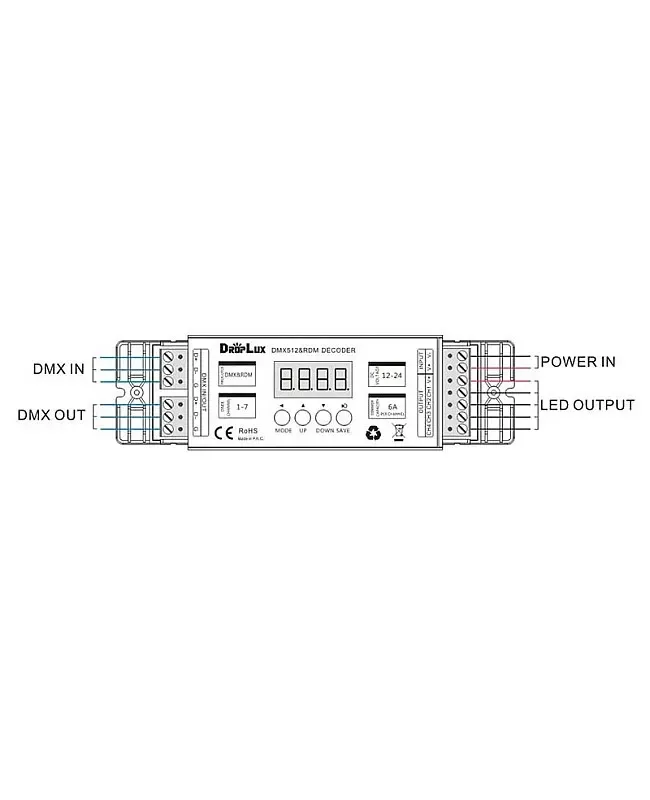

The RDA DMX 512 decoder is designed for all kinds of constant voltage LED lights, with a working voltage range from DC12V to DC24V, featuring a 4-in-1 output type design that supports single color, CCT, RGB, and RGBW. It adopts push buttons(Mode, Up, Down, and Save) to change the setting conveniently, with the 4-digit tube displaying the setting status intuitively. The DMX decoder will identify the signal function automatically. When receiving the DMX signal, it will directly jump to the DMX setting start address mode(dxxx) to receive data. 9 different DMX512 decoding profiles are available from to The PWM frequency and Gamma Curve are adjustable, and the power-off memory function will remember the settings saved in the last power-off. The DMX decoders have a 4-output-channel design.

Quick Links

DMX512 RDM LED Master Controller

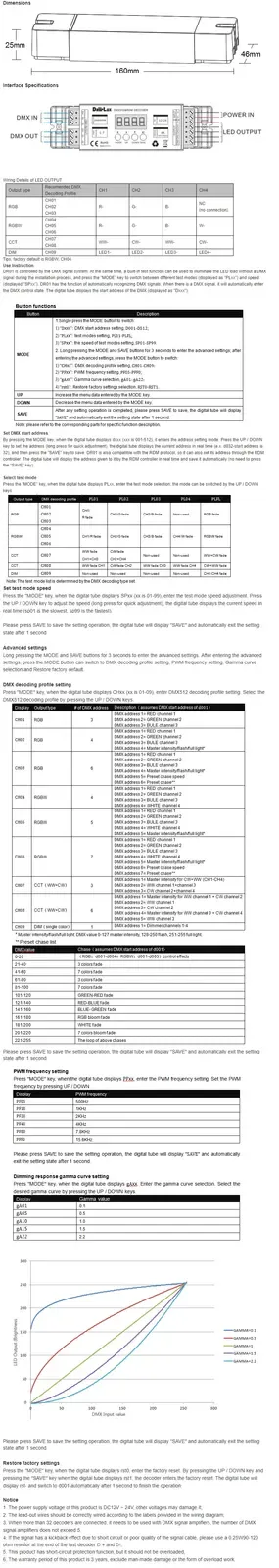

Specifications

Working Temperature: -20℃-60℃

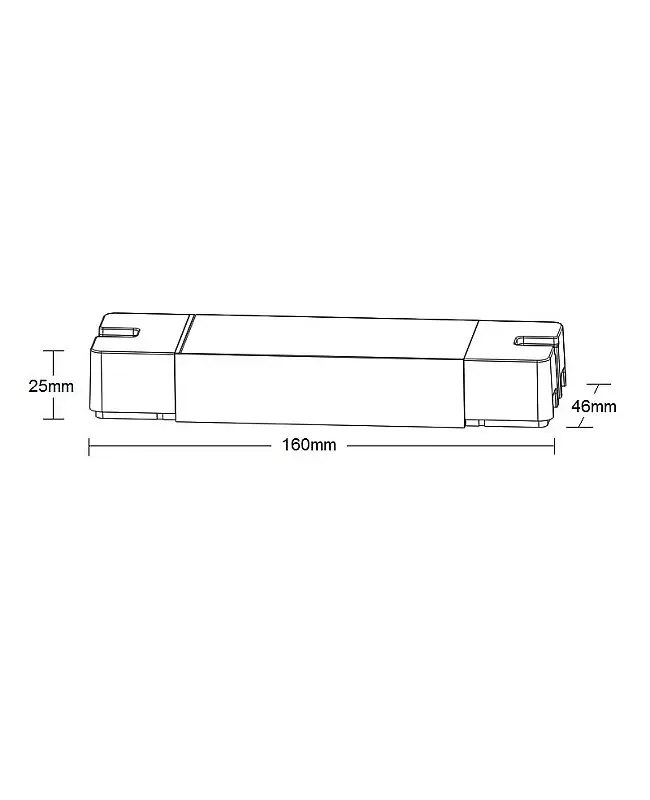

Size: * * mm

Working Voltage: DC12V-DC24V

Static Power Consumption: <1W

Connecting Mode: Common Anode

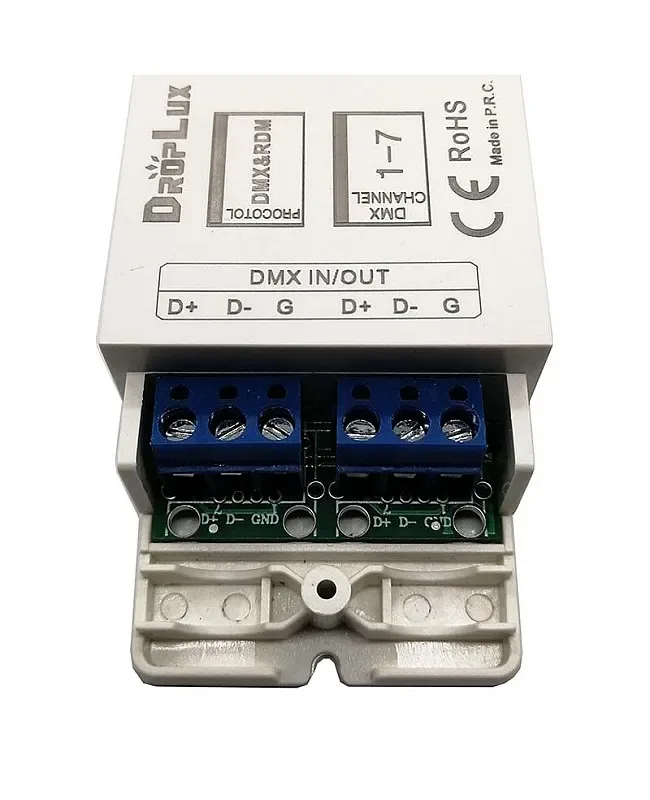

Transmit Signal: DMX/RDM Signal

Output Gray: 256 Levels RGBW Each

DMX Profiles: 9 Modes

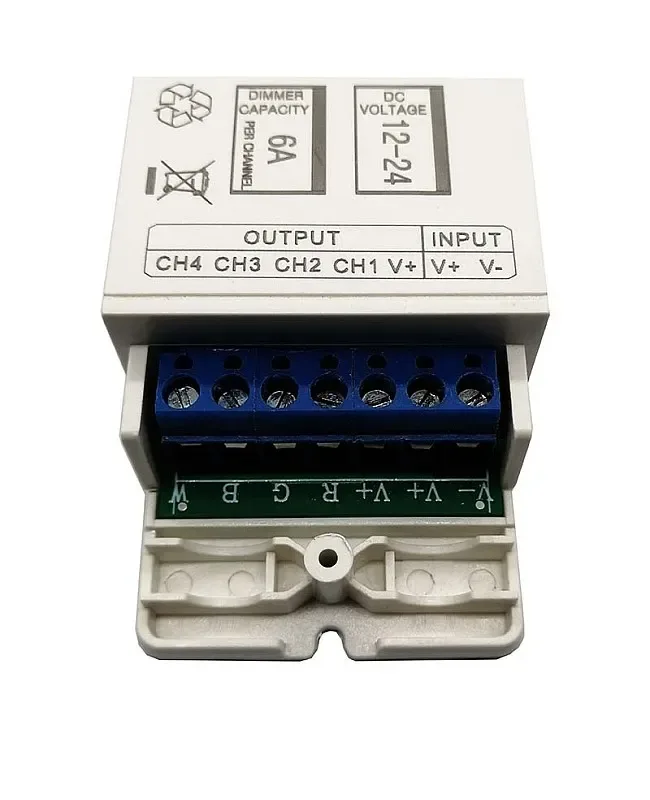

Output Channels: 4

4 In 1 Output Types: Single Color, CCT, RGB, RGBW

Gamma Curve: 0.1, 0.5, 1, 1.5, 2.2

PWM Frequency: 500Hz-15.

Max Output

PWM<=: 6A/CH, 188W/12V; 576W/24V

PWM=: 5A/CH, 240W/12V; 480W/24V

PWM=7.: 4A/CH, 192W/12V; 384W/24V

PWM=15.: 3A/CH, 144W/12V; 288W/24V

9 Different DMX512 Decoding Profiles Available, From To

PWM Frequency Adjustable: 500Hz, 7., 15.

Variable Dimmer Response(Gamma) Curve

RDM-Capable

Short Circuit Protection: YES

Memory Function: YES

Weight: 200g

Includes

1 * DMX512 LED Decoder
