Product details

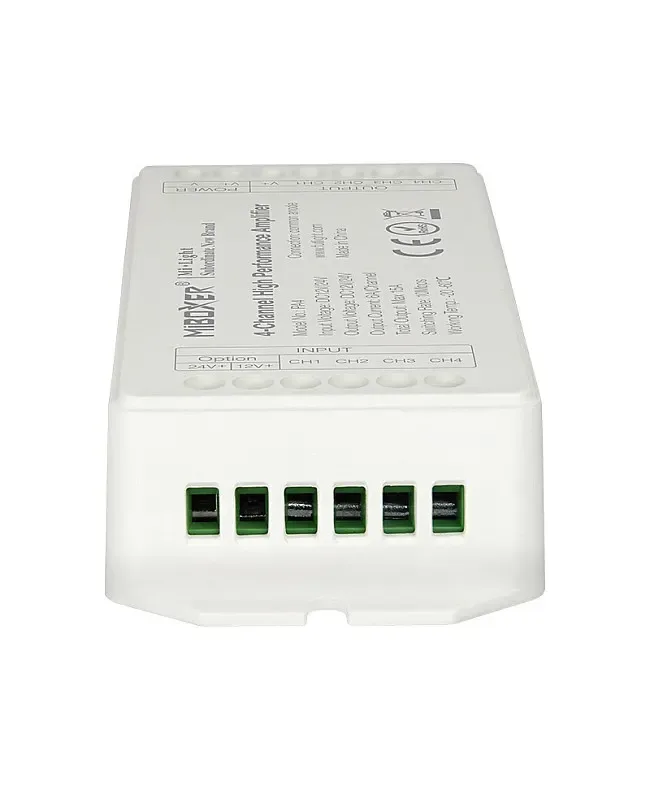

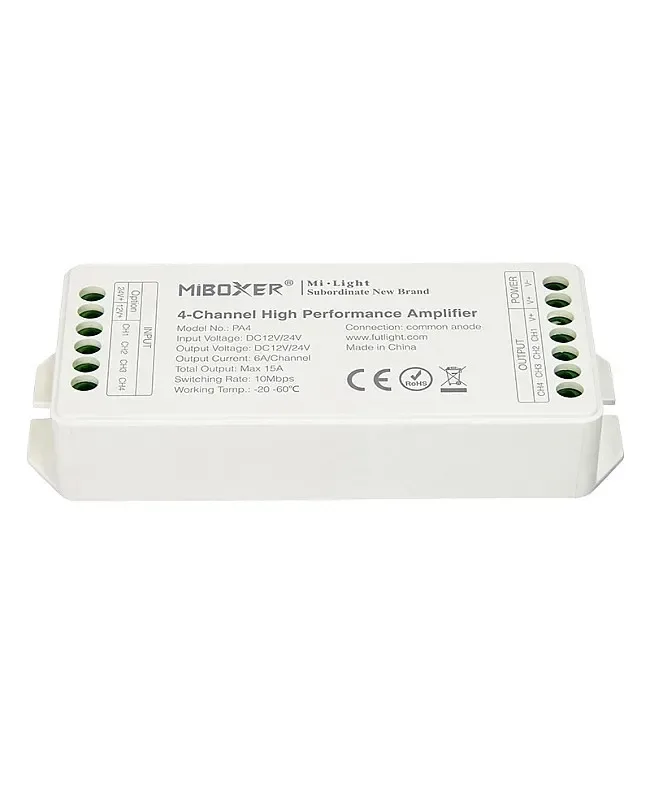

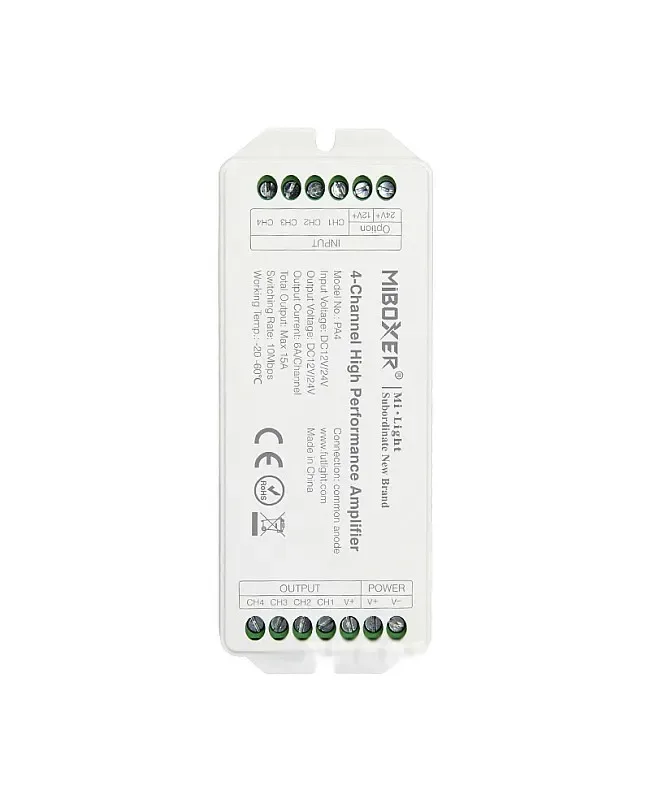

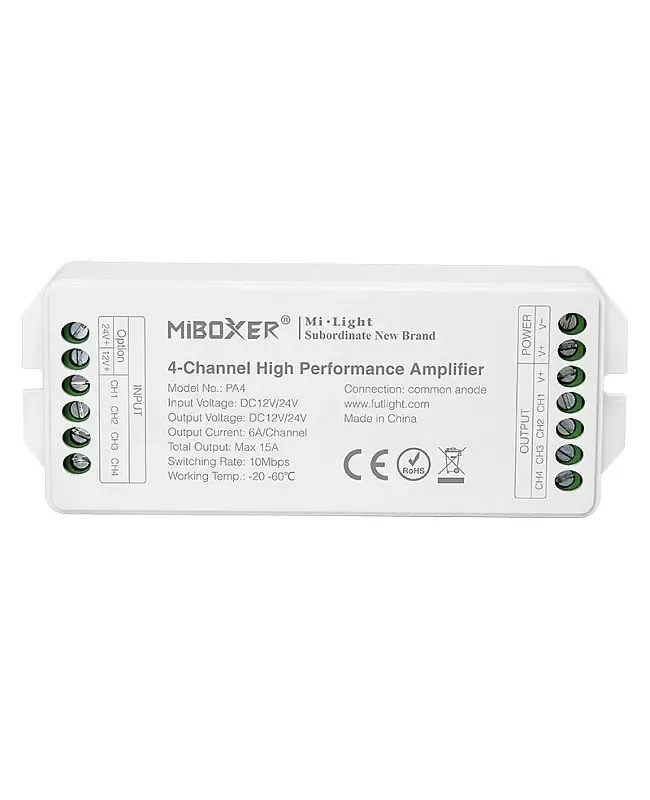

4 Channel High Speed RGBW Amplifier
LumaCircuit offers 4 Channel High Speed RGBW Amplifier as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 119*47*23mm(L*W*H) Max Output Current: 6A/Channel Total Output Current: 15A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller RGBW amplifier with four high-speed output channels is intended to be used for single color, dual white, RGB, and RGBW LED strip lights and is compatible with 2.4 GHz wireless, wireless controller controllers, and all PWM-type controllers in the market. Working on DC12V to DC24V, it adopts a high-speed optical coupler with a output rate and can output the signal of the central controller completely and synchronously.
- Size: 119*47*23mm(L*W*H)
- Max Output Current: 6A/Channel
- Total Output Current: 15A
- Connection: Common Anode
- With 4 Output Channels Design
- Compatible With All PWM Series LED Controllers
- wireless controller Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- Size: 119*47*23mm(L*W*H)
- Input Voltage: -24V
- Output Voltage: -24V
- Max Output Current: 6A/Channel
- Total Output Current: 15A
- Working Temperature: -20℃-+60℃
- LumaCircuit model: LC-CTL-9QIQQ5
- Dimensions found: 119x47x23mm / 23mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

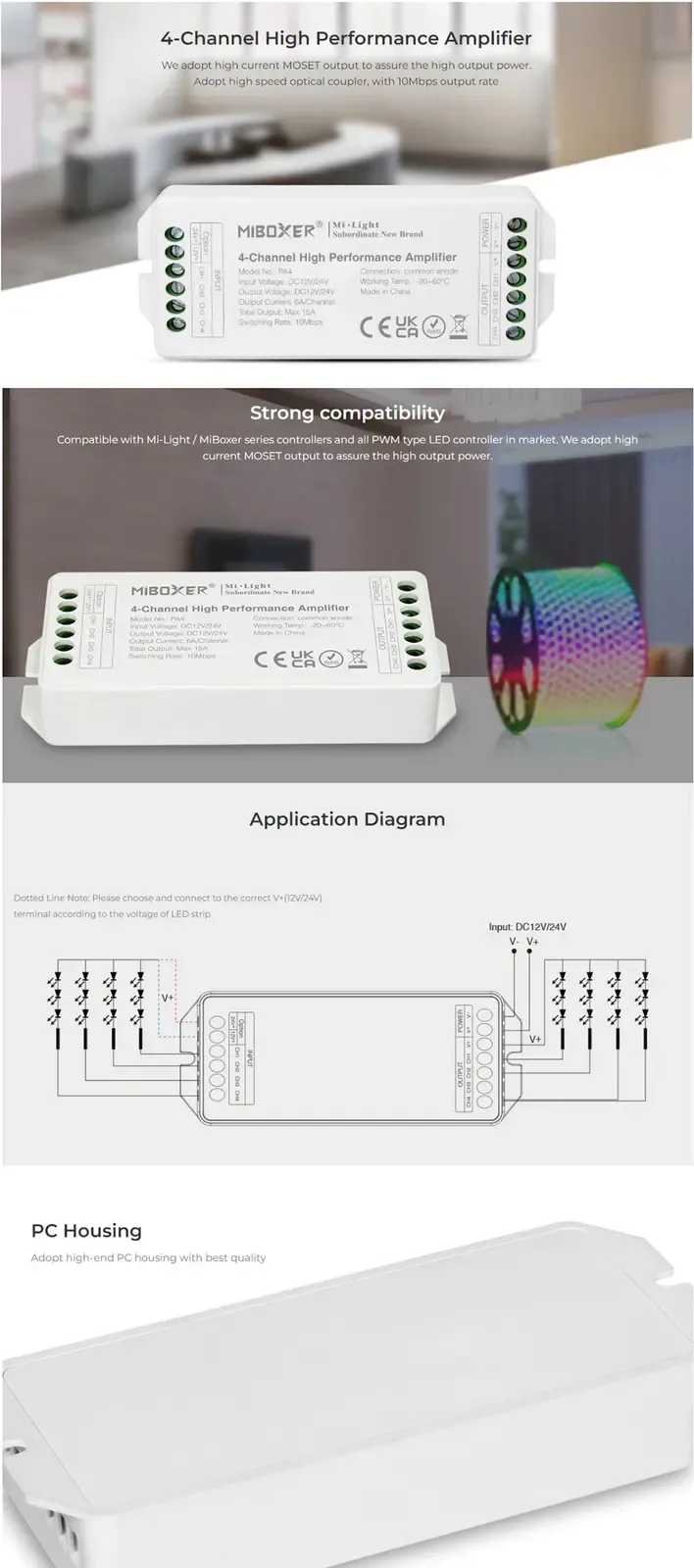

The wireless controller RGBW amplifier with four high-speed output channels is intended to be used for single color, dual white, RGB, and RGBW LED strip lights and is compatible with 2.4 GHz wireless, wireless controller controllers, and all PWM-type controllers in the market. Working on DC12V to DC24V, it adopts a high-speed optical coupler with a output rate and can output the signal of the central controller completely and synchronously. The wireless controller signal booster will be compatible with all PWM series LED controllers, made from the big current MOS pipeline to ensure a high output rate. Theoretically, the input and output with optoelectronic isolation can connect countless amplifiers.
Quick Links
wireless controller Manual
Specifications
Size: 119*47*23mm(L*W*H)
Input Voltage: -24V
Output Voltage: -24V
Max Output Current: 6A/Channel
Total Output Current: 15A
Switching Rate
Connection: Common Anode
With 4 Output Channels Design
Compatible With All PWM Series LED Controllers
Can Be Used For Single Color/CCT/RGB/ RGBW LED Strip Lights
Working Temperature: -20℃-+60℃
Includes
1 * RGBW Amplifier
Product resources
Technical documents
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
