Product details
30A 12V Dimmers for single color/Dual White
LumaCircuit offers 30A 12V Dimmers for single color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Model: (2.4G)/(2.4G+WiFi) Size: 134*81*24mm(L*W*H) Total Output: 30A Max(Max Output Current Of Each Channel: 30A) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller 12V dimmers with 2 in 1 are designed for single color and dual white LED lights, with a maximum 30A current output, which allows it to load more LED lights. It adopts the widely used 2.4G RF wireless technology, low power consumption, long signal transmission, and strong anti-interference. It can work with most wireless controller RF remote controls to turn ON/OFF and adjust the brightness and color temperature.
- Model: (2.4G)/(2.4G+WiFi)
- Size: 134*81*24mm(L*W*H)
- Total Output: 30A Max(Max Output Current Of Each Channel: 30A)
- Color Temperature Adjustable
- Output Connection: Common Anode
- Remote Control Distance: ≤30m
- Compatible With RF Remotes: T1, T2, +,
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 12-48 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-Z9EXVS
- Size: 134*81*24mm(L*W*H)
- Input Voltage: -48V
- Output: 30A/Channel
- Total Output: 30A Max(Max Output Current Of Each Channel: 30A)
- Output Connection: Common Anode
- Remote Control Distance: ≤30m
- Compatible With RF Remotes: T1, T2, +,
- IP Rate: IP20 Non-waterproof
- Applications: For Single Color/Dual White LED Lights
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller 12V dimmers with 2 in 1 are designed for single color and dual white LED lights, with a maximum 30A current output, which allows it to load more LED lights. It adopts the widely used 2.4G RF wireless technology, low power consumption, long signal transmission, and strong anti-interference. It can work with most wireless controller RF remote controls to turn ON/OFF and adjust the brightness and color temperature. The wireless controller dimmers support a smartphone Tuya APP and 4G long-distance control after pairing to a 2.4G gateway. Also, it can work with third-party voice control like Amazon Alexa and Google Assistant. There are WiFi LED dimmers available.
Specifications

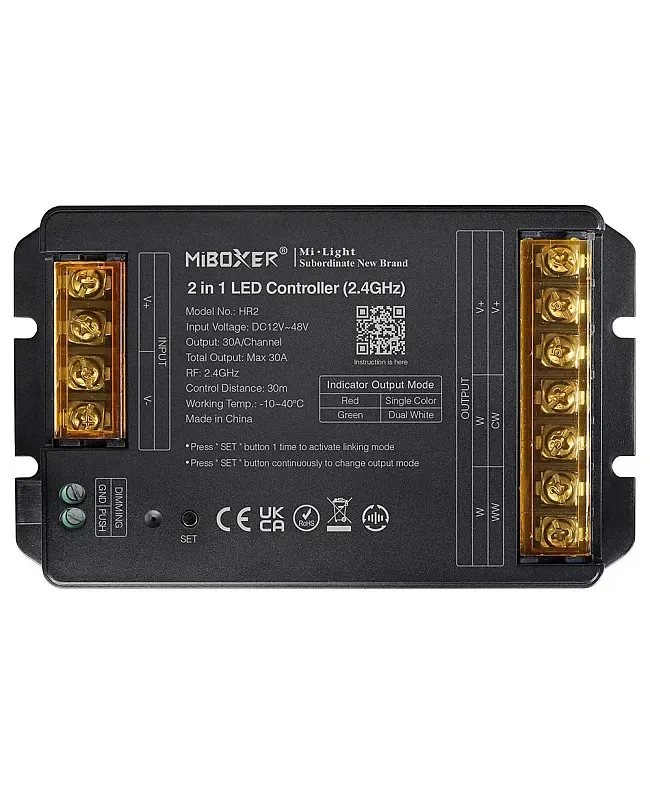

Type: 2 In 1 LED Dimmer
Model: (2.4G)/(2.4G+WiFi)

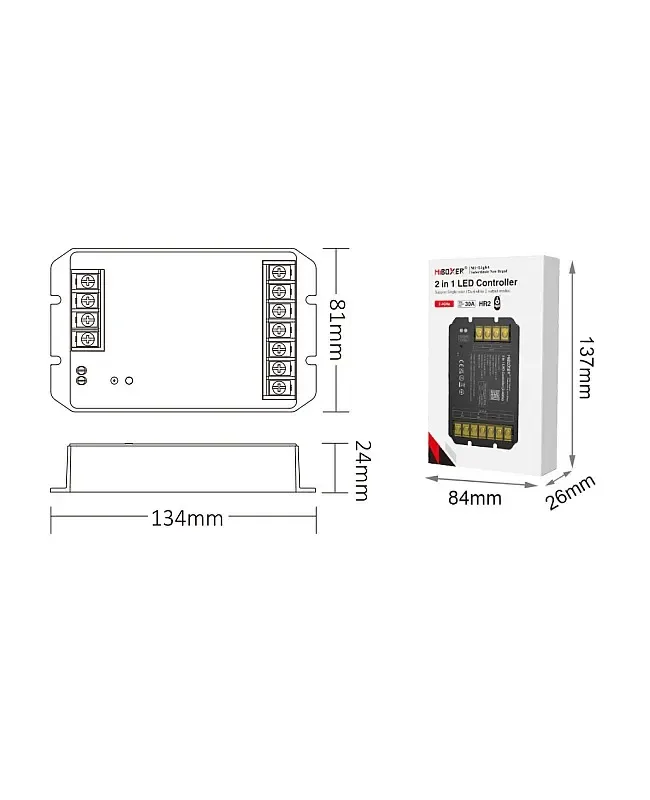

Size: 134*81*24mm(L*W*H)
Input Voltage: -48V
Output: 30A/Channel
Total Output: 30A Max(Max Output Current Of Each Channel: 30A)
RF: 2.
Color Temperature Adjustable
Dim Brightness
Auto Transmitting

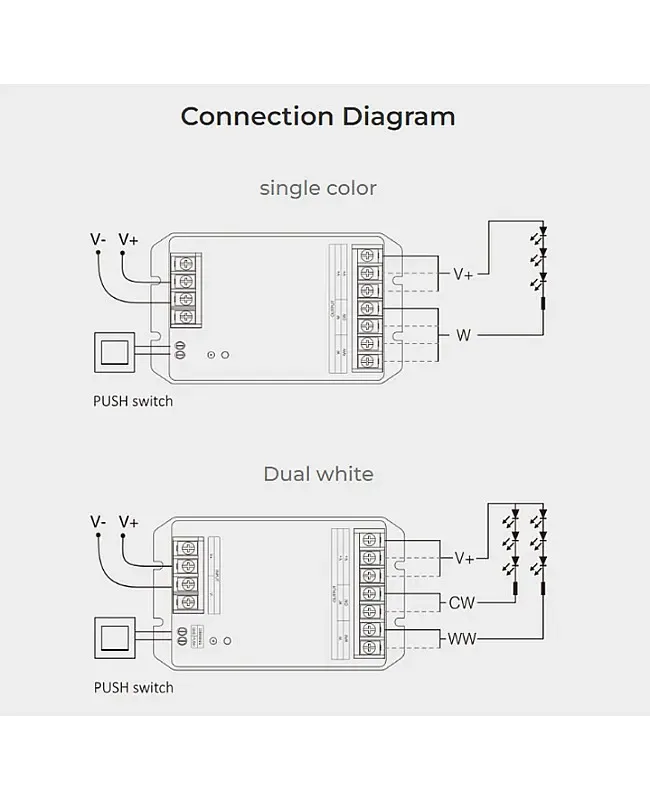

Output Connection: Common Anode
Remote Control Distance: ≤30m
Compatible With RF Remotes: T1, T2, +,
Support Tuya APP Control And Third-Party Voice Control(2.4G Gateway Needed)
Work With Amazon Alexa And Google Assistant
Support Push Dimming
IP Rate: IP20 Non-waterproof
Applications: For Single Color/Dual White LED Lights
Switch 2 Output Mode Via One Physical Button
Working Temperature: -10-40℃

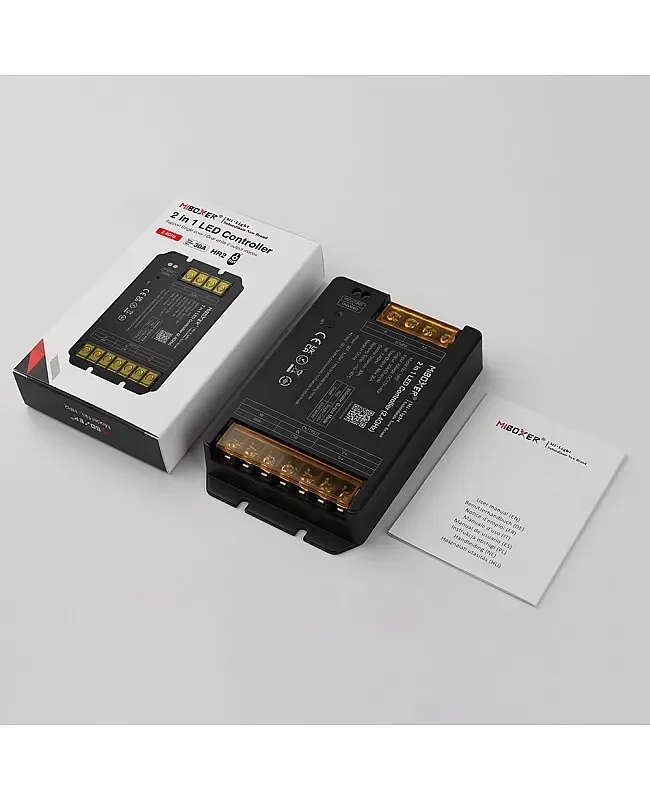

Includes
1 * 30A LED Light Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
