DC12V 72W IR Music LED Controller With 20 Keys Remote Control
LumaCircuit offers DC12V 72W IR Music LED Controller With 20 Keys Remote Control as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 63mm*35mm*22mm(L*W*H) Working temperature: -20-60℃ Static power consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

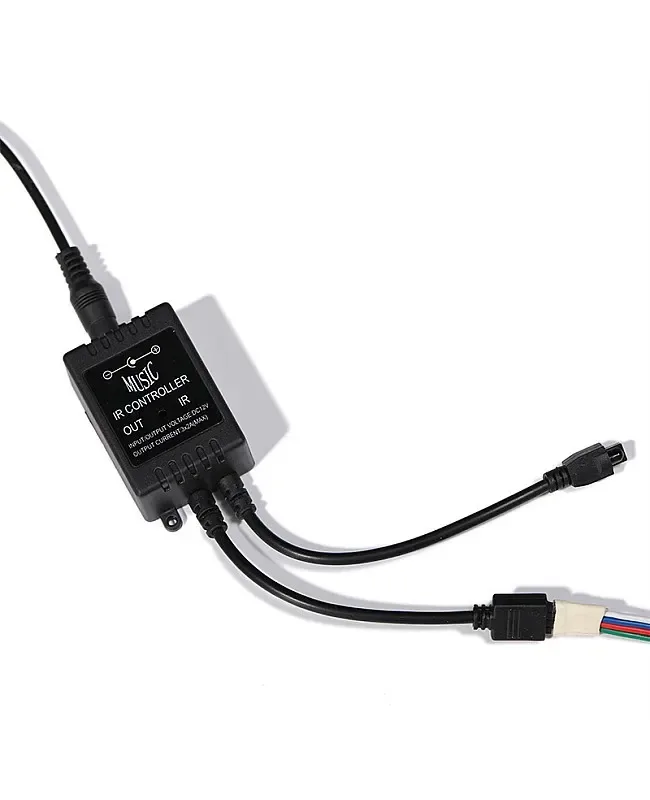

- The IR music LED controller works on DC12V or DC24V, and has a 3-output channel design. The max output current of each channel is 2A, and the max loading power is up to 144W when working in DC24V. The installer can connect the music controllers for LED strip lights with a 4-pin female quick connector and a female DC connector to the RGB strip lights and the LED driver. The 20 Keys IR remote control is included, and the installer can use it to turn on/off the LED lights.
- Size: 63mm*35mm*22mm(L*W*H)
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Max Output Current: ≤2A(Each Channel)
- Power: DC12V:≤72W 24V:≤144W
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- LumaCircuit model: LC-CTL-E9V9JQ
- Size: 63mm*35mm*22mm(L*W*H)
- Color: Black
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working voltage: DC12V-DC24V
- Output Channels: 3
- Connecting Mode: Common Anode
- Max Output Current: ≤2A(Each Channel)
- Power: DC12V:≤72W 24V:≤144W
- Dimensions found: 63mm / 35mm / 22mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

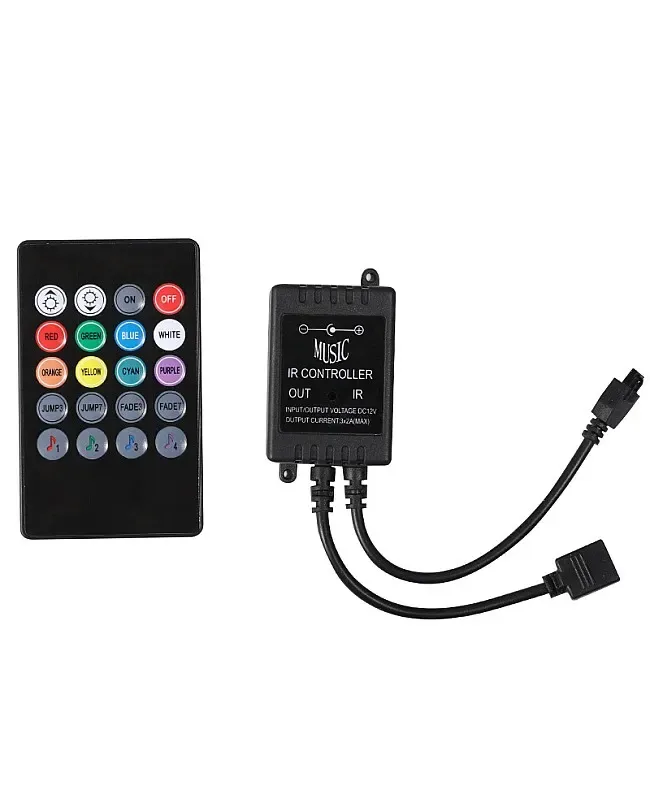

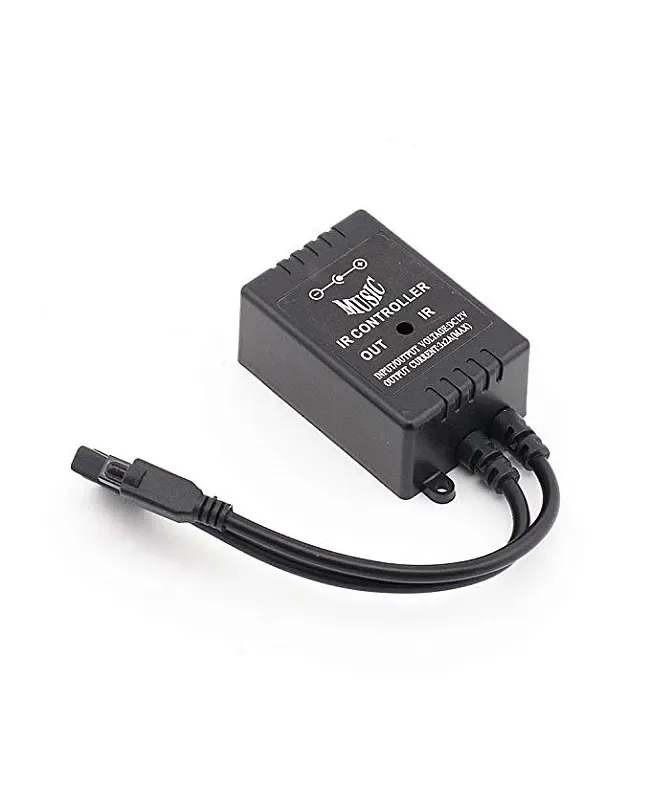

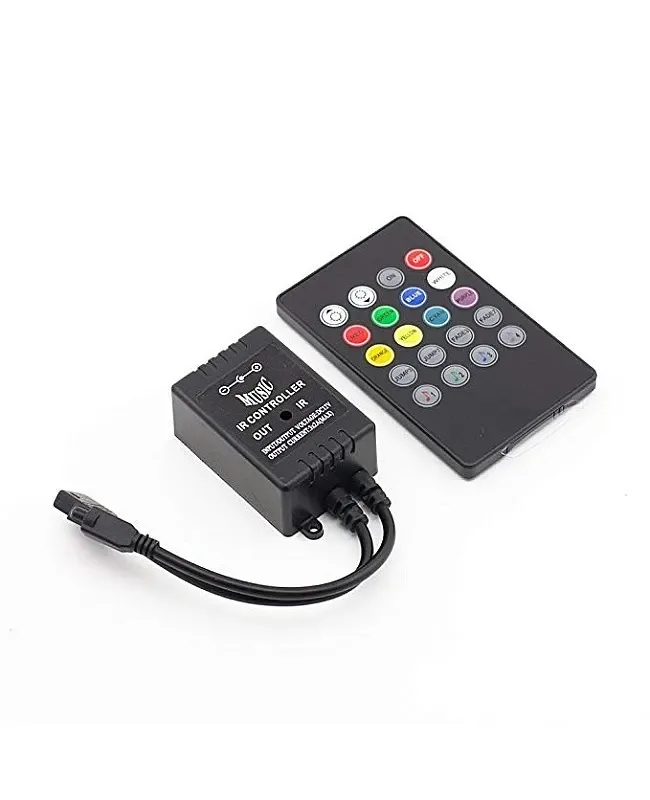

The IR music LED controller works on DC12V or DC24V, and has a 3-output channel design. The max output current of each channel is 2A, and the max loading power is up to 144W when working in DC24V. The installer can connect the music controllers for LED strip lights with a 4-pin female quick connector and a female DC connector to the RGB strip lights and the LED driver. The 20 Keys IR remote control is included, and the installer can use it to turn on/off the LED lights. There are eight static colors, 2 jump modes, 2 fade modes, and four music modes available. The installer can adjust the brightness of static colors. The LED music controller has a built-in high-sensitivity sound-sensitive module. When in music mode, the colors will change automatically with the music rhythm.
Specifications
TY-L-C-009
Size: 63mm*35mm*22mm(L*W*H)
Color: Black
Working temperature: -20-60℃
Static power consumption: <1W
Working voltage: DC12V-DC24V
Output Channels: 3
Connecting Mode: Common Anode
Max Output Current: ≤2A(Each Channel)
Power: DC12V:≤72W 24V:≤144W

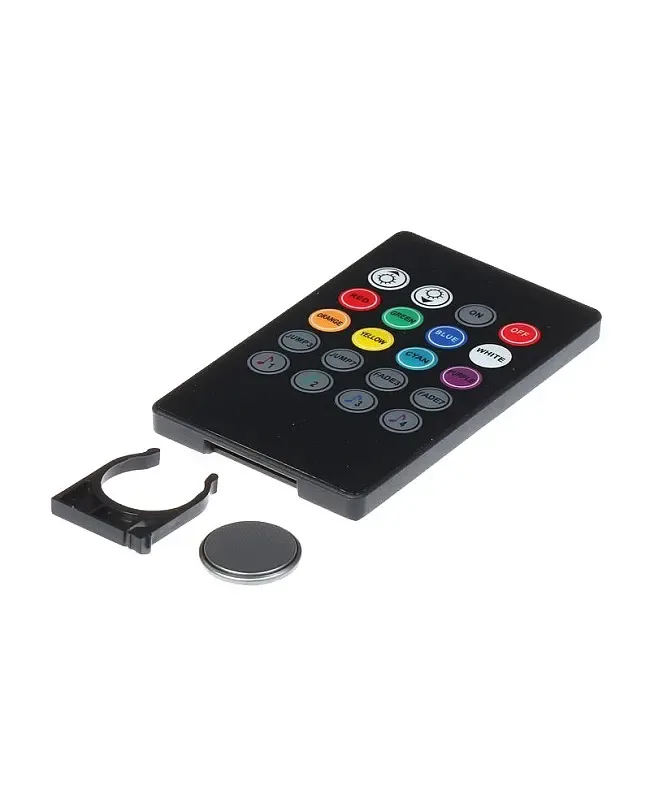

20 Keys IR Remote Control Included
Built-in High Sensitivity Sound Sensitive Module

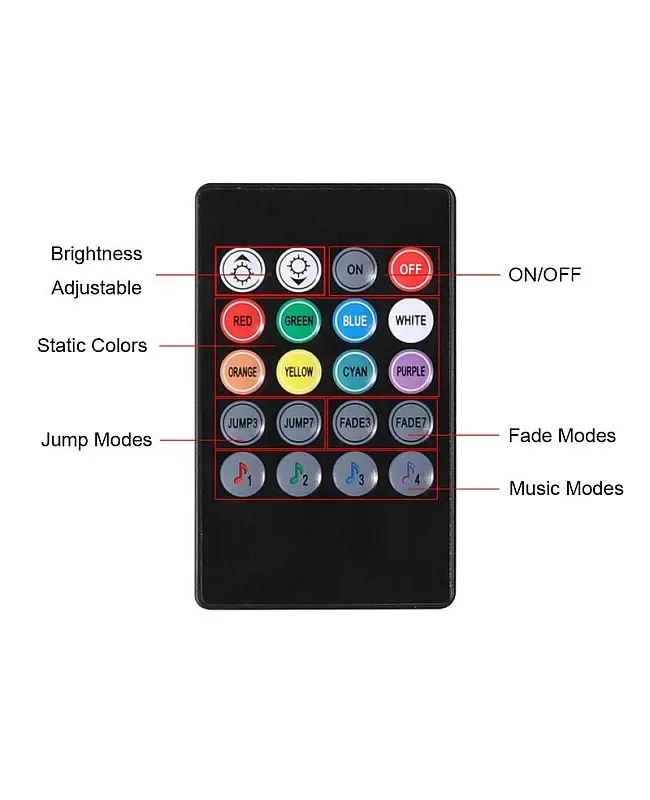

8 Static Colors, 2 Jump Modes, 2 Fade Modes, And 4 Music Modes
Weight: 100g
1 * Music LED Controller
1 * Remote
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
