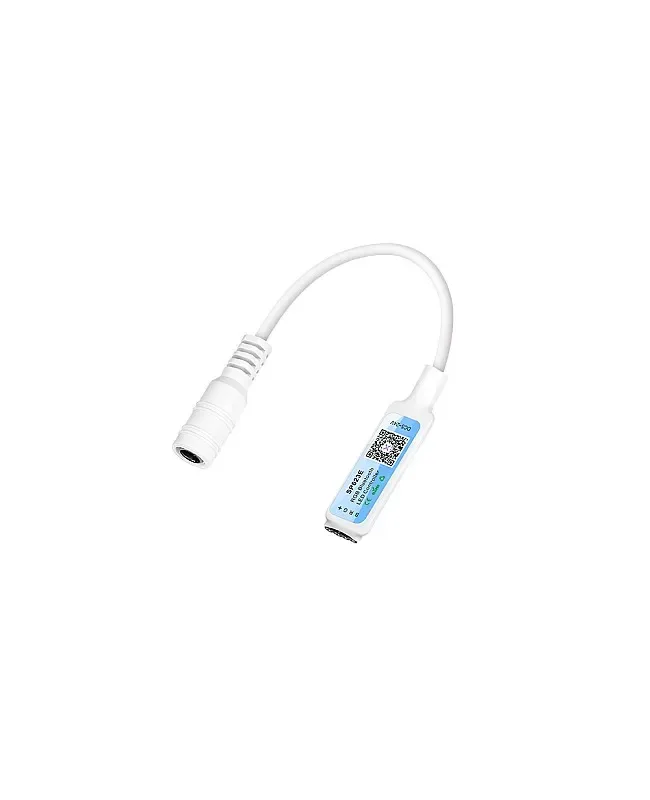

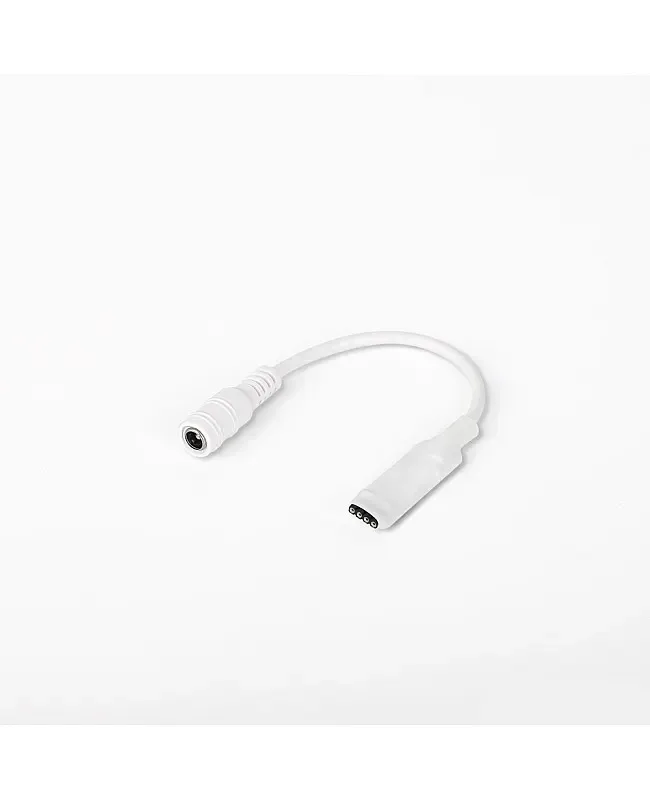

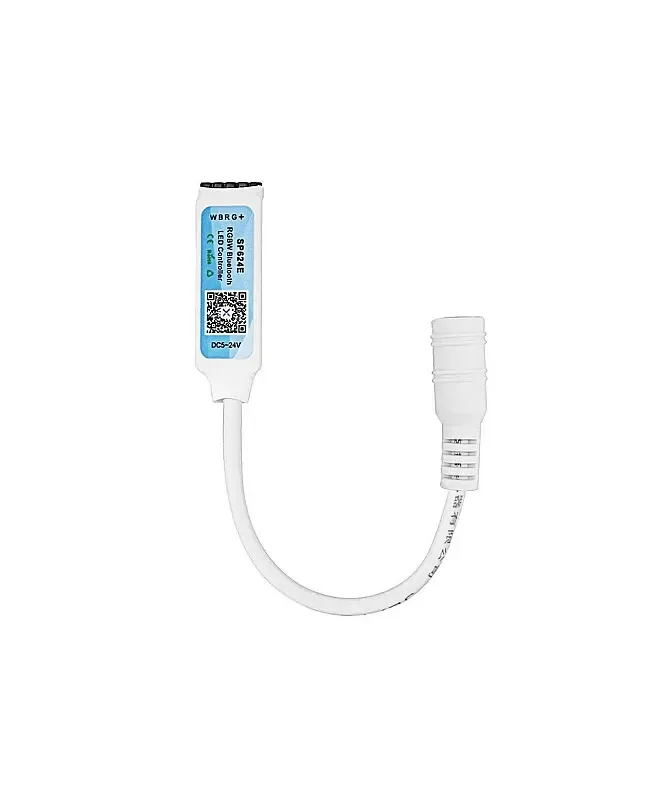

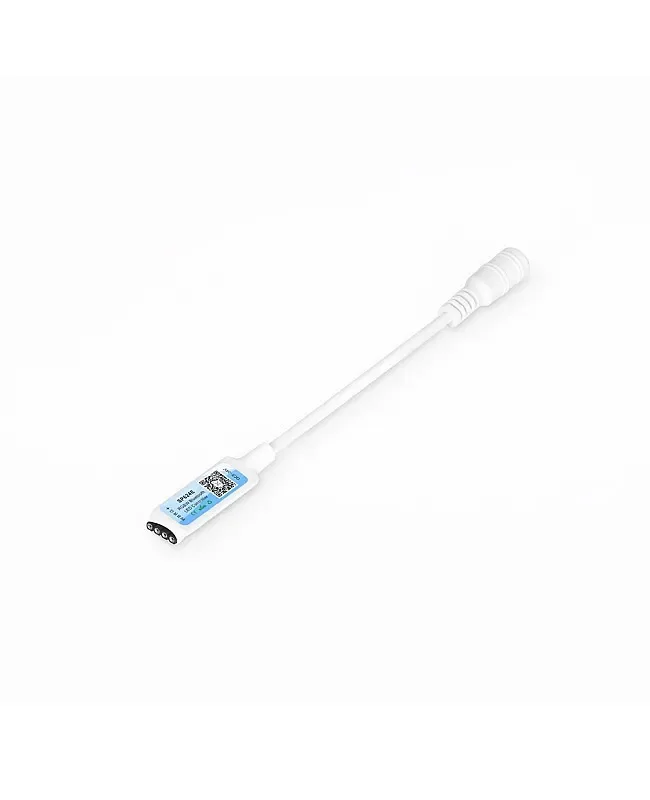

Inline Bluetooth RGB Mini LED Controller
LumaCircuit offers Inline Bluetooth RGB Mini LED Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Model: Inline Mini LED Controller Models: (For RGB) / (For RGBW) Max Output Current: 2A Per Channel(RGB Version), 1.5A Per Channel(RGBW Version) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The inline Bluetooth RGB mini LED controllers are compact and convenient devices that allow you to wirelessly control the color and brightness of your LED lights. Through Bluetooth connectivity, the installer can effortlessly customize the settings on your smartphone. The sleek design and small size allow you to install them in a small or narrow location. The RGB mini LED controllers with 3 a 3-output-channel design, the max output current is 2A per channel.
- Model: Inline Mini LED Controller
- Models: (For RGB) / (For RGBW)
- Max Output Current: 2A Per Channel(RGB Version), 1.5A Per Channel(RGBW Version)
- Supports Mobile Operating Systems: IOS 10.0 Or Above And Android 4.4 Or Above
- 1 * RGB Or RGBW Inline Mini LED Controller
- The Inline Bluetooth RGB Mini LED Controller with sleek design and small size, allow you to control the color and brightness wirelessly by Bluetooth connection to your smartphone.
- A serviceable controller component for a complete lighting BOM.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5-24 V
- Light engine: RGBW
- Models: (For RGB) / (For RGBW)
- Size: 40*14*7mm(L*W*H)
- Input Voltage: -24V
- Max Output Current: 2A Per Channel(RGB Version), 1.5A Per Channel(RGBW Version)
- LumaCircuit model: LC-CTL-RDM4CM
- Dimensions found: 40x14x7mm / 7mm
- Model: Inline Mini LED Controller
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

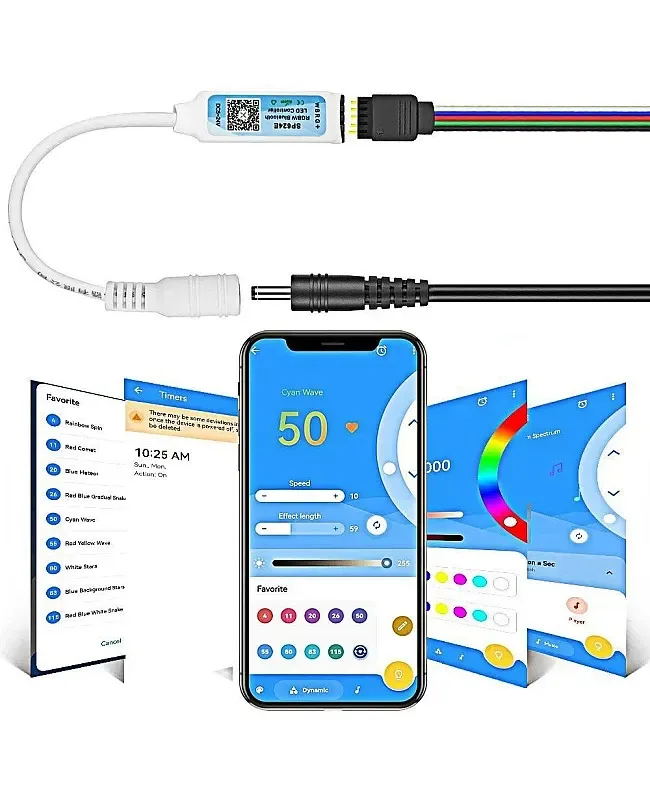

The inline Bluetooth RGB mini LED controllers are compact and convenient devices that allow you to wirelessly control the color and brightness of your LED lights. Through Bluetooth connectivity, the installer can effortlessly customize the settings on your smartphone. The sleek design and small size allow you to install them in a small or narrow location. The RGB mini LED controllers with 3 a 3-output-channel design, the max output current is 2A per channel. There are four output channels for the RGBW controllers, and each channel's maximum current is 1.5A the installer can use them for RGB or RGBW LED strip lights.
Specifications
Model: Inline Mini LED Controller
Models: (For RGB) / (For RGBW)
Size: 40*14*7mm(L*W*H)
Input Voltage: -24V
Working Current
Max Output Current: 2A Per Channel(RGB Version), 1.5A Per Channel(RGBW Version)

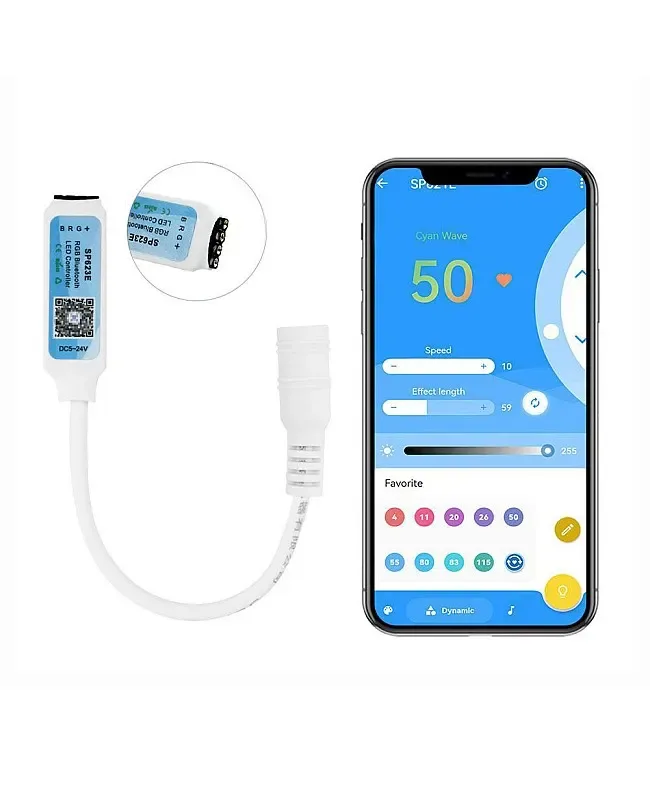

APP Name: Scene X
Supports Mobile Operating Systems: IOS 10.0 Or Above And Android 4.4 Or Above
Includes
1 * RGB Or RGBW Inline Mini LED Controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
