Product details
+ 2.4G WiFi Dimmer For Single Color/Dual White
LumaCircuit offers + 2.4G WiFi Dimmer For Single Color/Dual White as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) Color Temperature Adjustable From 2700K To 6500K Stepless Dimming Brightness From 1% To 100% The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller + WiFi dimmers, with 2 in 1 design for single color and dual white LED lights, integrate 2.4G and WiFi communication modules and can be controlled by 2.4G remote controls, smartphone apps, and third-party voice commands to adjust the color temperature and brightness. The color temperature can be adjusted from 2700K to 6500K, and brightness from 1% to 100% for various scenes.
- Size: 74.5*36*17mm(L*W*H)
- Color Temperature Adjustable From 2700K To 6500K
- Stepless Dimming Brightness From 1% To 100%

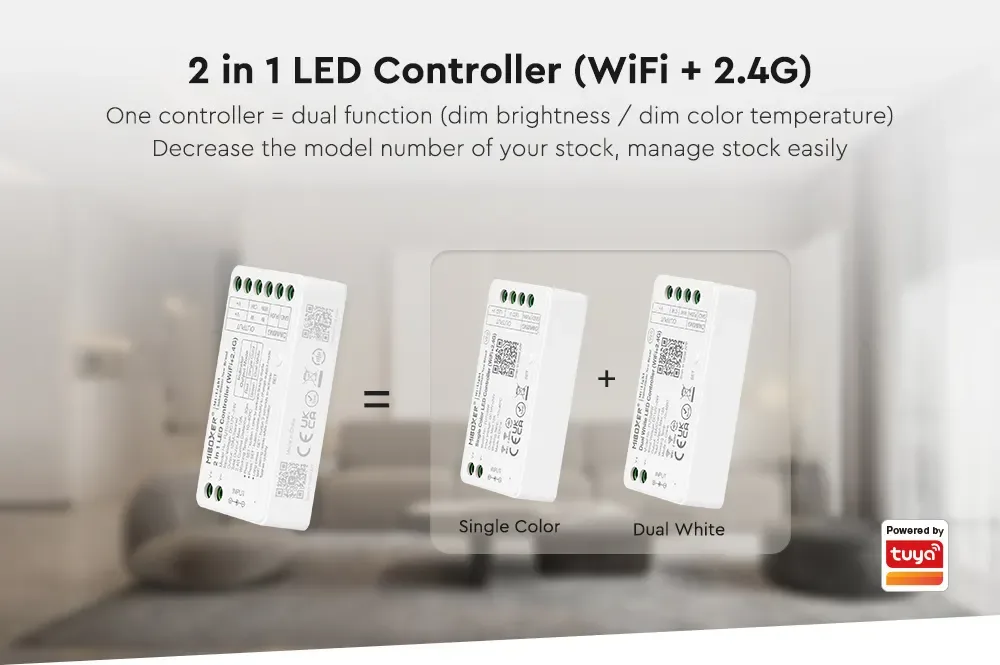

- 2 In 1 Design For Single Color/Dual White
- Compatible With 2.4 GHz wireless/wireless controller 2.4G Series Remotes T2, B, B, W, G
- WiFi Standard: IEEE 802./G/N 2.
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: CCT
- LumaCircuit model: LC-CTL-J6QW3C
- Size: 74.5*36*17mm(L*W*H)
- Material: PC
- Working Voltage: -24V
- Output: 12A/Channel
- Total Output: 12A Max
- Compatible With 2.4 GHz wireless/wireless controller 2.4G Series Remotes: T2, B, B, W, G
- Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
- Remote Control Distance: ≤30m
- Two Power Interfaces: Wiring Port.5*2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

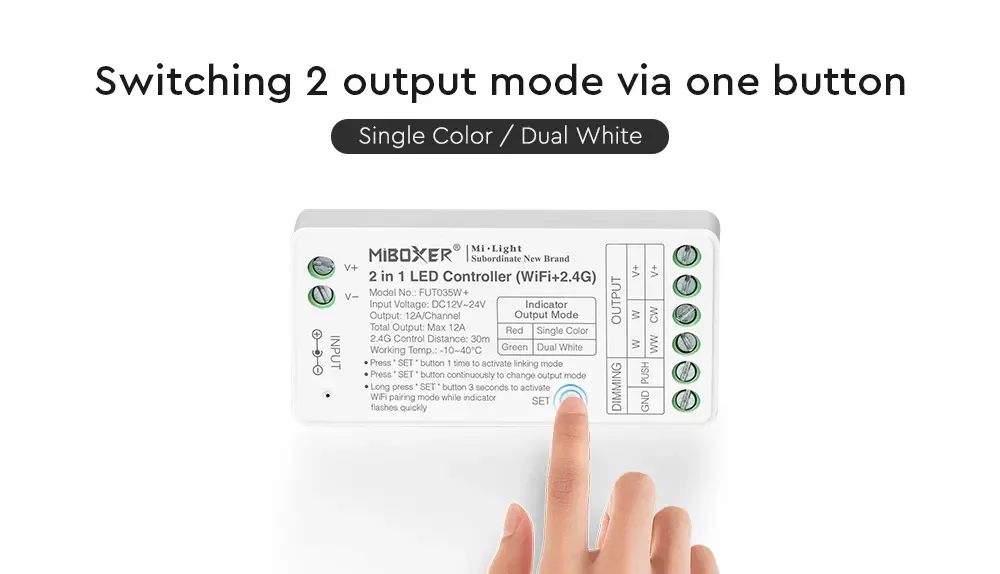

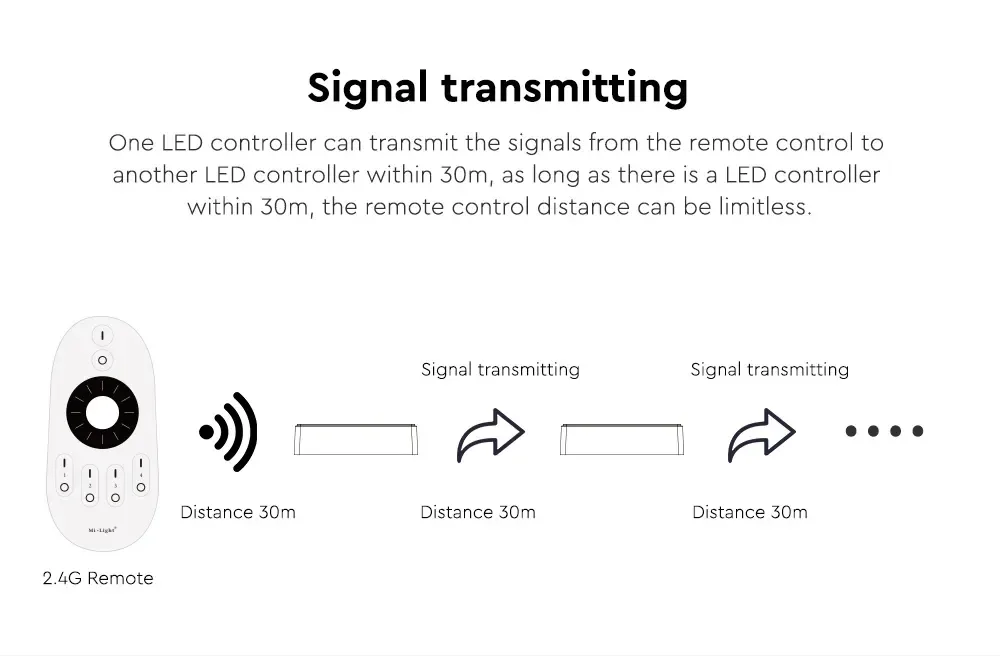

The wireless controller + WiFi dimmers, with 2 in 1 design for single color and dual white LED lights, integrate 2.4G and WiFi communication modules and can be controlled by 2.4G remote controls, smartphone apps, and third-party voice commands to adjust the color temperature and brightness. The color temperature can be adjusted from 2700K to 6500K, and brightness from 1% to 100% for various scenes. There is a button on the controller, and the installer can press it continuously to change the output modes from single color to dual white. After connecting to a 2.4G gateway, a smartphone APP can control the light dimmer; the installer can use the APP to achieve more functions like timing, music rhythm, scene customization, device sharing, etc. The wireless controller dimmer supports third-party voice control, can work with Amazon Alexa and Google Assistant, and can control ON/OFF, brightness, etc, through voice commands. The wireless controller 2 In 1 dimmer will receive signals from a remote control and transmit to the same products within 30 meters; the remote control distance can be limitless. There are two port interfaces: wiring ports and a 5*2.1 port, which is easy to connect to LED drivers.
Specifications
Model: +

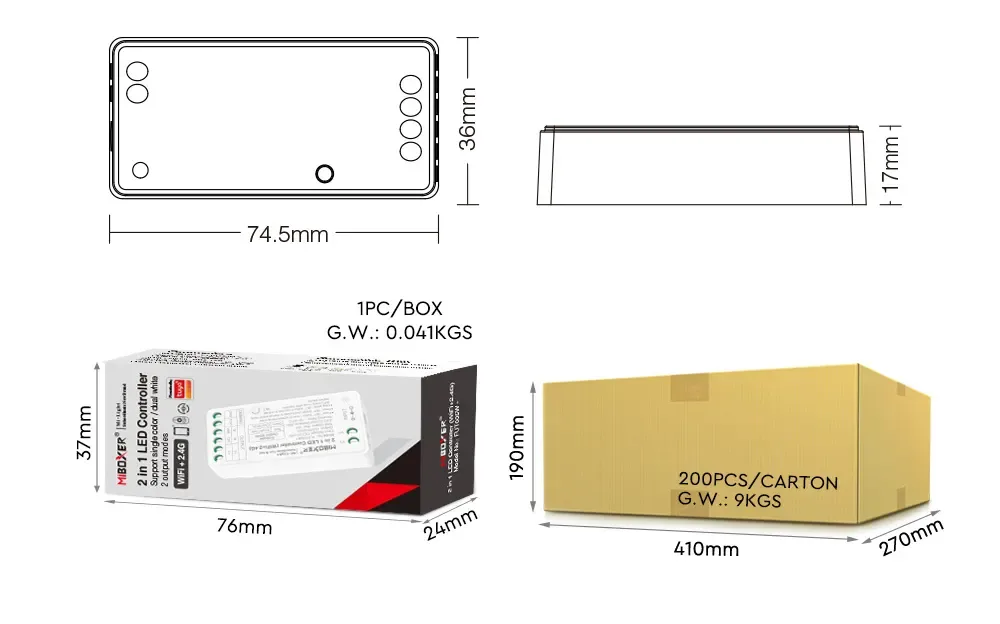

Size: 74.5*36*17mm(L*W*H)
Material: PC
Working Voltage: -24V
Output: 12A/Channel
Total Output: 12A Max
Color Temperature Adjustable From 2700K To 6500K
Support PUSH Dimming
Stepless Dimming Brightness From 1% To 100%
2 In 1 Design For Single Color/Dual White

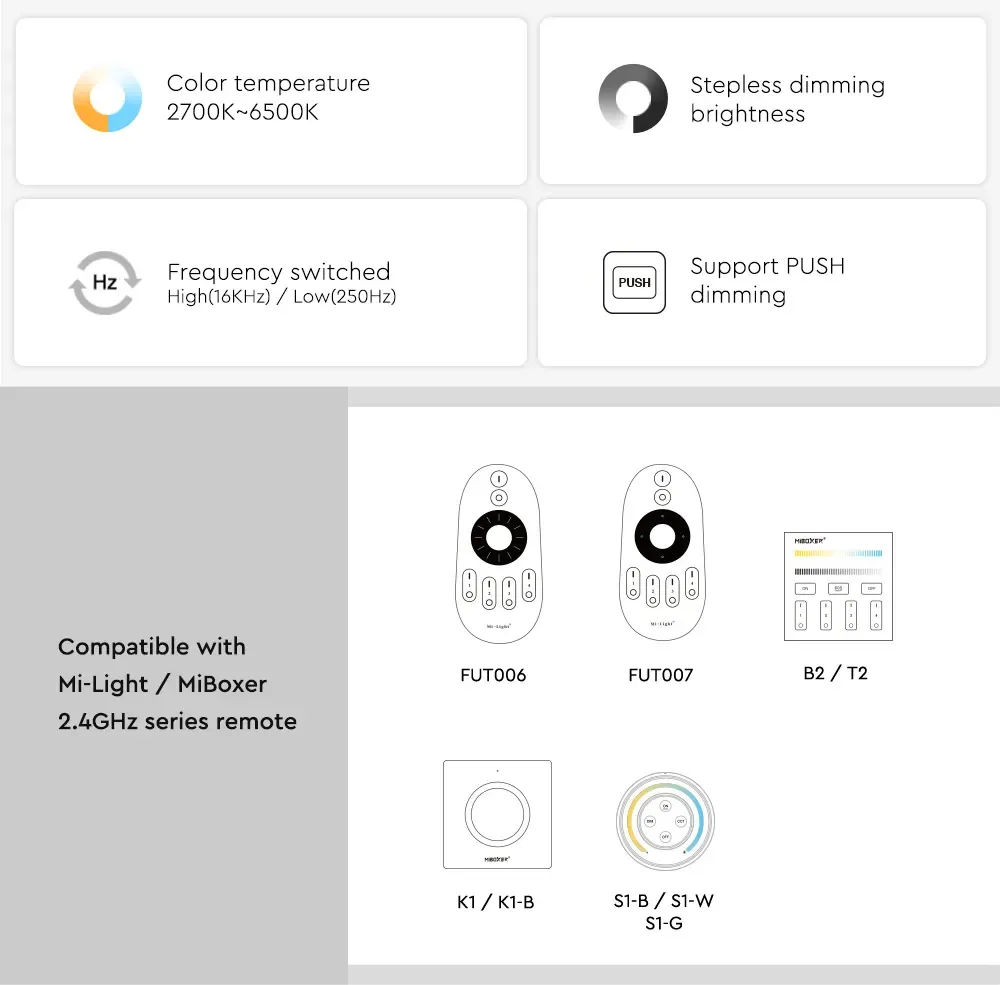

Compatible With 2.4 GHz wireless/wireless controller 2.4G Series Remotes T2, B, B, W, G
WiFi Standard: IEEE 802./G/N 2.
Bluetooth Protocol: Bluetooth 4.2(Low Power Consumption)
RF: 2.
Smartphone APP Controllable(2. Gateway Needed)
APP Name: Tuya Smart
Support Third-Party Voice Control
Can Work With Amazon Alexa And Google Assistant
Remote Control Distance: ≤30m
Working Frequency Switched From High To Low 250Hz
Auto Signal Transmitting

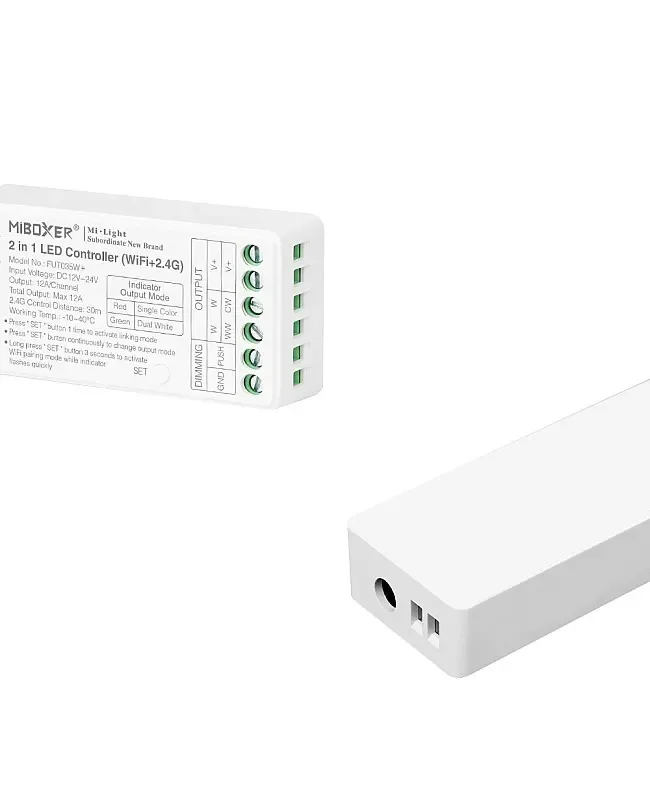

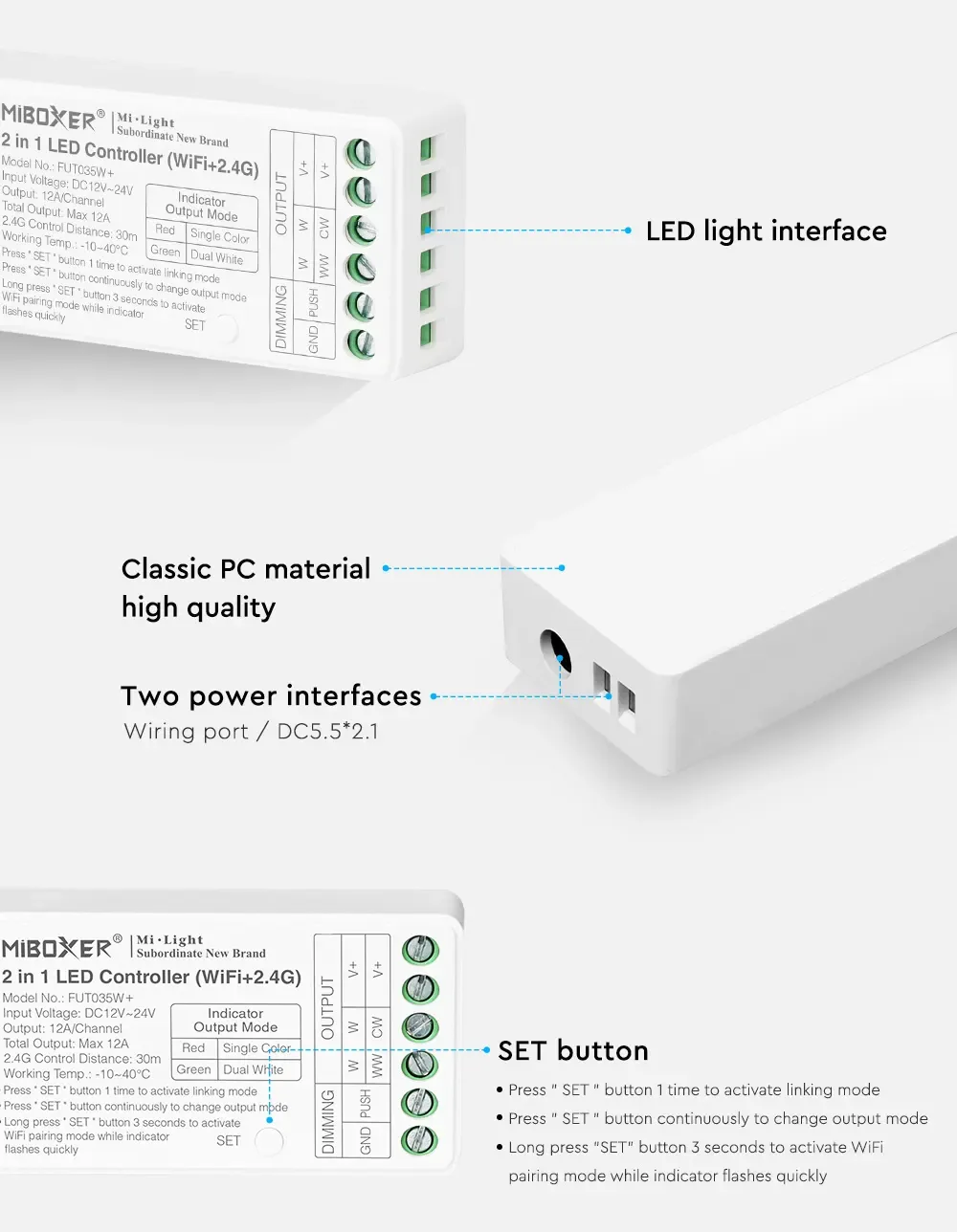

Two Power Interfaces: Wiring Port.5*2.1mm
Working Temperature: -10-40℃
Includes
1 * wireless controller 2.4G WiFi Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
