RF RGB LED Controller With Remote
LumaCircuit offers RF RGB LED Controller With Remote as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Connecting Mode: Common Anode Static Power Consumption: < 1W Working Voltage: DC12V-24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

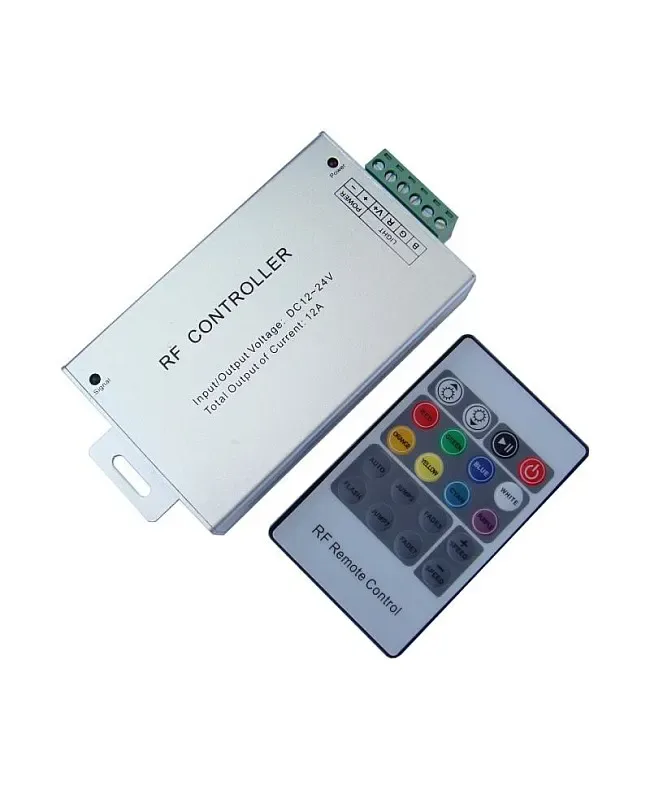

- The RF RGB LED controller with remote is enclosed in an aluminum shell. With a 3-channel output design, the max output current of each channel is 4A, the max output power can reach 288W when working in DC24V, and can drive the RGB LED strips, color-changing LED lamps, and so on. The 20 Keys remote control is included, and 8 static colors and 6 dynamic modes are available. Can adjust the brightness of static colors or the speed of dynamic modes.
- Connecting Mode: Common Anode
- Static Power Consumption: < 1W
- Working Voltage: DC12V-24V
- Output Current: <4A ( Each Channel )
- Output Power: 144W ( 12V ) / 288W ( 24V )
- 14 Modes In Total ( 8 Static Colors And 6 Dynamic Modes )
- Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- Size: 90*70*28mm(L*W*H)
- Connecting Mode: Common Anode
- Static Power Consumption: < 1W
- Working Voltage: DC12V-24V
- Output Current: <4A ( Each Channel )
- Output Power: 144W ( 12V ) / 288W ( 24V )
- Working Temperature: -20℃-60℃
- LumaCircuit model: LC-CTL-VCDV8J
- Dimensions found: 90x70x28mm / 28mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The RF RGB LED controller with remote is enclosed in an aluminum shell. With a 3-channel output design, the max output current of each channel is 4A, the max output power can reach 288W when working in DC24V, and can drive the RGB LED strips, color-changing LED lamps, and so on. The 20 Keys remote control is included, and 8 static colors and 6 dynamic modes are available. Can adjust the brightness of static colors or the speed of dynamic modes.
Specifications
Size: 90*70*28mm(L*W*H)
Connecting Mode: Common Anode
Static Power Consumption: < 1W
Working Voltage: DC12V-24V
3-Channel Output
Output Current: <4A ( Each Channel )
Output Power: 144W ( 12V ) / 288W ( 24V )
20 Keys Remote Included
14 Modes In Total ( 8 Static Colors And 6 Dynamic Modes )
Brightness Of Static Colors And Speed Of Dynamic Modes Adjustable
Working Temperature: -20℃-60℃
Includes
1 * RF RGB LED Controller
1 * 20 Keys RF Remote Control
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
