Product details
4G 288W LED WIFI Controller With RF Remote
LumaCircuit offers 4G 288W LED WIFI Controller With RF Remote as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20℃-60℃ Size: 108*63*28mm(L*W*H) Working Voltage: DC12V or DC24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The LED WiFi controller has a 3-in-1(DIM, CCT, RGB) function, with the installation of controlling software on mobile devices with Android or IOS systems, such as smartphones, iPhones, tablets, etc. The installer can remotely control the LED lights through WiFi. Make the LED control more intelligent and humanized. The 2.4G LED WiFi controller has a 3-output-channel design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V.
- Working Temperature: -20℃-60℃
- Size: 108*63*28mm(L*W*H)
- Working Voltage: DC12V or DC24V
- Output Wattage: DC12V: ≤144W; DC24V: ≤288W
- Static Power Consumption: <3W
- Connect Method: Common Anode
- Wifi Brightness Level: 100
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: CCT
- Working Temperature: -20℃-60℃
- Size: 108*63*28mm(L*W*H)
- Working Voltage: DC12V or DC24V
- Output Wattage: DC12V: ≤144W; DC24V: ≤288W
- Static Power Consumption: <3W
- Remote Brightness Level: 32
- Remote Speed Level: 100
- Output: 3 channels
- Output Current: ≤4A(Each Channel)
- WIFI Working Frequency: 2.4G
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

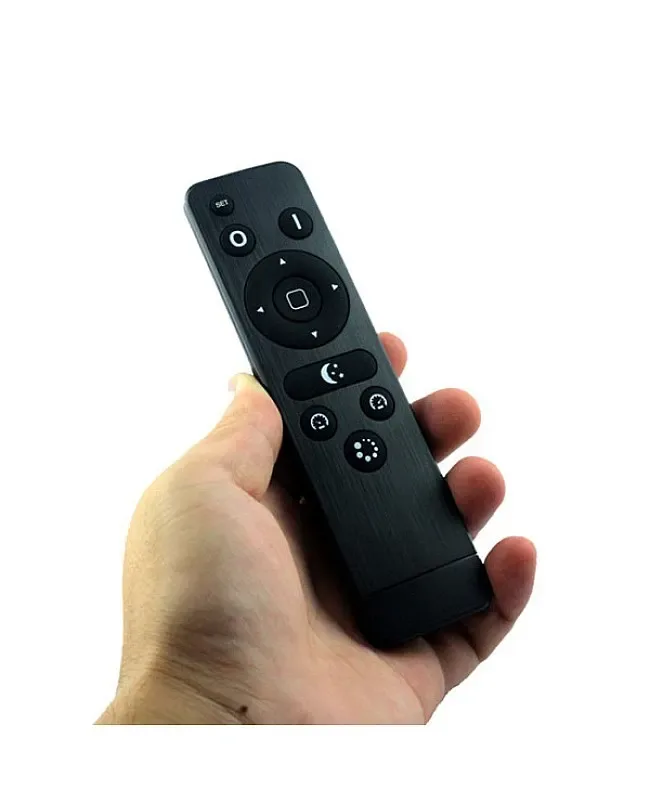

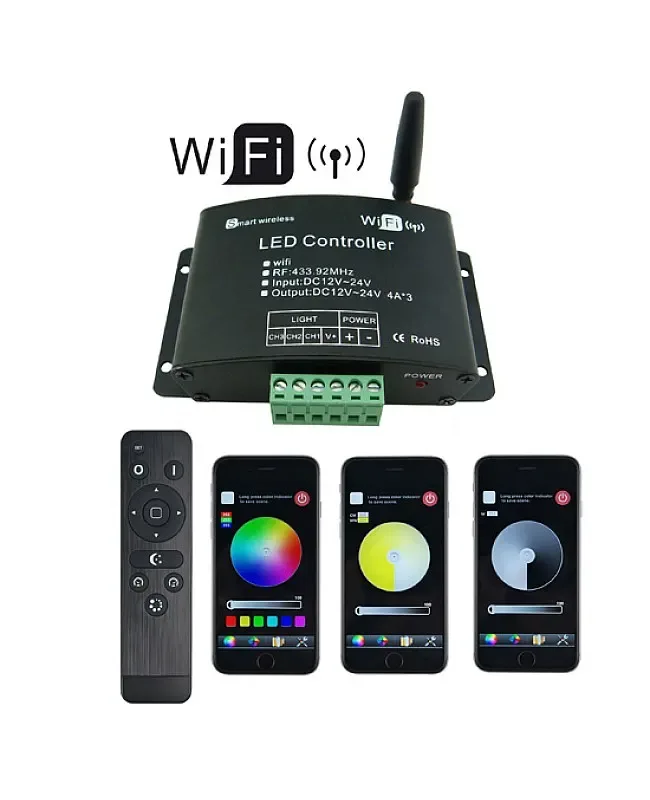

The LED WiFi controller has a 3-in-1(DIM, CCT, RGB) function, with the installation of controlling software on mobile devices with Android or IOS systems, such as smartphones, iPhones, tablets, etc. The installer can remotely control the LED lights through WiFi. Make the LED control more intelligent and humanized. The 2.4G LED WiFi controller has a 3-output-channel design, the max output current of each channel is 4A, and the max loading power is up to 288W when working in DC24V. With 3 in 1 function, the installer can use it as a dimmer, RGB controller, or CCT controller to control the various LED lights; you only need to select the right control interface in the software. The WiFi LED controller comes with a 2.4G RF remote control, which the installer can use to control the LED light easily. The installer can use it to turn on/off, change the dynamic modes, and adjust the brightness or speed of the dynamic mode.
Specifications Of LED WiFi Controller
Working Temperature: -20℃-60℃
Size: 108*63*28mm(L*W*H)
Working Voltage: DC12V or DC24V
Output Wattage: DC12V: ≤144W; DC24V: ≤288W
Static Power Consumption: <3W

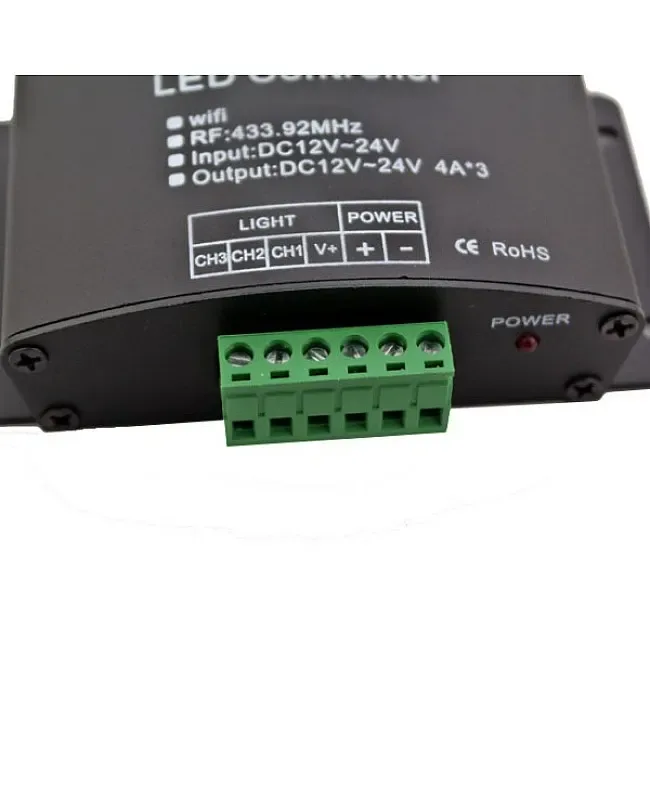

Connect Method: Common Anode
Wifi Brightness Level: 100
Wifi Speed Level: 100
Remote Brightness Level: 32
Remote Speed Level: 100
Output: 3 channels
Output Current: ≤4A(Each Channel)
WIFI Working Frequency: 2.4G
Remote Working Frequency: 433.
Output Gray Level: 256
Memory Function: YES
Receiving Sensitivity: 802.:DSSS（-）802.:CCK802.11g:OFDM
Weight: 300g

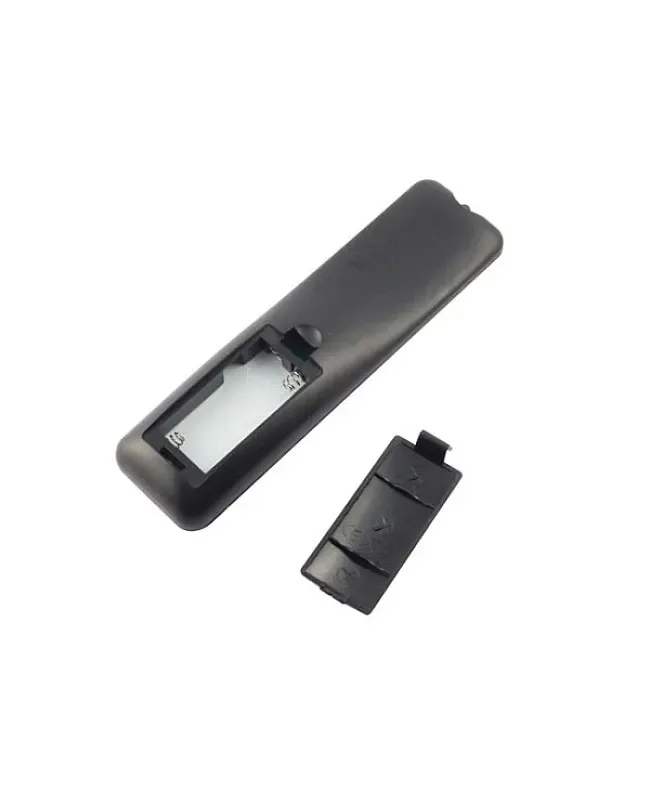

Specifications Of Remote
Working Temperature: -20-60℃
Working Voltage: 3V(AAA*2)
Standby Current
Working Current
Standby Wattage
Working Wattage
Size: 150*40*20mm(L*W*H)
Remote Control Distance: ≤20M
Working Frequency: 433.
1 * LED WIFI Controller
1 * Remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
