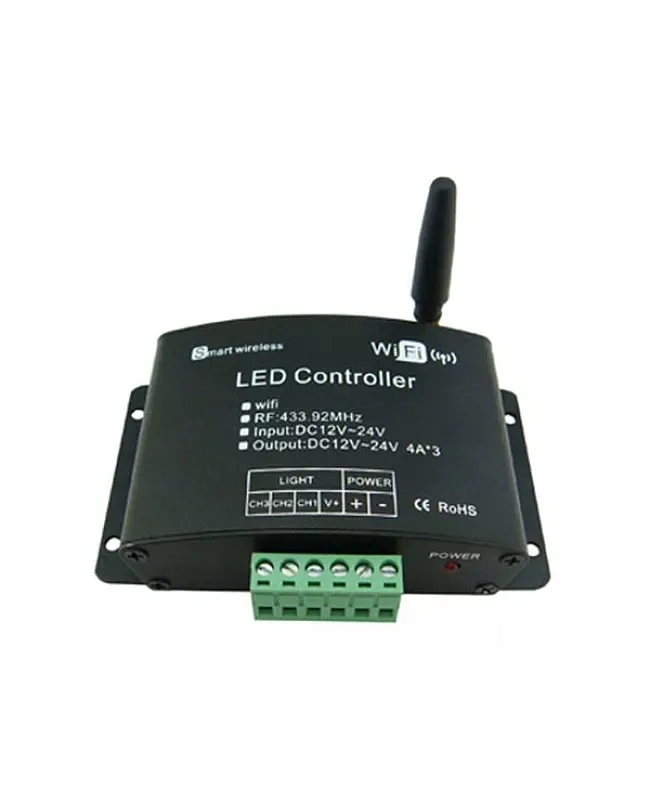

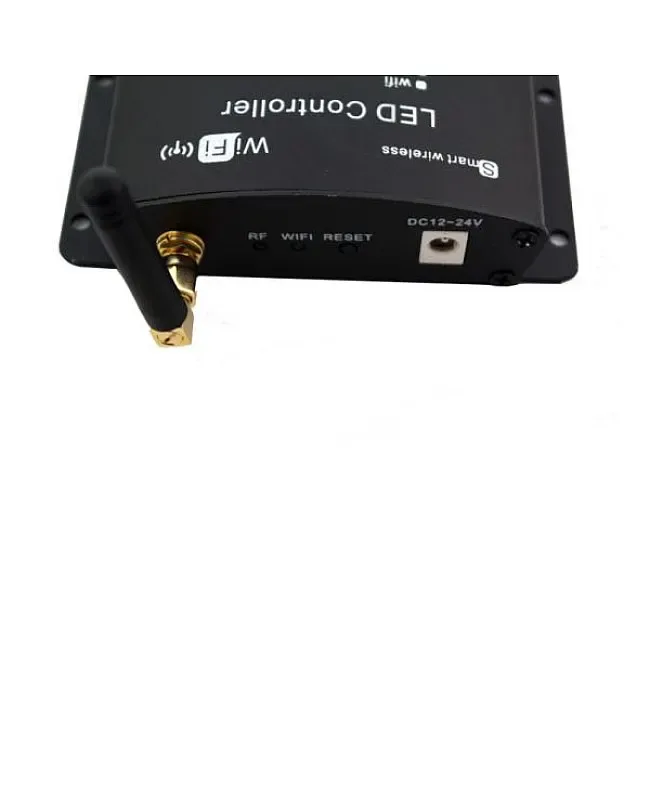

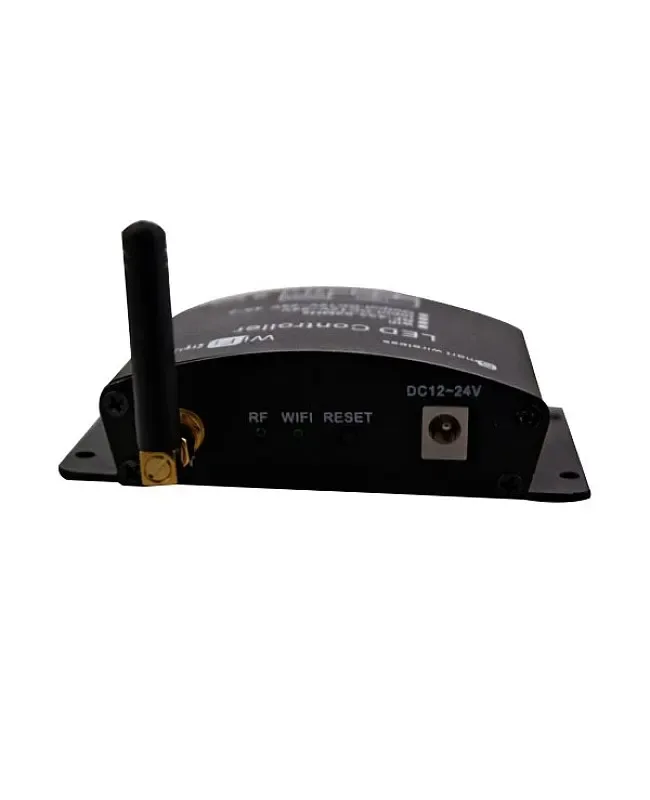

RGB LED Controller Wifi
LumaCircuit offers RGB LED Controller Wifi as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Output Wattage: 12: ≤144W(3CH) / 24V: ≤288W(3CH) Working Temperature: -20- 60 °C Connect Method: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- Working Voltage: DC12V/DC24V
- Output Wattage: 12: ≤144W(3CH) / 24V: ≤288W(3CH)
- Working Temperature: -20- 60 °C
- Connect Method: Common Anode
- WIFI Brightness Level: 100
- Remote Control Brightness Level: 32
- Remote Control Speed level: 100
- Size: 108*63*28mm(L*W*H)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- Working Voltage: DC12V/DC24V
- Output Wattage: 12: ≤144W(3CH) / 24V: ≤288W(3CH)
- Working Temperature: -20- 60 °C
- Power Consumption: <3W
- Remote Control Brightness Level: 32
- Remote Control Speed level: 100
- Size: 108*63*28mm(L*W*H)
- Output Current: ≤4A(Each Channel)
- WIFI Frequency: 2.4G
- RF Remote Control Frequency: 433.92 MHz
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Specifications Of WIFI LED Controller
Working Voltage: DC12V/DC24V
Output Wattage: 12: ≤144W(3CH) / 24V: ≤288W(3CH)
Working Temperature: -20- 60 °C
Power Consumption: <3W
Connect Method: Common Anode
WIFI Brightness Level: 100
WIFI Speed Level: 100
Remote Control Brightness Level: 32
Remote Control Speed level: 100
Size: 108*63*28mm(L*W*H)
Output
Output Current: ≤4A(Each Channel)
WIFI Frequency: 2.4G
RF Remote Control Frequency: 433.92 MHz
Output Gray Scale: 256
Memory Function: YES
Receiving sensitivity: 802.:DSSS（-）802.:CCK802.11g:OFDM

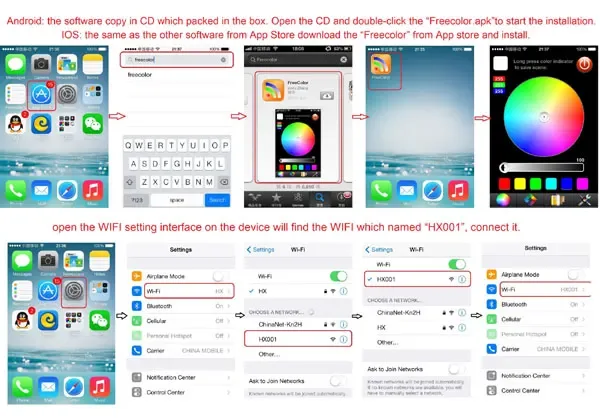

Platform: Android 2.1 Or Above; IOS 4.3 Or Above(Support WIFI)
Weight: 250g
Specifications Of RF Remote
Working Temperature: -20- 60 °C
Battery: 3PCS AAA
Standby Current
Working Voltage: 1.5V*3
Working Current
Remote Control Distance: Max 30 meters
RF Frequency: 433.92 MHz
Power Consumption: 0.

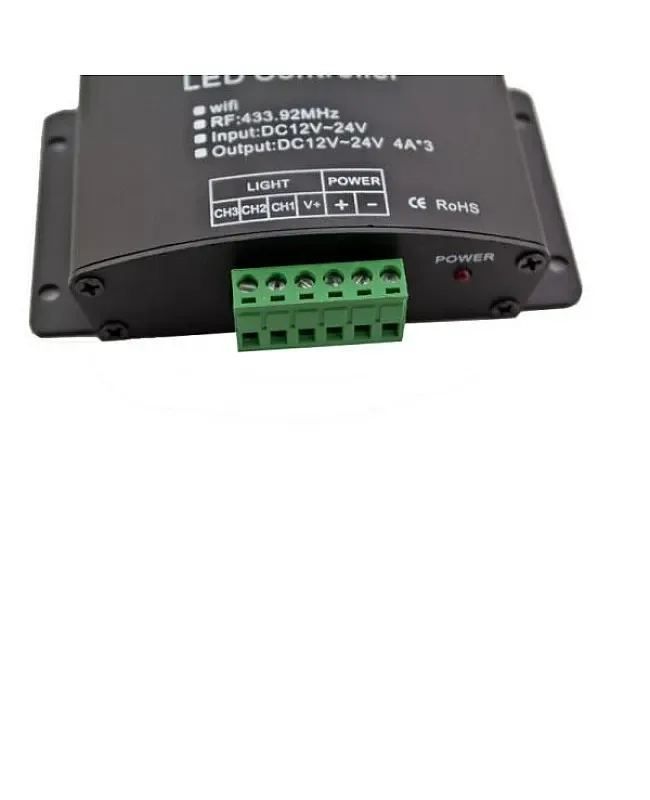

If work as dimmer mode： CH----V,--V,V+--V+
If work as CT mode: CH--WW, CW, V+--COM

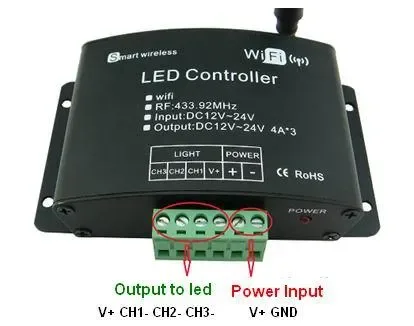

If work as RGB mode: Blue,--Green,--Red,V+--COM
