D CX Series Constant Voltage DMX512 RDM Decoder
LumaCircuit offers D CX Series Constant Voltage DMX512 RDM Decoder as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. wireless controller CX To CX User Manual Model: CX(1 Channel), CX(2 Channels), CX(3 Channels), CX(4 Channels), CX(5 Channels) Size: 130*49*27mm(L*W*H) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller series DMX512 decoder complies with DMX512, DMX512(1990), DMX512-A, and RDM.0 international standard protocol. Works on DC12V or DC24V, and one-channel to 5-channel products are available. The max output current is up to 20A, and the DMX512 and RDM signals can be received when in unlock status. When the digital display shows 001-512, short-press the Up or Down buttons, and the installer can change the DMX initial address. Long press, the installer can change quickly.
- wireless controller CX To CX User Manual
- Model: CX(1 Channel), CX(2 Channels), CX(3 Channels), CX(4 Channels), CX(5 Channels)
- Size: 130*49*27mm(L*W*H)
- Output Current: 4A(5-Channels), 5A(4-Channels), 6A(3-Channels), 10A(2-Channels), 20A(1-Channel)
- Total Output Current: 20A
- Input Signal: DMX512, RDM
- Comply With DMX512, DMX512(1990), DMX512-A, RDM.0
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 12-24 V
- LumaCircuit model: LC-CTL-4T7S83
- Size: 130*49*27mm(L*W*H)
- Input Voltage: -24V
- Output Current: 4A(5-Channels), 5A(4-Channels), 6A(3-Channels), 10A(2-Channels), 20A(1-Channel)
- Total Output Current: 20A
- Input Signal: DMX512, RDM
- PWM Frequency Optional: High Frequency(2000Hz)/Low Frequency(500Hz)
- IP Rating: IP20 Non-Waterproof
- Working Temperature: -20-60℃
- Dimensions found: 130x49x27mm / 27mm
- Model: CX(1 Channel), CX(2 Channels), CX(3 Channels), CX(4 Channels), CX(5 Channels)
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

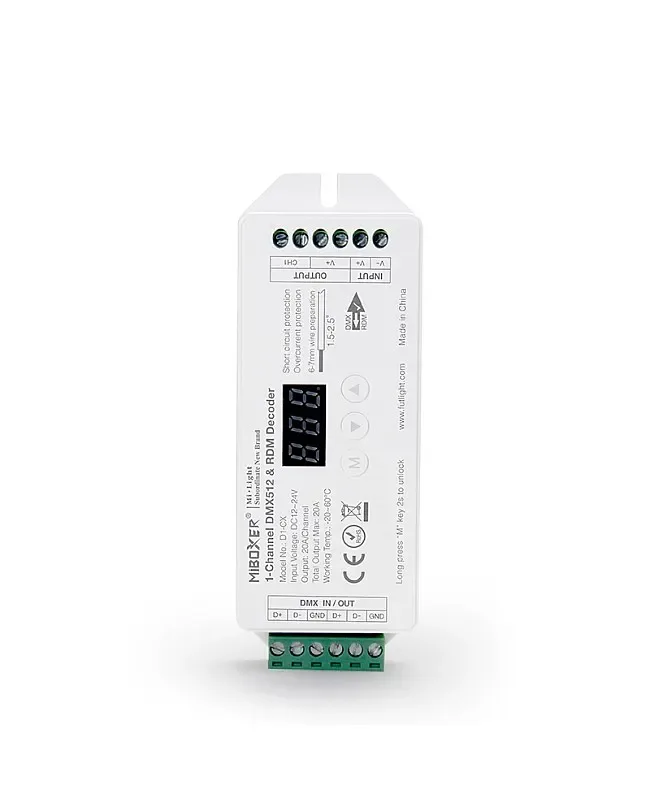

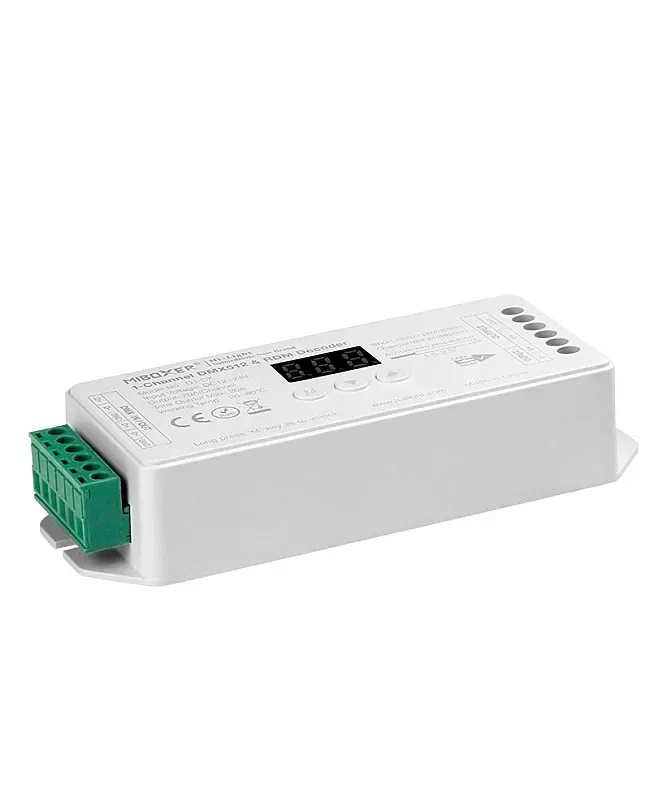

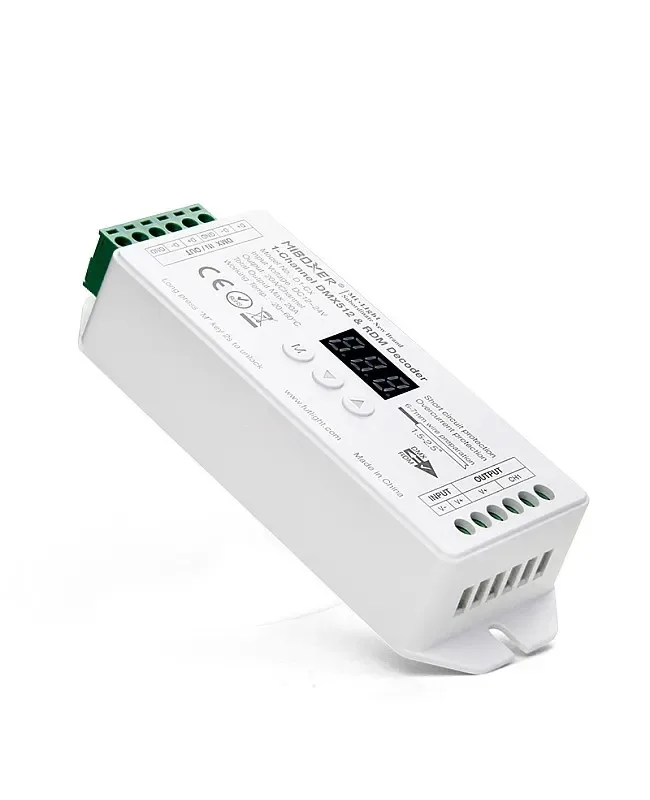

The wireless controller series DMX512 decoder complies with DMX512, DMX512(1990), DMX512-A, and RDM.0 international standard protocol. Works on DC12V or DC24V, and one-channel to 5-channel products are available. The max output current is up to 20A, and the DMX512 and RDM signals can be received when in unlock status. When the digital display shows 001-512, short-press the Up or Down buttons, and the installer can change the DMX initial address. Long press, the installer can change quickly. The PWM frequency is optional. High PWM frequency(2000Hz) or low frequency(500Hz) is optional; the installer can press the button to switch. Dimming curves and smoothness settings are available, and the installer can press the buttons to switch. The wireless controller RDM decoder has multi-protection and is designed for easy use. The IP rating is IP20 non-waterproof, only for indoor use.
Quick Links
wireless controller CX To CX User Manual
Specifications
Model: CX(1 Channel), CX(2 Channels), CX(3 Channels), CX(4 Channels), CX(5 Channels)
Size: 130*49*27mm(L*W*H)
Input Voltage: -24V
Output Current: 4A(5-Channels), 5A(4-Channels), 6A(3-Channels), 10A(2-Channels), 20A(1-Channel)
Total Output Current: 20A
Input Signal: DMX512, RDM
Comply With DMX512, DMX512(1990), DMX512-A, RDM.0
PWM Frequency Optional: High Frequency(2000Hz)/Low Frequency(500Hz)

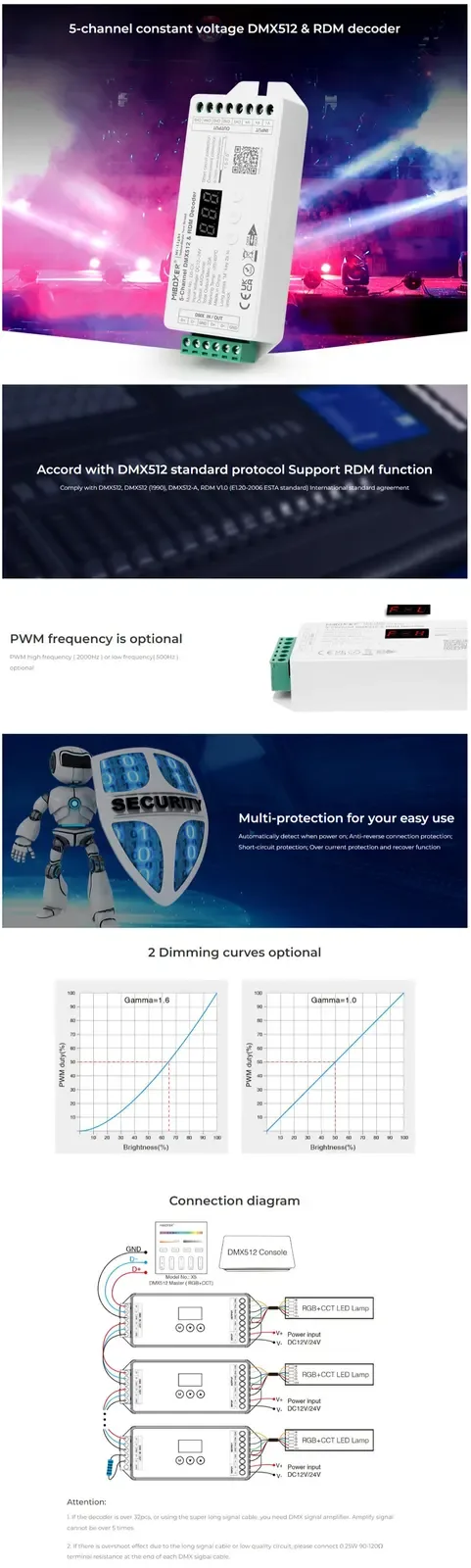

2 Dimming Curves Optional: Logarithmic Dimming/Linear Dimming
IP Rating: IP20 Non-Waterproof
Automatically Detect When Power On
Anti-Reverse Connection Protection
Short-Circuit Protection
Overcurrent Protection And Recovery
Working Temperature: -20-60℃

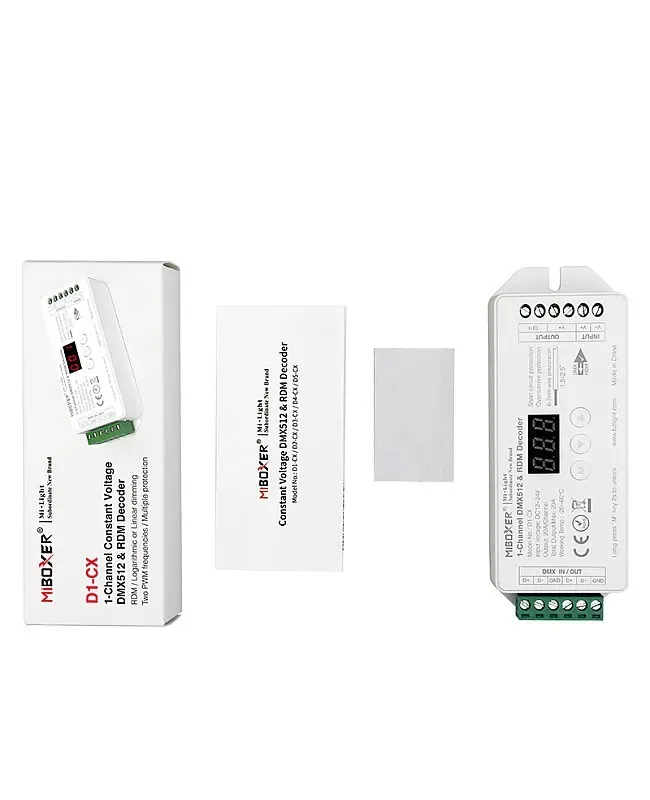

Includes
1 * DMX 512 Decoder
Product resources
Technical documents
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
