Product details
12V 0 10V Dimmer Controller
LumaCircuit offers 12V 0 10V Dimmer Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 127*42*33mm（L*W*H) Working voltage: DC 12V- 24V Output Gray: 4096 Levels The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The 12V LED dimmer controller operates between DC 12V and DC 24V, features an advanced microcontroller, and can receive a 0-10V analog control signal widely used internationally. It will change the signal into the PWM control signal to actuate the LED lamp. Dimming ranges from 0% to 100%, providing a stable and soft effect the installer should using the available LED amplifier to synchronize all units. Recommend works with the knob wall panel LED dimmer to adjust the brightness.
- Size: 127*42*33mm（L*W*H)
- Working voltage: DC 12V- 24V
- Output Gray: 4096 Levels
- Control Standard: 0- 10V Analog Signal
- 0- 10V Signal Consumption: <0.1A
- Working Temperature: -20-60℃
- 1 * LED Dimming Controller
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Size: 127*42*33mm（L*W*H)
- Working voltage: DC 12V- 24V
- Output: 1 Channel
- Output Gray: 4096 Levels
- Output Current: <25A
- Control Standard: 0- 10V Analog Signal
- PWM Frequency: 2 KHz
- Working Temperature: -20-60℃
- LumaCircuit model: LC-CTL-XMD0DG
- Dimensions found: 127x42x33mm / 33mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

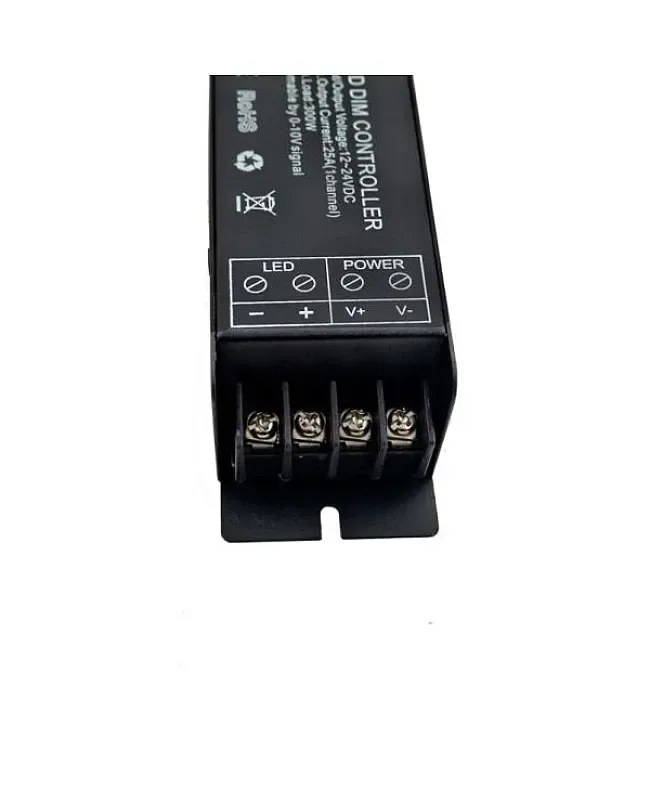

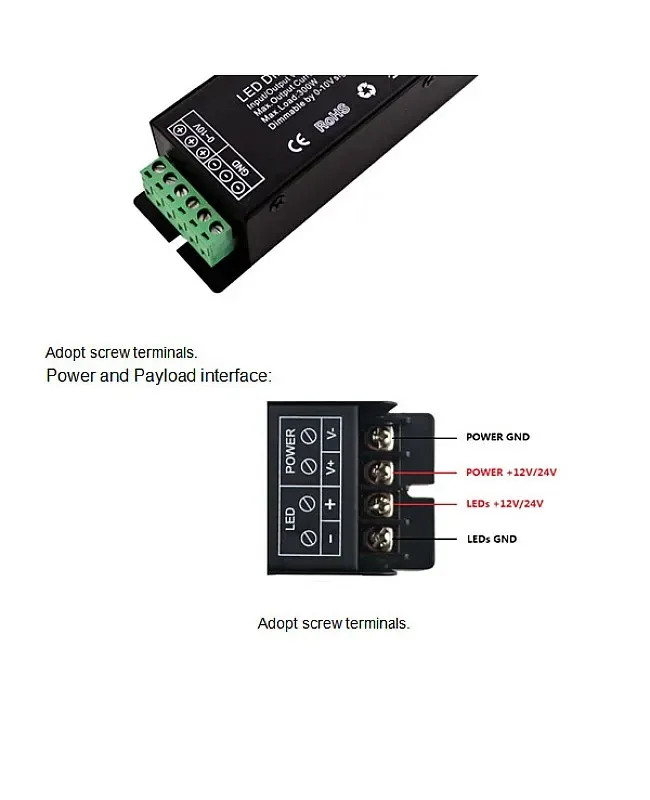

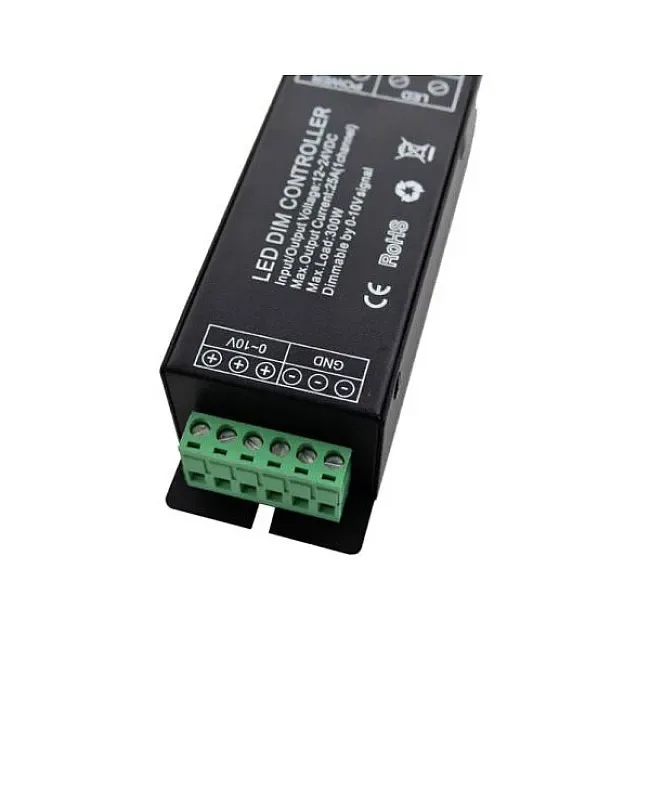

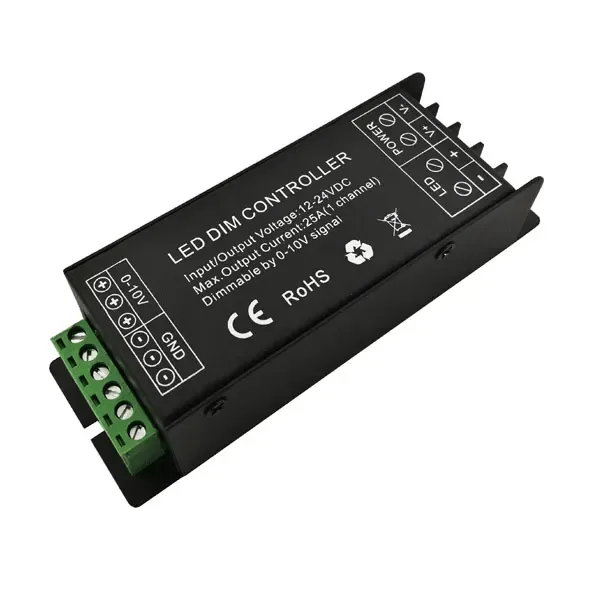

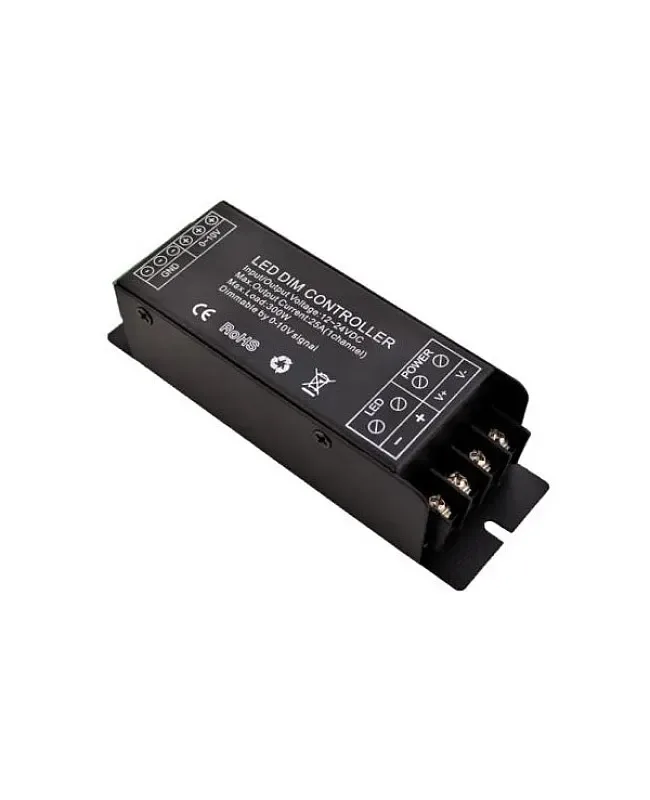

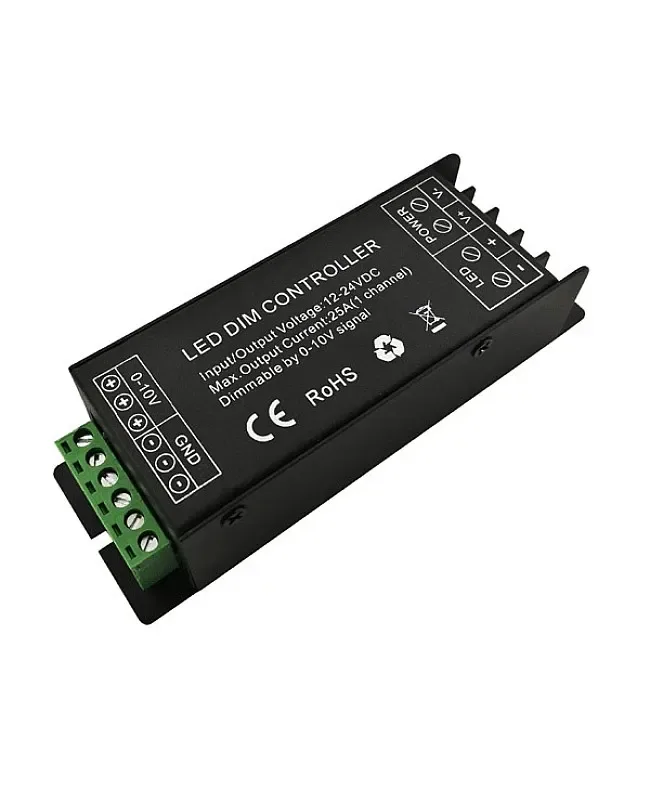

Product overview
The 12V LED dimmer controller operates between DC 12V and DC 24V, features an advanced microcontroller, and can receive a 0-10V analog control signal widely used internationally. It will change the signal into the PWM control signal to actuate the LED lamp. Dimming ranges from 0% to 100%, providing a stable and soft effect the installer should using the available LED amplifier to synchronize all units. Recommend works with the knob wall panel LED dimmer to adjust the brightness.
Specifications
Size: 127*42*33mm（L*W*H)
Working voltage: DC 12V- 24V
Output: 1 Channel
Output Gray: 4096 Levels
Output Current: <25A
Control Standard: 0- 10V Analog Signal
Dimming Range: 0-100%
PWM Frequency: 2 KHz
0- 10V Signal Consumption: <0.1A
Weight: 170g
Working Temperature: -20-60℃
Includes
1 * LED Dimming Controller

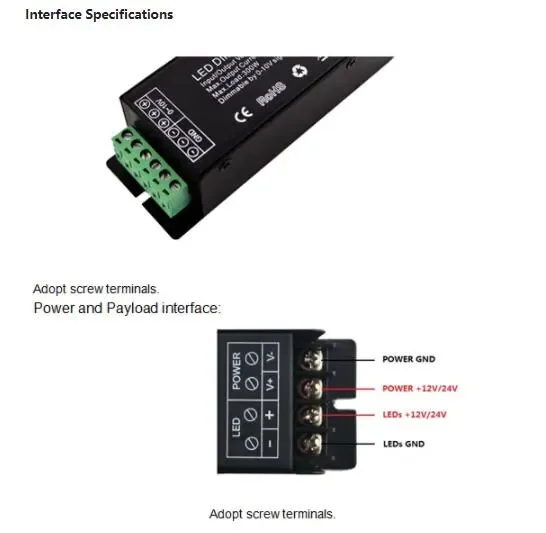

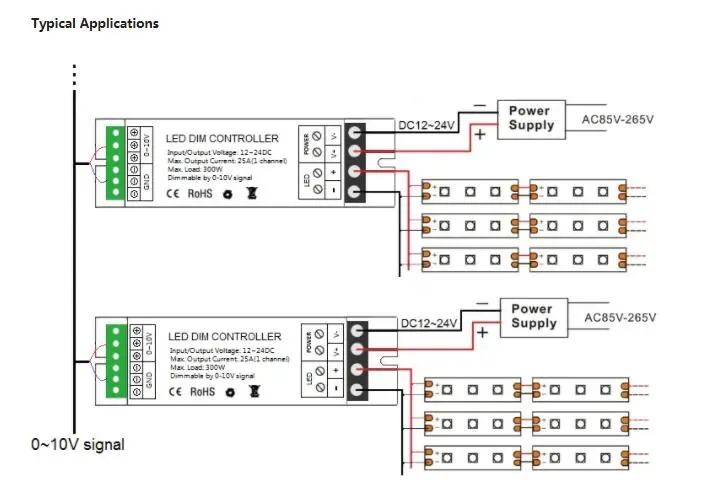

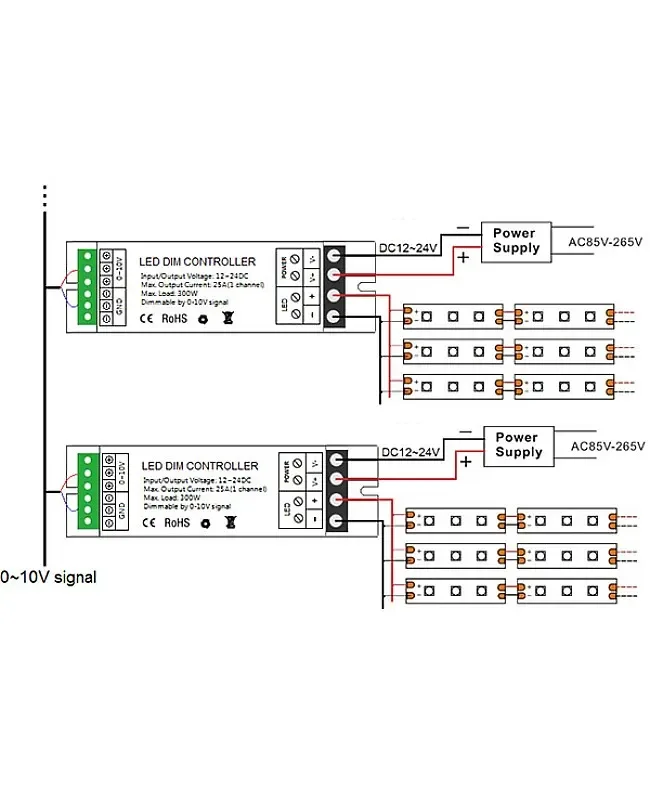

Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
