600W SYNC RF LED Dimmers With Touch Remote
LumaCircuit offers 600W SYNC RF LED Dimmers With Touch Remote as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Dimmer size ( L x W x H): 127 mm x 41 mm x 32 mm ( 5.00" x 1.61" x 1.26" ) Remote control size ( L x W x H): 150 mm x 40 mm x 20 mm ( 5.91" x 1.57" x 0.79" ) Input voltage: DC 12V-24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The sync RF LED dimmers are high-power, wireless dimming controllers designed for precise and smooth brightness adjustment of single-color LED lights. They employ the most advanced PWM (pulse width modulation) digital dimming technology, along with a touch-sensitive remote, which provides reliable long-range control and synchronized dimming. The light dimmers have dual ports for the synchronization function.
- Dimmer size ( L x W x H): 127 mm x 41 mm x 32 mm ( 5.00" x 1.61" x 1.26" )
- Remote control size ( L x W x H): 150 mm x 40 mm x 20 mm ( 5.91" x 1.57" x 0.79" )
- Input voltage: DC 12V-24V
- Max output power: 300 W ( DC12V ) / 600 W( DC24V )
- Static power consumption: <1W
- Modes: 100% static light, flash, fade
- Adopts advanced PWM digital dimming technology
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- LumaCircuit model: LC-CTL-AQHNHQ
- Dimmer size ( L x W x H): 127 mm x 41 mm x 32 mm ( 5.00" x 1.61" x 1.26" )
- Remote control size ( L x W x H): 150 mm x 40 mm x 20 mm ( 5.91" x 1.57" x 0.79" )
- Input voltage: DC 12V-24V
- Output: 1 channel
- Max output current: 25A
- Max output power: 300 W ( DC12V ) / 600 W( DC24V )
- Static power consumption: <1W
- Modes: 100% static light, flash, fade
- Connecting mode: Common anode
- Output gray: 256 levels
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

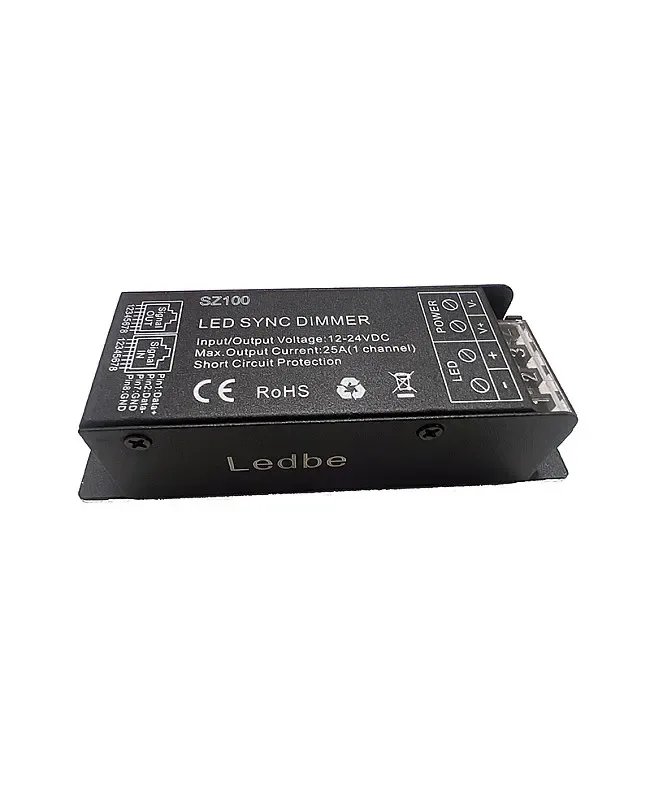

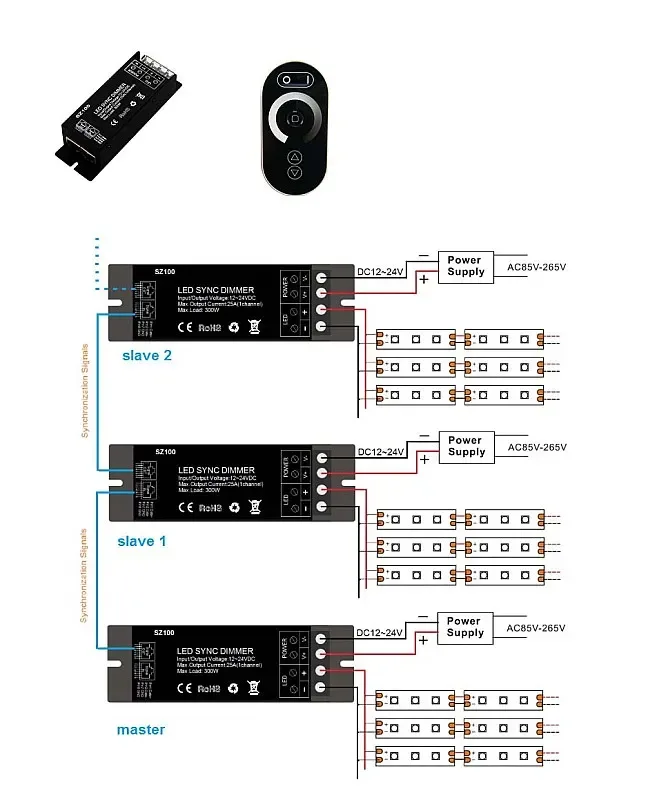

The sync RF LED dimmers are high-power, wireless dimming controllers designed for precise and smooth brightness adjustment of single-color LED lights. They employ the most advanced PWM (pulse width modulation) digital dimming technology, along with a touch-sensitive remote, which provides reliable long-range control and synchronized dimming. The light dimmers have dual ports for the synchronization function. The installer can connect multiple LED dimmers together via the ports and achieve the synchronization function of LED strip lights. With a maximum output of 600W at 24V, this is suited to large-scale LED installations or architectural projects. The memory function retains the last setting even after the device is powered off, ensuring consistent performance. The RF full-touch remote control features a user-friendly touch wheel and buttons for quick brightness adjustment and mode setting. The metal shell of the can work as a heat sink for better heat dissipation.
Specifications
Model
Dimmer size ( L x W x H): 127 mm x 41 mm x 32 mm ( 5.00" x 1.61" x 1.26" )
Remote control size ( L x W x H): 150 mm x 40 mm x 20 mm ( 5.91" x 1.57" x 0.79" )
Input voltage: DC 12V-24V
Output: 1 channel
Max output current: 25A
Max output power: 300 W ( DC12V ) / 600 W( DC24V )
Static power consumption: <1W
Modes: 100% static light, flash, fade
Adopts advanced PWM digital dimming technology
Connecting mode: Common anode
Output gray: 256 levels
RF frequency: 433.
Remote control distance: ≤ 20 m
Smooth 0-100% dimming without flicker

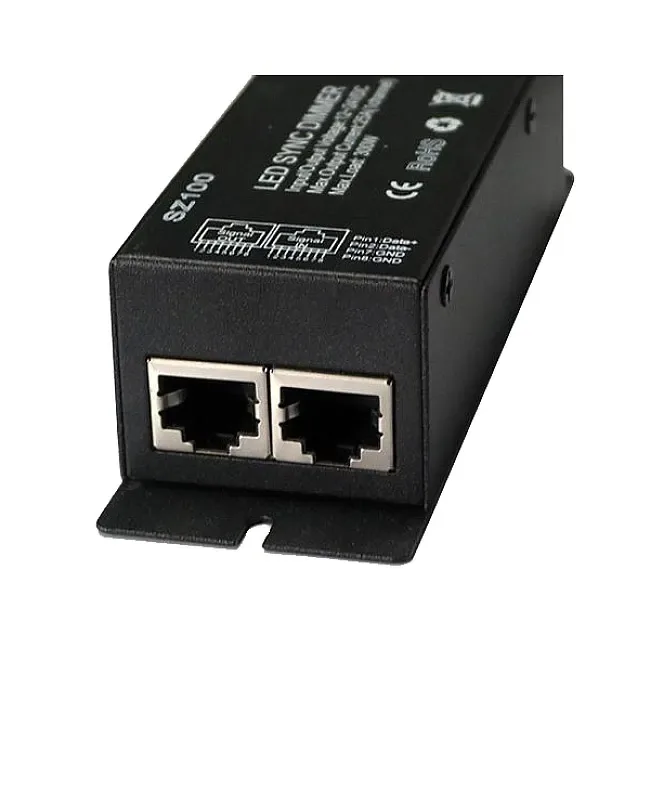

port included for synchronization function
Easy connection to achieve multiple dimmers sync-work by port

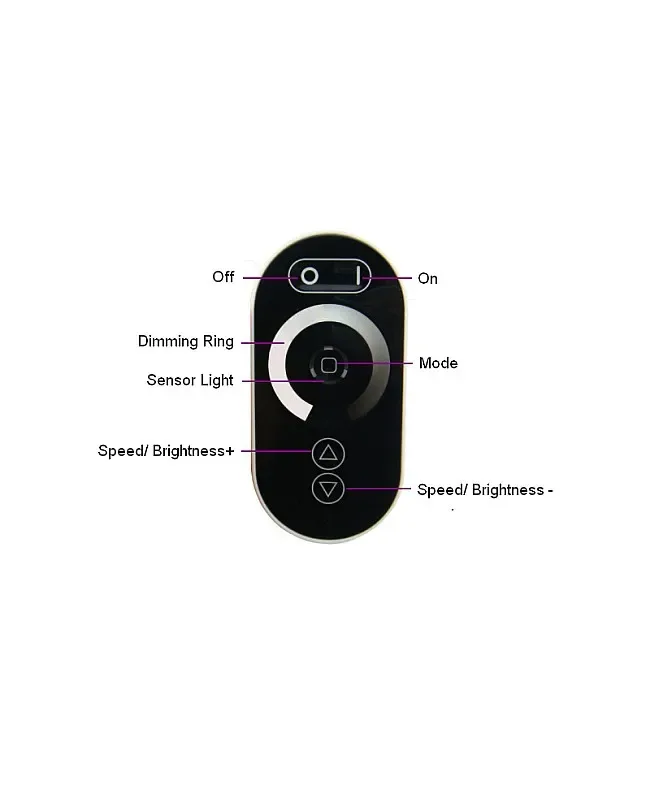

The RF touch remote with one dimming ring and 5 function buttons
The remote control is powered by 3 AAA batteries(not included)
Short circuit protection
Memory function preserves the last setting

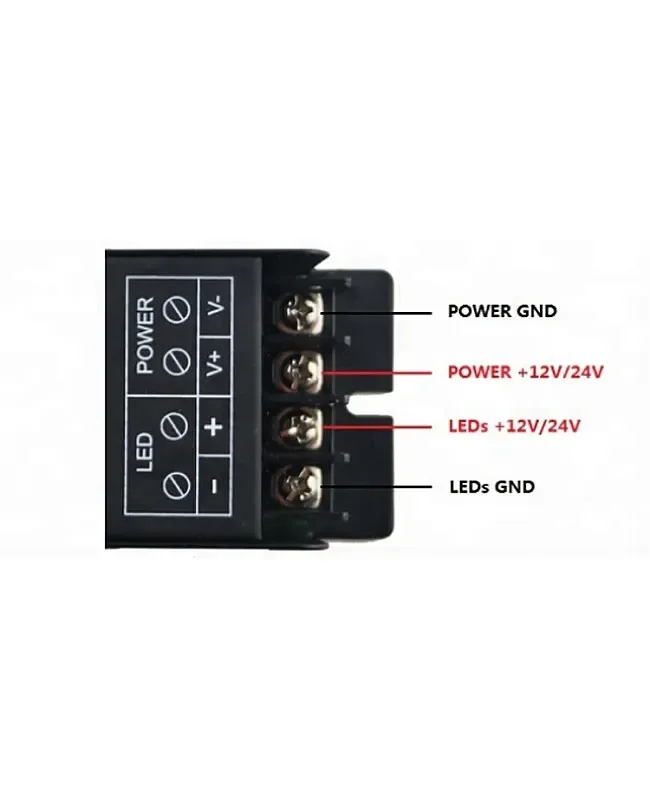

Simple wiring and installation
Working temperature: -20℃ - 60℃

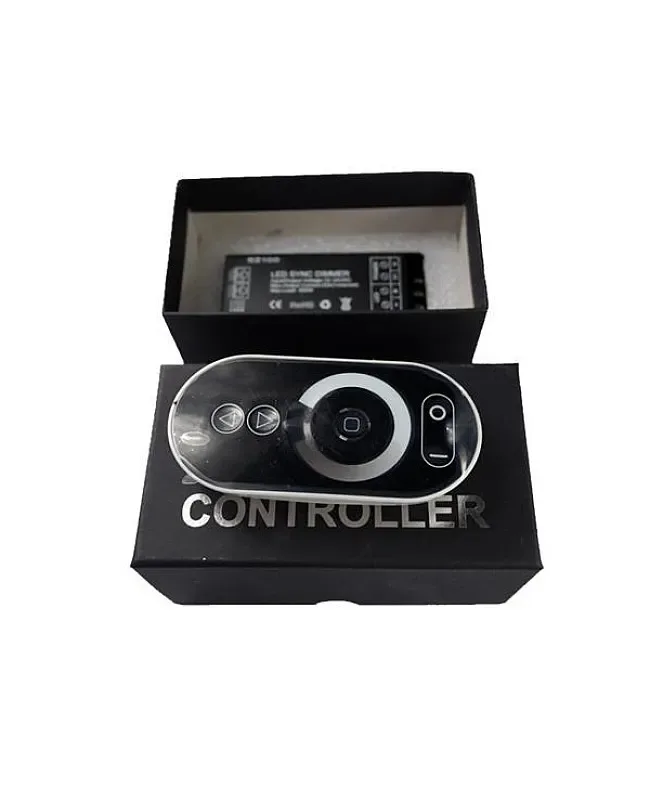

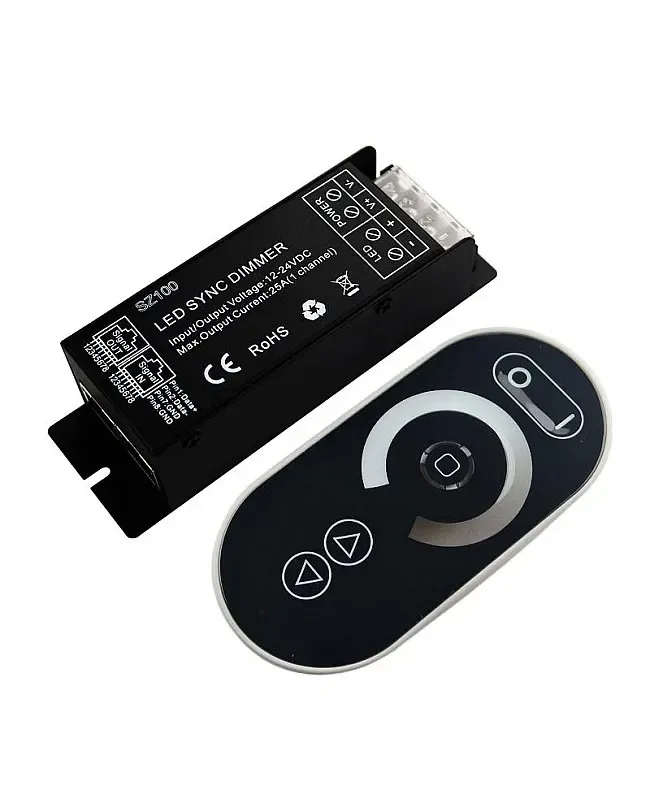

Includes
1 * SYNC LED Dimmer
1 * RF touch remote
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
