Mini Cabinet LED Dimmer Controller With ITR Sensor
LumaCircuit offers Mini Cabinet LED Dimmer Controller With ITR Sensor as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Working Temperature: -20-60℃ Static Power Consumption: <1W Sensor Cable Length: 1 Meter The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The mini cabinet LED dimmer controller with sensor, working in -24V, with one channel output design, the maximum loading power is up to 144W when working in 24V. This mini LED dimmer adopts the advanced PWM digital technology to control the constant voltage single color LED lights, comes with the ITR sensor, and will automatically switch on/off the LED light strips by the operation of closing the door to block the ITR sensor or opening the door to release the blocking.
- Working Temperature: -20-60℃
- Static Power Consumption: <1W
- Sensor Cable Length: 1 Meter
- Max Loading Power: 72W(12V)/144W(24V)
- Stable Sensitivity With ITR Sensor, Soft Light Up And Down
- Designed For Single Color Constant Voltage LED Lights In Cabinet/Furniture
- Short Time(<1.) Blocking The Sensor In 0-8cm Range, The Lighting Will Gradually Light On/Off
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V / 12 V / 24 V
- Size: 48*26*13mm(L*W*H)
- LumaCircuit model: LC-CTL-0NSZF4
- Working Temperature: -20-60℃
- Working Voltage: -24V
- Static Power Consumption: <1W
- Sensor Cable Length: 1 Meter
- Output Channel: 1
- Output Current: ≤6A
- Max Loading Power: 72W(12V)/144W(24V)
- PWM Frequency: 490Hz
- Dimensions found: 48x26x13mm / 13mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The mini cabinet LED dimmer controller with sensor, working in -24V, with one channel output design, the maximum loading power is up to 144W when working in 24V. This mini LED dimmer adopts the advanced PWM digital technology to control the constant voltage single color LED lights, comes with the ITR sensor, and will automatically switch on/off the LED light strips by the operation of closing the door to block the ITR sensor or opening the door to release the blocking. The installer can use them under the cabinet or on the furniture.
Specifications

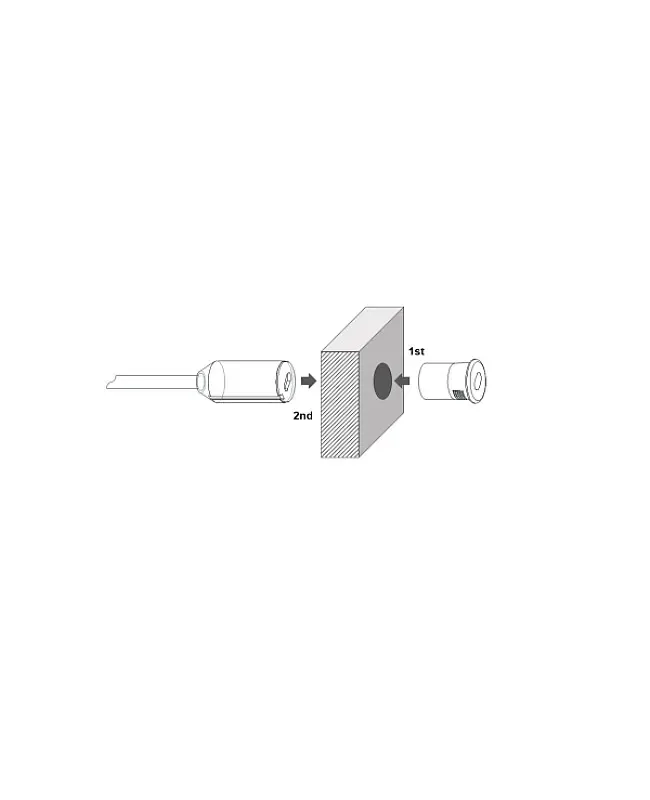

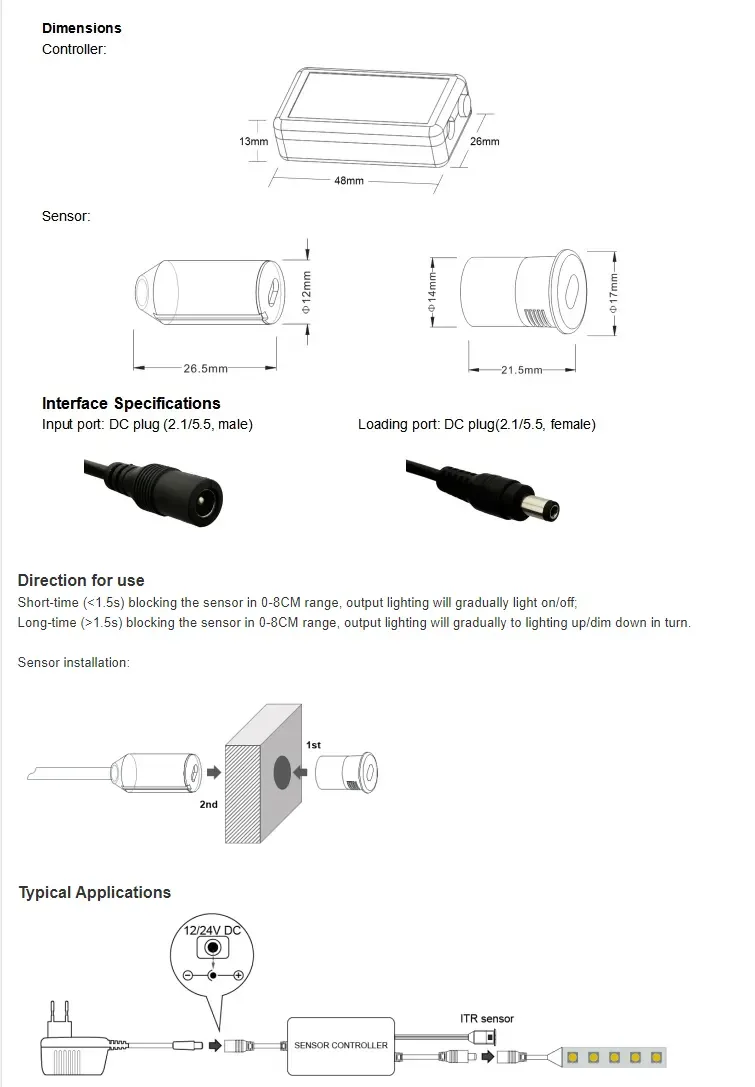

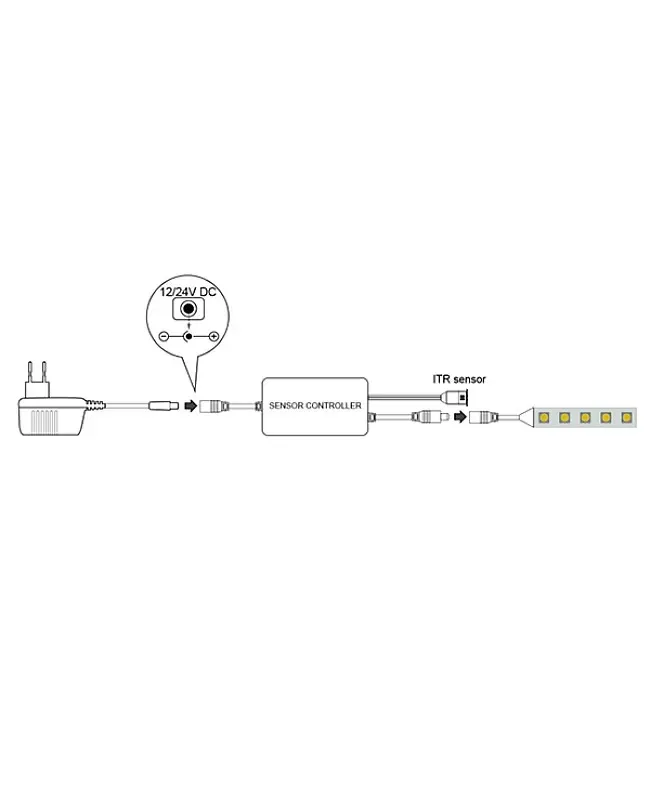

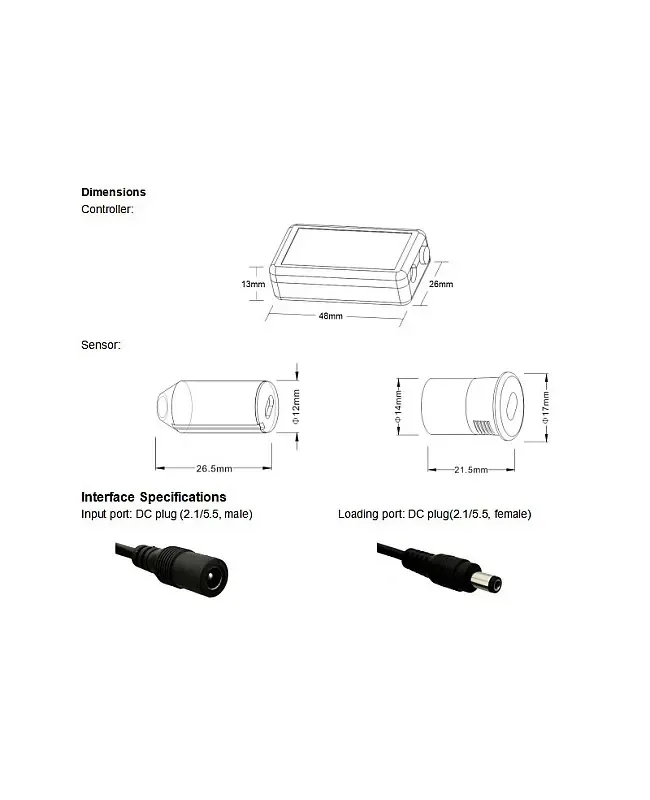

Size: 48*26*13mm(L*W*H)
Model
Working Temperature: -20-60℃
Working Voltage: -24V
Static Power Consumption: <1W

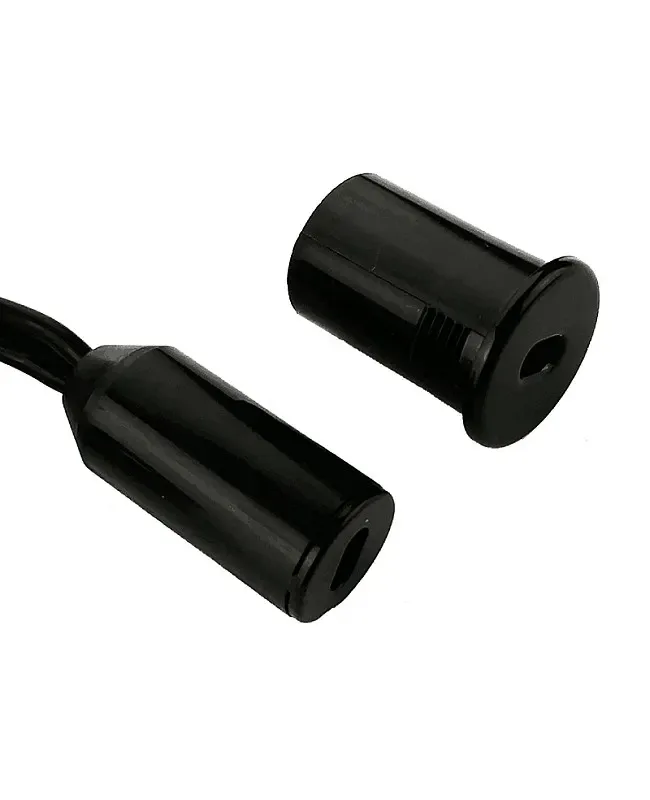

Sensor: ITR
Sensor Range: 0- 8 cm
Sensor Cable Length: 1 Meter
Output Channel: 1
Output Current: ≤6A
Max Loading Power: 72W(12V)/144W(24V)
PWM Frequency: 490Hz
Stable Sensitivity With ITR Sensor, Soft Light Up And Down
Designed For Single Color Constant Voltage LED Lights In Cabinet/Furniture
Short Time(<1.) Blocking The Sensor In 0-8cm Range, The Lighting Will Gradually Light On/Off
Short Time(>1.) Blocking The Sensor In 0-8cm Range, The Lighting Will Gradually To Light Up/Dim Down In Turn
Includes

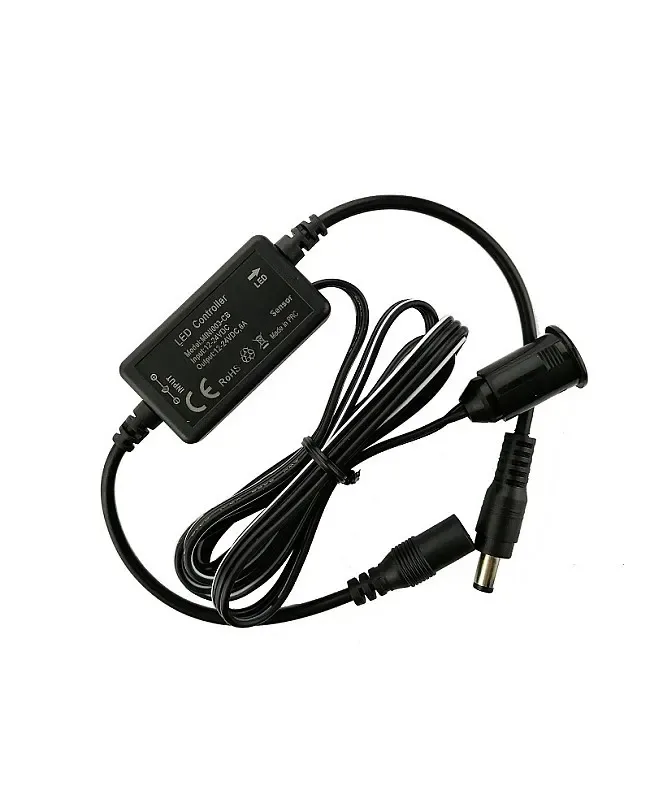

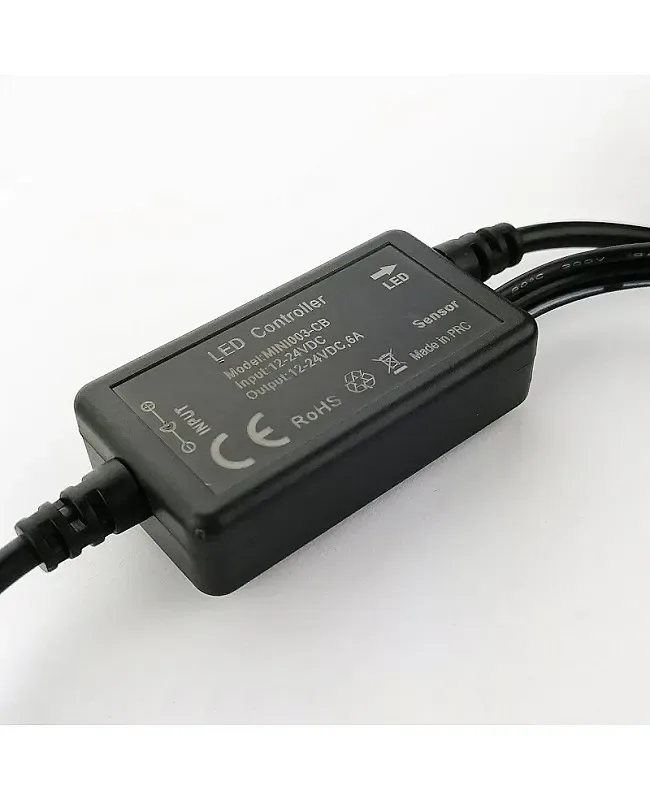

1 * Cabinet LED Dimmer Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
