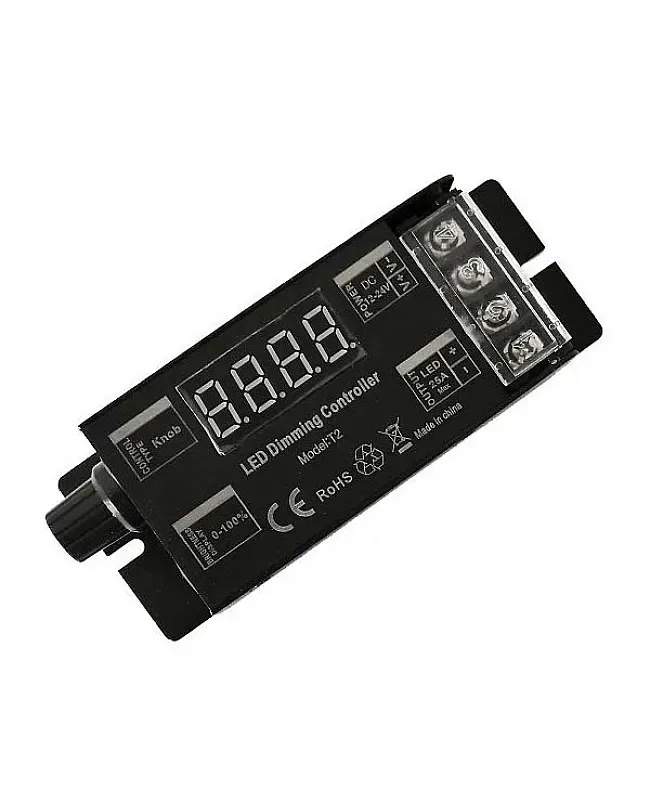

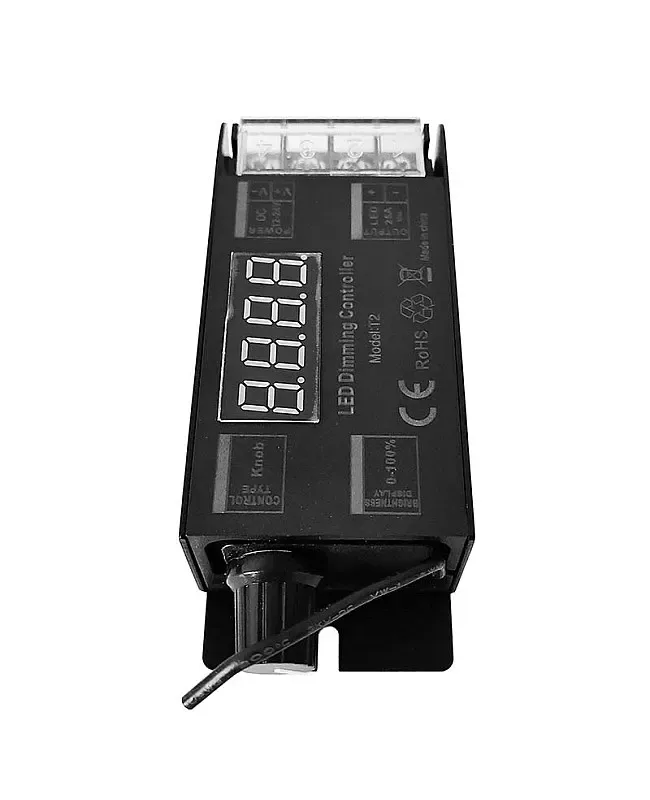

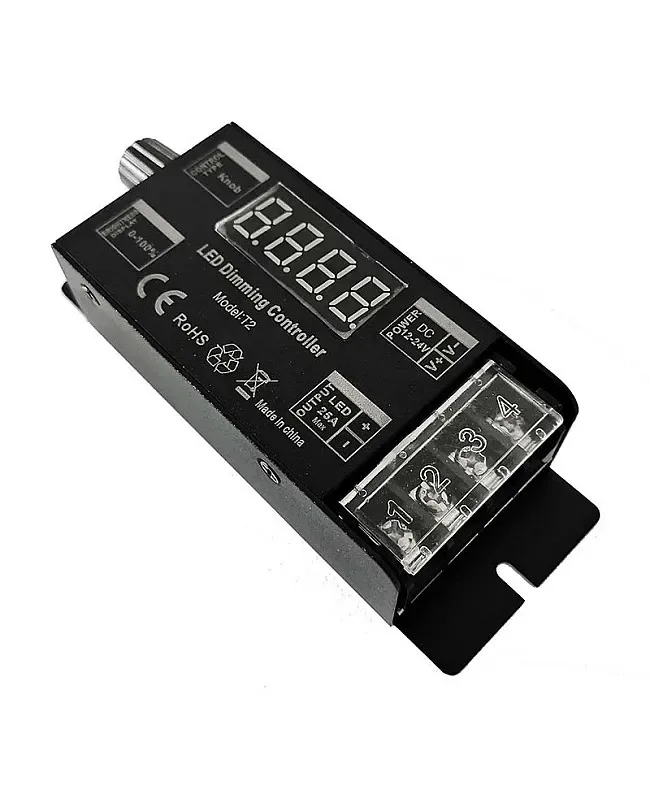

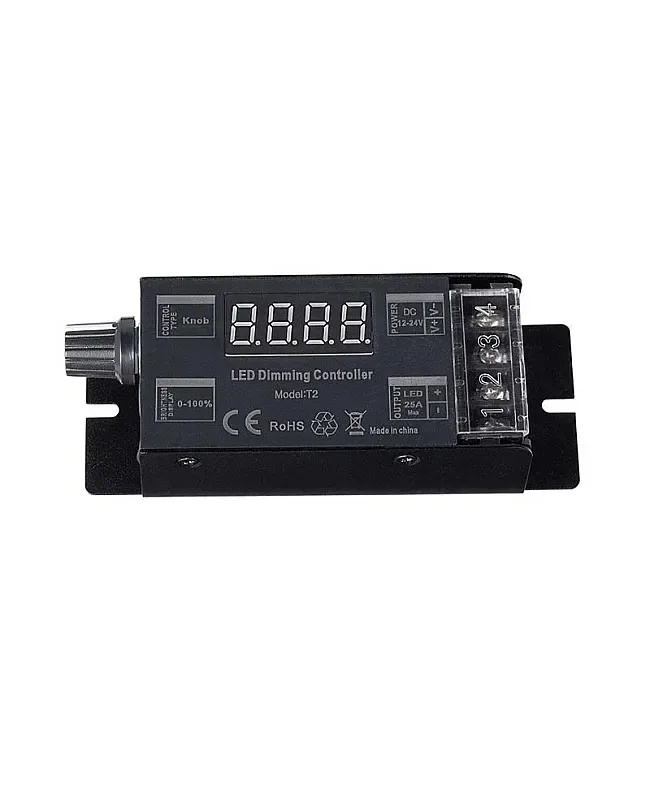

600W 1CH RF Sync Single Color LED Dimmer
LumaCircuit offers 600W 1CH RF Sync Single Color LED Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Static Power Consumption: <1W Max Output Power: 300W(12V)/600W(24V) PWM Frequency: (Default) 7., 15. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

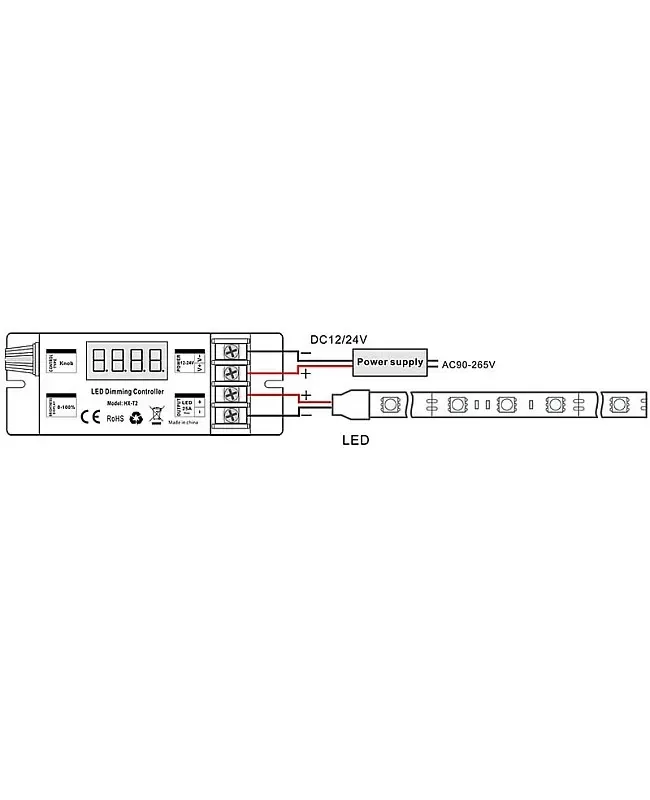

- The RF Sync single color LED dimmer can achieve step-less and smooth dimming, adopts both knob control design and remote design, the installer can connect to the LED light to adjust the brightness. The PWM frequency is adjustable, with six levels available 7., and 15. The LED dimmer with knob control manner, the installer can use it to soft dim function.
- Static Power Consumption: <1W
- Max Output Power: 300W(12V)/600W(24V)
- PWM Frequency: (Default) 7., 15.
- Max Output Current: PWM<=: 25A/ PWM=7.: 15A/ PWM=15.:10A
- Max Output Power: PWM<=:300W/12V;600W/24V PWM=7.:180W/12V; 360W/24V PWM=15.:120W/12V; 240W/24V
- Short Circuit Protection
- 1 * RF Sync Single Color LED Dimmer
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V / 12-24 V
- Size: 103*40*24mm
- Colors: Black
- Working Voltage: -24V
- Output: 1 Channel
- Static Power Consumption: <1W
- Max Output Current: 25A
- Max Output Power: 300W(12V)/600W(24V)
- RF Frequency: 2.
- PWM Frequency: (Default) 7., 15.
- Max Output Current: PWM<=: 25A/ PWM=7.: 15A/ PWM=15.:10A
- Max Output Power: PWM<=:300W/12V;600W/24V PWM=7.:180W/12V; 360W/24V PWM=15.:120W/12V; 240W/24V
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

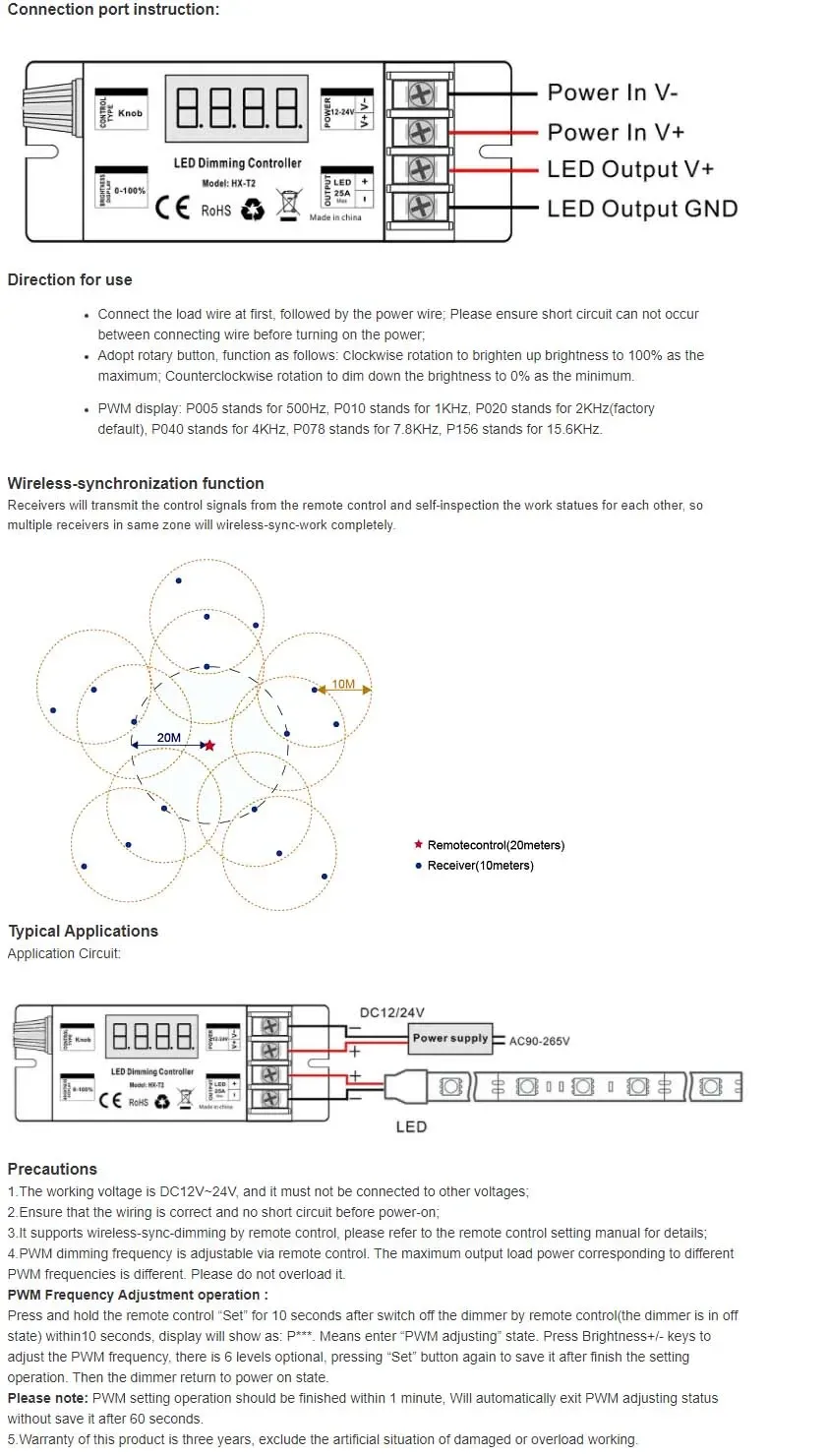

The RF Sync single color LED dimmer can achieve step-less and smooth dimming, adopts both knob control design and remote design, the installer can connect to the LED light to adjust the brightness. The PWM frequency is adjustable, with six levels available 7., and 15. The LED dimmer with knob control manner, the installer can use it to soft dim function. Clockwise rotation to brighten the brightness to 100% as the maximum, counterclockwise rotation to dim down the brightness to 0% as the minimum, the dimmer can be controlled by the remote, a remote control delivered with a unique RF code as factory default. The LED dimmer does not come with the RF Remote, and you need to order the extra Remote.
Quick Link
RF LED Remote
Specifications
Size: 103*40*24mm
Colors: Black
Working Voltage: -24V
Output: 1 Channel
Static Power Consumption: <1W
Max Output Current: 25A
Max Output Power: 300W(12V)/600W(24V)
Memory: YES
RF Frequency: 2.
RF Distance: <30M
PWM Frequency: (Default) 7., 15.
Max Output Current: PWM<=: 25A/ PWM=7.: 15A/ PWM=15.:10A
Max Output Power: PWM<=:300W/12V;600W/24V PWM=7.:180W/12V; 360W/24V PWM=15.:120W/12V; 240W/24V
Weight: 100g
Short Circuit Protection
Includes
1 * RF Sync Single Color LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
