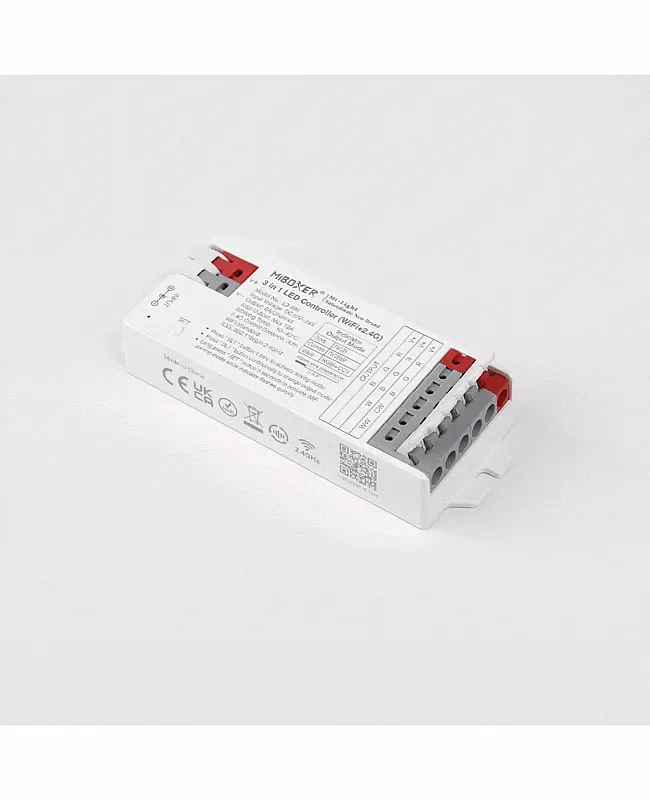

WR 3 In 1 WiFi Light Controller
LumaCircuit offers WR 3 In 1 WiFi Light Controller as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Type: 3 In 1 WiFi LED controller Size(L*W*H): 100.6*40*17.6mm 16 million colors to choose from The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller WiFi light controller has a 3-in-1 function design, pressing the " SET " button to switch the output mode from RGB, RGBW, and RGB+CCT. It utilizes WiFi, Bluetooth, and 2.4G wireless transmission technology, features low power consumption, and boasts strong anti-interference capabilities. It can be controlled by a 2.4G remote control, a smartphone APP, and third-party voice commands.
- Type: 3 In 1 WiFi LED controller
- Size(L*W*H): 100.6*40*17.6mm
- 16 million colors to choose from
- Color temperature and brightness are adjustable
- Switching 3 output modes via one button(RGB/RGBW/RGB+CCT)
- Communication Protocol: WiFi + 2.
- 4G RF Control Distance: ≤30m
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-ZNJ7JY
- Size(L*W*H): 100.6*40*17.6mm
- Input Voltage: -24V
- Output: 6A/channel
- Total Output: 12A Max
- Communication Protocol: WiFi + 2.
- 2.4G RF Control Distance: ≤30m
- 2.4G RF Remote Controllable: B, B, B, B, B, T4, B, T3, B, W, G,
- Bluetooth Protocol: Bluetooth 4.2(low power consumption)
- Two Power Interfaces: Wiring ports,.5*2.1mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

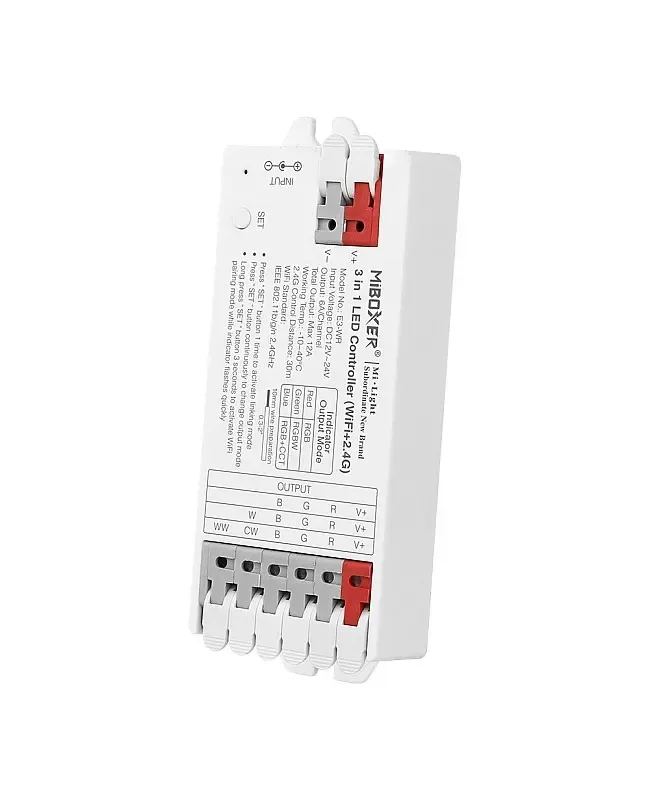

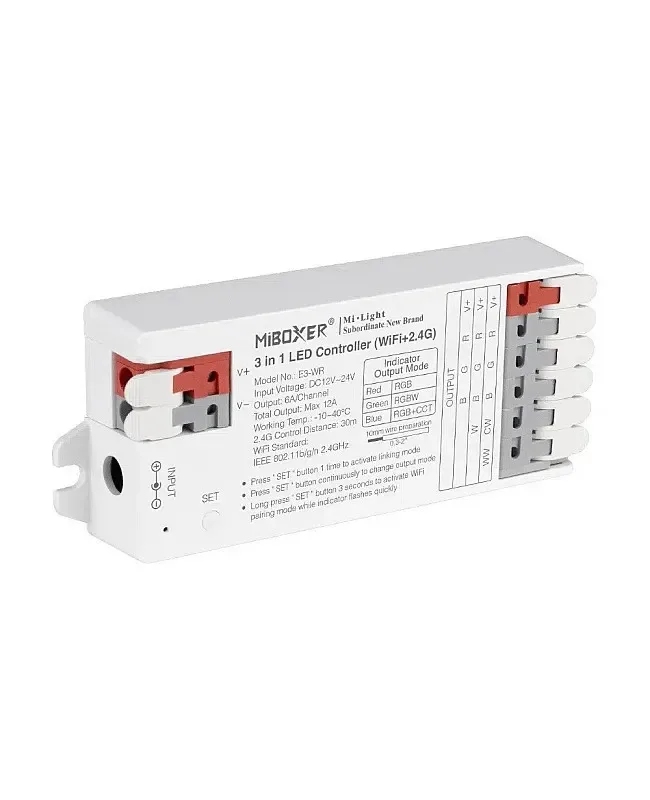

The wireless controller WiFi light controller has a 3-in-1 function design, pressing the " SET " button to switch the output mode from RGB, RGBW, and RGB+CCT. It utilizes WiFi, Bluetooth, and 2.4G wireless transmission technology, features low power consumption, and boasts strong anti-interference capabilities. It can be controlled by a 2.4G remote control, a smartphone APP, and third-party voice commands. There are 16 million colors, with adjustable color temperature and brightness, and saturation control for various scenes. The WiFi LED controller with auto signal transmitting and modes synchronization function, which can transmit the signals from the remote control to another lighting fixture with 30 meters, different lighting fixtures can work synchronously when they are started at other times, controlled by the same remote, under same dynamic mode and within 30m distance. The wireless controller controller features a tool-free, instant wiring design that makes it extremely easy to connect to LED lights without the need for any tools.
Specifications
Type: 3 In 1 WiFi LED controller
Model
Size(L*W*H): 100.6*40*17.6mm
Input Voltage: -24V
Output: 6A/channel
Total Output: 12A Max
16 million colors to choose from
Color temperature and brightness are adjustable
Saturation controllable
Switching 3 output modes via one button(RGB/RGBW/RGB+CCT)
Communication Protocol: WiFi + 2.
4G RF Control Distance: ≤30m
4G RF Remote Controllable B, B, B, B, B, T4, B, T3, B, W, G,
WiFi Standard: IEEE 802.11 b/g/n 2.
Support the " Tuya Smart " app control
Support music rhythm
Support third-party voice control(Amazon Alexa, Google Assistant)
Bluetooth Protocol: Bluetooth 4.2(low power consumption)
High Frequency Low Frequency(250Hz) can be switched
Support DMX512 controllable(DMX 512 LED transmitter needed)
Two Power Interfaces: Wiring ports,5*2.1mm
IP Rate: IP20 non-waterproof
Tool-free instant wiring
Working Temperature: -10-40℃
Includes
1 * WR WiFi light controller
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
