High Voltage 2.4G Wireless Dimmer
LumaCircuit offers High Voltage 2.4G Wireless Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Type: 2.4G Wireless Dimming Controller For RGB+CCT Lights Input Voltage: -240V, 50/60Hz Transmitting Power: 6 dBm The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller PUSH 1 smart wireless dimmers are an innovative and versatile lighting control solution to enhance your home or commercial lighting experience. Combining advanced wireless technology with easy installation and intuitive operation, this smart dimmer offers unparalleled convenience and flexibility in lighting management. The input voltage is AC100V to AC240V, ensuring seamless integration with your existing electrical system.
- Type: 2.4G Wireless Dimming Controller For RGB+CCT Lights
- Input Voltage: -240V, 50/60Hz
- Transmitting Power: 6 dBm
- Dimming Grayscale: 4096 Levels
- Dimming Range: 0.1%-100%
- IP Rate: IP20 Non-waterproof
- Compatible With wireless controller/2.4 GHz wireless 2.4G RGB+CCT Lights
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 220 V / 240 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-4HIX7J
- Size: 49*49*25mm(L*W*H)
- Input Voltage: -240V, 50/60Hz
- Transmitting Power: 6 dBm
- Control Distance: ≤30m
- IP Rate: IP20 Non-waterproof
- Standby Power: 0.15W
- Working Temperature: -10-40℃
- Dimensions found: 49x49x25mm / 25mm / 30m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

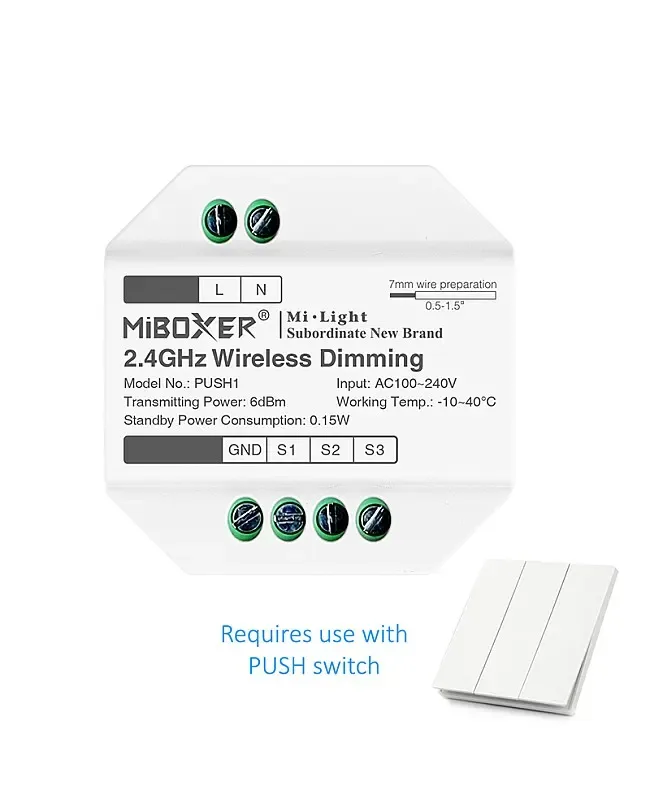

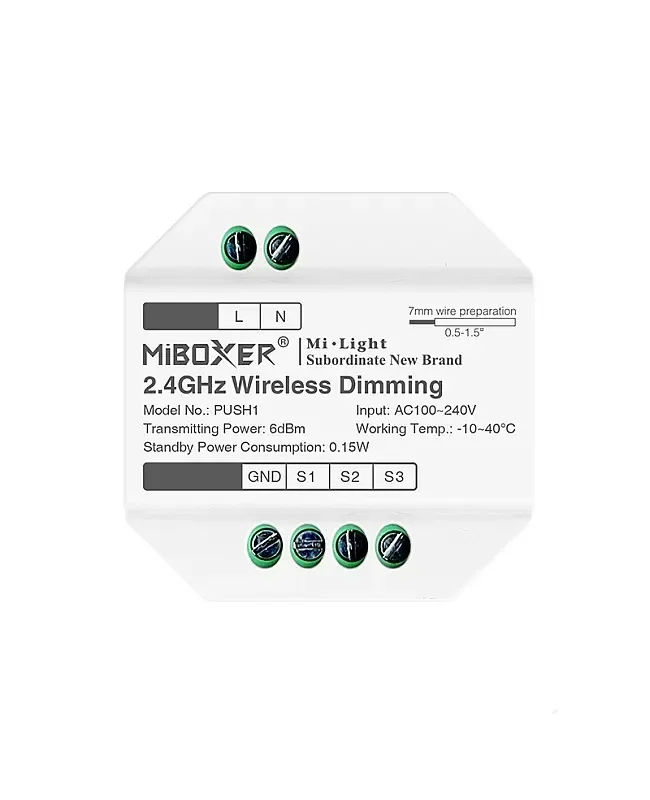

The wireless controller PUSH 1 smart wireless dimmers are an innovative and versatile lighting control solution to enhance your home or commercial lighting experience. Combining advanced wireless technology with easy installation and intuitive operation, this smart dimmer offers unparalleled convenience and flexibility in lighting management. The input voltage is AC100V to AC240V, ensuring seamless integration with your existing electrical system. It's easy to implement 3 3-zone PUSH switch to wirelessly control the static color, color temperature, brightness, and switch of lights. The installer can use it to control the compatible 2.4 GHz wireless remotes series RGB+CCT lamps. It supports 4096 levels of smooth dimming, and the dimming ranges from 0.1% to 100%. They adopt 2.4G RF wireless transmission technology, a control distance of up to 30 meters, and the number of lamps is unlimited.
Specifications
Type: 2.4G Wireless Dimming Controller For RGB+CCT Lights
Model

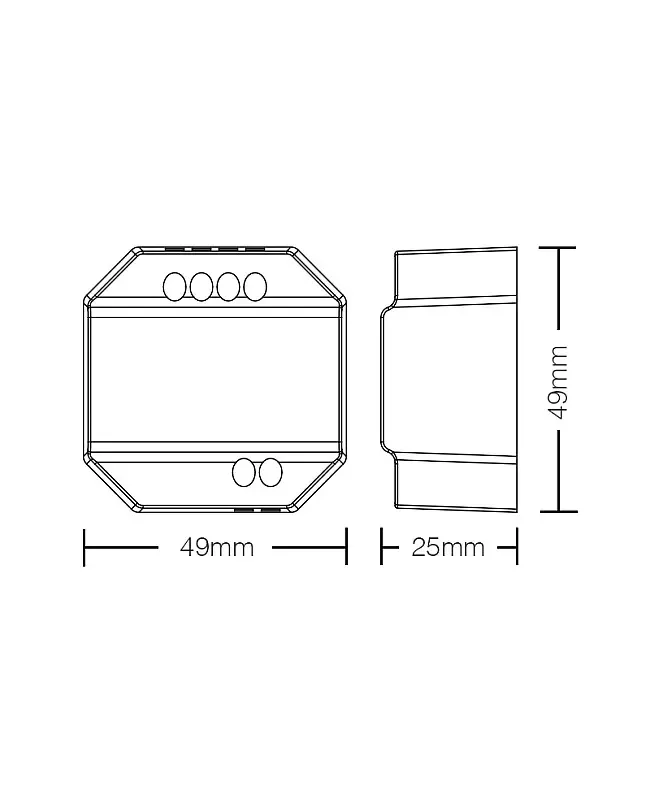

Size: 49*49*25mm(L*W*H)
Input Voltage: -240V, 50/60Hz
Transmitting Power: 6 dBm
RF: 2.
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Control Distance: ≤30m
IP Rate: IP20 Non-waterproof
Standby Power: 0.15W
Compatible With wireless controller/2.4 GHz wireless 2.4G RGB+CCT Lights

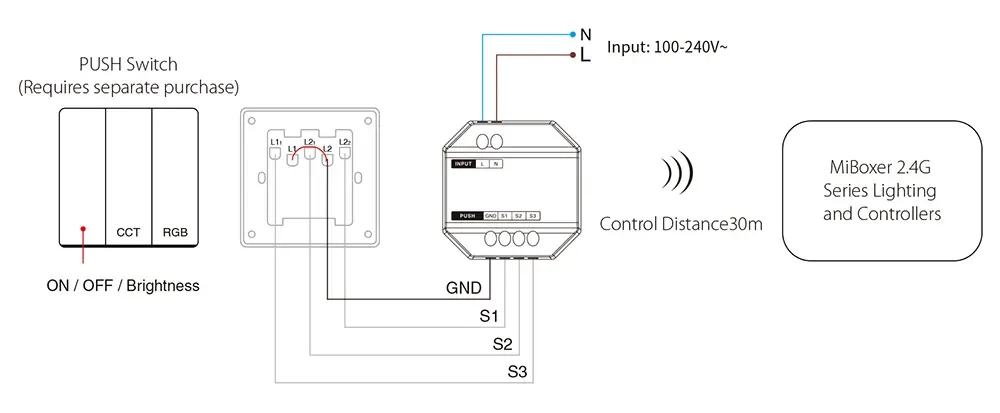

Need To Work With wireless controller 3 Zone Push Switch (Sold Separately)
Working Temperature: -10-40℃

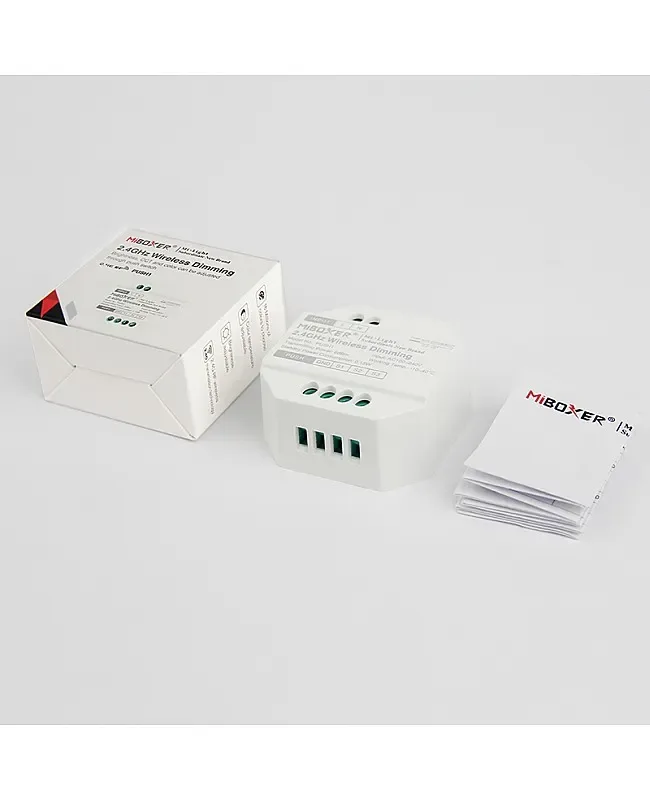

Includes
1 * Wireless Dimming Controller
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
