Product details

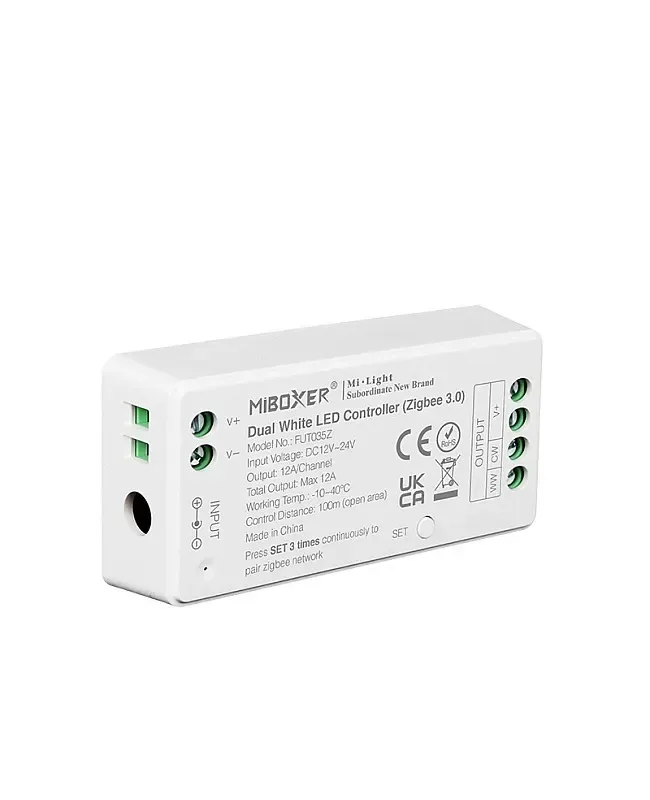

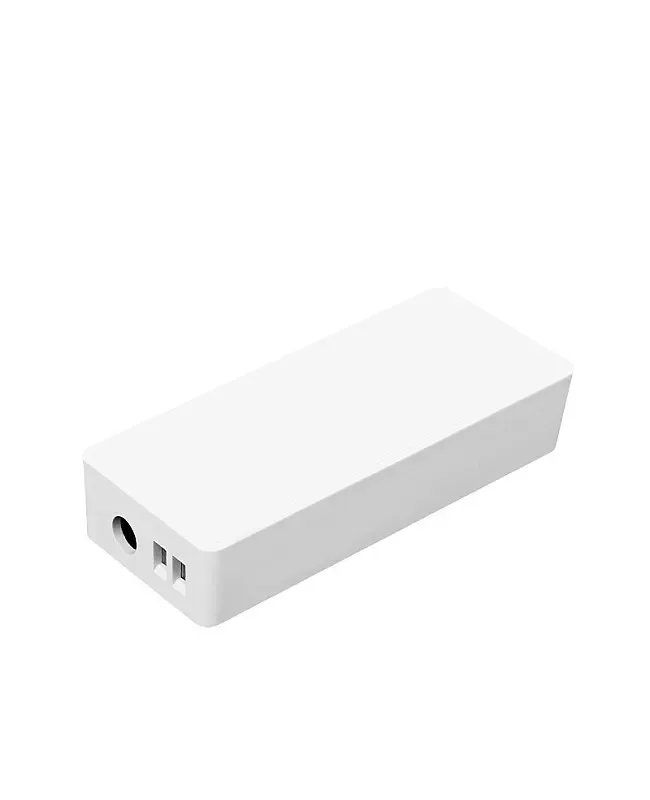

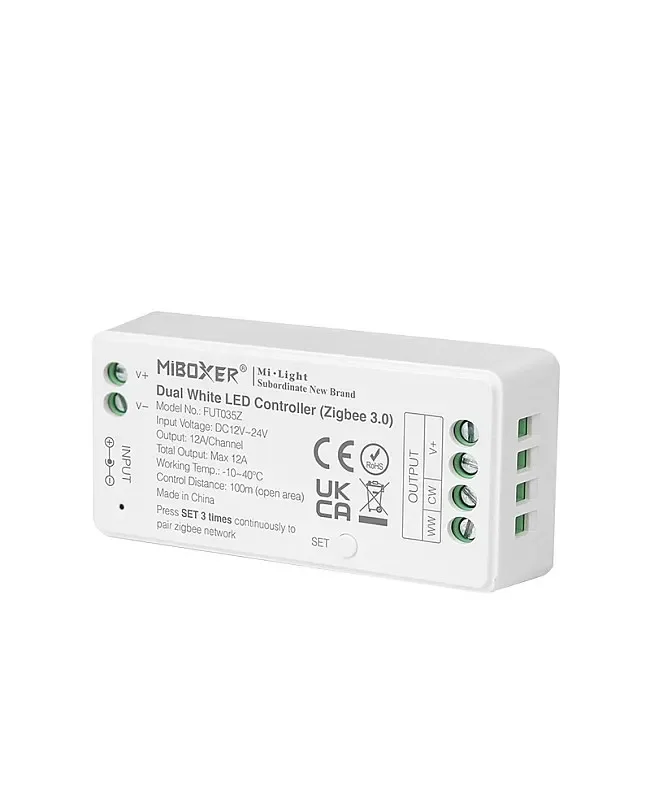

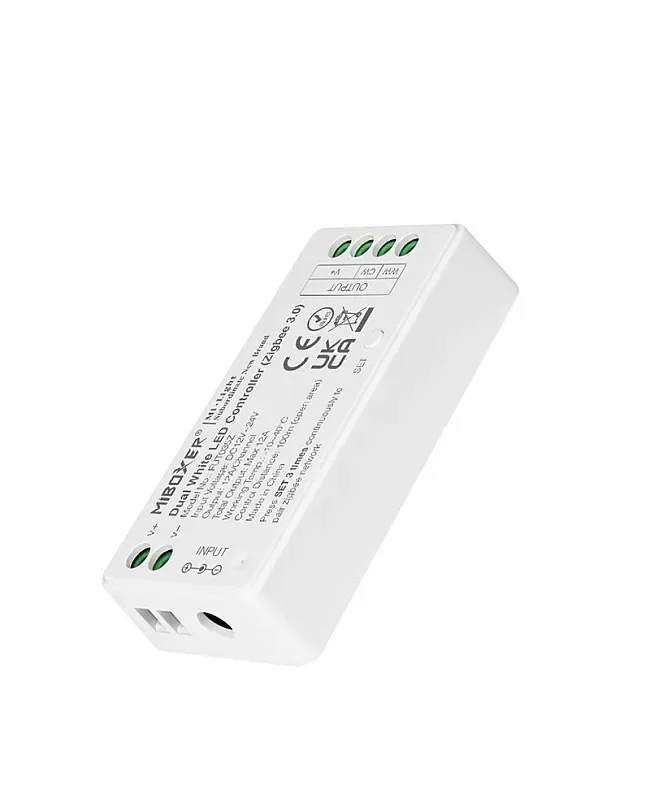

Dual White CCT Zigbee LED Dimmer 24V
LumaCircuit offers Dual White CCT Zigbee LED Dimmer 24V as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller + 2 In 1 Zigbee Controller For Single Color/Dual White Size: 74.5*36*17mm(L*W*H) Wireless Technology: Zigbee 802.15.4 The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller Zigbee 3.0 LED dimmer works in DC12V or DC24V, with a small size and lightweight design for the dual white CCT LED lights. The wireless controller LED dimmer integrates the Zigbee 3.0 standard protocol. It can be controlled by the Zigbee remote controls, mobile app APP, and third-party voice commands, including Amazon Alexa and Google Assistant, after adding the Zigbee 3.0 gateway.
- wireless controller + 2 In 1 Zigbee Controller For Single Color/Dual White
- Size: 74.5*36*17mm(L*W*H)
- Wireless Technology: Zigbee 802.15.4
- Zigbee Wireless Technology； 2.400- 2.
- Brightness Adjustable From 1% To 100%
- Color Temperature Adjustable From 2700K To 6500K
- Support Third-Party Voice Control And Smartphone APP Control( Zigbee 3.0 Gateway Needed)
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 24 V / 12 V / 12-24 V
- Light engine: CCT
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 12A/Channel
- Max Output Current: 12A
- Control Distance: ≤100m(Open Area)
- Working Temperature: -10-40℃
- LumaCircuit model: LC-CTL-HWFLGW
- Dimensions found: 74.5x36x17mm / 17mm / 100m
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller Zigbee 3.0 LED dimmer works in DC12V or DC24V, with a small size and lightweight design for the dual white CCT LED lights. The wireless controller LED dimmer integrates the Zigbee 3.0 standard protocol. It can be controlled by the Zigbee remote controls, mobile app APP, and third-party voice commands, including Amazon Alexa and Google Assistant, after adding the Zigbee 3.0 gateway. The installer can control the LED light ON/OFF, adjust the brightness from 1% to 100%, or adjust the color temperature from 2700K warm white to 6500K cool white for various scenes. The wireless controller dimmers can also enter into the standard Zigbee 3.0 gateways like Philips Hue, IKEA TRADFRI, AMAZON Echo Plus( Gen), Echo( Gen), Echo Studio, Echo Show ( Gen), etc., from the APP. The installer can also launch functions like Biorhythm, Music Rhythm, Tap-To-Run & Automation, Timing, Scene customization, Sleep/Wakeup, Device Sharing, etc.
wireless controller + 2 In 1 Zigbee Controller For Single Color/Dual White
Specifications
Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 12A/Channel
Max Output Current: 12A
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Technology； 2.400- 2.
Brightness Adjustable From 1% To 100%
Color Temperature Adjustable From 2700K To 6500K
Support Third-Party Voice Control And Smartphone APP Control( Zigbee 3.0 Gateway Needed)
APP Name: mobile app
Control Distance: ≤100m(Open Area)
Working Temperature: -10-40℃
Includes
1 * wireless controller Zigbee 3.0 LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
