RF SYNC LED Dimmer With Touch Wall Panel Remote

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

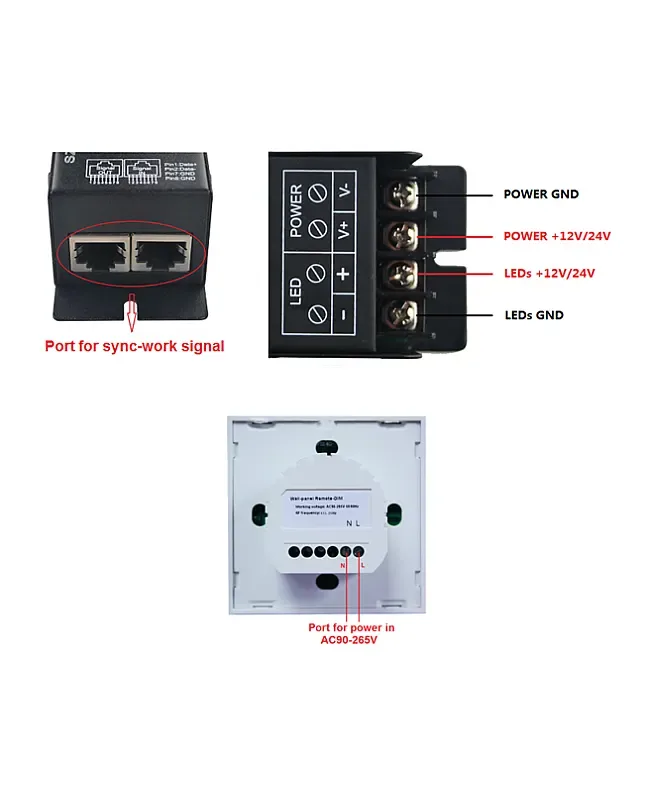

• The RF SYNC LED dimmer with touch wall panel remote adopts the PWM technology and is designed for constant-voltage LED lights. The installer can use it to adjust the brightness of single-color LED lamps, LED strips, LED modules, and LED string lights. The LED dimmer has one output design and a max output current of up to 25. The SYNC LED dimmers with an Port, easy connect to achieve multiple dimmers work synchronization through the port.
• Working Temperature: -20-60℃
• Connecting Mode: Common Anode
• Working Voltage: DC12V-24V
• Static Power Consumption: <1W
• Output Power: 300W(DC12V)/600W(DC24V)
• Frequency Of RF PWM Remote Control: 433.
• Working Voltage: -265V(50/60Hz)

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12 V / 24 V
• Working Temperature: -20-60℃
• Size: * * mm
• Connecting Mode: Common Anode
• Working Voltage: DC12V-24V
• Static Power Consumption: <1W
• Mode: 3
• Output Channel: 1
• Max Output Current: 25A
• Output Power: 300W(DC12V)/600W(DC24V)
• Output Gray: 256 Levels
• Frequency Of RF PWM Remote Control: 433.

Control and installation

Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.

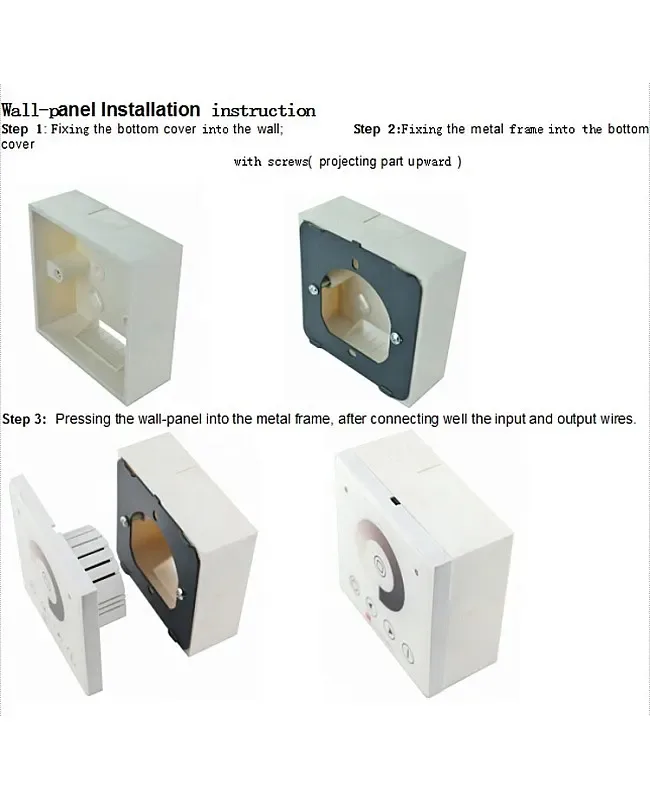

Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

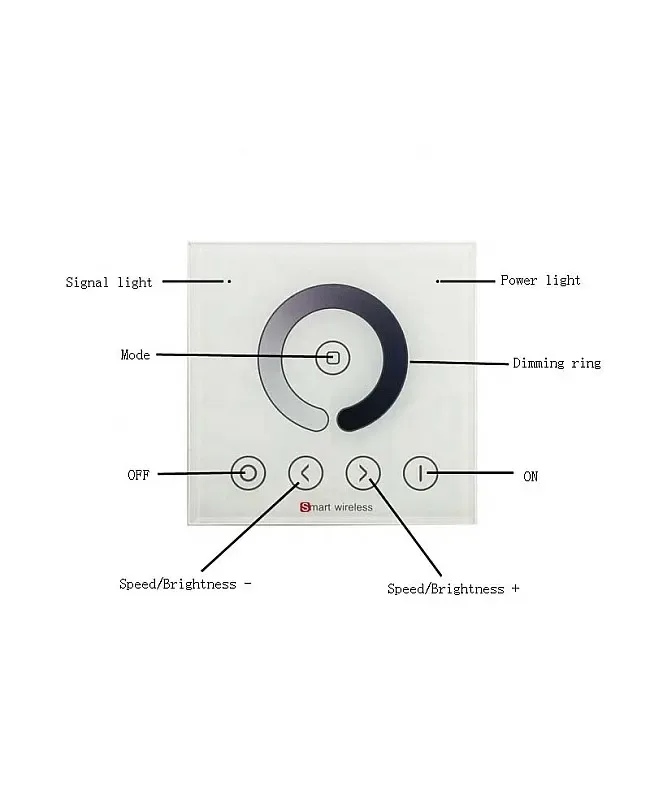

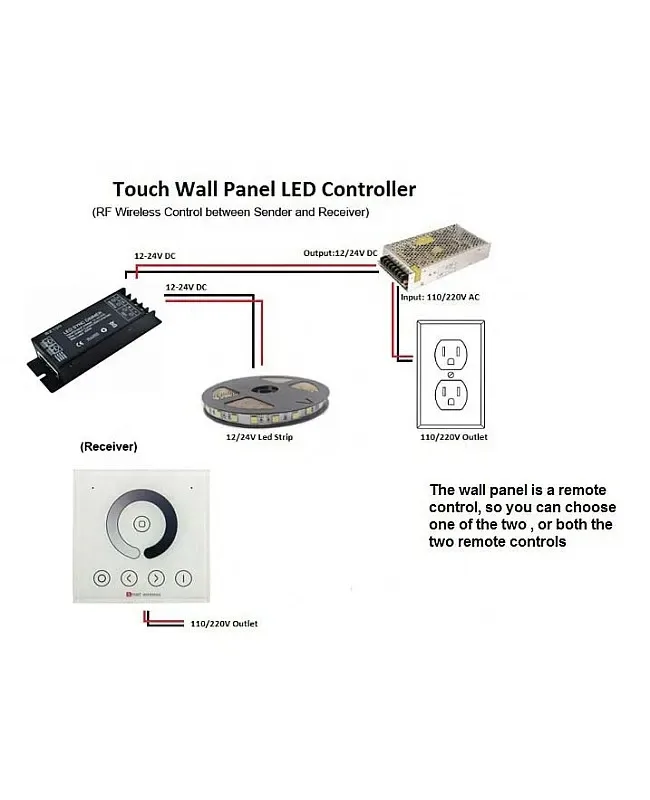

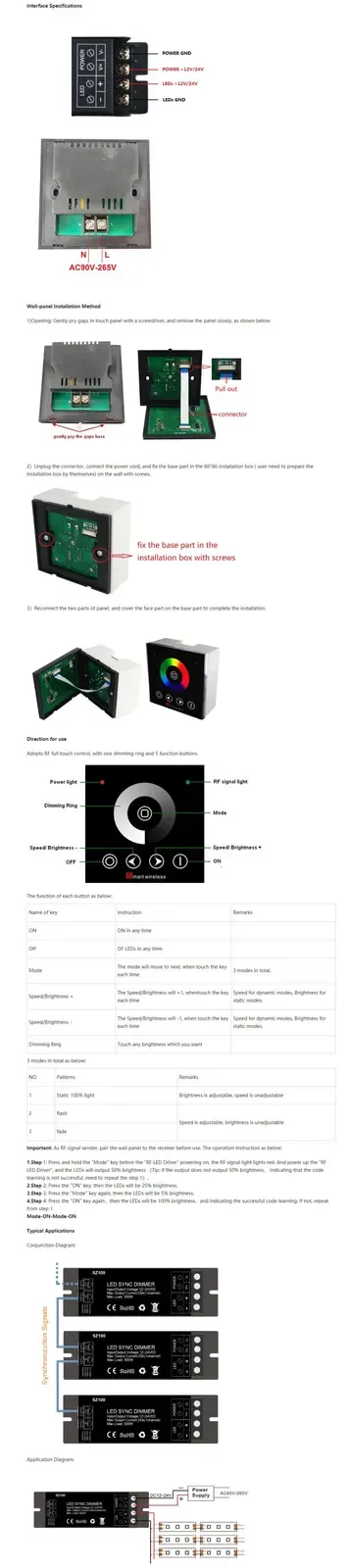

The RF SYNC LED dimmer with touch wall panel remote adopts the PWM technology and is designed for constant-voltage LED lights. The installer can use it to adjust the brightness of single-color LED lamps, LED strips, LED modules, and LED string lights. The LED dimmer has one output design and a max output current of up to 25. The SYNC LED dimmers with an Port, easy connect to achieve multiple dimmers work synchronization through the port. The RF wall panel Remote with 5 buttons and one dimming ring, all buttons are in the touch form, the dimming ring has 128 levels in different brightness levels, the installer can touch the dimming ring to adjust the brightness easily there are 3 dynamic modes in the mode button, the color-changing speed is adjustable.

RF SYNC LED Dimmer Specifications

Working Temperature: -20-60℃

Size: * * mm

Connecting Mode: Common Anode

Working Voltage: DC12V-24V

Static Power Consumption: <1W

Output Channel: 1

Max Output Current: 25A

Output Power: 300W(DC12V)/600W(DC24V)

Output Gray: 256 Levels

Speed Stage: 100 Grade

Frequency Of RF PWM Remote Control: 433.

RF Distance: ≤20M

Memory Function: YES

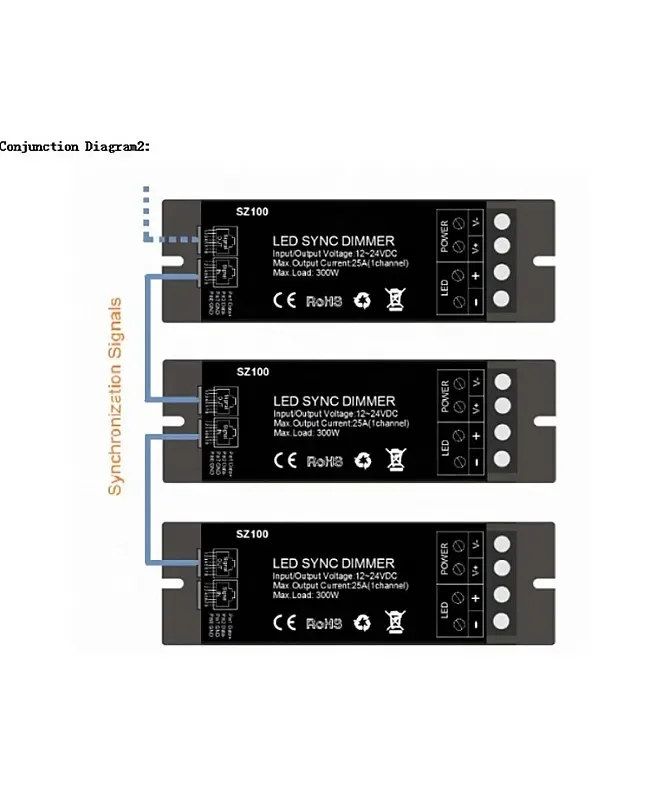

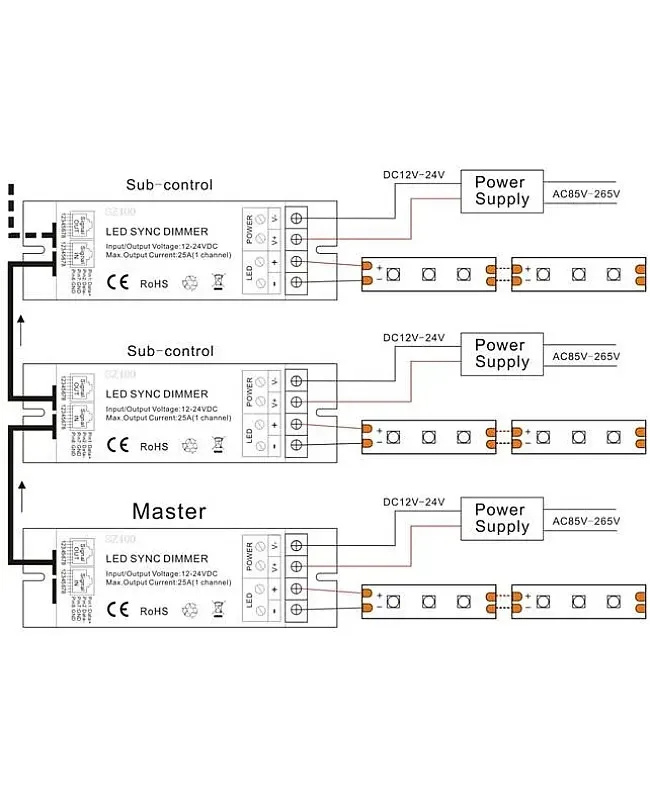

Port Included

RF Wall Panel Remote Specifications

Size: *86*40mm

Working Voltage: -265V(50/60Hz)

RF Signal Frequency: 433.

Transmission Distance: Up To 30M

Working Power: <2W

Standby Power: <0.2W

Output Power: 144W(DC12V)/288W(DC24V)

Working Frequency: 433.

Includes

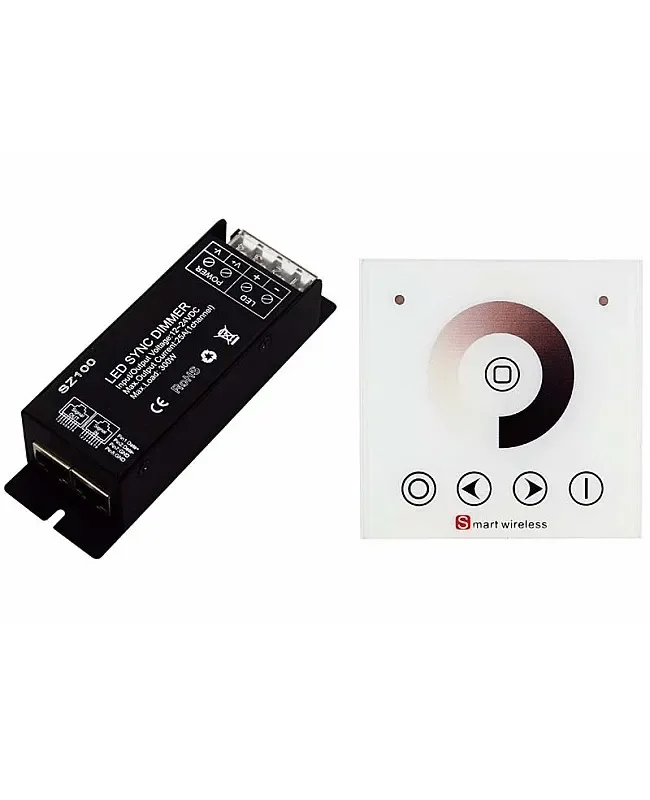

1 * RF SYNC LED Dimmer

1 * Touch Wall Panel Remote
