Product details
+ Zigbee 3.0 2.4G 2 In 1 LED Controllers
LumaCircuit offers + Zigbee 3.0 2.4G 2 In 1 LED Controllers as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Size: 74.5*36*17mm(L*W*H) 16 Million Colors To Choose Brightness And Color Temperature Adjustable The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

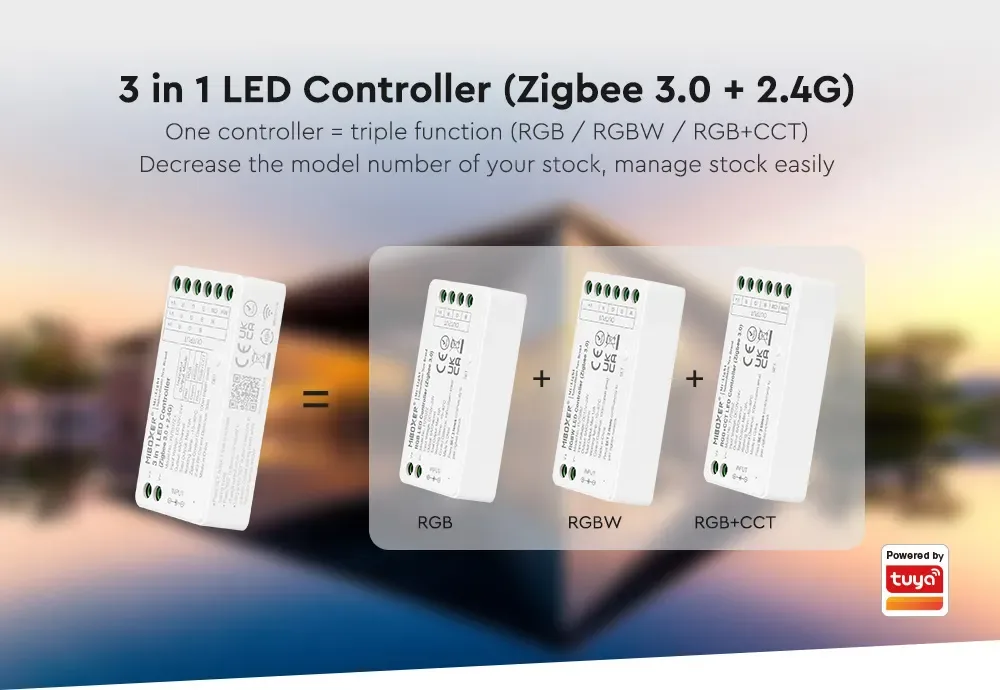

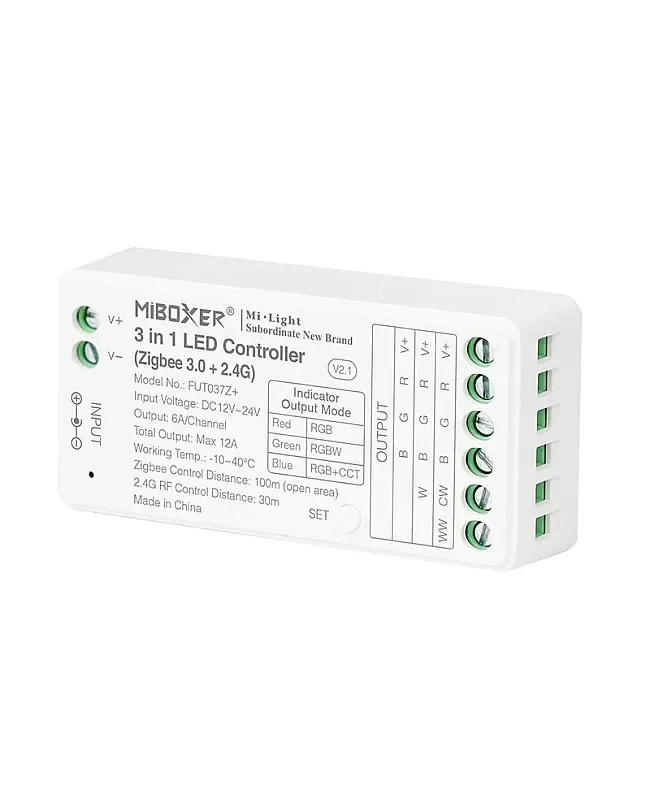

- The wireless controller LED controller + has a 3 in 1 design for RGB, RGBW, and RGB+CCT lights. The installer can continuously press the " SET" button on the controller to change the output mode. The 2.4 GHz wireless controllers follows Zigbee 3.0 standard protocol and can be controlled by Zigbee 3.0 remotes, smartphone APP, and voice commands to turn ON/OFF, set the color, and adjust the color temperature and brightness.
- Size: 74.5*36*17mm(L*W*H)
- 16 Million Colors To Choose
- Brightness And Color Temperature Adjustable
- Color Temperature Adjustable From 2700K To 6500K
- Stepless Dimming Brightness
- Switching 3 Output Modes Via One Button For RGB/RGBW/RGB+CCT
- Follow Zigbee 3.0 Standard Protocol
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-EX0B6A
- Material: PC
- Size: 74.5*36*17mm(L*W*H)
- Working Voltage: -24V
- Output: 6A/Channel
- Total Output: Max 12A
- Zigbee Wireless Frequency: 2.400- 2.
- Zigbee Control Distance: ≤100m(Open Area)
- 2.4G RF Remote Control Distance: ≤30m

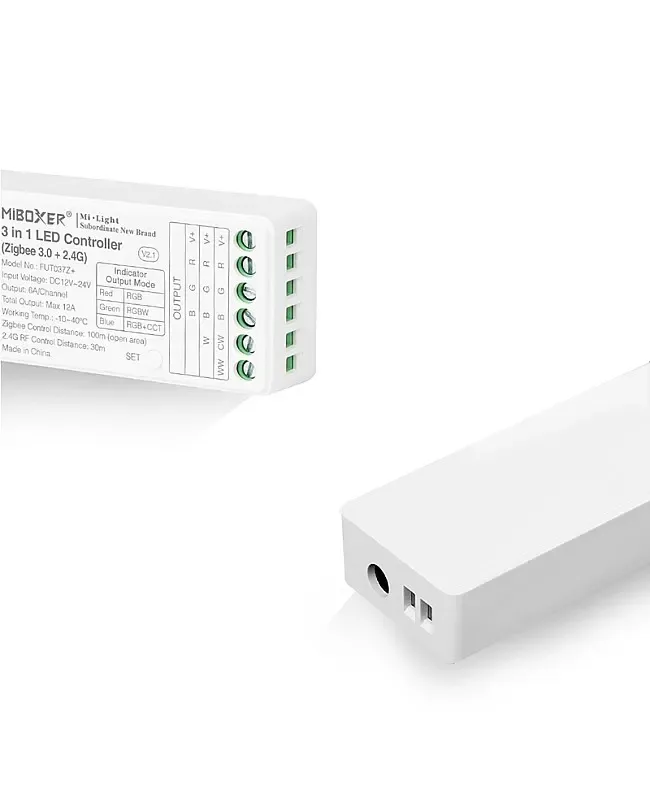

- Two Power Interfaces: Wiring Port/DC 5.5*2.1mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

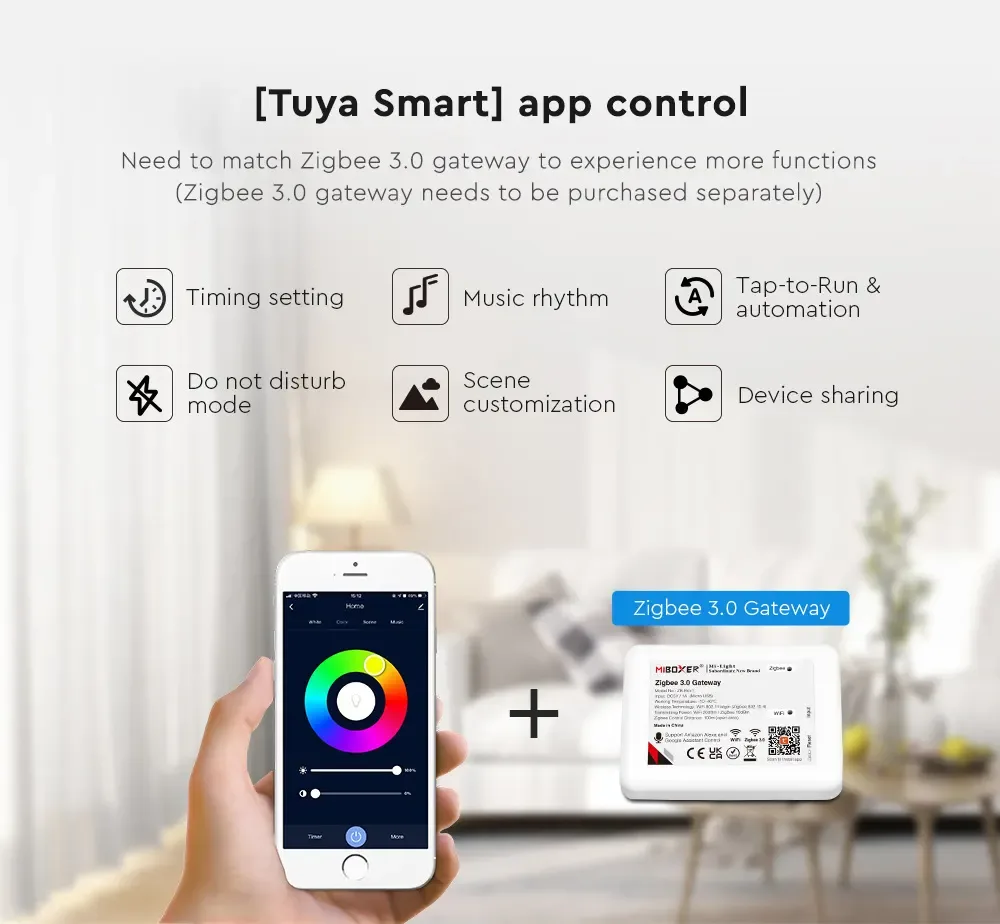

The wireless controller LED controller + has a 3 in 1 design for RGB, RGBW, and RGB+CCT lights. The installer can continuously press the " SET" button on the controller to change the output mode. The 2.4 GHz wireless controllers follows Zigbee 3.0 standard protocol and can be controlled by Zigbee 3.0 remotes, smartphone APP, and voice commands to turn ON/OFF, set the color, and adjust the color temperature and brightness. There are 16 million colors, color temperature adjustable from 2700K to 6500K, and stepless dimming brightness for various scenes. The installer can download the phone APP " Tuya Smart “ to achieve more functions like timing, music rhythm, tap-to-run, automation, scene customization, and device sharing etc can work with Amazon Alexa and Google Assistant to control ON/OFF, brightness, and colors through voice commands. The wireless controller Plus can enter the Philips Hue, IKEA TRADFRI, and Amazon Echo series standard Zigbee 3.0 gateways. It is also compatible with the 2.4 GHz wireless and wireless controller 2.4G series remote to control the LED lights remotely. One controller will transmit the signals from the remote control to another controller of the same model within 30 meters, and different controllers will work synchronously when they are started at different times.
Specifications

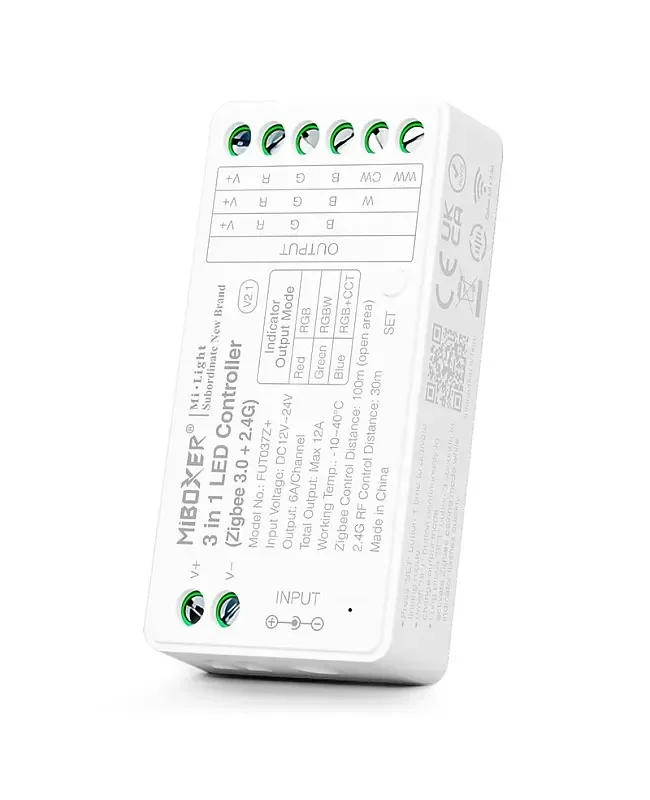

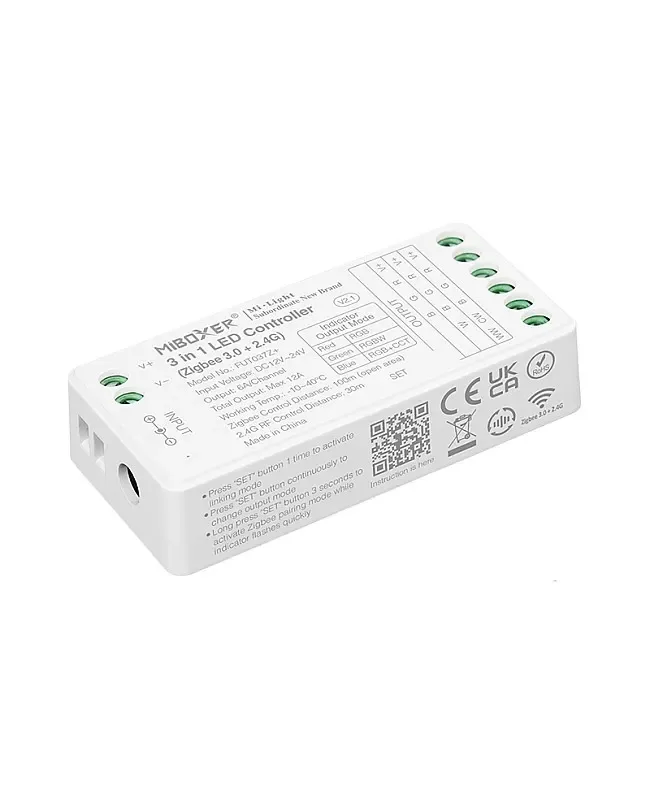

Model: +
Material: PC

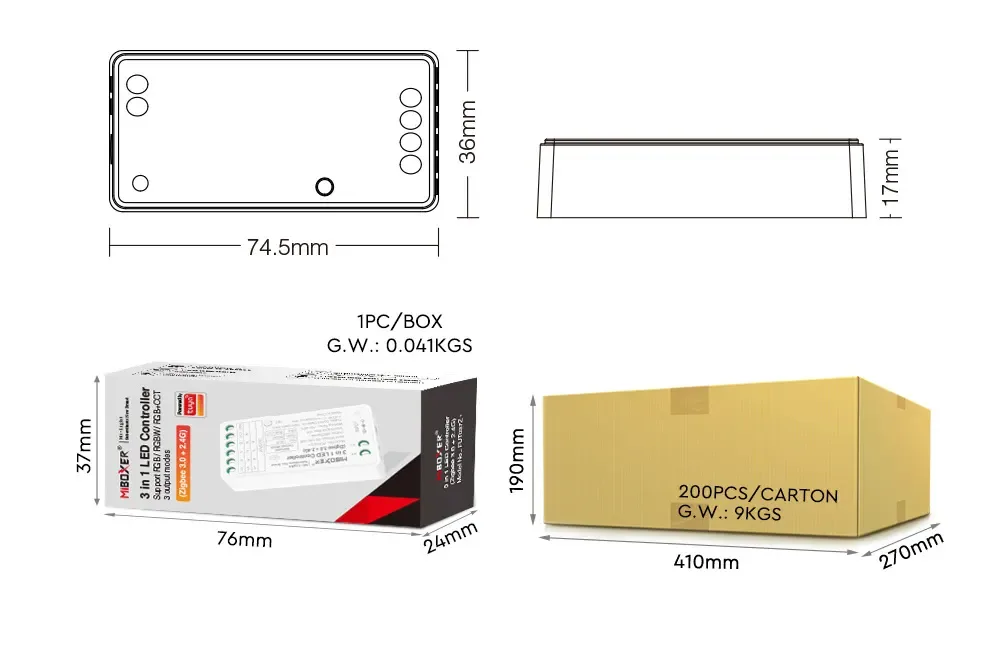

Size: 74.5*36*17mm(L*W*H)
Working Voltage: -24V
Output: 6A/Channel
Total Output: Max 12A

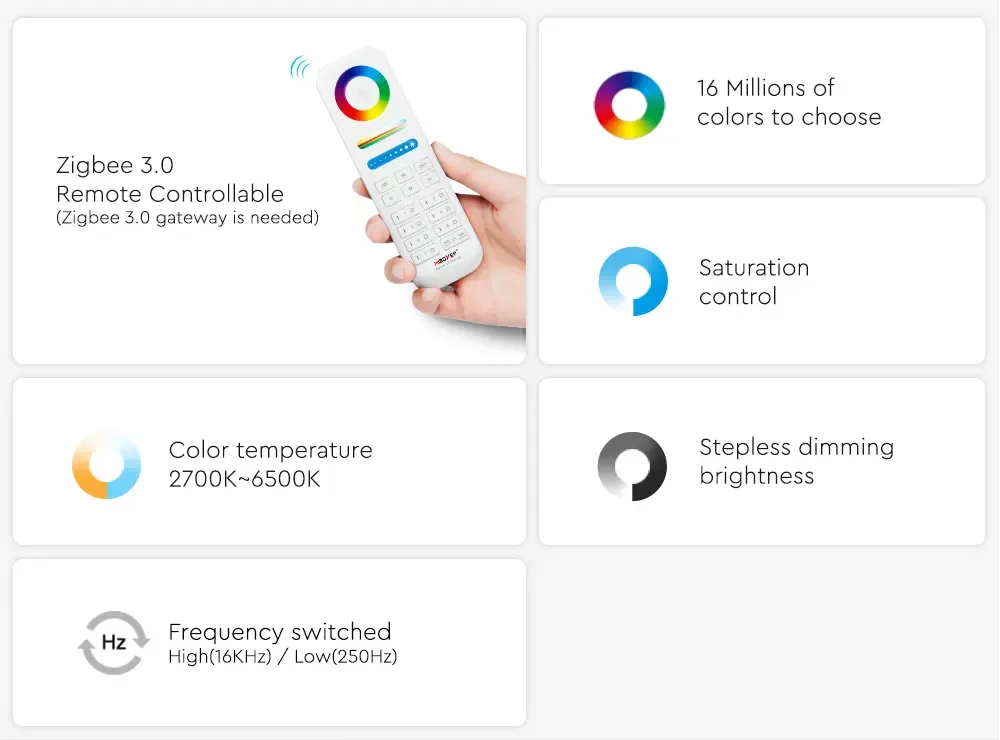

16 Million Colors To Choose
Brightness And Color Temperature Adjustable
Color Temperature Adjustable From 2700K To 6500K
Stepless Dimming Brightness
Switching 3 Output Modes Via One Button For RGB/RGBW/RGB+CCT
Follow Zigbee 3.0 Standard Protocol
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400- 2.
Zigbee Control Distance: ≤100m(Open Area)
Zigbee 3.0 Remote Controllable(Zigbee 3.0 Gateway Needed)
4G RF Remote Control Distance: ≤30m

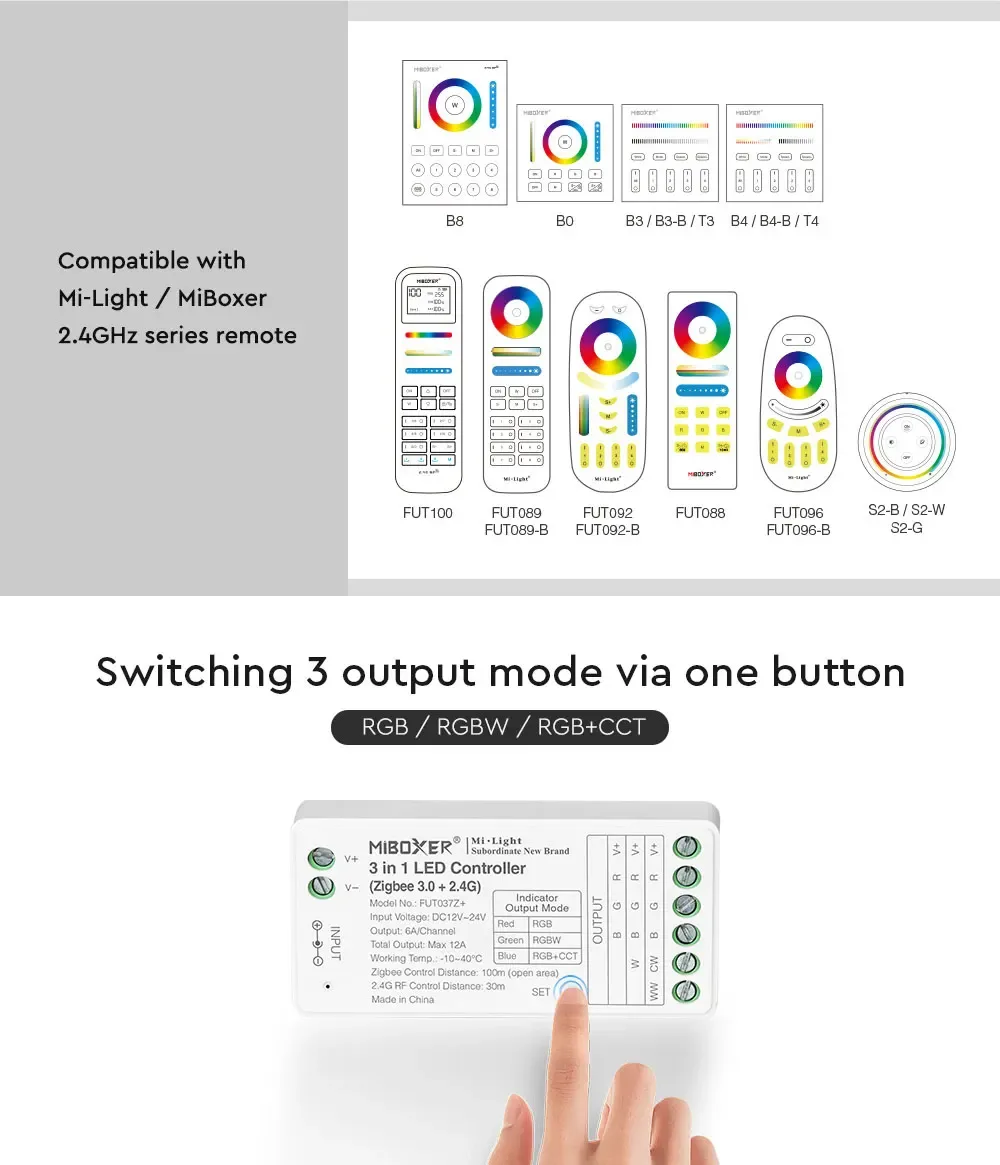

Compatible With 2.4 GHz wireless/wireless controller 2.4G Remote Controls
Working Frequency Switchable From High To Low(250Hz)
Smart Phone APP Controllable(Zigbee 3.0 Gateway Needed)
APP Name: Tuya Smart
Support Third-Party Voice Control
Can Work With Amazon Alexa And Google Assistant

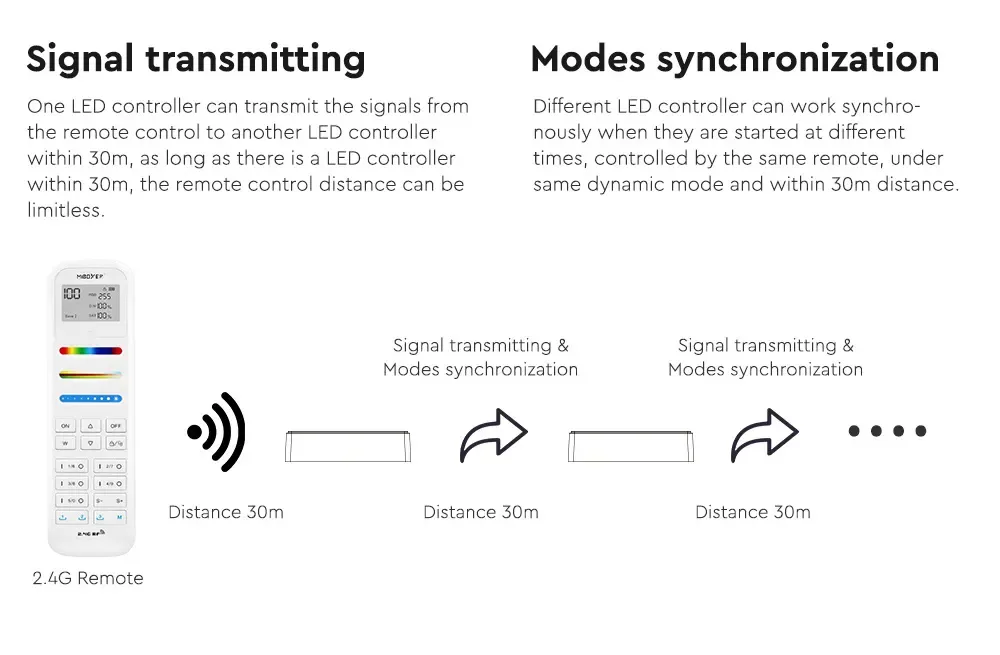

Signal Transmitting
Model Synchronization

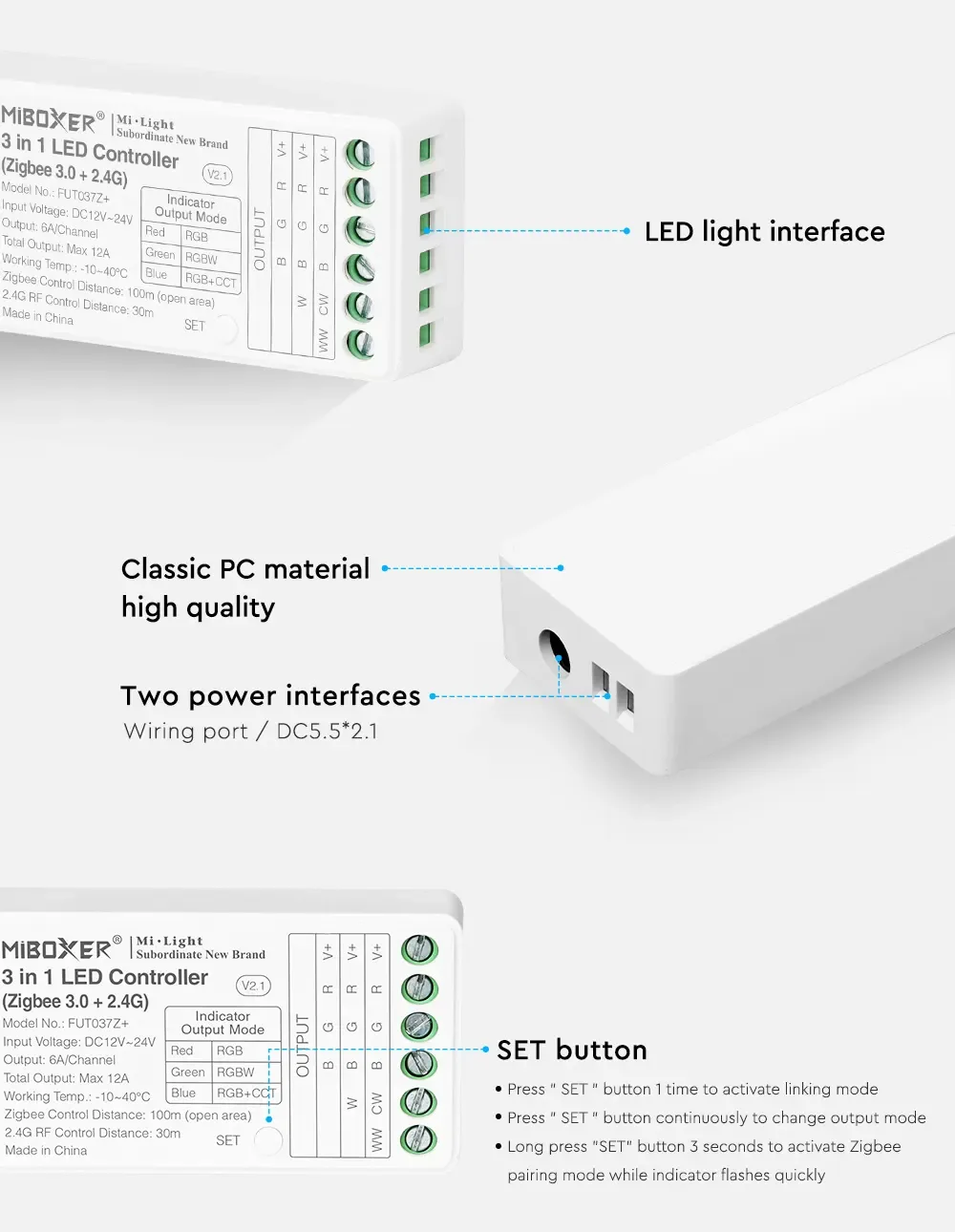

Two Power Interfaces: Wiring Port/DC 5.5*2.1mm
Working Temperature: -10-40℃
Includes
1 * LED Controller For RGB/RGBW/RGB+CCT
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
