Bluetooth Music Controller For RGB/RGBW
LumaCircuit offers Bluetooth Music Controller For RGB/RGBW as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Controller Box Size: 60*30*14mm(Without Wires) Remote Control Size: 125*56*7.5mm Working Voltage: DC5V-24V The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The and Bluetooth music IR controllers, the for RGB LED lights, and the for RGBW lights. Both controllers come with a 35-key IR remote control, and the installer can use the remote control to turn ON/OFF the LED lights, choose the static colors and dynamic modes, adjust the brightness from 10% to 100%, and adjust the color-changing of the dynamic modes. There are a variety of music effects available, and the installer can adjust the sensitivity of the sound-active modes.
- Controller Box Size: 60*30*14mm(Without Wires)
- Remote Control Size: 125*56*7.5mm
- Working Voltage: DC5V-24V
- Output Channels: 3 Channels(RGB), 4 Channels(RGBW)
- Max Output Current: 2A/Channel(RGB), 1.5A/Channel(RGBW)
- Max Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
- Supports Controlled By APP Via Bluetooth And IR Remote Control
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 5 V / 24 V / 12 V
- Light engine: RGBW
- LumaCircuit model: LC-CTL-6VXLFA
- Controller Box Size: 60*30*14mm(Without Wires)
- Remote Control Size: 125*56*7.5mm
- Working Voltage: DC5V-24V
- Output Channels: 3 Channels(RGB), 4 Channels(RGBW)
- Max Output Current: 2A/Channel(RGB), 1.5A/Channel(RGBW)
- Max Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
- Group Control: YES
- Dimensions found: 60x30x14mm / 14mm / 125x56x7.5mm / 7.5mm
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

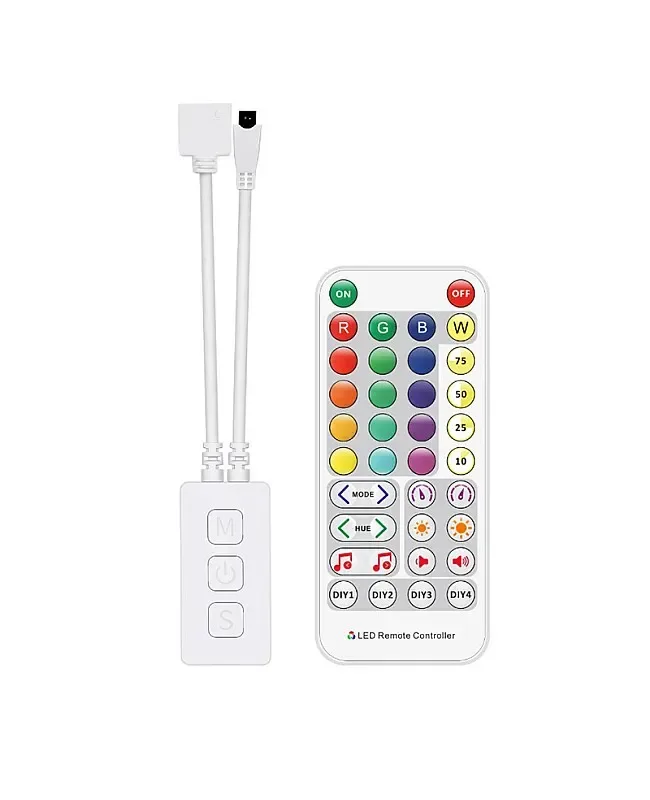

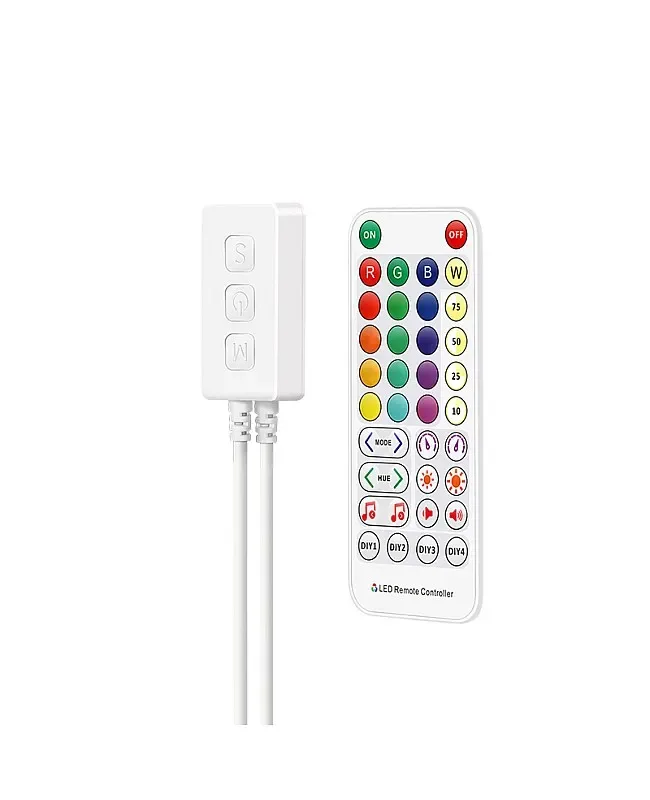

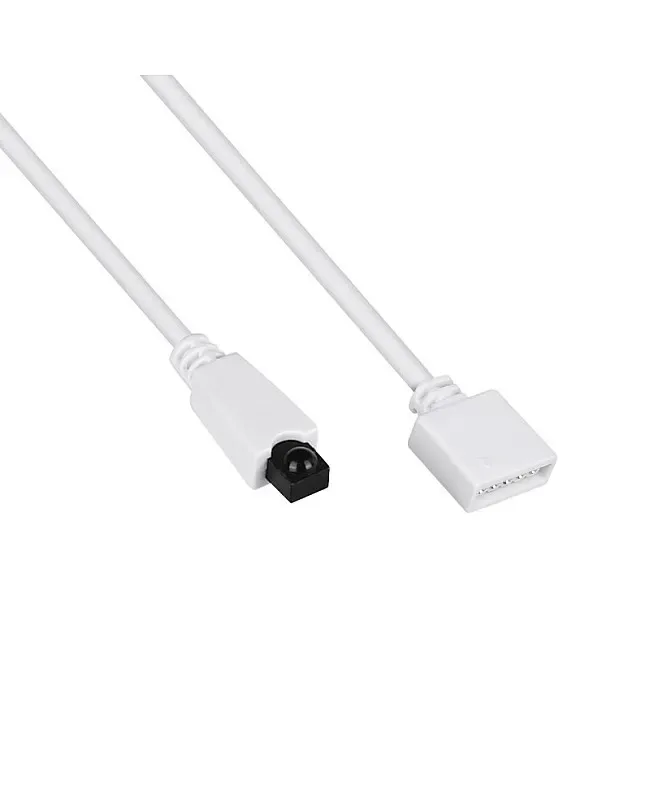

The and Bluetooth music IR controllers, the for RGB LED lights, and the for RGBW lights. Both controllers come with a 35-key IR remote control, and the installer can use the remote control to turn ON/OFF the LED lights, choose the static colors and dynamic modes, adjust the brightness from 10% to 100%, and adjust the color-changing of the dynamic modes. There are a variety of music effects available, and the installer can adjust the sensitivity of the sound-active modes. The controller has three sound collection methods: phone mic, player streaming, and onboard mic. There are 4 DIY buttons available, and the installer can use them to set the DIY modes. The IR controllers can be controlled by the APP through a Bluetooth connection and support automatic device connection and automatic reconnection when the APP turns on. The installer can use the APP to group control the music controllers. Music RGB controller supports both Android and IOS mobile devices. The installer can download the APP from the Google Store and the Apple Store. The music controllers work between DC5V and DC24V and have a max loading power of up to 144W. There are also three physical buttons on the controller box, and the installer can use them to turn ON/OFF the lights, switch the effects, and adjust the speed of non-music effects.

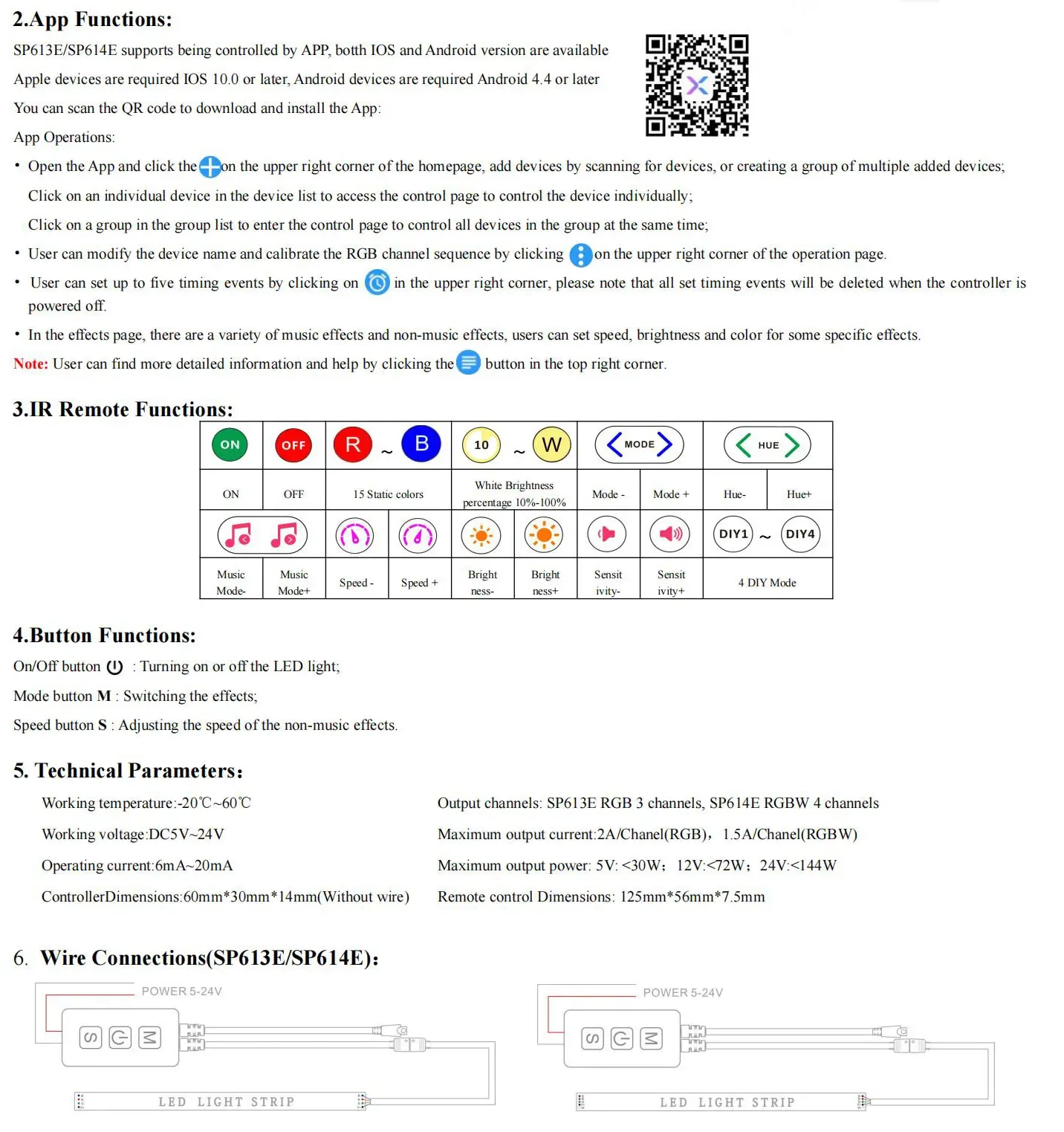

Controller User Manual
Specifications
Model
Controller Box Size: 60*30*14mm(Without Wires)
Remote Control Size: 125*56*7.5mm
Working Voltage: DC5V-24V
Operating Current
Output Channels: 3 Channels(RGB), 4 Channels(RGBW)
Max Output Current: 2A/Channel(RGB), 1.5A/Channel(RGBW)
Max Output Power: DC5V: <30W; DC12V: <72W; DC24V: <144W
Supports Controlled By APP Via Bluetooth And IR Remote Control
Supports IOS And Android Mobile Operating System(Android 4.4 + And IOS 10.0 +)
APP Name
Built-in Music And Non-Music Effects
Multiple Sound Collection Methods: Phone Mic, Player Streaming, On-Board Mic
Group Control: YES
Automatic Device Connection And Automatic Reconnection When The APP Turns On
Automatic Saving Function For Setting
Timing Function: YES
Includes
1 * IR Music Controller

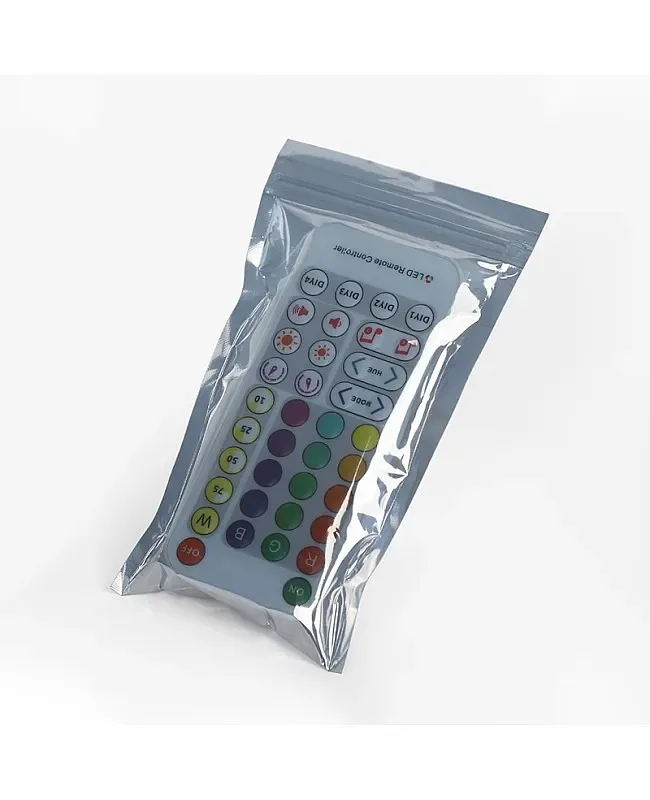

1 * 35 Keys Remote Control
Product resources
Technical documents
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
