Product details

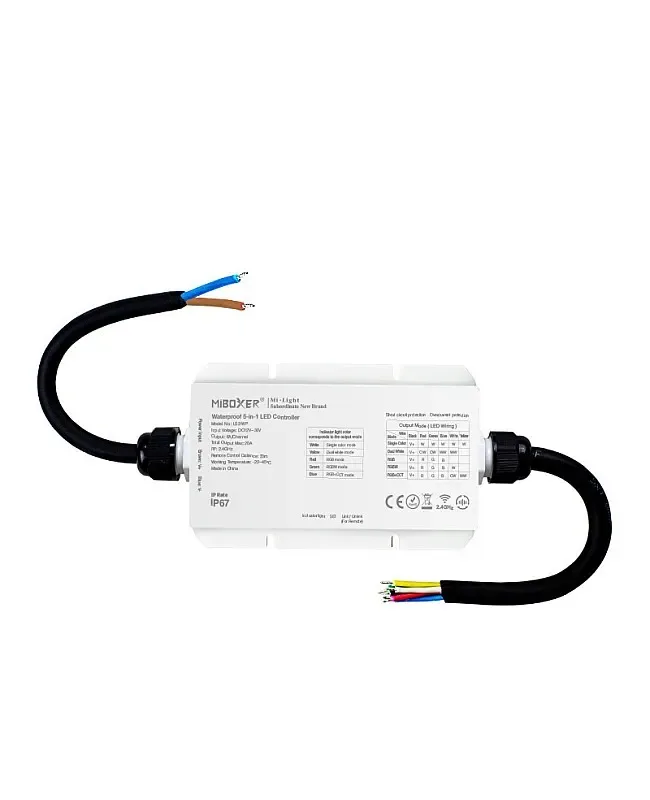

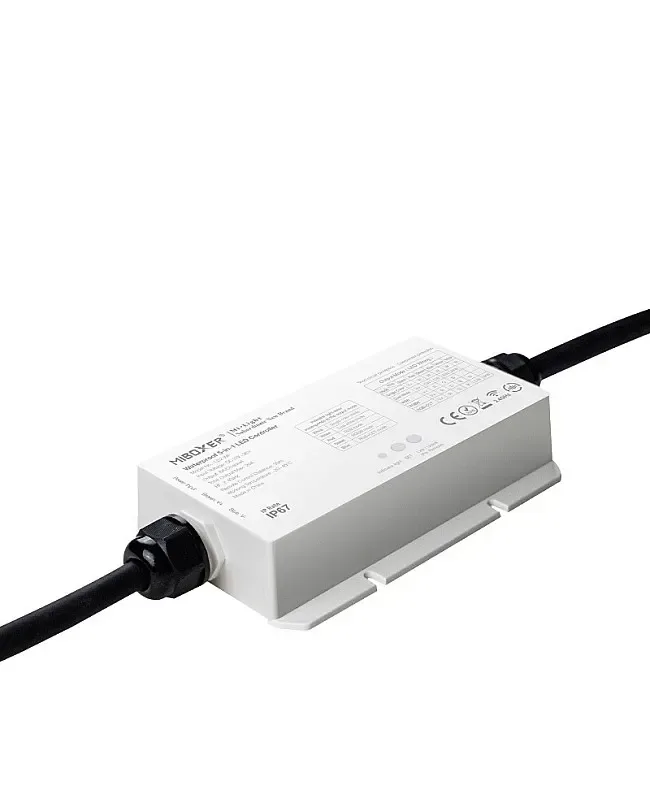

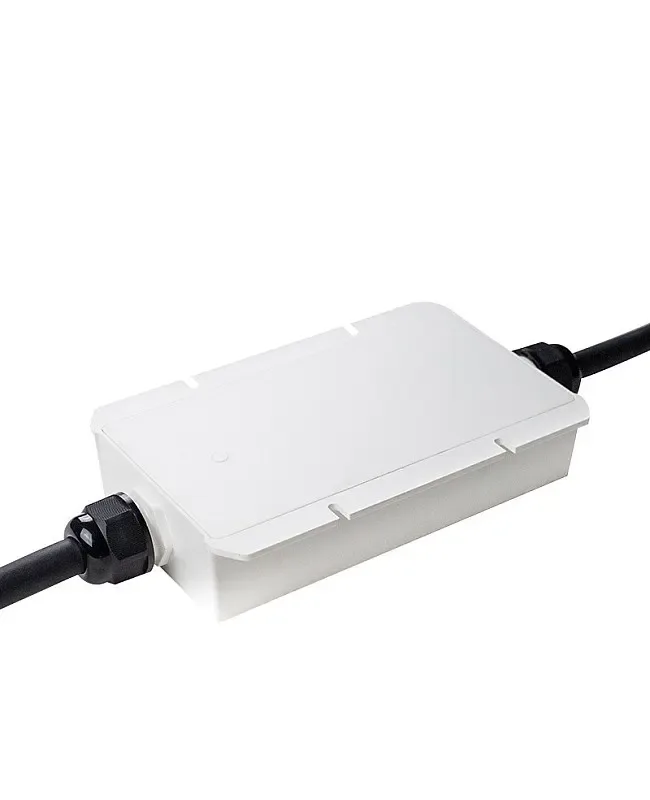

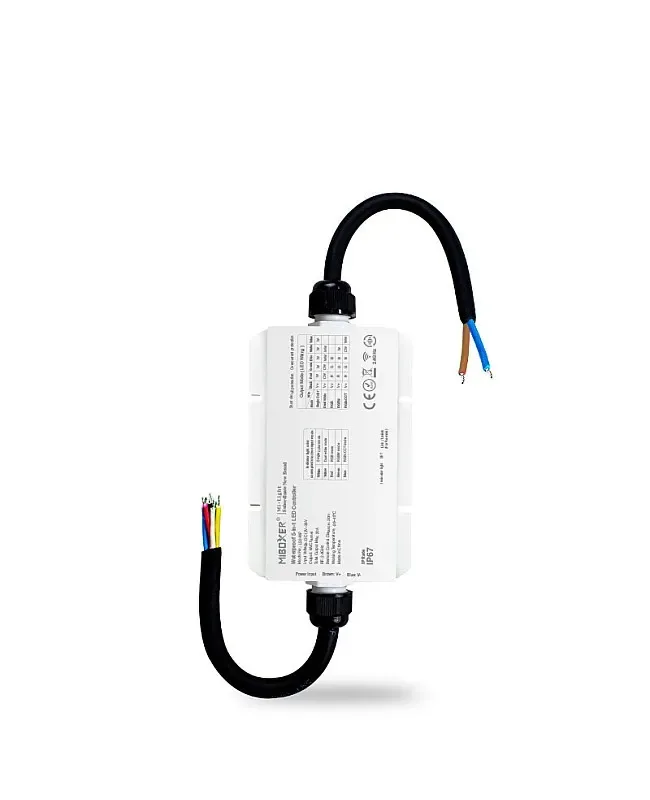

4G 5 In 1 WP Waterproof RGB CCT Controller
LumaCircuit offers 4G 5 In 1 WP Waterproof RGB CCT Controller as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. wireless controller Waterproof 5-In-1 Controller User Manual Size: 136*87*31mm(L*W*H) Total Output Current: Max 20A The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller waterproof RGB CCT controllers with a 5-in-1 function design can be used for the single color, CCT, RGB, RGBW, and RGBWW waterproof LED lights. The LED controller has a set key to switch the output mode. The waterproof level can reach IP67, and the installer can use them in damp, wet, and water locations to eliminate potential safety hazards and make use safer. The waterproof LED controllers are compatible with wireless controller 2.4G RF remotes, and the control distance is up to 30 meters.
- wireless controller Waterproof 5-In-1 Controller User Manual
- Size: 136*87*31mm(L*W*H)
- Total Output Current: Max 20A
- Connection: Common Anode
- 5 Output Modes: Brightness, Color Temperature, RGB, RGBW, RGBWW
- 16 Million Colors Available And Saturation Adjustment
- Color Temperature, Brightness Adjustable
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-36 V
- Light engine: RGB+CCT
- Size: 136*87*31mm(L*W*H)
- Input Voltage: -36V
- Output: 6A/Channel
- Total Output Current: Max 20A
- 5 Output Modes: Brightness, Color Temperature, RGB, RGBW, RGBWW
- Remote Control Distance: ≤30m
- IP Rating: IP67 Waterproof
- Compatible With 2.4G RF Remote Controls: T4, T3, WL
- Working Temperature: -20℃-+45℃
- LumaCircuit model: LC-CTL-CFZUCA
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller waterproof RGB CCT controllers with a 5-in-1 function design can be used for the single color, CCT, RGB, RGBW, and RGBWW waterproof LED lights. The LED controller has a set key to switch the output mode. The waterproof level can reach IP67, and the installer can use them in damp, wet, and water locations to eliminate potential safety hazards and make use safer. The waterproof LED controllers are compatible with wireless controller 2.4G RF remotes, and the control distance is up to 30 meters. After adding the 2.4G gateway WL the supports smartphone APP control and third-party voice control, can work with Amazon Alexa and Google Assistant, the installer can set the static color, dynamic mode, adjust the saturation, brightness, and color temperature for various scenes, the wireless controller controller will receive the signals and transmit to other same controllers within the remote control distance can be limitless, different controllers will work synchronously.
Quick Links
wireless controller Waterproof 5-In-1 Controller User Manual
Specifications
Size: 136*87*31mm(L*W*H)
Input Voltage: -36V
Output: 6A/Channel
Total Output Current: Max 20A
Connection: Common Anode
RF: 2.
5 Output Modes: Brightness, Color Temperature, RGB, RGBW, RGBWW
16 Million Colors Available And Saturation Adjustment
Color Temperature, Brightness Adjustable
Signal Transmitting & Modes Synchronization
Remote Control Distance: ≤30m
IP Rating: IP67 Waterproof
Compatible With 2.4G RF Remote Controls T4, T3, WL
Support Smartphone APP Control And Third-Party Voice Control(WL- Needed)
Working Temperature: -20℃-+45℃
Includes
1 * Waterproof RGB CCT Controller
Product resources
Technical documents
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
