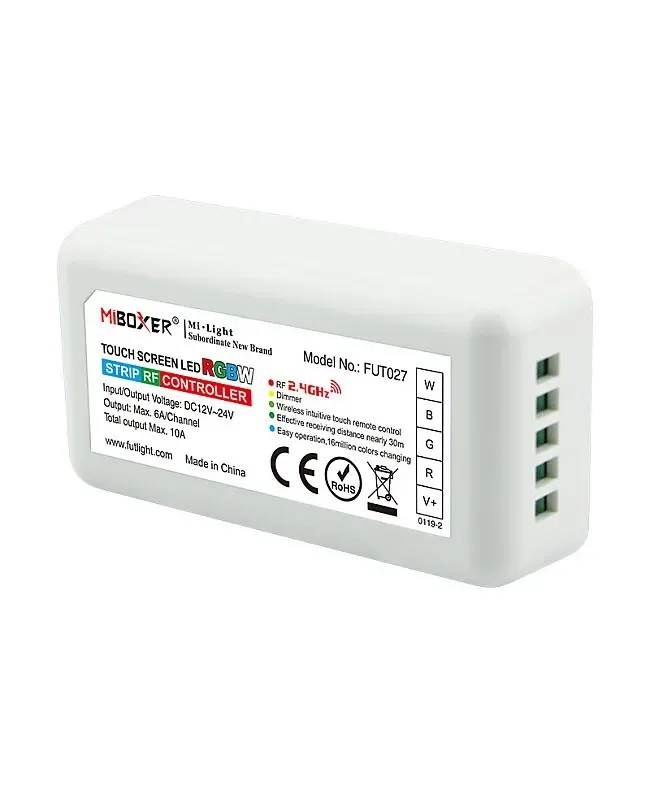

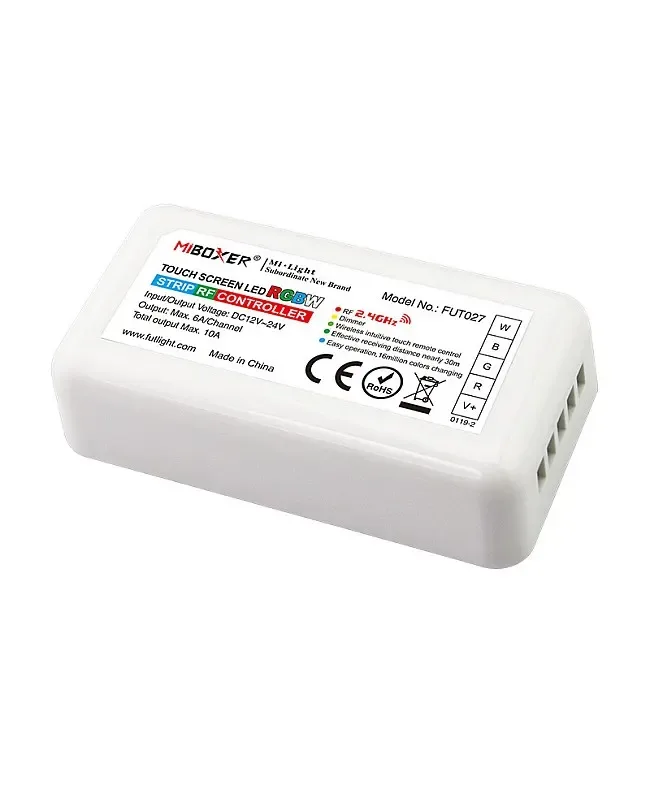

4G RF Wireless 5Pin RGBW Controller

Product features

The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

• The wireless controller 5Pin RGBW controller has a 4-output channel design and a touch remote; the installer can use it to control the RGBW LED tapes and modules. The wireless controller RGBW controller works on DC12V-24V and adopts the most advanced PWM control technology. The remote can set 16 million colors or 12 dynamic modes. The brightness of static colors and speed of dynamic modes are adjustable, with memory function; the previous settings will be resumed when powered on again.
• wireless controller 5Pin RGBW Controller Manual
• Output Channels: R/G/B/W 4 Output Channels
• Max Load Per Channel: 6A
• Connecting Method: Common Anode
• Brightness And Speed Adjustable
• 4G RF Wireless Transmission
• Fabrication Processing: Multicolor Printing & UV Varnish

Configuration and technical detail

To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.

• Input: 12-24 V
• Light engine: RGBW
• Working Voltage: -24V
• Output Channels: R/G/B/W 4 Output Channels
• Max Load Per Channel: 6A
• Total Output Max: 10A
• Control Distance: ≤30m
• LumaCircuit model: LC-CTL-1PDS99
• Material: ABS
• Size: 110*52*20mm(L*W*H)
• Working Voltage: DC3V
• Dimensions found: 30m / 110x52x20mm / 20mm

Control and installation

Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.

Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.

Configuration support

Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.

Product overview

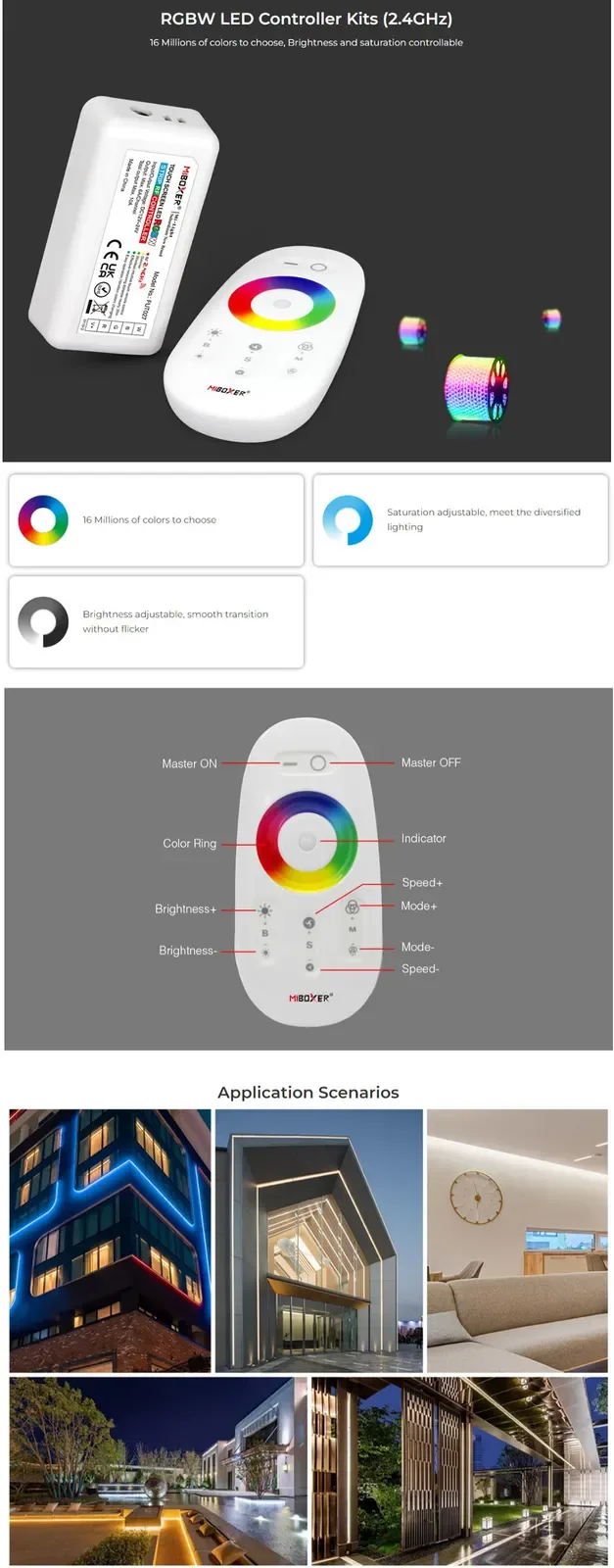

The wireless controller 5Pin RGBW controller has a 4-output channel design and a touch remote; the installer can use it to control the RGBW LED tapes and modules. The wireless controller RGBW controller works on DC12V-24V and adopts the most advanced PWM control technology. The remote can set 16 million colors or 12 dynamic modes. The brightness of static colors and speed of dynamic modes are adjustable, with memory function; the previous settings will be resumed when powered on again. With 2.4G signal wireless transmission technology, the control distance is up to 30 meters. The touch remote has simple and practical functions such as changing colors and dimming brightness. The installer can touch it to set your favorite color or other settings to fulfill various scenes.

Quick Links

wireless controller 5Pin RGBW Controller Manual

Product detail 02

Working Voltage: -24V

Output Channels: R/G/B/W 4 Output Channels

Max Load Per Channel: 6A

Total Output Max: 10A

Connecting Method: Common Anode

Control Distance: ≤30m

16 Million Colors And 12 Dynamic Modes Available

Brightness And Speed Adjustable

4G RF Wireless Transmission

Memory Function: YES

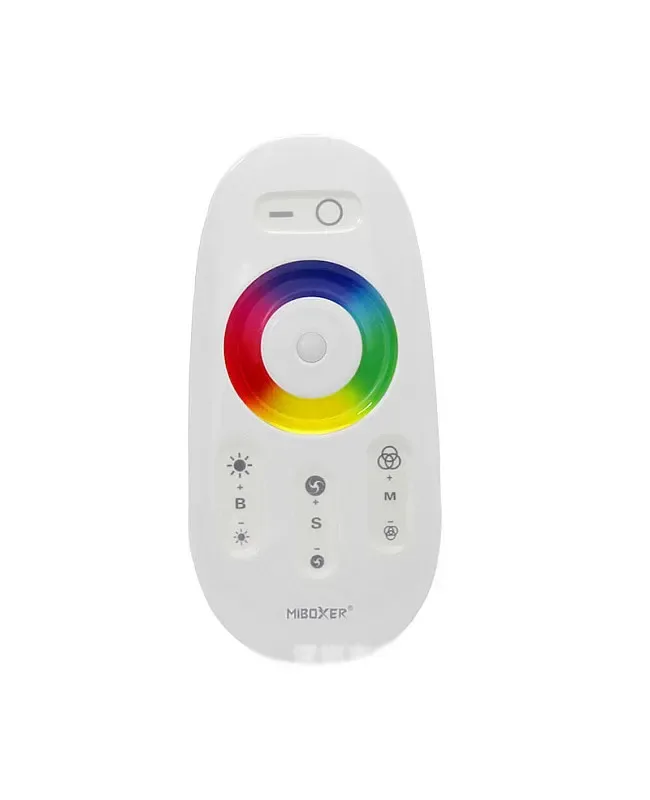

Remote Specifications

Material: ABS

Fabrication Processing: Multicolor Printing & UV Varnish

Size: 110*52*20mm(L*W*H)

Working Voltage: DC3V

Powered By 2PCS AAA Batteries(Sold Separately)

Sensitive Touching Design

4G Wireless Signal Transmission

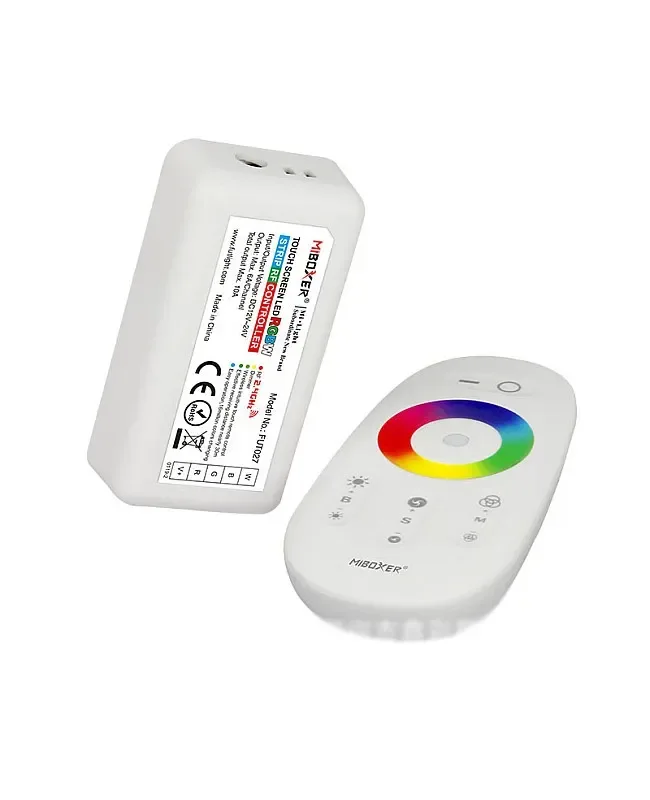

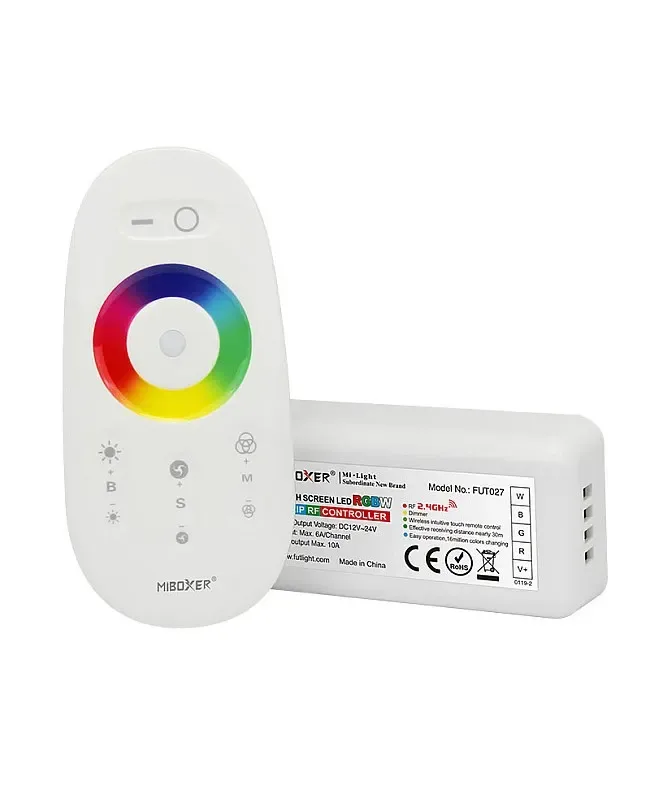

Includes

1 * 5Pin RGBW Controller

1 * RF Touch Remote Control

1 * User Manual
