Product details

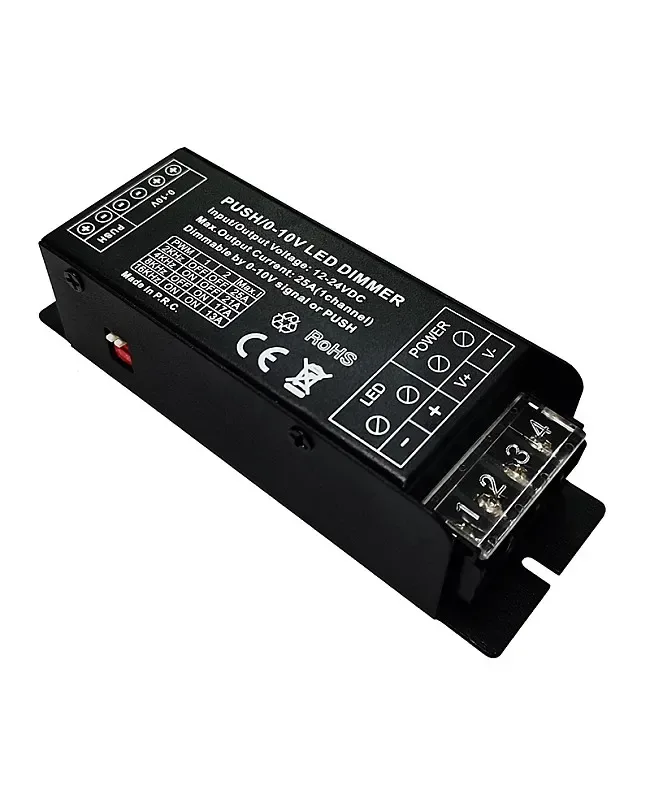

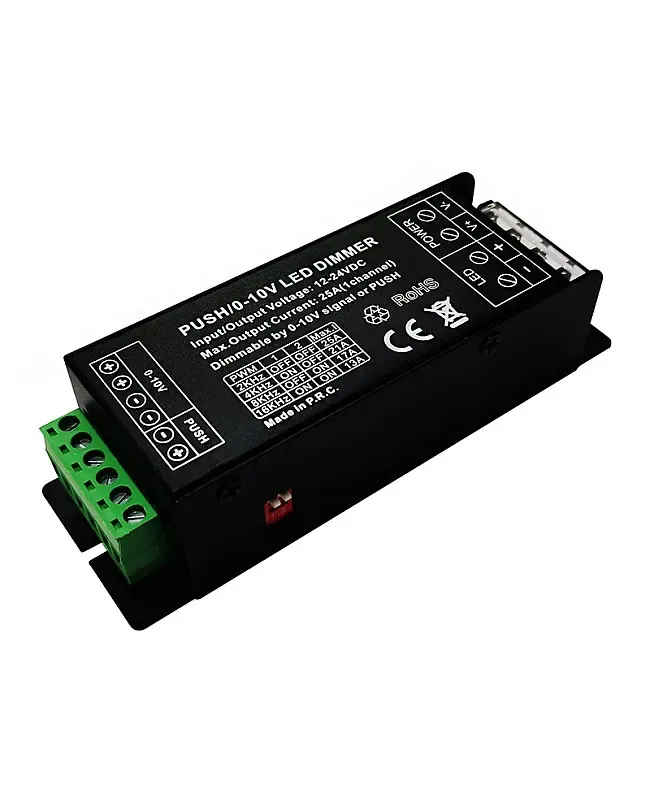

600W 1CH 0 10V Constant Voltage LED Dimmer
LumaCircuit offers 600W 1CH 0 10V Constant Voltage LED Dimmer as a configurable LED controller for project builds. Typical applications include CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. 0-10V Knob Wall Panel LED Dimmer Working Voltage: DC12V-DC24V Max Load Power: 300W(12V), 600W(24V) The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.

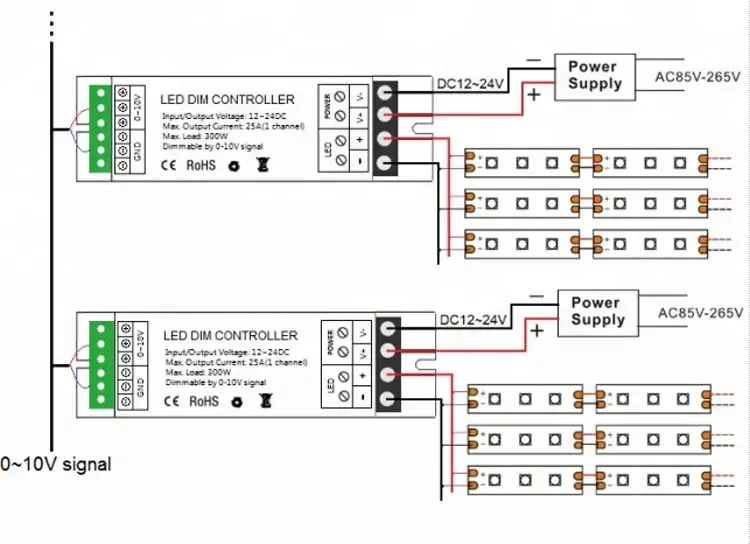

- The 0-10V LED dimmer adopts an advanced microcontroller that receives the 0-10V analog control signal, which is widely used internationally. Converts the signal into a PWM control signal to actuate the LED lamps and single-color LED strip lights, with a dimming range of 0-100% and smooth, flicker-free operation. You could adjust the brightness of flexible LED strips to a stable and soft setting. The LED dimmer works on DC12V or DC24V, with a single output channel, and the maximum load power is up to 600W at 24V.
- 0-10V Knob Wall Panel LED Dimmer
- Working Voltage: DC12V-DC24V
- Max Load Power: 300W(12V), 600W(24V)
- Control Standard: 0- 10V Analog Signal
- Working Temperature: -20-60℃
- The 0-10V LED dimmer uses an advanced microcontroller that receives the 0-10V analog control signal and converts it to actuate the LED lamps. The dimming range is 0 to 100%.
- A production-ready controller family with a replaceable Zigbee control path.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Size: * * mm
- Color: Black

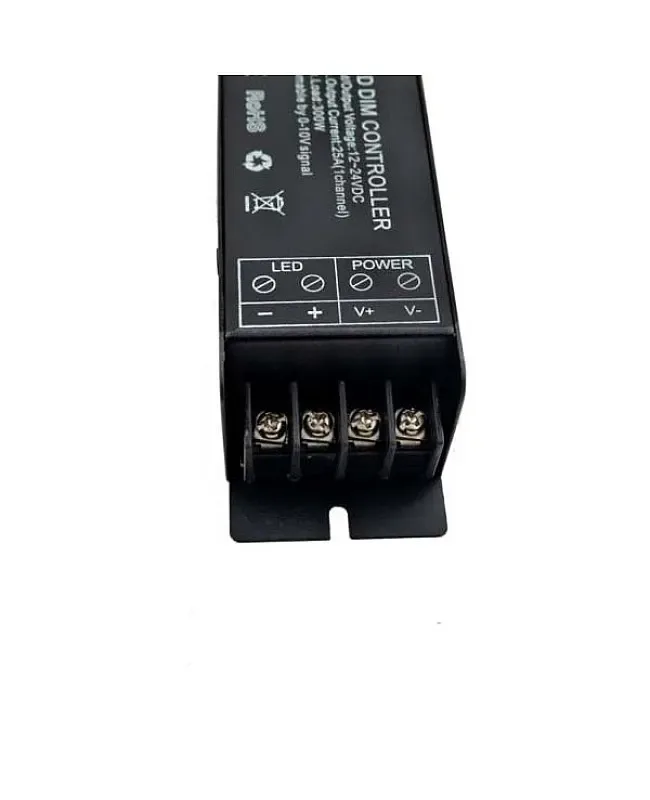

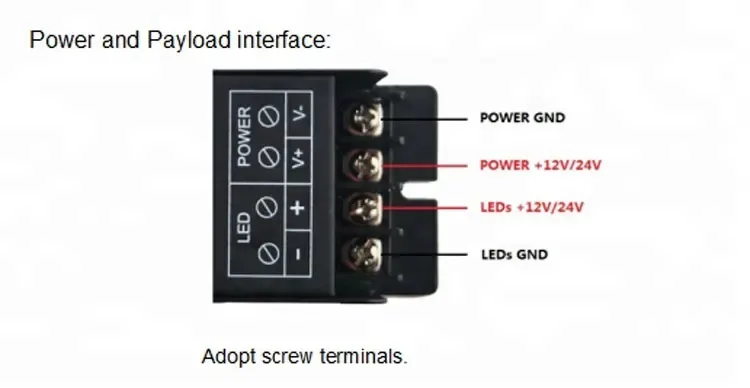

- Working Voltage: DC12V-DC24V
- Output Current: <25A
- Max Load Power: 300W(12V), 600W(24V)
- Output Gray: 256 Levels

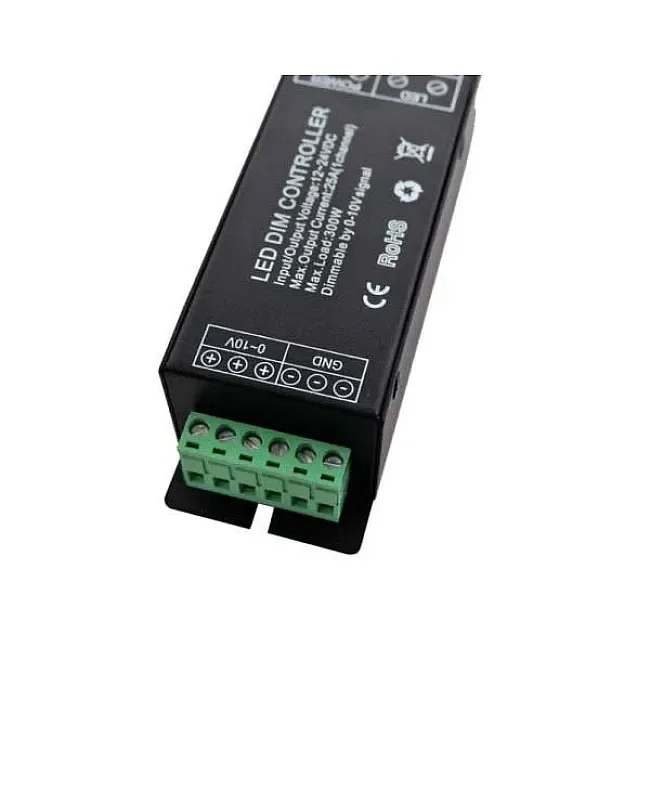

- Control Standard: 0- 10V Analog Signal
- PWM Frequency: 2 KHz
- Working Temperature: -20-60℃
- LumaCircuit model: LC-CTL-9I23CY
- Dimensions found: mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around CCT and RGB+CCT rooms, Retrofit dimming, Home Assistant lighting zones. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

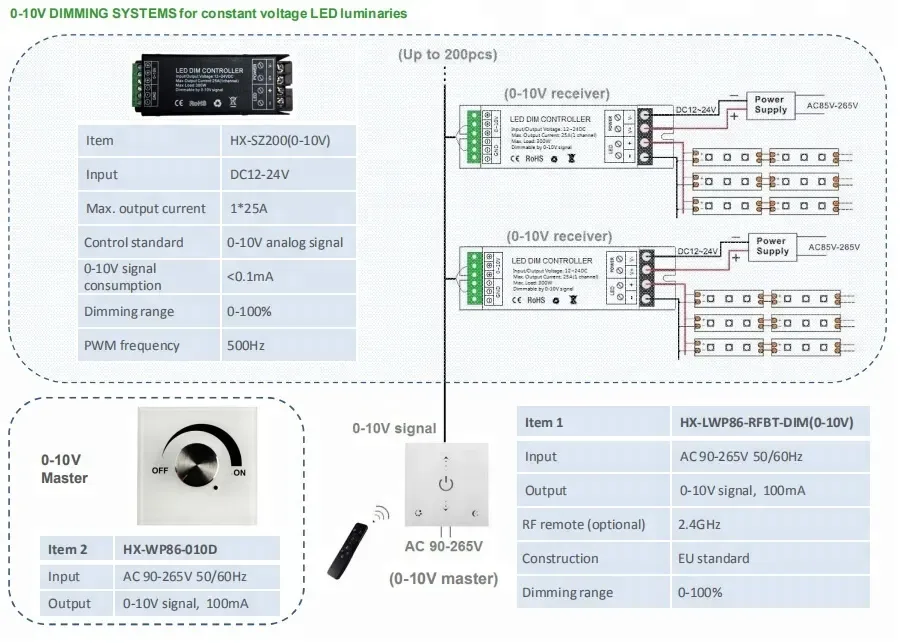

The 0-10V LED dimmer adopts an advanced microcontroller that receives the 0-10V analog control signal, which is widely used internationally. Converts the signal into a PWM control signal to actuate the LED lamps and single-color LED strip lights, with a dimming range of 0-100% and smooth, flicker-free operation. You could adjust the brightness of flexible LED strips to a stable and soft setting. The LED dimmer works on DC12V or DC24V, with a single output channel, and the maximum load power is up to 600W at 24V. Compatible with HX-- and HX--RFBT-DIM(0- 10V) LED dimmers.
Quick Links
0-10V Knob Wall Panel LED Dimmer
Specifications
Size: * * mm
Color: Black
Working Voltage: DC12V-DC24V
1 Channel Output
Output Current: <25A
Max Load Power: 300W(12V), 600W(24V)
Output Gray: 256 Levels
Control Standard: 0- 10V Analog Signal
Dimming Range: 0-100%
PWM Frequency: 2 KHz
Weight: 200g
Working Temperature: -20-60℃
Includes
1 * PWM LED Dimmer
Typical applications
- CCT and RGB+CCT rooms
- Retrofit dimming
- Home Assistant lighting zones
