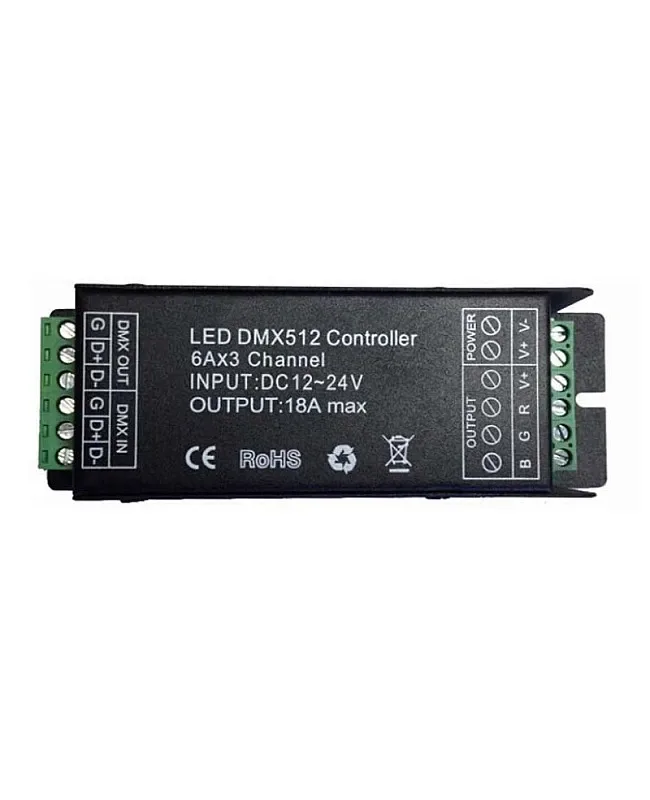

432W RGB DMX Decoder
LumaCircuit offers 432W RGB DMX Decoder as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Working Voltage: -20-60℃ Working Voltage: DC12V-DC24V Connecting Mode: Common Anode The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The RGB DMX decoder adopts the advanced micro control unit, working in DC12V or DC24V, will receive the DMX-512 standard digital control signal and convert it to a PWM control signal to actuate the RGB LED light. The DMX512 LED decoder has a 3-output-channel design, the max output current of each channel is 6A, and the max loading power is up to 432W when working in DC24V.
- Working Voltage: -20-60℃
- Working Voltage: DC12V-DC24V
- Connecting Mode: Common Anode
- Output Gray: 256 Levels(RGB Each)
- Max Output Current: 6A (Each Channel)
- Max Output Power: 216W(DC12V) / 432W(DC24V)
- Control Standard: DMX512
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- Size: * * mm
- Working Voltage: -20-60℃
- Working Voltage: DC12V-DC24V

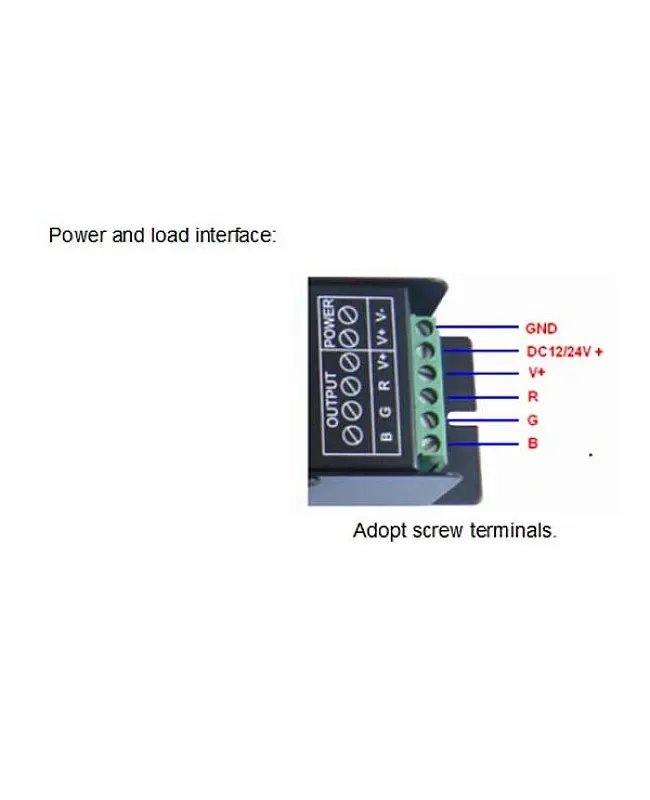

- Connecting Mode: Common Anode
- Output: 3 Channels
- Output Gray: 256 Levels(RGB Each)
- Max Output Current: 6A (Each Channel)
- Max Output Power: 216W(DC12V) / 432W(DC24V)
- Control Standard: DMX512
- Frequency Of RF Remote Control: 433.
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

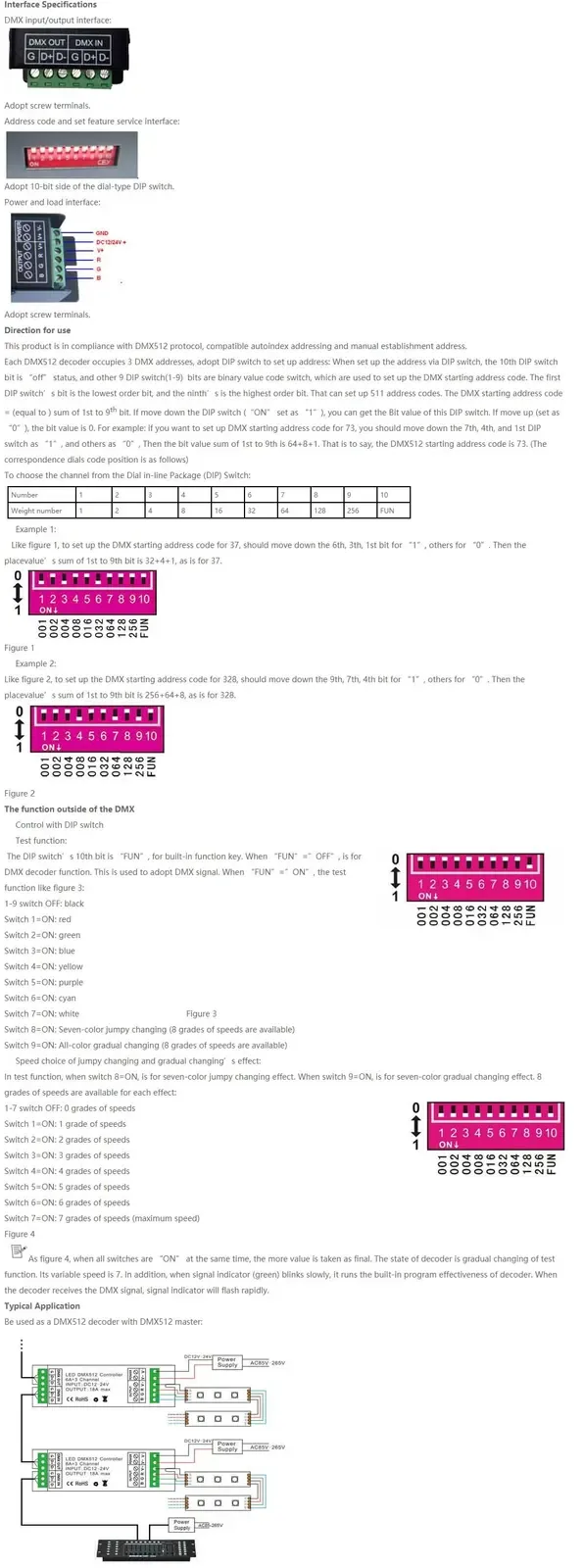

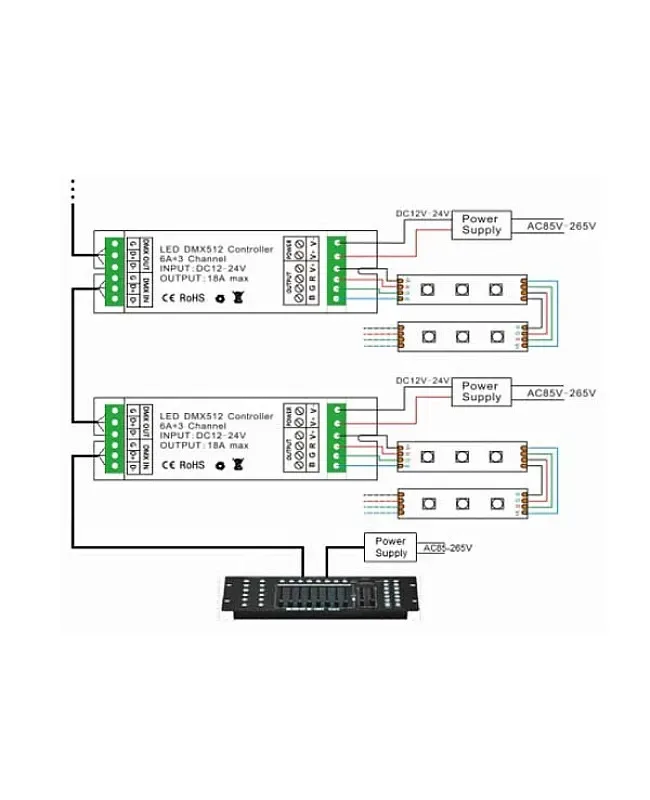

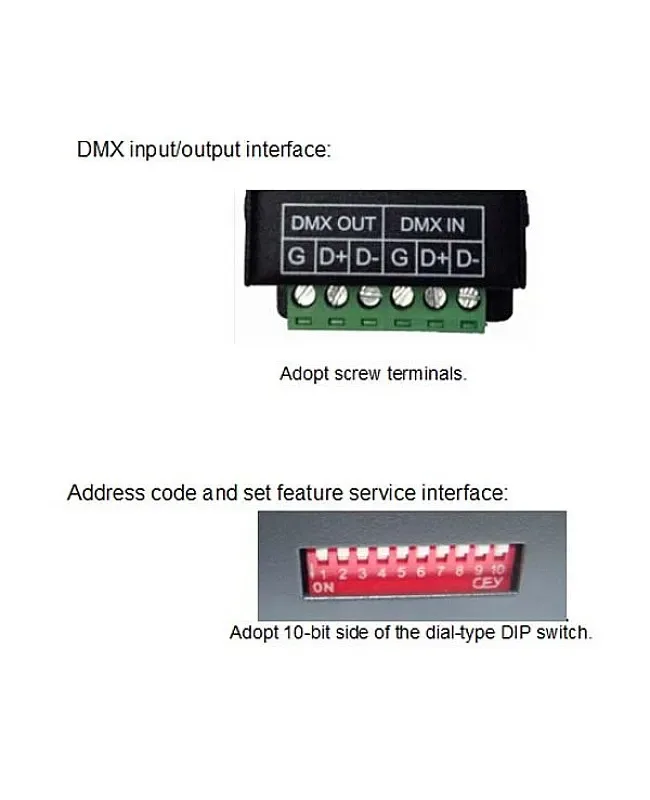

The RGB DMX decoder adopts the advanced micro control unit, working in DC12V or DC24V, will receive the DMX-512 standard digital control signal and convert it to a PWM control signal to actuate the RGB LED light. The DMX512 LED decoder has a 3-output-channel design, the max output current of each channel is 6A, and the max loading power is up to 432W when working in DC24V. The DMX master can control the LED decoder, and the installer can connect the DMX digital console to change the LED light or each dynamic effect. The decoder can connect the signal line to expand the channels up to 512, and eventually achieve more changes in effect. When the DIP switch is all "0", the decoder controller assigns the address automatically, which can be required by the DIP switch. If the LED decoder is used as the RGB controller, there are 9 modes, and the DIP switch can be used to choose the working mode. Can work with the RGB LED amplifier to achieve the synchronization function.
Quick Links
DMX 512 Controller RGB
Specifications
Size: * * mm
Working Voltage: -20-60℃
Working Voltage: DC12V-DC24V
Connecting Mode: Common Anode
Output: 3 Channels
Output Gray: 256 Levels(RGB Each)
Max Output Current: 6A (Each Channel)
Max Output Power: 216W(DC12V) / 432W(DC24V)
Control Standard: DMX512
Frequency Of RF Remote Control: 433.
PWM Frequency: 7.8 KHz
Accept The International DMX512 Standard Digital Control Signal
Weight: 200g
Includes
1 * RGB DMX Decoder
Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
