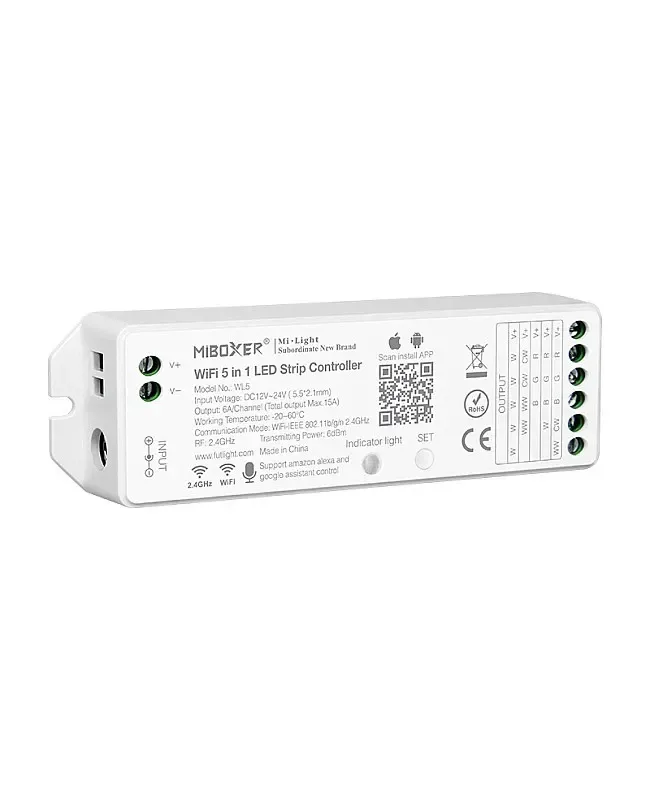

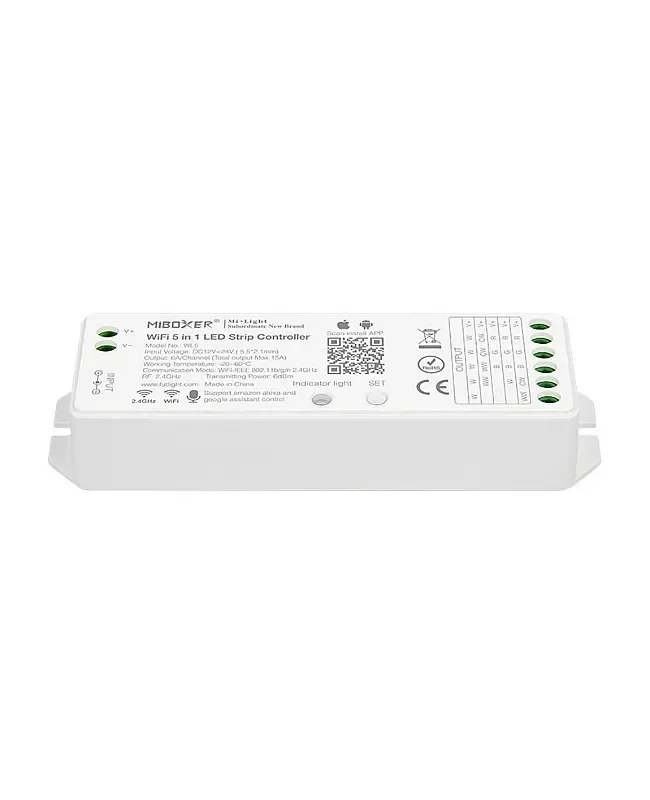

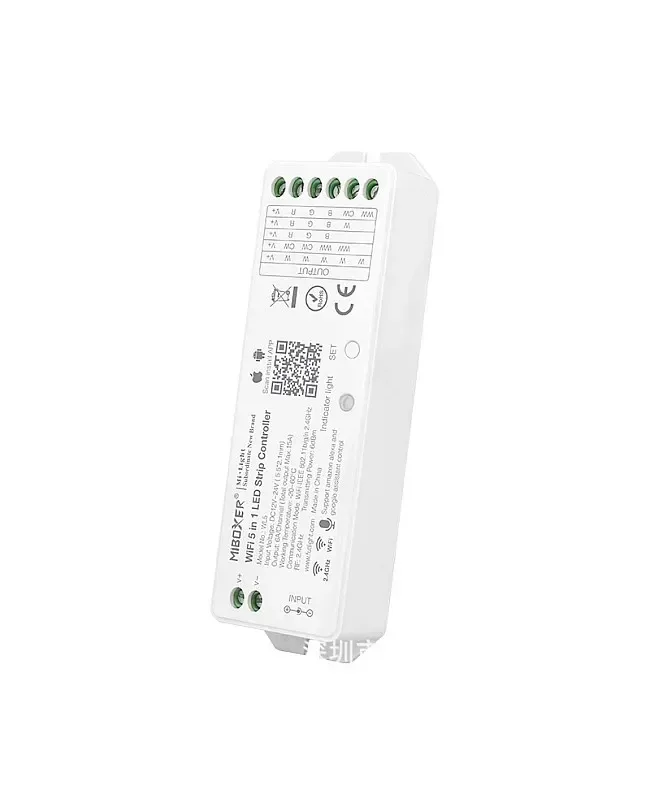

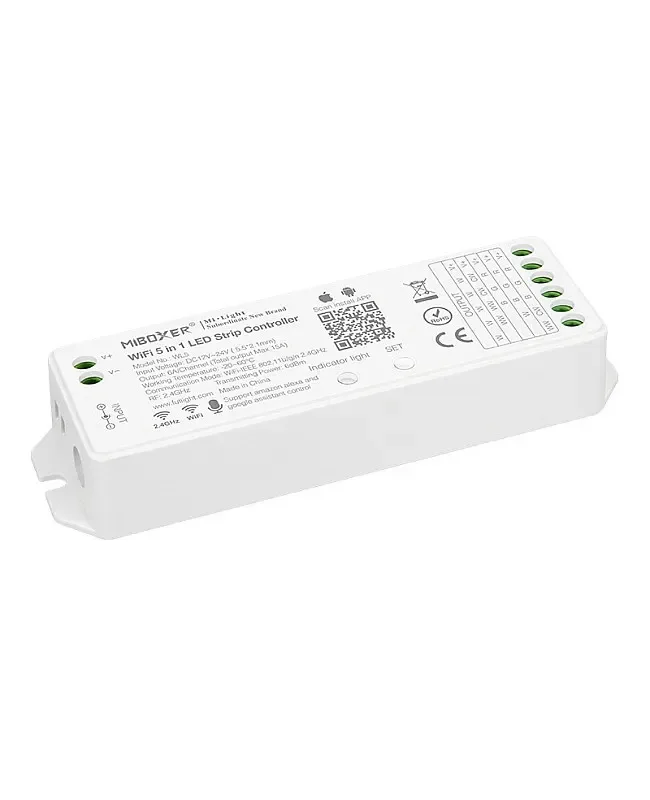

5 In 1 Home Assistant WiFi LED Controller
LumaCircuit offers 5 In 1 Home Assistant WiFi LED Controller as a configurable LED controller for project builds. Typical applications include Serviceable strip wiring, Power injection, Cabinet and display installation. Size: 124*38*23mm(L*W*H) Output: Max 15A, Max 6A/Channel, 5 Output Channels Communication Mode: WiFi-IEEE 802./g/n 2. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The wireless controller WL 5 In 1 WiFi LED controller is an ideal choice for those looking for a versatile and reliable controller for LED strip lights. It is designed for single color/CCT/RGB/RGBW/RGB+CCT LED strip lights with its six-channel five-circuit connector for LED strips, WiFi-IEEE 802.11 b/g/n 2.4g protocol, and 4G control, the installer can easily control your LED strips from anywhere and anytime.
- Size: 124*38*23mm(L*W*H)
- Output: Max 15A, Max 6A/Channel, 5 Output Channels
- Communication Mode: WiFi-IEEE 802./g/n 2.
- Working Temperature: -20℃-+60℃
- Supports Third-Party Voice Control
- Smart Phone APP Control, No Need WiFi iBox
- wireless controller Manual
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12-24 V
- Light engine: RGB+CCT
- LumaCircuit model: LC-CTL-1VU1TQ
- Size: 124*38*23mm(L*W*H)
- Working Voltage: -24V
- Output: Max 15A, Max 6A/Channel, 5 Output Channels
- Communication Mode: WiFi-IEEE 802./g/n 2.
- Working Temperature: -20℃-+60℃
- Dimensions found: 124x38x23mm / 23mm
Control and installation
Use this product on the everyday Zigbee route. A Zigbee gateway or coordinator is required, and ZHA, Zigbee2MQTT and Tuya Gateway must be validated as separate paths on the exact driver, controller and firmware combination.
Plan the installation around Serviceable strip wiring, Power injection, Cabinet and display installation. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview
The wireless controller WL 5 In 1 WiFi LED controller is an ideal choice for those looking for a versatile and reliable controller for LED strip lights. It is designed for single color/CCT/RGB/RGBW/RGB+CCT LED strip lights with its six-channel five-circuit connector for LED strips, WiFi-IEEE 802.11 b/g/n 2.4g protocol, and 4G control, the installer can easily control your LED strips from anywhere and anytime. The installer can download the APP and control the LED lights through your smartphone directly, real-time data display, easily realize the personalized settings, and switch the various user interfaces for different LED strips, brightness, color temperature, RGB, RGBW, and RGB+CCT output mode, turn ON the light on your way home and turn OFF the lights when you forget. The wireless controller LED controller supports third-party voice control and is compatible with Amazon Alexa and Google Assistant, allowing you to control the LED lights with voice commands. The WiFi controllers support remote control, and the installer can control multiple controllers from one remote within a 30-meter range. The installer can connect countless WL controllers to set groups through a smartphone APP or a remote control. The controller can also create a synchronous effect by controlling multiple controllers with the same remote, dynamic mode, and speed.
Quick Links
wireless controller Manual
Specifications
Model
Size: 124*38*23mm(L*W*H)
Working Voltage: -24V
Output: Max 15A, Max 6A/Channel, 5 Output Channels
Communication Mode: WiFi-IEEE 802./g/n 2.
RF: 2.
Working Temperature: -20℃-+60℃
Supports Third-Party Voice Control
Smart Phone APP Control, No Need WiFi iBox
Works With Amazon Alexa, Google Assistant
Compatible With Single Color LED Strips, CCT Strip Lights, RGB Strips, RGBW Strips, RGB+CCT LED Strips
Compatible With T4, T3, T2, T1, 2. Remote Control
Group Setting And Group Control
Timer Function
Smartphone 4G Control At Any Time And Any Place
Auto-Transmitting Function
Auto-Synchronization Function

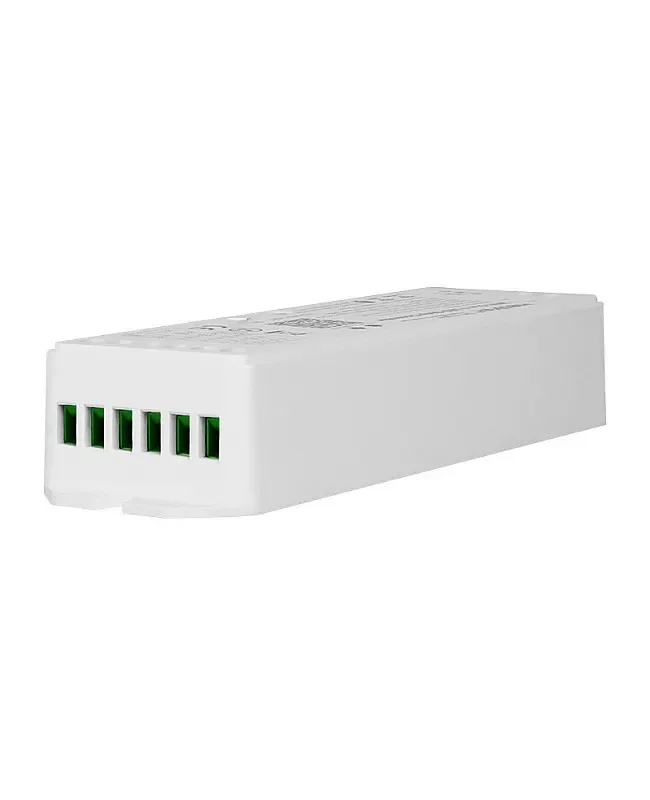

6 Channel 5 Circuits LED Strip Connector
Includes
1 * wireless controller WIFI LED Controller
Product resources
Technical documents
Typical applications
- Serviceable strip wiring
- Power injection
- Cabinet and display installation
