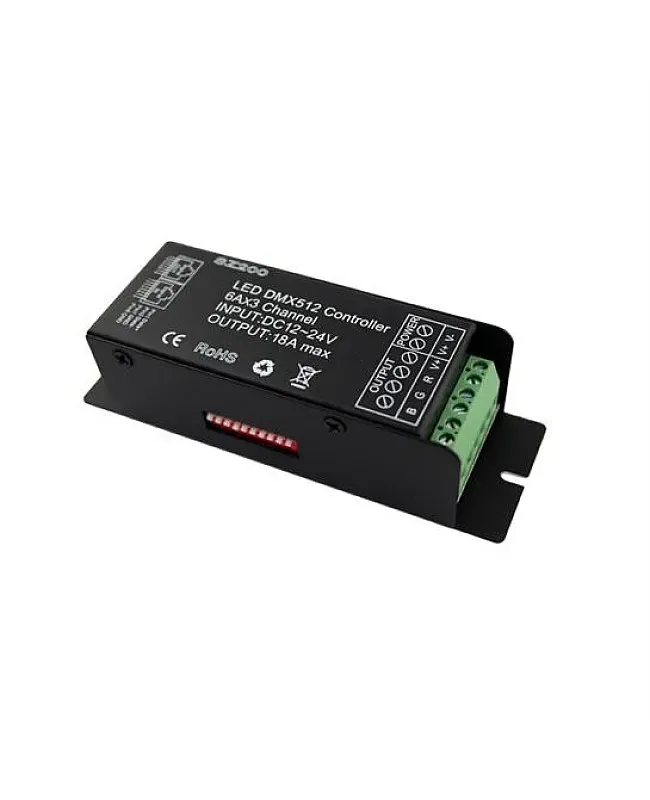

RF DMX 512 Light Decoder
LumaCircuit offers RF DMX 512 Light Decoder as a configurable LED controller for project builds. Typical applications include Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Size: 127mm*42mm*33mm(L*W*H) Working temperature: -20-60℃ Static power consumption: <1W The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering. Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM. For a project brief, include the selected voltage, dimensions, driver and control details so the configuration can be reviewed efficiently.
Product features
The following details summarize the physical characteristics and configuration options for this product. Use the selected variant and production drawing to finalize dimensions and electrical details.
- The DMX 512 light decoder with 20 keys RF remote, which adopts the advanced micro control unit, can receive the DMX-512 standard digital control signal, which is widely used internationally, and changes the signal into a PWM control signal to actuate the LED lights. It can also connect the DMX digital console to change the light or each dynamic effect. The DMX512 decoder works in DC12V or DC24V, with a 3-output channel design. The max output current of each channel is 6A.
- Size: 127mm*42mm*33mm(L*W*H)
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V-DC24V
- Output Gray: 256 Levels (RGB Each)
- Power: DC12V: ≤216W 24V: ≤432W
- Frequency Of RF Remote Control: 433.
Configuration and technical detail
To configure this product, specify the LumaCircuit SKU, required voltage, light engine, dimensions or cutout, driver/controller and finish or protection variant. The technical rows below summarize the physical and electrical details for this product family. Confirm the selected configuration against the production drawing before ordering.
- Input: 12 V / 24 V
- Light engine: RGB
- LumaCircuit model: LC-CTL-8UABL4
- Size: 127mm*42mm*33mm(L*W*H)
- Working temperature: -20-60℃
- Static power consumption: <1W
- Working Voltage: DC12V-DC24V
- Output Gray: 256 Levels (RGB Each)
- Power: DC12V: ≤216W 24V: ≤432W
- Output Channels: 3
- Current: ≤3*6A
- Frequency Of RF Remote Control: 433.
Control and installation
Pair this shared BOM component with the matched driver, wiring, mounting hardware and controller for the installation. The control boundary for this product is Matched driver, wiring or controller in the system BOM.
Plan the installation around Lighting system BOMs, OEM and ODM configurations, Replacement and service parts. Keep power, signal, heat path, access and service joints visible in the drawing.
Configuration support
Pricing follows the selected setup. Share the required voltage, dimensions or cutout, light engine, driver/controller and finish or protection option so the product can be specified accurately.
Product overview

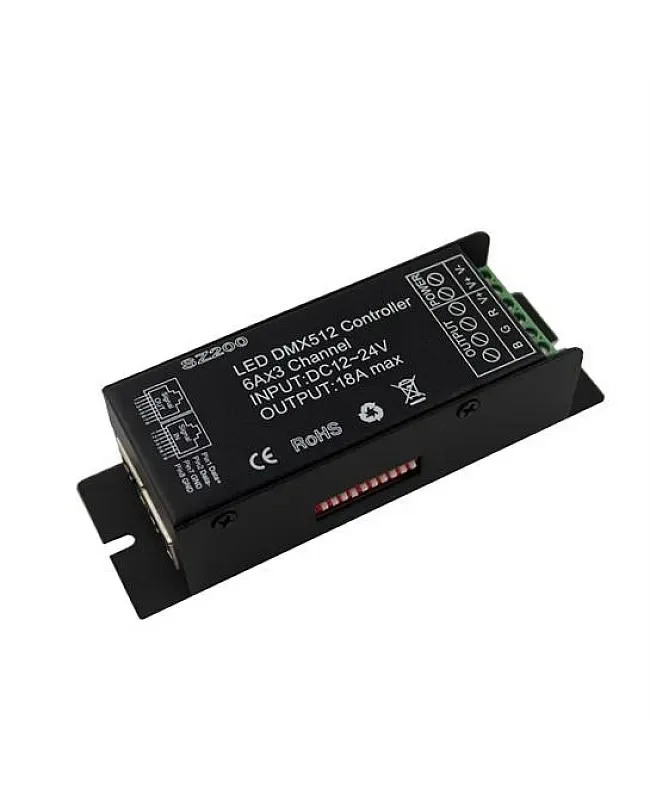

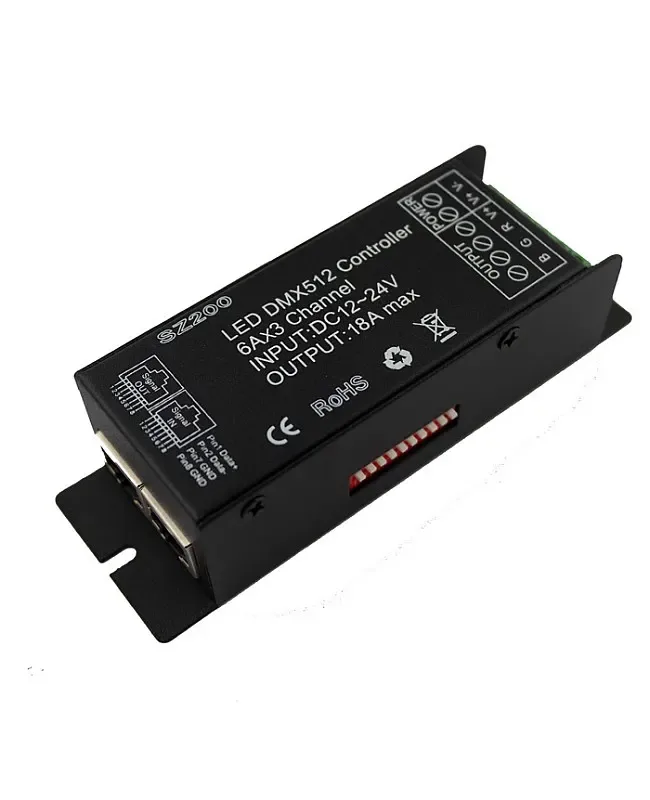

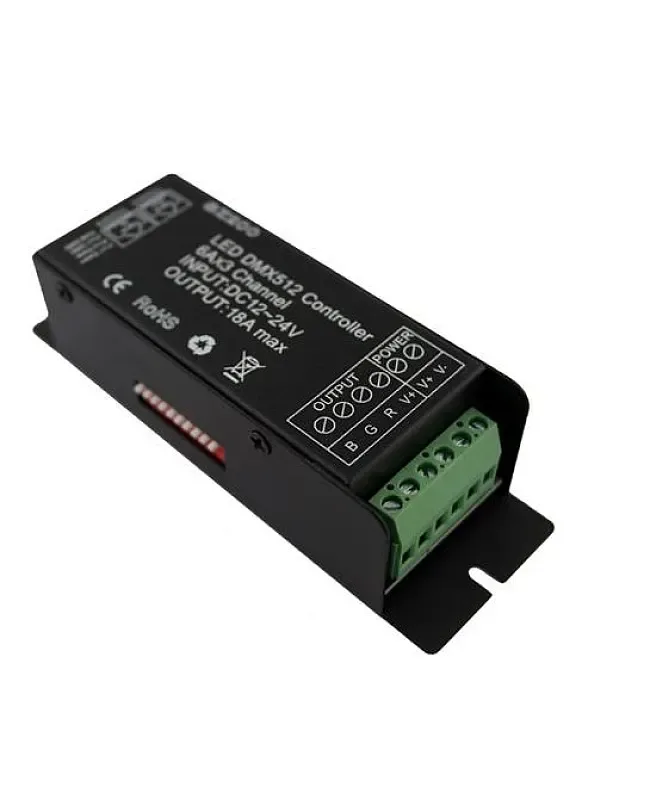

The DMX 512 light decoder with 20 keys RF remote, which adopts the advanced micro control unit, can receive the DMX-512 standard digital control signal, which is widely used internationally, and changes the signal into a PWM control signal to actuate the LED lights. It can also connect the DMX digital console to change the light or each dynamic effect. The DMX512 decoder works in DC12V or DC24V, with a 3-output channel design. The max output current of each channel is 6A. It has 20 20-key RF remote with 8 static colors and 4 dynamic modes. The installer can also adjust the brightness of the LED light and turn it on or off.
LED Decoder Specifications

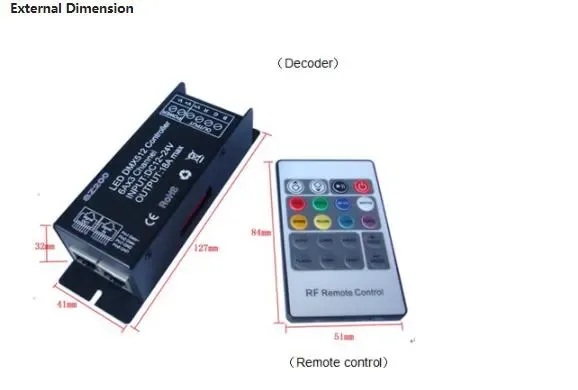

Size: 127mm*42mm*33mm(L*W*H)
Working temperature: -20-60℃
Static power consumption: <1W
Working Voltage: DC12V-DC24V
Output Gray: 256 Levels (RGB Each)
Power: DC12V: ≤216W 24V: ≤432W
Output Channels: 3
Current: ≤3*6A
Frequency Of RF Remote Control: 433.
Frequency Of PWM Signal Output: 5.2 KHz

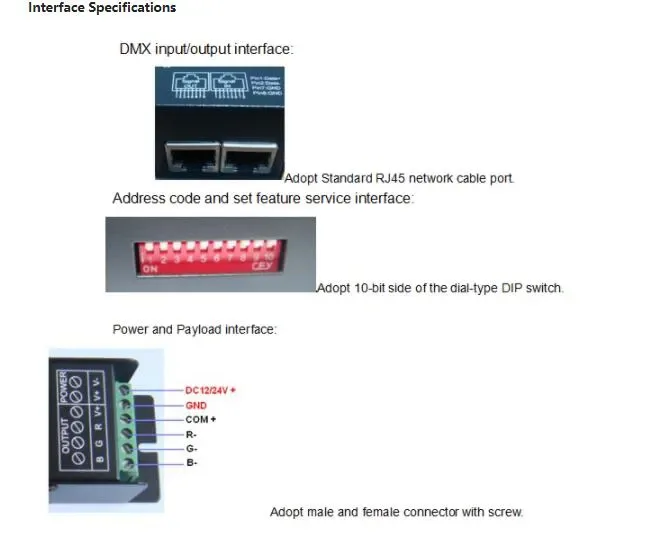

Adopts Standard Network Cable Port

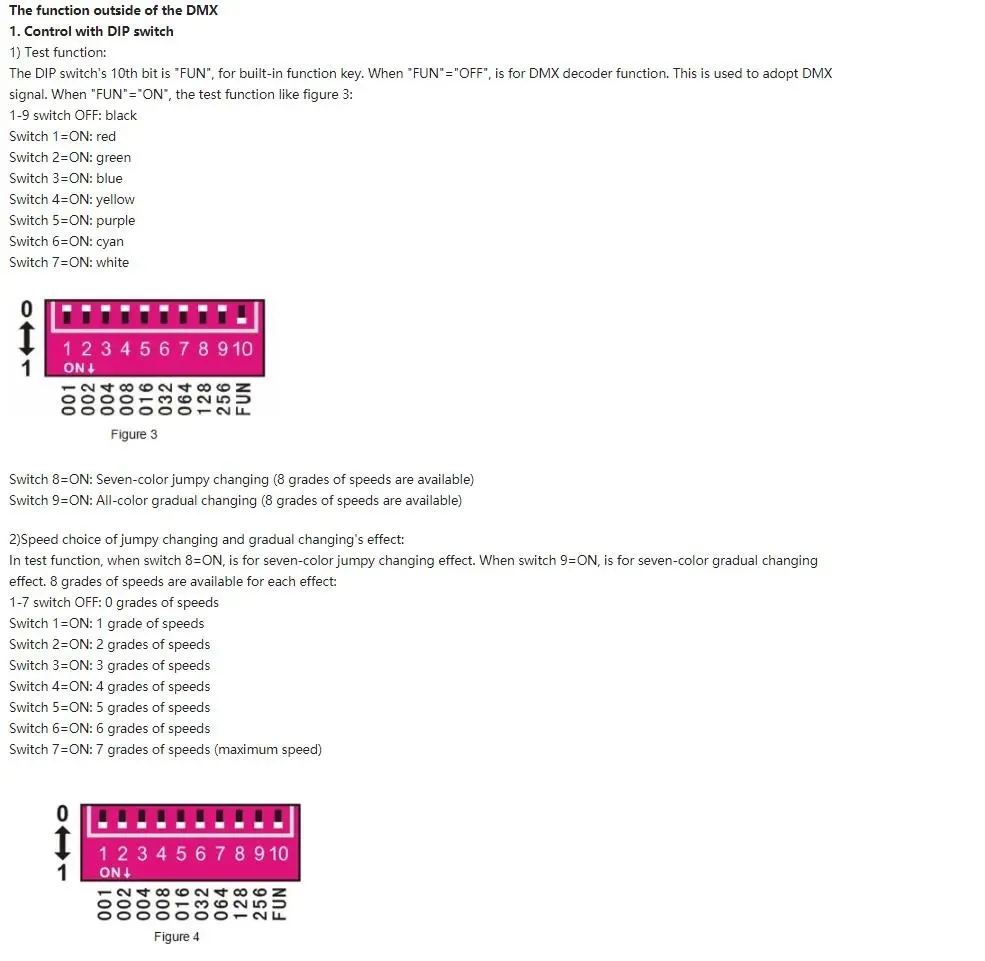

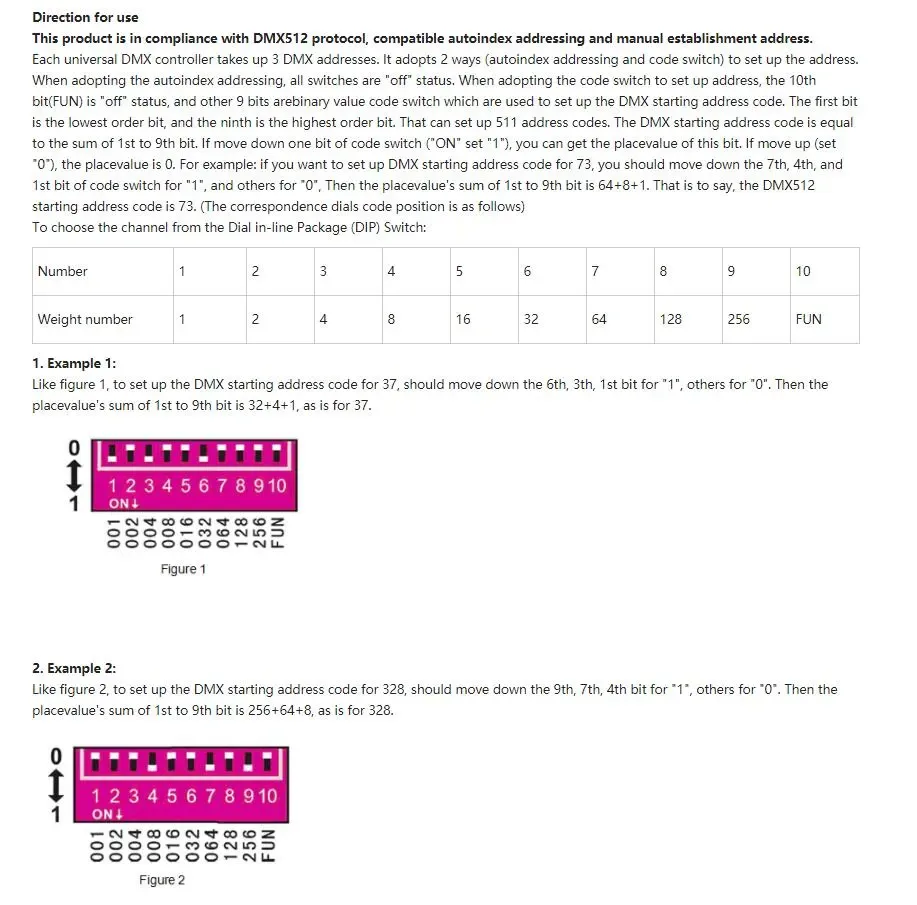

Adopts 10-Bit Side Of Dial-Type DIP Switch

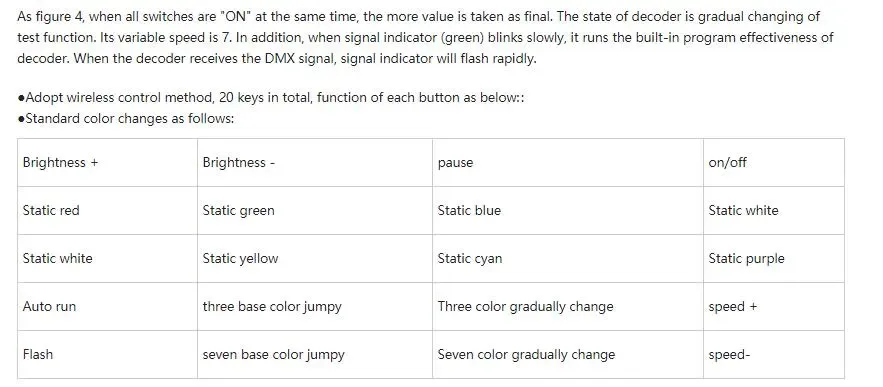

20 Keys RF Remote Control Included
10 Modes In Total, 8 Static Colors And 6 Dynamic Modes
Weight: 200g
Remote Specifications
Working Temperature: -20℃-60℃
Size: 85*51*6mm(L*W*H)
Working Voltage: DC3V
Standby Current: <3.
Working Current: <
Standby Power: 9.
Working Power
RF Frequency: 433.
RF Distance: ≤20m
Weight: 30g
Includes

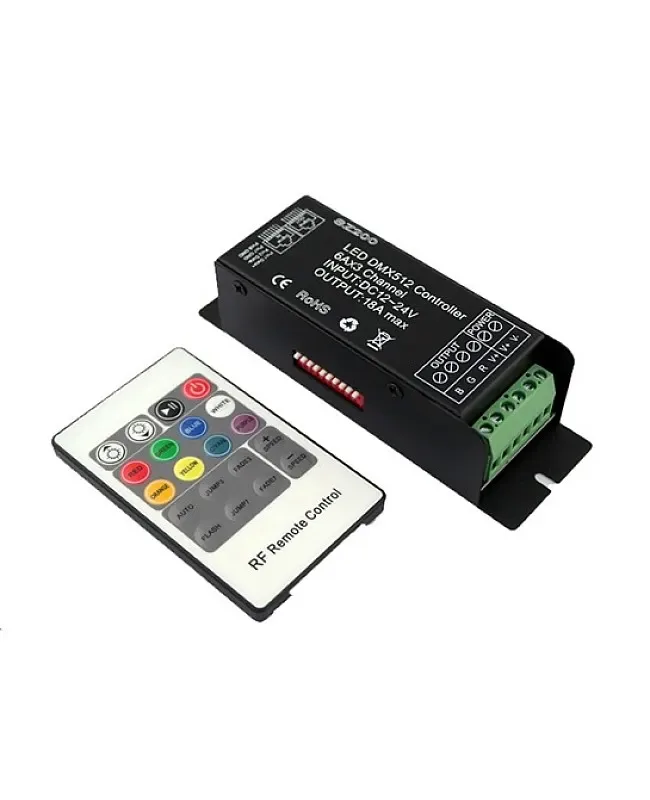

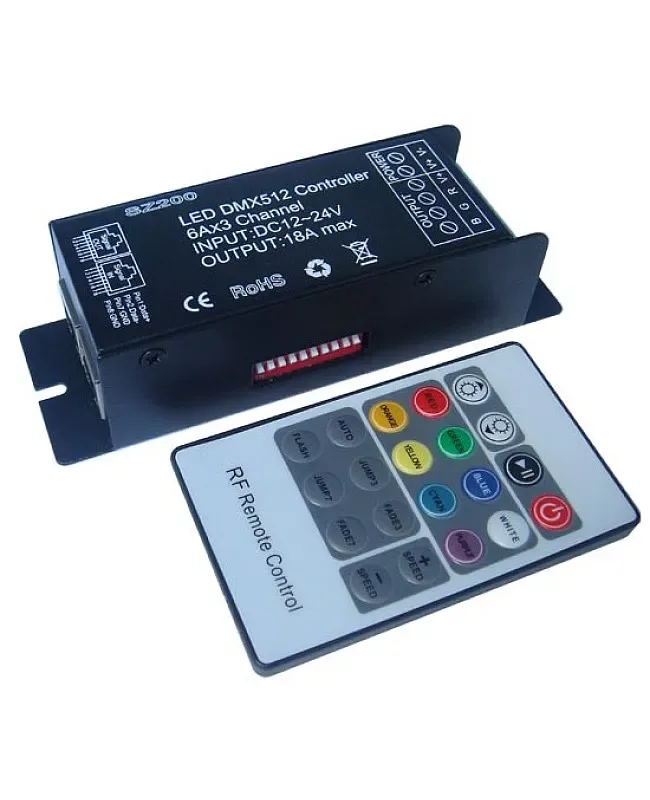

1 * DMX 512 Light Decoder
1 * 20 Keys RF Remote

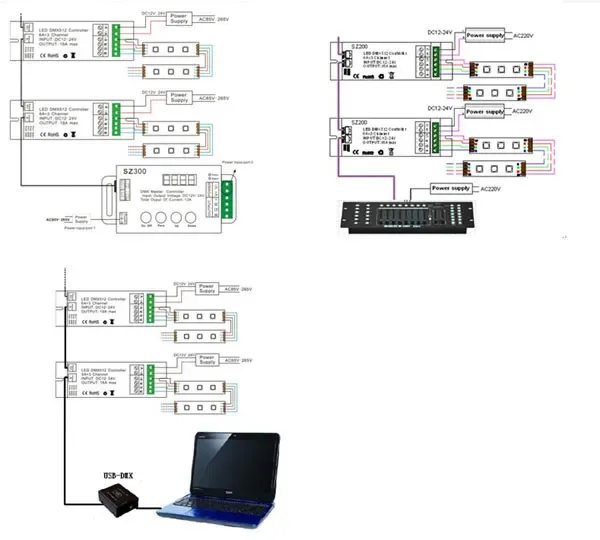

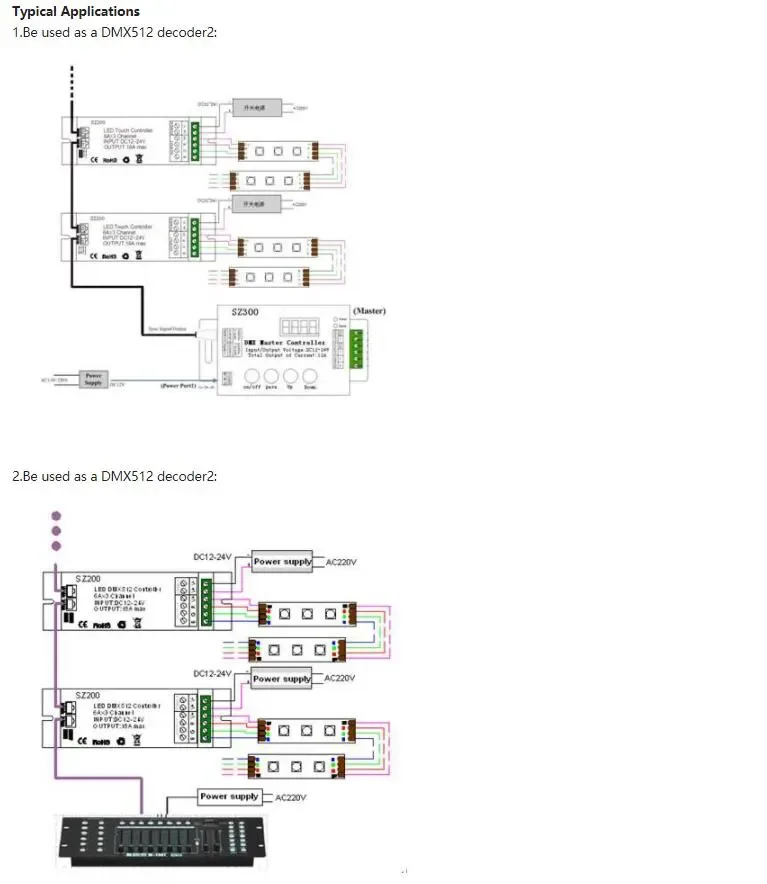

Typical applications
- Lighting system BOMs
- OEM and ODM configurations
- Replacement and service parts
